Can a Custom Excavator Slewing Bearing Reduce Machine Downtime?
For any fleet owner, time on site is money, and the excavator slewing bearing mechanism sits at the heart of every excavator. When the upper structure stops turning smoothly, digging stops, schedules slip, and repair bills grow. A well-matched excavator slewing bearing keeps the upper structure turning smoothly shift after shift, which helps keep projects on schedule. At Heng Guan Bearing, we don’t work to a generic catalog size; we work to actual operating circumstances to build a personalized solution. Read on to find out how the appropriate design can keep your equipment productive.
How Does a Custom Excavator Slewing Bearing Match Different Digging Loads?
A conventional bearing is not necessarily designed to take the change of force on the swing mechanism on each dig cycle. A bespoke excavator slewing bearing is built to suit the tonnage of the machine, bucket size, operating angle, and soil conditions, with a raceway geometry, gear teeth, and bolt pattern that match the structure exactly.
The Heng Guan Bearing engineers are able to select single-row four-point contact ball, double-row ball, and triple-row roller constructions. The diameters are available from 50 mm to 10,000 mm, and the accuracy grades are from P0 to P4. As a veteran excavator slewing bearing supplier, we customize every design to your digging loads, so the machine swings with confidence. Below is a table of common pairs.
| Machine Class | Suggested Structure | Key Benefit |
|---|---|---|
| Mini excavator (1–6 t) | Single row four-point ball | Compact, smooth swing |
| Small and medium excavator (6–30 t) | Single row four-point ball (standard) | Reliable swing with a compact axial height |
| Large excavator (30–90 t) | Double row ball | Balanced capacity |
| Ultra-large mining excavator (90 t+) | Triple row roller | High rigidity and maximum load capability |
Can Precision Manufacturing Extend Excavator Slewing Bearing Service Life?

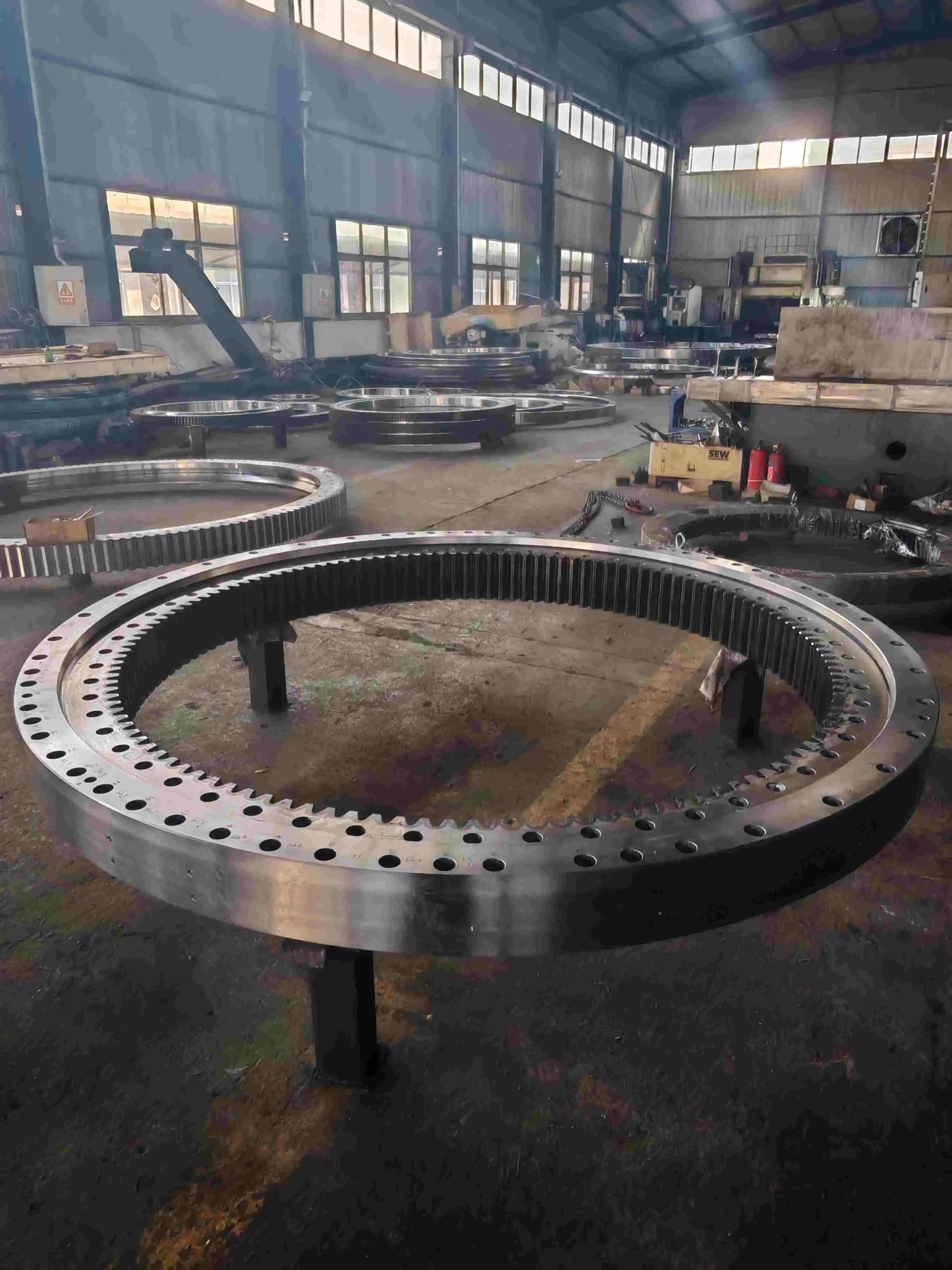

An excellent design is forever because of precision. Luoyang, the city of China’s “Bearing Town”, is the location of Heng Guan Bearing’s processing facility, where every step of manufacturing is well developed. From the earliest phase, our professional designers and competent manufacturing workers manage raceway correctness, heat treatment, and gear quality by using modern technology and testing instruments. Raceways are induction hardened to HRC 55-60 to a depth of 2.5-5 mm, and gear teeth are HRC 45-50, so wear is equal over the complete rotation.
If the load is uniformly distributed across the rolling parts, then the bearing will revolve with less friction and will last many working hours. This attention to detail implies longer service intervals and more consistent machine output for clients looking for a reliable excavator slewing bearing provider. The service life of a rotary vane compressor is normally 8000-15000 working hours under normal operating conditions and regular lubrication and maintenance. Root Built Quality. Supporting Your Up-Time Season After Season.
Technical Specifications
| Parameter | Range/Value |
|---|---|
| Inner Diameter | 500 mm – 5,000 mm (custom sizes available) |
| Outer Diameter | 600 mm – 5,500 mm |
| Height | 100 mm – 500 mm |
| Precision Grades | P0, P6, P5, P4 |
| Bearing Ring Material | 42CrMo, 50Mn special alloy steel |
| Rolling Elements | GCr15SiMn high-purity bearing steel |
| Raceway Hardness | HRC 55–60, induction hardened, depth 2.5–5 mm |
| Gear Teeth Hardness | HRC 45–50 |
| Cage Options | Brass, steel, or engineering plastic (Nylon 6/66) |
| Seals | Double-lip nitrile rubber or fluororubber |
| Operating Temperature | -30°C to +60°C (standard seals) |
| Gear Options | Internal or external gear |
| Standards | ISO, DIN, GB |
What Warning Signs Indicate That an Excavator Slewing Bearing Needs Replacement?
Operators might look for a few basic cues to prepare ahead. A strange noise while swinging, a rather rough rotation, oil that doesn't seem right or slight variations in the tightness of bolts are all good signs that it's time for a check. If you act on these signs early, you may arrange a replacement during scheduled maintenance instead of an unplanned halt. If you notice any of these signs, send photos and machine details to mia@hgb-bearing.com, and our team will help you identify the matching excavator slewing bearing provider quickly. The table below summarizes what to watch for.
| Sign | What It Suggests | Recommended Action |
|---|---|---|
| Swing noise | Raceway wear | Schedule inspection |
| Rough rotation | Clearance change | Check and re-grease |
| Loose bolts | Mounting fatigue | Re-torque or replace |
Regular upkeep catches most of these problems before they become failures. The schedule below follows our recommended maintenance practice.
| Interval | Action Required |
|---|---|
| First 100 hours | Re-tighten all mounting bolts after bedding-in. |
| Every 250–500 hours | Re-grease normally. Shorten to every 100–250 hours in dusty, wet, or high-load conditions. |
| Every 500 hours | Inspect seals for wear, cracking, or grease leakage. |
| Every 1,000 hours or yearly | Check bolt torque against the specified values. |
Custom Bearing Solutions for Reduced Downtime and Lower Maintenance Costs
The best approach to minimize downtime is to have a bearing built for your machine. We focus on the client; thus, each excavator slewing bearing may be optimized in size, tooth profile, and mounting holes. Manufacturing is flexible and according to your timetable. If the original designs are not available, our experts may reverse engineer the part using your old bearing or measurements. Standard sizes are sent in 2-3 weeks; bespoke combinations take 4-6 weeks depending on complexity.
Heng Guan Bearing is a professional excavator slewing bearing manufacturer. We provide high-quality goods at low prices, and our bearings are already trusted all over the world in China, Europe, America, and Asia. We provide replacements for major manufacturers like Caterpillar, Komatsu, Hitachi, Volvo, Liebherr, Doosan, Hyundai, Sany, and Kubota. A well-fitted bearing means fewer disruptions, easier maintenance planning, and a greater return on every piece of equipment you own. These are examples of machine models that we support.
| Excavator Model | Outer Diameter (mm) | Inner Diameter (mm) | Total Height (mm) | Teeth | Weight (kg) |
|---|---|---|---|---|---|
| PC78UU | 852 | 627 | 75 | 80 | 105 |
| EX120-1 | 1195 | 962 | 86 | 98 | 181 |
| CAT 320D | 1316 | 1081 | 105 | 110 | 235 |
| PC200-8 | 1321 | 1080 | 100 | 96 | 240 |
| R220LC-9s | 1327 | 1083 | 110 | 92 | 267 |
| CAT 325D | 1495 | 1164 | 110 | 85 | 395 |
| PC300-6 | 1532 | 1235 | 125 | 90 | 399 |
| PC400-6 | 1563 | 1240 | 152 | 84 | 516 |
Share your requirements with us, and we will help you build a smoother, more productive swing system.
Conclusion
A bespoke excavator slewing bearing is tailored to meet digging loads, benefits from precise production, and offers early warning indications for scheduled servicing. With Heng Guan Bearing, you receive a tailor-made solution to keep machinery running and budgets in check.
FAQ
Q: What sizes does Heng Guan Bearing offer?
A: Diameters range from 50 mm to 10,000 mm, with custom sizes available on request.
Q: Which accuracy grades are available?
A: P0, P6, P5, and P4.
Q: Can an excavator slewing bearing be customized?
A: Yes. Size, gear teeth, and mounting holes can be adjusted to your machine, and reverse engineering is available when original drawings are missing.
Q: How can I plan replacement in advance?
A: Watch for swing noise, rough rotation, and bolt changes, then arrange an inspection.
Q: Which industries use your bearings?
A: Construction, mining, port, lifting, wind power, and more.
Q: What is the typical delivery time?
A: Standard sizes ship in about 2–3 weeks. Custom configurations take about 4–6 weeks, depending on complexity and production schedule.
Ready to Reduce Downtime? Contact Us Today
Contact Heng Guan Bearing for a custom solution:
- Bearings from 50 mm to 10,000 mm, P0–P4 precision
- ISO 9001-certified production, custom sizing, and reverse engineering support
- Engineering team for load analysis, bearing selection, and installation guidance
- Proven solutions for mini, medium, large, and mining excavators
Send your machine model and drawings to mia@hgb-bearing.com, and our engineers will recommend the right excavator slewing bearing for you. Let's keep your fleet moving together.
References
1. Harris, T. A., & Kotzalas, M. N. (2006). Essential Concepts of Bearing Technology. CRC Press.
2. Harris, T. A., & Kotzalas, M. N. (2006). Advanced Concepts of Bearing Technology. CRC Press.
3. International Organization for Standardization. (2007). ISO 281: Rolling Bearings – Dynamic Load Ratings and Rating Life.
4. Budynas, R. G., & Nisbett, J. K. (2014). Shigley's Mechanical Engineering Design. McGraw-Hill.
5. Hamrock, B. J., Schmid, S. R., & Jacobson, B. O. (2004). Fundamentals of Machine Elements. McGraw-Hill.
6. Rothe Erde. Slewing Bearings Technical Catalogue. Thyssenkrupp Rothe Erde.
