Excavator Slewing Bearing – High-Performance Rotating Solution for Heavy Machinery

Product Details

As a professional Slewing Bearing supplier, Luoyang Hengguan Bearing Technology delivers high-performance excavator slewing solutions for heavy machinery worldwide. Our slew ring excavator systems are precision-engineered to provide reliable 360-degree rotation under extreme operating conditions. Whether you need a standard excavator slewing bearing for a 20-ton machine or a custom digger slew ring for specialized applications, our team delivers quality you can trust.We mainly supply excavator slewing bearings matching the following machine brands:
Carter, Komatsu, Liebherr, Volvo, Hitachi, Doosan, Jezebel, Sumitomo, Sany, LiuGong, Hyundai, Kubota, etc.（e.g. CAT 320, Komatsu PC200, Hitachi EX200）

When your excavator demands dependable rotation under heavy loads, our excavator slewing bearing delivers the performance required. This critical component connects your machine's upper structure to the undercarriage, enabling smooth excavator slewing while supporting extreme axial, radial, and overturning forces. Built for durability in the toughest working conditions, our slew ring excavator systems handle everything from digging operations to material handling with precision and reliability.

We fabricate three primary arrangements to coordinate your application prerequisites:

• Single-row four-point contact ball design – Ideal for standard digger slew ring applications in mini to medium excavators

• Double-row ball structure – Provides enhanced load capacity for large excavators requiring higher safety factors

• Triple-row roller configuration – Delivers maximum load-bearing capability for ultra-large mining excavators

Each excavator slewing plan highlights precision-engineered raceways, case-hardened rolling components, and robust fixing frameworks that keep contaminants out while retaining lubrication.

Material Excellence

Our position as a leading slewing ring bearing manufacturers is built on superior material selection. We use 42CrMo and 50Mn alloy steel for bearing rings, combined with GCr15SiMn high-purity bearing steel for rolling elements. This material combination ensures excellent wear resistance and structural integrity. Raceways undergo induction hardening to HRC 55-60 with a depth of 2.5-5mm, while Gear teeth are heat-treated to HRC 45-50 for optimal strength and durability.

Why Choose Us?

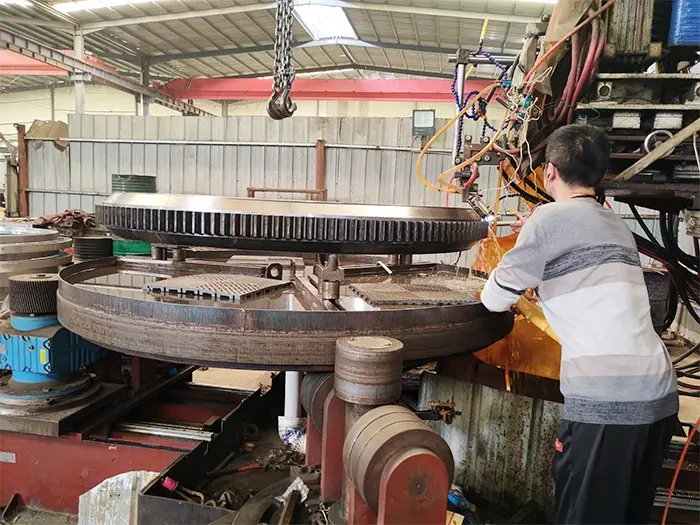

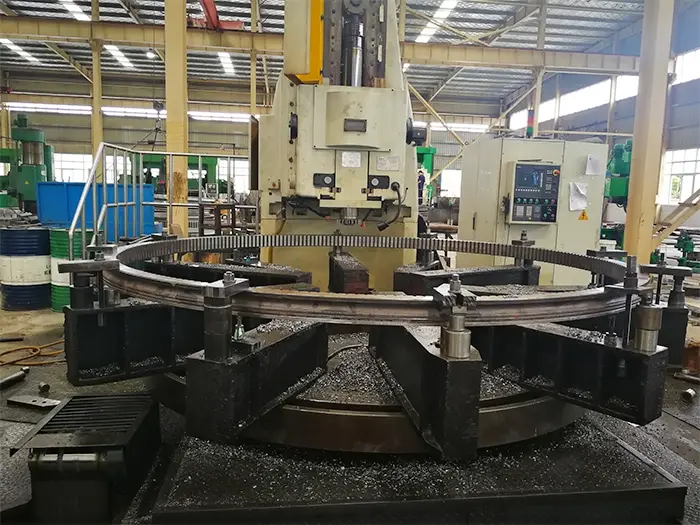

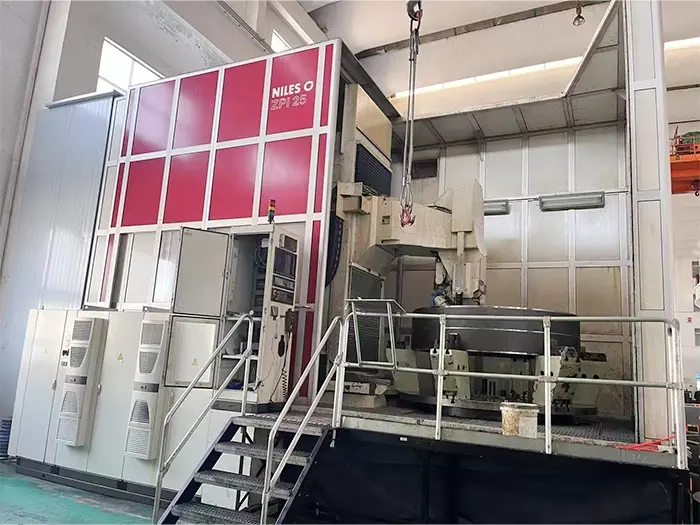

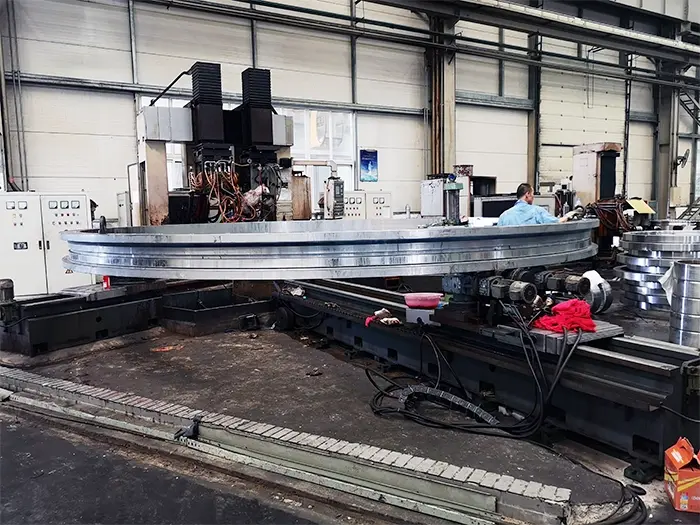

Luoyang Hengguan Bearing Technology Company incorporates over 20 years of precision manufacturing expertise into every excavator slewing bearing we produce. Located in Luoyang, the heart of China's bearing industry, our factory houses advanced CNC vertical machining centers, quenching machines, gear shapers, and grinding equipment—enabling large-scale production of high-precision slew ring excavator components

You will benefit from our comprehensive production capabilities:

Manufacturing Range: We produce excavator slewing bearings with diameters ranging from 50 mm to 10,000 mm, serving applications from mini excavators to ultra-large mining machinery. Precision grades include P0, P6, P5, and P4 to meet your exact specifications. Every digger slew ring undergoes rigorous dimensional measurement, vibration testing, and full traceability from raw material to finished product.

Customization Services: As experienced slewing ring bearing manufacturers, our 50-person R&D team provides professional consulting, product design, and non-standard customization services. Need to replace a slew ring excavator component without original drawings? We offer old part measurement and reverse engineering services to create exact-match solutions.

Global Quality Standards: ISO 9001 certification and RoHS-compliant materials ensure every excavator slewing bearing meets international requirements. We have served customers in over 50 countries, including the United States, Germany, the United Kingdom, Australia, and throughout the Middle East. This global business experience allows us to better understand the diverse needs of different application areas, from compact mini digger slew ring users to heavy slew ring excavator operators.

Flexible Cooperation: We support OEM/ODM cooperation models and maintain standard product inventory for fast delivery. Our engineering team provides selection guidance, installation support, and comprehensive after-sales service for every digger slew ring we supply.

Technical Specifications

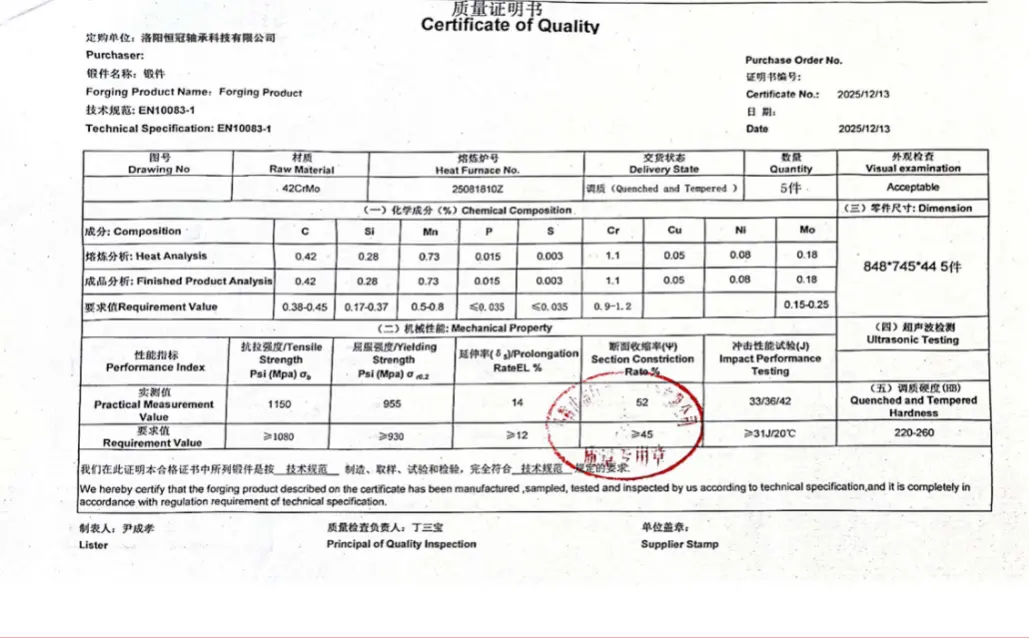

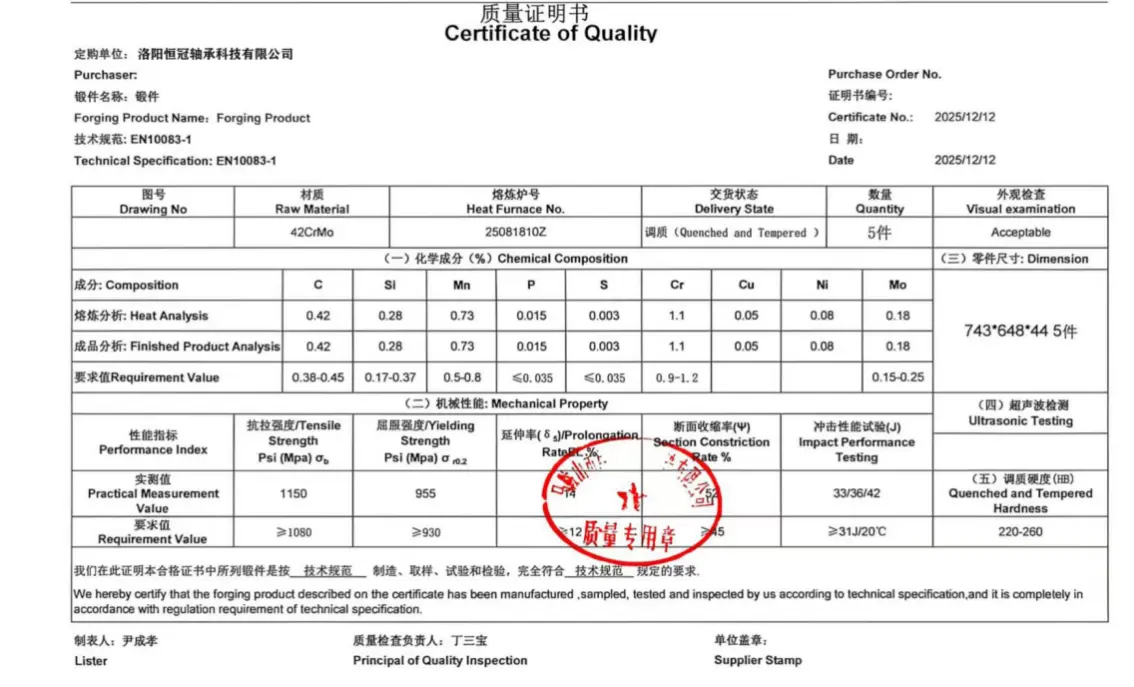

Certification

Features and Benefits

Multi-Point Contact Design: Our Gothic arch raceway profile creates multiple contact points, distributing load evenly across the excavator slewing bearing. This reduces contact stress and extends service life under combined load conditions.

Integrated Gearing: Precisely machined internal or external gears mesh perfectly with your slew ring excavator drive pinion. Optimized hardness ensures both wear resistance and toughness for reliable power transmission over thousands of operating hours.

Advanced Sealing System: Double-lip seals made from imported nitrile rubber or fluororubber effectively block dust, mud, and moisture while preventing lubricant leakage. This sealing performance is critical for digger slew ring applications in mining, construction, and marine environments.

Compact Structure: Our excavator slewing design minimizes axial space requirements, enabling more efficient machine layout. You get the required load capacity without sacrificing bearing height.

Smooth Rotation: Precision manufacturing and carefully designed raceways minimize friction and maintain smooth excavator slewing motion under load. This improves operator control accuracy and reduces drive motor power requirements.

Applications

Our slew ring excavator bearings serve machinery across the complete size spectrum:

• Mini Excavators (1-6 tons): Compact single-row digger slew ring designs for landscaping and utility work

• Small & Medium Excavators (6-30 tons): Standard four-point contact excavator slewing bearing configurations for general construction

• Large Excavators (30-90 tons): Double-row ball slew ring excavator systems for heavy earth-moving and demolition

• Ultra-Large Excavators (90+ tons): Triple-row roller excavator slewing bearings for mining and quarry operations

• Special Excavators: Custom digger slew ring solutions for marine, demolition, and material handling variants

Beyond excavators, our excavator slewing bearing technology supports crawler cranes, port machinery, and other rotating platforms requiring high load capacity in compact installations.

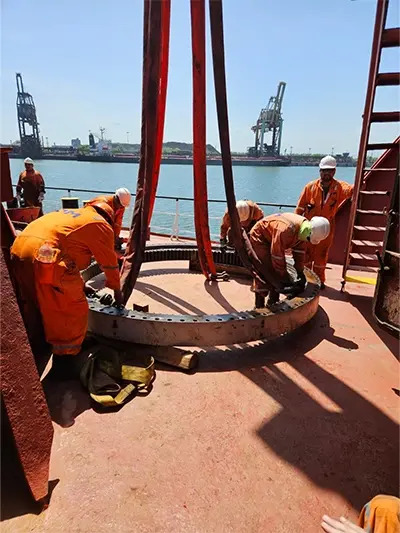

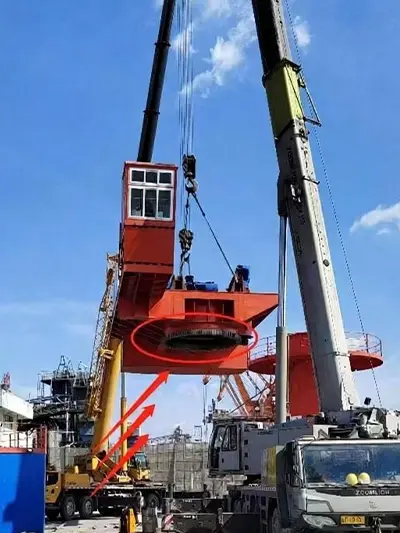

Installation Guide

Pre-installation check: Verify that the part number matches your excavator model. Check the arrangement, diameter, and gear specifications of the mounting holes. Inspect the sealing surfaces; if stored for more than six months, apply a protective coating.

Mounting surface preparation: Thoroughly clean all mounting surfaces. Check for flatness; the deviation should not exceed 0.1 mm per meter. Remove burrs from the bolt holes and ensure the threads are in good condition.

Positioning: Use lifting equipment with a rated load capacity that meets the requirements. Adjust the direction of the gear teeth according to the manufacturer's specifications. Ensure even circumferential clearance before tightening.

Bolt tightening: Tighten the bolts in a diagonal sequence in three stages: 30%, 70%, and 100% of the specified torque. Use a calibrated torque wrench. Retighten after the first 100 hours of operation.

Lubrication: Fill grease channels with specified lubricant before operation. Rotate bearing several times to distribute grease evenly across raceways.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

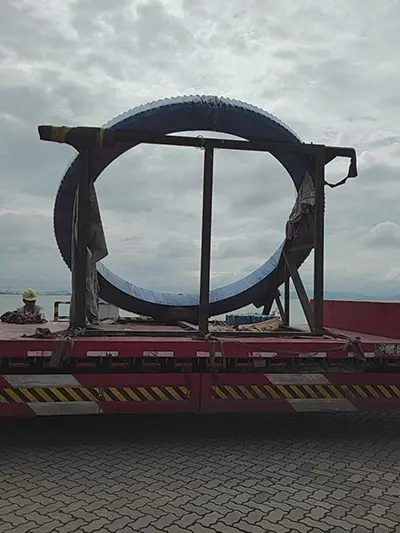

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication Schedule: Grease the Excavator Slewing Bearing every 250-500 operating hours under normal conditions. Increase frequency to every 100-250 hours in dusty, wet, or high-load environments. Use only recommended greases compatible with seal materials.

Review Schedule: Check for unusual clamor or vibration amid operation. Screen revolution smoothness and equip work quality. Review seals for harm or oil spillage each 500 hours.

Bolt Retorque: Check mounting jolt torque each 1000 hours or yearly. Retighten to determination if settlement occurs.

Contamination Control: Keep uncovered surfaces clean. Repair harmed seals quickly to avoid grating defilement of raceways.

Operating Limits: Dodge stun loads surpassing plan evaluations. Work inside indicated temperature run (-30°C to +60°C for standard seals).

FAQ

Q: How do I select the adjust slewing bearing for my excavator?

A: Coordinate the bearing sort to your excavator's working weight and obligation cycle. Give us with your machine show, working conditions, and stack prerequisites. Our engineers will calculate loads and suggest the ideal configuration.

Q: What's the commonplace benefit life?

A: With legitimate grease and upkeep, anticipate 8,000-15,000 working hours depending on stack seriousness and natural conditions. Normal assessment expands benefit life significantly.

Q: Can you supply heading for more seasoned excavator models?

A: Yes. We give ancient item mapping administrations. Send us the harmed bearing or nitty gritty estimations, and we'll make a substitution indeed without unique drawings.

Q: What's the lead time for custom sizes?

A: Standard sizes dispatch inside 2-3 weeks. Custom setups ordinarily require 4-6 weeks depending on complexity and current generation schedule.

Q: Do you give establishment support?

A: Our designing group offers establishment direction remotely. For expansive ventures, we can organize on-site specialized back to guarantee legitimate establishment and commissioning.

Contact Us

Ready to upgrade your Excavator Slewing Bearing's rotating performance? Contact our technical team at mia@hgb-bearing.com for expert guidance, custom solutions, and competitive quotations tailored to your application requirements.
