No Gear Slewing Bearing

No Gear Slewing Bearing - Precision Rotation Solutions

Product Details

When your application demands reliable rotational motion without external Gear drive systems, a No Gear Slewing Bearing becomes your ideal solution. This specialized bearing type consists of two concentric rings with integrated rolling elements, designed to handle combined loads in all directions while enabling smooth, continuous rotation. Unlike geared variants, the product offers you greater design flexibility, reduced maintenance requirements, and simplified integration into your equipment. At Luoyang Heng Guan Bearing Technology, we manufacture these bearings using precision machining processes and high-grade materials to ensure consistent performance under demanding operating conditions.

Our gearless slewing bearings are accessible in numerous basic arrangements to meet your specific load and space requirements.. You can select from single-row four-point contact ball plans for compact applications, double-row ball bearings for increased load capacity, three-row roller setups for most extreme unbending nature, or cross-roller sorts when you require ideal stack dispersion in restricted spaces.

Each bearing experiences strict dimensional review and raceway surface wrapping up to ensure smooth turn and amplified benefit life. We customize mounting gap designs, seal sorts, and surface medications based on your hardware specifications.

Why Choose Us?

No Gear Slewing Bearing

Based in Luoyang—China's bearing fabricating hub—we bring over 20 years of specialized involvement in slewing bearing generation. Our building group gets it the critical mechanics and load distribution fundamental to bearing performance

No Gear Slewing Bearing

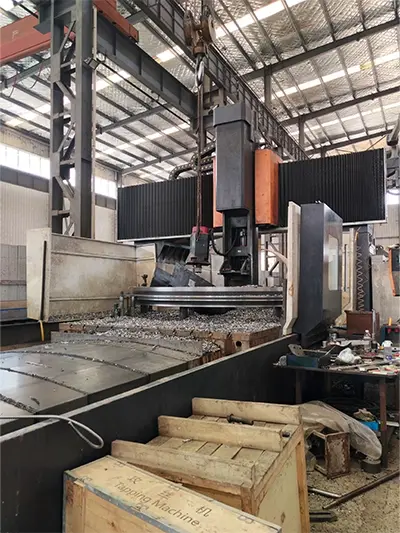

Our office works CNC vertical machines, precision quenching machines, and progressed pounding gear competent of fabricating orientation from 50mm to 10,000mm breadth. We keep up resilience grades from P0 to P4 depending on your accuracy requirements.

No Gear Slewing Bearing

ISO 9001 certified generation guarantees each bearing meets dimensional exactness and fabric determinations. RoHS compliance ensures you get ecologically mindful items reasonable for worldwide markets.

No Gear Slewing Bearing

We give specialized meeting, item plan help, and non-standard bearing customization. Our group can work from your hardware determinations or reverse-engineer existing orientation to provide correct replacements.

No Gear Slewing Bearing

Our orientation right now work in hardware over 50+ nations, counting establishments in the Joined together States, Germany, Australia, and all through the Center East. This trade involvement implies we get it universal quality desires and documentation necessities.

Technical Specifications

Certification

Features and Benefits

No Gear Slewing Bearing

The absence of integral gears reduces your system complexity and allows you to implement alternative drive mechanisms such as friction drives, external drive wheels, or direct motor coupling—based on your torque and speed requirements.

Multi-Directional Load Handling

The raceway geometry enables simultaneous support of axial, radial, and moment loads. This eliminates the need for multiple bearing installations in your rotational assembly.

Compact Cross-Section

Optimized rolling element arrangement delivers high load ratings within minimal radial and axial space. You gain more room for other mechanical components in space-constrained designs.

Low Friction Coefficient

Precision-ground raceways and carefully selected rolling element geometry minimize rotational resistance. This reduces your drive motor requirements and energy consumption during operation.

Customizable Mounting Interface

We machine bolt hole patterns according to your flange dimensions and bolt circle requirements. Standard or metric threading options ensure compatibility with your existing equipment.

Enhanced Sealing Protection

Integrated seals prevent contaminant ingress while retaining lubrication. This extends maintenance intervals and improves reliability in dusty or humid environments.

Applications

Our No Gear Slewing Bearing serves diverse industrial and specialized equipment:

Development and Fabric Handling

Small excavators, ethereal work stages, forklift rotators, and loader rotational components advantage from the compact plan and dependable stack support.

Medical Imaging Equipment

CT scanners and X-ray gantry revolution frameworks require the smooth, vibration-free movement these heading give for exact demonstrative imaging.

Industrial Automation

Robotic arms, welding positioners, and revolving ordering tables utilize these orientation for exact precise situating and persistent revolution cycles.

Renewable Vitality Systems

Solar following clusters utilize gearless slewing orientation to alter board introduction all through the day with negligible support requirements.

Entertainment and Display

Stage apparatus, turning stages, and presentation turntables depend on smooth, calm revolution for proficient presentations.

Installation Guide

Pre-Installation Inspection

Verify bearing measurements coordinate your hardware determinations. Check mounting surfaces for levelness inside 0.1mm per meter. Evacuate all defensive coatings and clean mounting flanges.

Alignment Procedure

Position the bearing on the lower mounting surface. Guarantee the jolt gap design adjusts accurately. Utilize arrangement pins if given in your plan to avoid revolution amid assembly.

Bolt Fixing Sequence

Apply jolts in a star design, continuously expanding torque to the indicated esteem. This avoids mutilation of the bearing rings. Suggested torque values depend on jolt review and diameter—consult our building group for particular requirements.

Initial Lubrication

Fill oil areolas concurring to the bearing volume determination. Pivot the bearing a few transformations to disperse oil equally over the raceway surfaces.

Final Checks

Measure rotational torque to confirm appropriate preload. Check for smooth turn without official or over the top resistance. Review seal contact for appropriate engagement.

​​​​​​​

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

​​​​​​​

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication Schedule

Relubricate each 100 working hours in ordinary conditions, or more as often as possible in dusty situations. Utilize lithium-based oil with NLGI Review 2 consistency unless something else specified.

Periodic Inspection

Every 500 hours, check mounting jolts for legitimate torque maintenance. Review seals for harm or wear. Tune in for bizarre clamor demonstrating raceway harm or insufficient lubrication.

Cleaning Procedures

Remove amassed flotsam and jetsam from outside surfaces utilizing compressed discuss or delicate brushes. Dodge high-pressure washing straightforwardly on seal regions, which may drive contaminants into the bearing.

Storage Recommendations

Store unused orientation on a level plane in dry conditions underneath 60% mugginess. Keep up defensive coatings and wrapping until establishment to anticipate corrosion.

FAQ

Q: What's the distinction between adapted and gearless slewing bearings?

A: Gearless adaptations have no fundamentally teeth on the rings, giving you flexibility to actualize custom drive frameworks. Adapted heading incorporate machined teeth for coordinate pinion engagement.

Q: How do I select the adjust bearing sort for my application?

A: Consider your stack size, speed necessities, accessible mounting space, and working environment. Our designing group can survey your details and prescribe the ideal configuration.

Q: Can you make heading to non-standard dimensions?

A: Yes, we routinely create custom orientation based on client drawings or test units. We can alter measurements, jolt designs, and seal courses of action to coordinate your requirements.

Q: What's your commonplace generation lead time?

A: Standard arrangements transport inside 2-3 weeks. Custom plans require 4-6 weeks depending on estimate and complexity.

Q: Do you give establishment support?

A: We offer specialized direction, establishment strategies, and torque details with each bearing. On-site help can be organized for basic establishments.

Contact Us

For technical specifications, custom quotations, or application support regarding our No Gear Slewing Bearing products, reach out to our engineering team at mia@hgb-bearing.com. We're ready to help you find the right solution.
