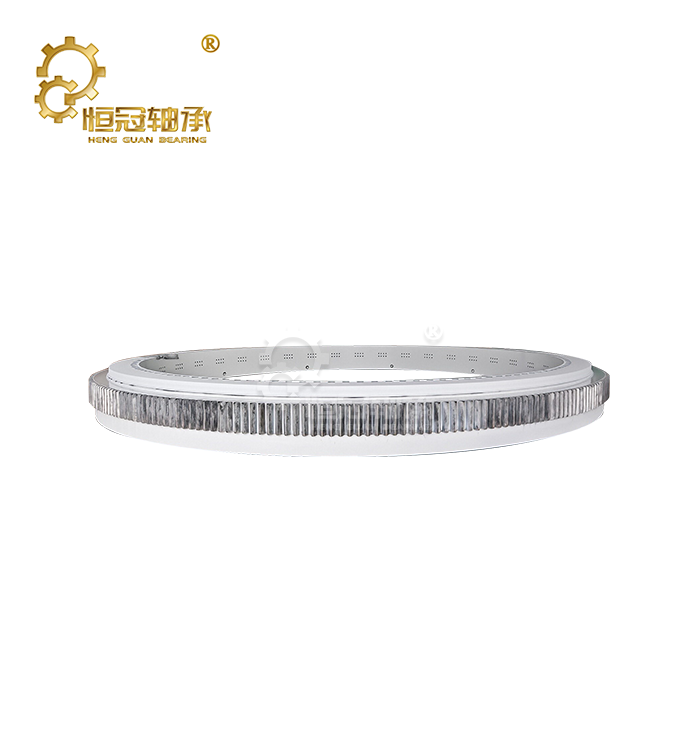

Wind Turbine Slewing Bearing – Precision Engineered for Wind Energy Systems

Luoyang Hengguan Bearing Technology specializes in manufacturing wind turbine Slewing Bearings with consistent and reliable quality for yaw and pitch systems. Our bearings feature inner diameters ranging from 1500mm to 5000mm, manufactured from 42CrMo and 50Mn alloy steel with GCr15SiMn rolling elements. With over 20 years of expertise, we provide triple-row roller structures and double-row ball designs that deliver a 20-year service life. Our ISO9001-certified facility produces bearings for onshore and offshore turbines with diameters up to 5500mm. Built to withstand complex multi-directional loads, extreme temperatures and corrosive marine environments, these components ensure your turbine maintains optimal wind alignment with minimal maintenance

.

Wind Turbine Slewing Bearing Details

A wind turbine requires a bearing system that withstands simultaneous axial thrust, radial forces and tilting moments, while enduring continuous micro-movements. Our products meet these demands through precisely hardened raceways and premium material selections, verified by more than 1 million cycle endurance tests.

Construction Options:

• Single-row four-point contact ball bearings for yaw systems
• Double-row structures for improved load distribution
• Triple-row roller bearings for heavy-duty offshore applications
• Custom anti-corrosion treatment for marine environments

Size Capabilities:

We manufacture bearings with an outer diameter ranging from 1800mm to 5500mm, with Gear modules from M16 to M40. Custom dimensions are available to meet unique turbine design requirements beyond standard specifications.

Material Engineering:

The base rings adopt 42CrMo alloy steel, offering a tensile strength of 900 MPa. Rolling elements are made of GCr15SiMn bearing steel with a hardness of 60-64 HRC. Sealing systems use imported nitrile rubber or fluororubber, suitable for temperatures ranging from -40°C to +120°C.

Technical Specifications

Why Choose Us

Manufacturing Depth:

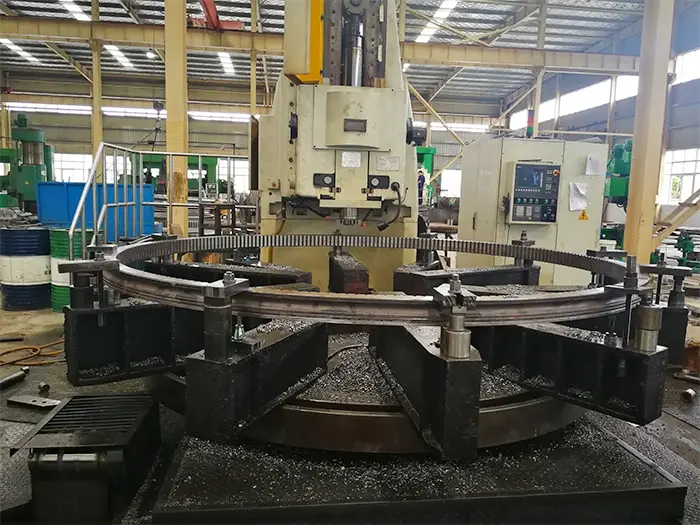

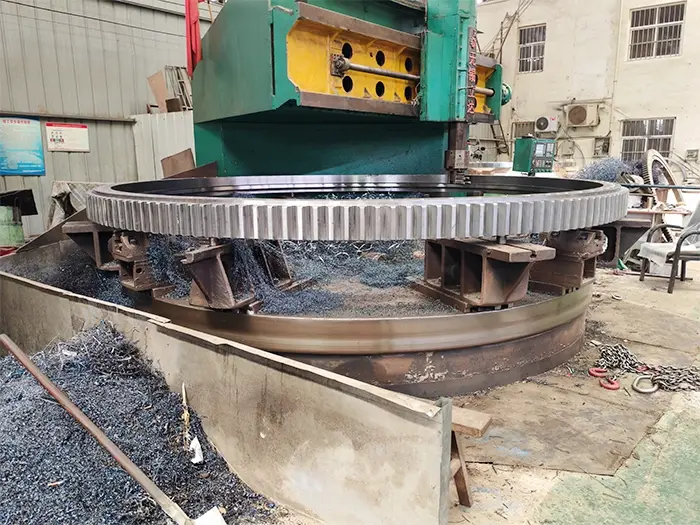

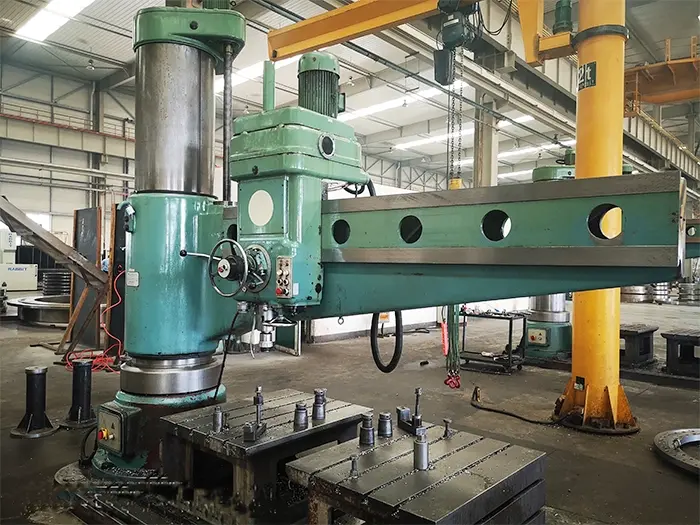

Our 50-engineer team operates CNC vertical lathes, induction quenching systems, and precision gear hobbing machines. This vertical integration enables us to control raceway geometry to a tolerance of ±0.01mm.

Application Experience:

Our products are in service across 50+ countries, including Norwegian offshore wind farms and Texas wind corridors. Your turbine will benefit from continuous design optimization based on real-world operating stress data.

Customization Capability:

We provide reverse engineering services for legacy equipment when 3D drawings are unavailable. Non-standard modifications are available to adapt bearings for retrofit projects and prototype turbine designs.

Quality Framework:

Coordinate measuring machines verify overall dimensional accuracy. Vibration testing ensures stable rotation with runout controlled below 0.3μm. Each bearing is marked with a batch traceability code, fully linked to raw material inspection certificates.

Testing & Certification

Each bearing undergoes a comprehensive inspection protocol:

• ·Chemical composition spectral analysis verifies material grade
• ·Ultrasonic testing detects internal defects
• ·Coordinate measuring machines confirm dimensional accuracy
• ·Surface hardness testing validates heat treatment results
• ·Tooth profile inspection guarantees meshing accuracy

Our factory holds ISO 9001 certification. All products comply with RoHS requirements for global markets.

Features and Benefits

Multi-Directional Load Handling:

The four-point contact ball design distributes forces across optimized contact angles. This prevents stress concentration during wind gusts that could cause raceway spalling.

Fretting Corrosion Resistance:

Induction-hardened raceways create compressive surface stresses resisting micro-movement wear. Your yaw system maintains smooth rotation after millions of small-angle adjustments.

Integrated Lubrication Systems:

Pre-drilled grease channels connect to your turbine's central lubrication network. This extends maintenance intervals from quarterly to annual schedules in accessible locations.

Edge-Load Mitigation:

Crowned roller profiles in triple-row bearings compensate for nacelle deflection under asymmetric blade loads. This protects bearing edges during emergency shutdowns.

Temperature Stability:

Special heat treatment processes maintain dimensional stability across seasonal temperature swings. Your bearing clearances remain within specifications from Arctic winters to desert summers.

Applications

Onshore Wind Farms:

Standard bearing configurations suit turbines in flat plains or hilly terrain where accessibility allows periodic maintenance. Gear options integrate directly with your yaw drive systems.

Offshore Installations:

Enhanced corrosion protection through electroless nickel plating and premium seals withstands salt spray. The wind turbine slewing bearing design minimizes maintenance trips to expensive marine platforms.

High-Altitude Sites:

Low-temperature material grades prevent brittle fracture in mountain pass installations. Special lubricants maintain viscosity in sub-zero conditions.

Typhoon-Prone Regions:

Bearings rated for extreme load cases handle survival mode stresses when turbines feather during severe weather events.

Installation Guide

Pre-Installation Checks:

Verify mounting surface flatness within 0.05mm per meter. Clean all bolt holes and remove protective coatings from gear teeth.

Positioning Process:

Use lifting equipment rated 150% of bearing weight. Align bolt holes using guide pins before lowering into position.

Bolt Tightening Sequence:

Apply hydraulic torque in star pattern across three passes: 30%, 70%, then 100% of specified torque. This prevents ring distortion.

Gear Mesh Verification:

Check backlash at four quadrant points using dial indicators. Acceptable range: 0.2-0.4mm for M20+ modules.

Initial Lubrication:

Fill grease channels until fresh lubricant appears at all seal interfaces. Rotate yaw system through full range before final inspection.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

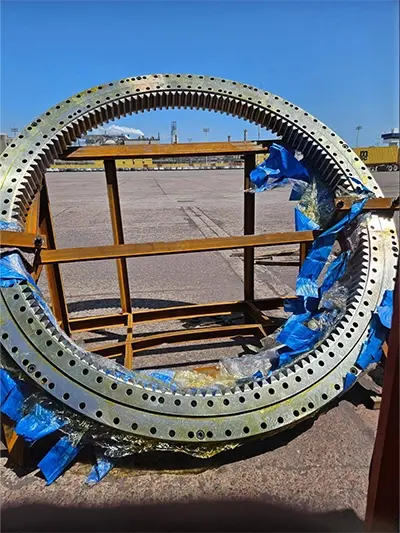

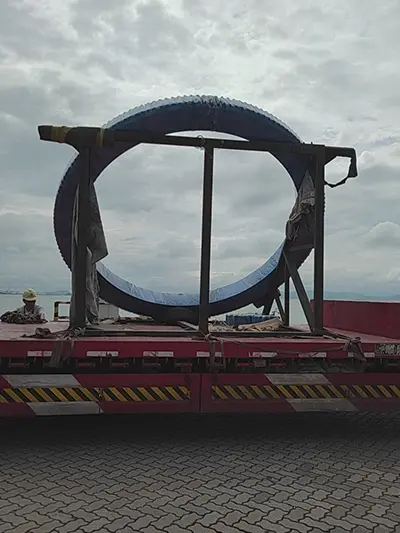

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Inspection Schedule:

Quarterly visual checks for seal integrity and gear tooth wear. Annual vibration analysis to detect raceway damage before failure.

Lubrication Protocol:

Inject lithium-complex grease (NLGI Grade 2) annually or every 500 operational hours. Purge old lubricant through drain ports.

Bolt Retorquing:

Verify bolt preload at 6-month intervals during first year, then annually. Ultrasonic bolt monitoring systems reduce downtime during checks.

Condition Monitoring:

Temperature sensors embedded in bearing rings alert you to abnormal friction increases. Vibration trends identify developing defects 6+ months before catastrophic failure.

FAQ

Q: Can your bearings retrofit older turbine models?

A: Yes. Provide mounting dimensions and load data. We'll reverse-engineer compatible designs matching your existing interfaces.

Q: What's the lead time for custom sizes?

A: Standard modifications: 8-10 weeks. Fully custom designs with new tooling: 12-16 weeks after drawing approval.

Q: How do you ensure quality for offshore applications?

A: We apply 1000-hour salt spray testing and validate seal performance under simulated wave motion. Traceable material certifications include Charpy impact values for low-temperature toughness.

Q: Do you supply pitch and yaw bearings together?

A: Absolutely. Bundled supply ensures consistent quality standards across your turbine's rotating interfaces.

Q: What documentation comes with each bearing?

A: You receive dimensional inspection reports, material certificates, assembly torque specifications, and maintenance interval recommendations.
