Tower Crane Slewing Ring ISO Certified Factory Solutions

It's very bad when a Tower Crane Slewing Ring breaks at height because it stops construction projects, wastes money by leaving expensive cranes unused, and puts workers below in danger. Still, a lot of people buy this important part based only on price, not thinking about the quality systems and technical details that make the difference between a 5-year or 15-year ring. That's where Heng Guan Bearing comes in. The company is based in Luoyang, which has a long history of making bearings. It is ISO 9001:2015 certified and has more than 20 years of production experience. This book talks about why certification is important, how design standards affect performance, how to choose the best ring for heavy lifting, and what maintenance methods will make it last the longest.

Why Choose an ISO-Certified Tower Crane Slewing Ring Manufacturer?

When looking at different suppliers, the first thing you should ask is: Does this factory use quality systems that are known around the world? A Tower Crane Slewing Ring maker that is ISO 9001:2015 approved will follow written procedures for material tracking, heat treatment control, and measurement checking. This means that there will be fewer mistakes when the part gets to your job site. Think about what this one part has to do: it connects the mast to the spinning tower and has to handle axial, radial, and moment loads all at the same time while allowing the height to rotate smoothly 360°.

At every stage of production, Heng Guan Bearing does a lot of tests. Before being sent out, each bearing goes through non-destructive testing (NDT) for material stability, spinning torque measurement, and coordinate measuring machine (CMM) physical proof. Regular third-party checks and full traceability from raw steel to finished product give customers in more than 50 countries, including demanding markets like Germany, the US, and Australia, the peace of mind to buy without having to guess.

Tower Crane Slewing Ring Design Standards and Manufacturing Capabilities

A well-made Tower Crane Slewing Ring comes in three main styles, each of which is best for a different type of load and crane size. Single-row four-point contact ball designs spread stress across four contact points, lowering stress concentration and increasing bearing life by 30–40% compared to traditional designs. These designs are perfect for medium-duty towers that need to be small. When lifting heavy things, double-row different-diameter ball configurations help spread the load out better. Three-row roller designs split axial, radial, and moment loads into different raceways, which allows the biggest heavy-duty tower cranes to work at their fullest.

How the slewing mechanism interacts with the ring depends on whether the gears are external, internal, or not there at all. Factory-machined teeth make installation easier. The CNC vertical lathes, cooling equipment, and gear-cutting tools at Heng Guan Bearing keep tight limits across the whole range of manufacturing:

Standard sizes (1,000–3,000 mm) ship within 4–6 weeks; fully custom designs take 6–10 weeks. Reverse engineering from physical samples is available when original drawings are unavailable, and every order can include complete installation hardware and spare seals.

How Do You Select the Right Tower Crane Slewing Ring for Heavy Lifting Applications?

Choosing the correct Tower Crane Slewing Ring for a heavy lifting project involves more than matching a diameter number. Maximum lifting moment, wind exposure at height, expected duty cycle, and slewing frequency during a typical shift all factor into the decision. Heavier and taller tower cranes place greater tilting-moment stress on the ring, which often calls for a double-row or three-row roller structure rather than a lighter single-row option. Precision grade selection matters too: P0 suits most common construction applications, P6 is recommended for high-cycle operations, and P5 or P4 serves precision positioning or vibration-sensitive installations.

Different tower crane types place distinct demands on the slewing ring:

If you are unsure which configuration fits your specific model, reach out to mia@hgb-bearing.com — Heng Guan Bearing's engineering team routinely reviews crane specifications and provides tailored recommendations matched to real operating conditions rather than generic catalog assumptions.

​​​​​​​

What Maintenance Practices Can Extend the Service Life of a Tower Crane Slewing Ring?

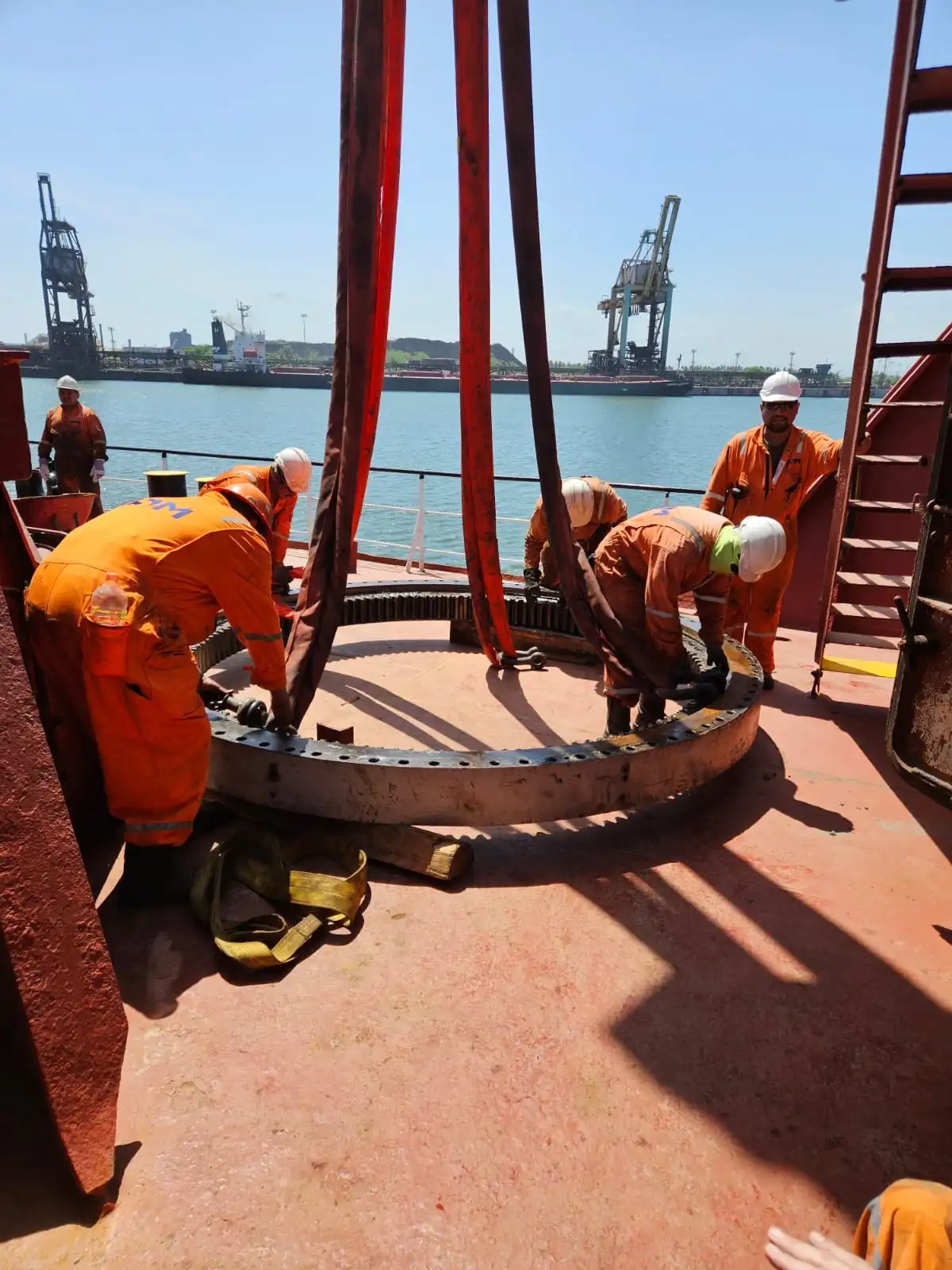

Even the best-built Tower Crane Slewing Ring needs consistent maintenance to reach its full service life. Proper installation comes first: clean all mounting surfaces to within specified flatness tolerances, verify axial and radial runout, tighten bolts in a star (cross) pattern using a calibrated torque wrench, inject recommended lubricant through all grease ports before initial rotation, manually rotate 360° to confirm smooth operation, then conduct a progressive load test up to rated capacity while monitoring for abnormal noise or vibration.

Once installed, a structured maintenance schedule protects the investment. Heng Guan Bearing provides installation guidance and maintenance recommendations to every customer, including a 12-month warranty covering manufacturing defects when proper installation and maintenance are documented.

Lubrication is the single most critical maintenance factor. Dry or contaminated grease accelerates raceway wear and increases rotational resistance, while the correct lithium-based grease with extreme-pressure (EP) additives maintains a protective film under heavy cyclic loads. Multi-lip seals with lubricant retention channels extend relubrication intervals and block abrasive contaminants — particularly important for cranes exposed to dust, rain, or coastal humidity.

Conclusion

Selecting a Tower Crane Slewing Ring means weighing certification, design, and maintenance together. With ISO 9001:2015 certified quality control, 20 years of manufacturing expertise, and a 50-engineer technical team serving 50+ countries, Heng Guan Bearing delivers the engineering depth and responsive support that keeps tower cranes rotating safely at height.

FAQ

Q: What is a tower crane slewing ring?

A: It is the core rotational bearing connecting the crane's mast to its upper structure, enabling controlled 360° rotation while supporting the full weight of the boom, counterweight, and lifted load simultaneously.

Q: Why does ISO certification matter for slewing rings?

A: ISO 9001:2015 certification confirms consistent material quality, heat treatment, and inspection standards across production batches, backed by regular third-party audits and full traceability from raw steel to finished product.

Q: Which slewing ring type suits heavy tower cranes?

A: Double-row ball or three-row roller designs handle higher moment loads and duty cycles. Three-row roller structures, with independent raceways for each load type, deliver maximum capacity for the largest heavy-duty tower cranes.

Q: How often should a tower crane slewing ring be lubricated?

A: Replenish lithium-based grease with EP additives every 100–200 operating hours or quarterly, whichever comes first. Heavy-duty or high-cycle applications may require more frequent relubrication.

Q: Can slewing rings be customized for specific crane models?

A: Yes — diameter, gear type, sealing configuration, and bolt hole pattern can all be tailored. Standard bolt hole patterns are compatible with major tower crane manufacturers, and reverse engineering from physical samples is available when original drawings are unavailable.

Keep Your Tower Crane Turning — Engineered to Last

Stop compromising on the component that keeps your crane rotating safely at height. Heng Guan Bearing delivers ISO 9001:2015 certified Tower Crane Slewing Ring solutions in 42CrMo / 50Mn steel, with three structure types, P0–P4 precision, and diameters from 800 mm to 10,000 mm — backed by NDT testing, CMM verification, and a 12-month warranty. Standard sizes ship in 4–6 weeks; custom designs in 6–10 weeks. Send your crane model, drawings, or load specifications to mia@hgb-bearing.com today and get a technical response within 24 hours.
