Large Precision Gear Shaft

1. Product Introduction: Large precision gear shafts are key components that integrate large gears and heavy-duty shafts. They are designed to withstand the demanding conditions of high torque, heavy loads, and long continuous operation.
2. Product Structure: Made from large forgings, these shafts undergo multiple roughing, finishing, and grinding processes to ensure excellent rigidity, straightness, and dynamic balance.
3. Size Range: Shaft Diameter: Ø250mm - Ø1200mm
Total Length: 2000mm - 8000mm
4. Customization Supported: Whether you have specific size, tooth profile, or structural requirements, our engineering team can provide you with professional custom solutions.
5. Materials Available: 40Cr, 42CrMo, 35CrMo, 18Cr2Ni4WA, 20Cr2Ni4, 45#, etc. Custom materials are available upon request.
6. Applications:
Mining and Metallurgy, Energy and Power, Shipbuilding and Offshore Engineering, Heavy Machinery, Building Materials and Chemicals

Product Description

Large Precision Gear Shaft – Heavy-Duty Power Transmission Solutions

Product Details

When your operations require reliable power transmission under extreme conditions, you need components that won't fail. Our large precision gear shafts featuring heavy-duty shaft construction and integrated large gear elements, are designed for high torque, heavy loads, and continuous operation environments. These critical components exceed the size and performance limits of standard gear shafts, serving the mining, metallurgy, shipbuilding, and energy industries worldwide. Each piece is manufactured from premium forged alloy steel and undergoes advanced heat treatment processes, providing superior load-bearing capacity, excellent transmission accuracy, and extended service life for your most demanding applications.

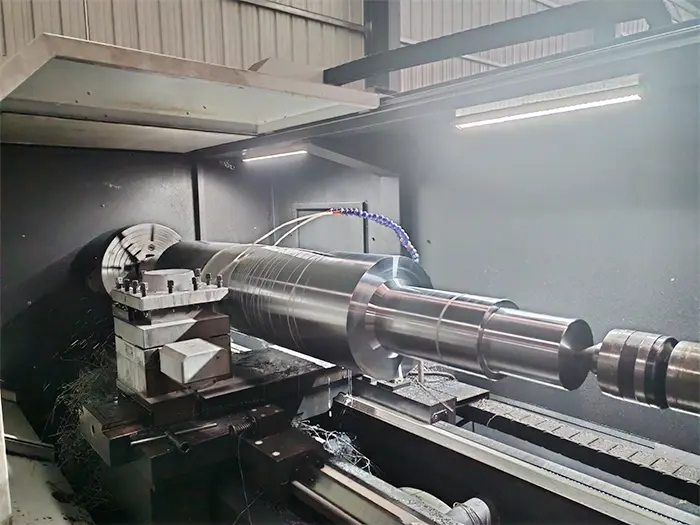

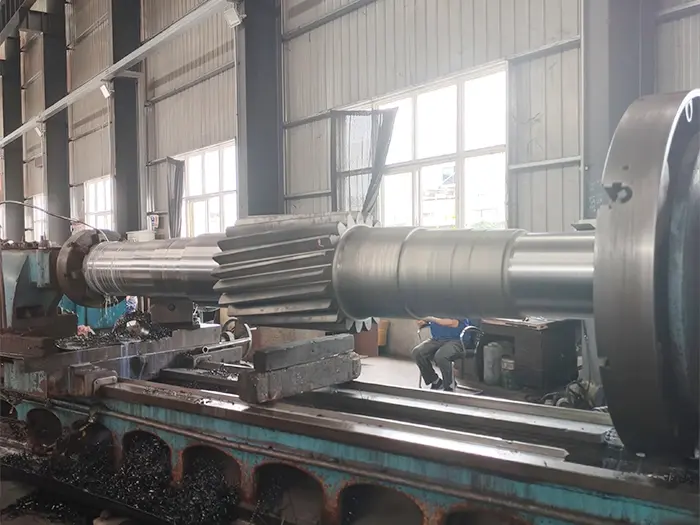

We manufacture these gear shaft assemblies in our spacious production workshop. Multiple roughing and finishing processes ensure ideal rigidity and straightness. The gear teeth are precision-machined and crushed to ensure smooth meshing even under heavy loads.

Why Choose Us?

Superior Machining Capabilities

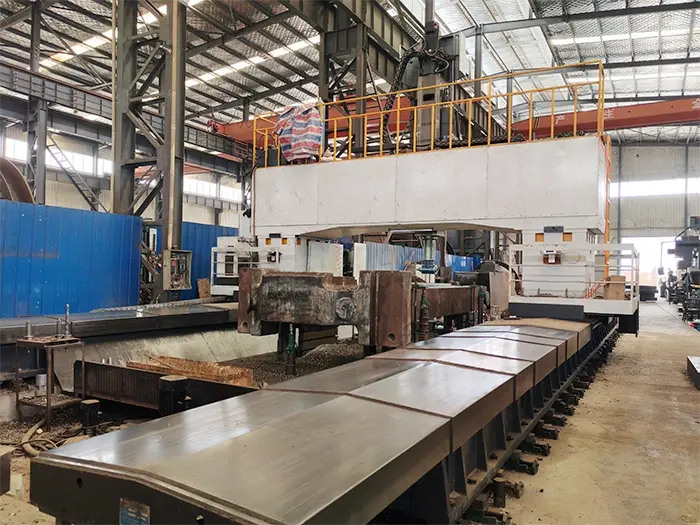

Located in Luoyang, the center of China's bearing industry, we boast over 20 years of experience in precision machining. Our factory is equipped with CNC vertical machining centers, CNC gear hobbing machines, and specialized crushing equipment, enabling us to process parts up to 10 meters in length.

Engineering-Centric Approach

We have a research and manufacturing team of over 50 people, specializing in customized heavy-duty components. We offer professional consulting, product design, and reverse engineering services. If you have 3D drawings, we can directly machine based on them. If you don't have drawings, we also provide drafting services.

Quality System

Our production process is ISO 9001 certified, ensuring that every product meets stringent quality standards. Our products comply with ISO/DIN standards and RoHS directives.

Global Service Network

We have supplied components to customers in over 50 countries, including Germany, the USA, Australia, and the entire Middle East. Our extensive experience enables us to meet diverse application needs and regulatory environments.

Certificatoin

Large Precision Gear Shaft certification

Technical Specifications

Parameter	Specification	Notes
Shaft Diameter	Ø250mm – Ø1200mm	Custom sizes available
Total Length	2000mm – 8000mm	Special lengths upon request
Gear Module	M8 – M25+	Larger modules available
Maximum Weight	Up to 5 tons	Single-piece construction
Material Options	42CrMo, 35CrMo, 40Cr	High-strength alloy steel
	18Cr2Ni4WA, 20Cr2Ni4	Carburizing grade steel
	45#, Custom alloys	Per application requirements
Precision Grade	P0, P6, P5, P4	Depending on application
Heat Treatment	Quenching & Tempering	For alloy steel variants
	Carburizing & Quenching	For surface-hardened types

Features and Benefits

Heavy-Duty Forged Construction

Starting from large forging blanks provides superior grain structure compared to welded or fabricated designs. This translates to better fatigue resistance and longer service life in cyclic loading conditions.

Integrated Shaft-Gear Design

Eliminating the connection between separate shaft and gear components removes a common failure point. You get improved torque transmission efficiency and reduced maintenance requirements.

Advanced Heat Treatment

Our CNC quenching machines ensure uniform hardness distribution. For carburizing grades, we achieve hard, wear-resistant surfaces while maintaining tough, ductile cores—ideal for impact loads.

Precision Grinding Capability

Teeth undergo grinding or gear shaving operations after heat treatment. This ensures geometric accuracy is maintained even after thermal processing, resulting in quieter operation and extended gear life.

Dynamic Balance Optimization

Large rotating components require careful balancing. We perform multi-stage balancing to minimize vibration, protecting your bearings and extending equipment lifespan.

Applications

Mining and Metallurgy

Ball mills, crushers, and rolling mill drive systems rely on our shafts to handle shock loads and continuous operation. The combination of high toughness and surface hardness prevents premature wear in abrasive environments.

Energy and Power Generation

Wind turbine main drive and yaw systems, hydroelectric generators, and thermal power reduction gearboxes require the reliability our components provide. Long service intervals reduce maintenance costs in remote installations.

Shipbuilding and Offshore

Marine propulsion systems, deck cranes, and steering gear drives operate in corrosive environments with high reliability requirements. We can supply components in corrosion-resistant alloy grades for these applications.

Heavy Machinery

Port gantry cranes, large excavators, and tunnel boring machines depend on precision power transmission. Our Large Precision Gear Shaft assemblies handle the extreme torque these machines generate.

Building Materials and Chemicals

Rotary furnaces, cement plants, and expulsion hardware run persistently beneath tall loads. The dimensional steadiness and wear resistance of our items minimize spontaneous downtime.

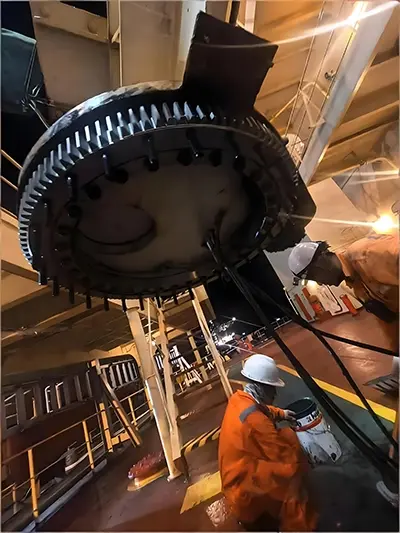

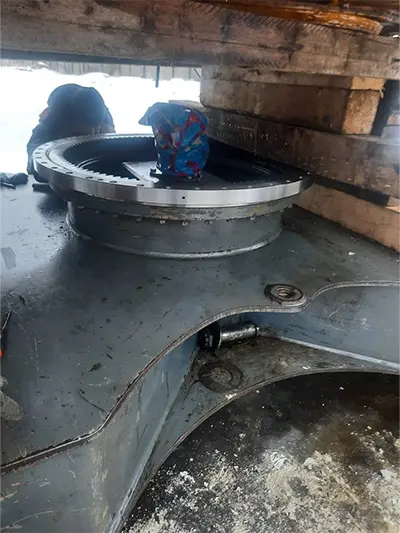

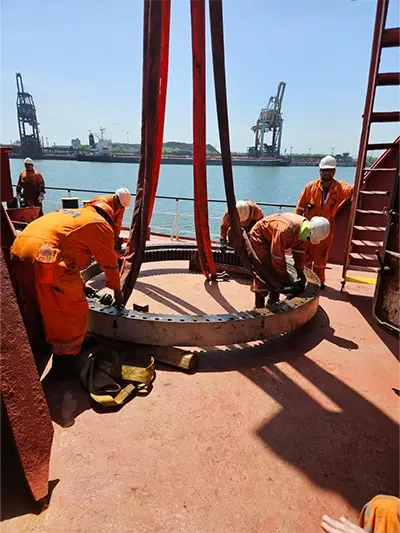

Installation Guide

Pre-Installation Inspection

Check shaft measurements and equip tooth condition upon receipt. Confirm keyway measurements coordinate your center details. Assess bearing diaries for any transport damage.

Alignment Procedures

Use dial pointers to confirm shaft arrangement inside lodging bores. Misalignment causes uneven stacking and untimely wear. Take after your gear manufacturer's arrangement tolerances.

Bearing Installation

Heat heading consistently some time recently establishment on shaft diaries. Never pound orientation specifically. Utilize appropriate establishment instruments to avoid raceway damage.

Gear Work Verification

After establishment, check backfire between mating gears utilizing sensor gages. Confirm contact designs utilizing stamping compound. Alter as fundamental some time recently full-load operation.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

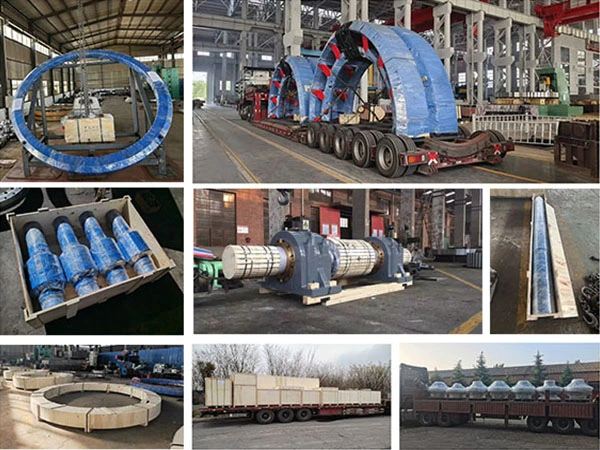

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Large Precision Gear Shaft partners packing

Maintenance and Care

Lubrication Schedule

Follow your hardware manufacturer's grease interims. Utilize greases coordinating the working temperature extend and stack conditions. Screen oil condition regularly.

Inspection Intervals

Conduct visual reviews amid planned upkeep periods. See for unordinary wear designs, splits, or distortion. Check clasp torque values.

Vibration Monitoring

Implement vibration examination on basic hardware. Trending information makes a difference anticipate component wear some time recently disappointment happens. Address expanding vibration levels promptly.

Storage Recommendations

Store save components in dry, temperature-controlled situations. Apply corrosion-preventive coating to machined surfaces. Back shafts at numerous focuses to anticipate sagging.

FAQ

Q: Can you fabricate shafts bigger than your standard range?

A: Yes. Our gear can handle components past recorded details. Contact our designing group with your prerequisites for achievability assessment.

Q: What documentation do you give with shipments?

A: Each arrange incorporates fabric certificates, dimensional assessment reports, and warm treatment records. Extra testing documentation accessible upon request.

Q: Do you offer sped up generation for critical requirements?

A: We keep up capacity for need orders. Lead times depend on current generation plan and component complexity. Examine your timeline with our deals team.

Q: Can you work from tests instep of drawings?

A: Completely. Our switch designing benefit makes fabricating drawings from your existing components, counting worn parts requiring dimensional restoration.

Q: What is your commonplace generation lead time?

A: Standard custom components require 4-8 weeks depending on measure and complexity. We'll give particular timelines after checking on your determinations.

Contact Us

Need a custom Large Precision Gear Shaft solution for your heavy-duty application? Our engineering team is ready to discuss your requirements. Reach us at mia@hgb-bearing.com for technical consultation and quotation.
