How Does Lubrication Affect Excavator Slewing Bearing Life?
How much does proper lubrication really affect the lifespan of your excavator slewing bearing? At Luoyang Heng Guan, we’ve found that even the most robust bearings can suffer premature wear if lubrication is neglected. Every slewing bearing handles axial, radial, and moment stresses during rotation, and a consistent grease layer is essential to prevent failure. As a leading manufacturer, Luoyang Heng Guan combines advanced production equipment with experienced designers to ensure bearings meet precise performance standards. In this article, we explore the importance of lubrication, common mistakes, re-greasing intervals, and how to choose a reliable bearing from a trusted supplier.
Why Proper Lubrication Is Critical for Bearing Performance
Every slewing motion subjects raceways and rolling elements to high contact pressures. Without a consistent grease film, metal-to-metal contact occurs rapidly, leading to:
- Micro-pitting and spalling on raceways hardened to HRC 55–60 at 2.5–5 mm depth.
- Noise, uneven rotation, and reduced accuracy.
- Corrosion risk to 42CrMo or 50Mn alloy steel rings even in sealed housings.
Grease distribution matters as much as amount in excavator slewing bearing applications. Four-point contact balls transfer load via four contact points. Tri-row roller bearings have bigger contact zones and greater pressures. The bearing must be rotated many times to ensure homogeneous grease filling before commissioning.
Need guidance on the correct grease specification? Contact our team at mia@hgb-bearing.com.
| Lubrication Condition | Effect on Raceway | Effect on Bearing Life | Excavator Class Most at Risk |
|---|---|---|---|
| Correct film, even distribution | Full surface separation | Extended to rated life | All classes |
| Under-greased (film breakdown) | Micro-pitting, surface fatigue | Significantly reduced | Large & ultra-large (30–90+ tons) |
| Over-greased (seal pressure) | Seal lip stress, grease purge | Seal life reduced | Mini & small (1–30 tons) |
| Contaminated grease | Abrasive wear on raceways | Sharply reduced | All open-site classes |
| Wrong grease type (wrong NLGI) | Inadequate film at operating temp | Unpredictable failure | Special & marine excavators |
Common Lubrication Mistakes That Shorten Bearing Life
- Neglecting re-greasing intervals – Extending intervals too long, especially on dusty or wet sites, accelerates raceway damage.
- Using incorrect grease grade – Excavator slewing bearings typically require NLGI 1–2 lithium complex or polyurea grease with EP additives. Wrong types can wash out, separate under load, or fail to penetrate high-pressure contact zones.
- Improper application – Greasing while the bearing is stationary causes uneven distribution. Rotate the bearing during greasing for full coverage.
- Mixing incompatible greases – Lithium and polyurea blends can break down the thickener, causing sudden film loss.
Recommended Re-greasing Intervals
Re-greasing excavator slewing bearing depends on operating environment, machine size, and bearing configuration. A structured schedule provides a reliable starting point:
| Operating Environment | Recommended Interval | Grease Type | Notes |
|---|---|---|---|
| Normal construction (dry, moderate dust) | Every 150–200 hours | NLGI 2 EP lithium complex | Rotate bearing during application |
| Severe dust/quarry/mining | Every 75–100 hours | NLGI 1–2 EP with tackifier | Inspect seals at each service |
| Wet/marine/coastal | Every 100 hours | NLGI 2 polyurea or marine-grade EP | Check for water emulsification |
| Demolition / vibration-heavy | Every 75 hours | NLGI 2 EP lithium complex | Monitor for abnormal noise |
| Cold climate (below -20°C) | Every 100 hours | Low-temperature NLGI 1 EP | Pre-warm bearing before re-greasing if possible |
Tip: First re-greasing should occur at 50 hours, even in normal conditions, to redistribute factory-applied grease.
|
|
Selecting a Reliable Excavator Slewing Bearing Made in China
Quality and consistency are more important than price. A well-made excavator slewing bearing made in China offers:
- Rings forged from 42CrMo / 50Mn alloy steel
- Rolling elements from GCr15SiMn high-purity steel
- Double-lip seals from nitrile rubber or fluororubber
- Accuracy grades ABEC 3–9, ISO, CE, RoHS certified
When selecting a reliable excavator slewing bearing, partnering with Luoyang Heng Guan ensures both quality and consistency. Our bearings are forged from premium 42CrMo / 50Mn alloy steel, with rolling elements crafted from high-purity GCr15SiMn steel, providing superior durability for all applications.
| Configuration | Excavator Class | Features |
|---|---|---|
| Single-row four-point contact | Mini to medium machines | Standard load handling |
| Double-row ball | Large excavators | Higher safety factor |
| Triple-row roller | Ultra-large mining machines | Maximum axial & moment capacity |
ID 500–5000 mm, OD 600–5500 mm, height 100–500 mm, bespoke larger choices. Compatible with Carter, Komatsu, Liebherr, Volvo, Hitachi, Doosan, Sumitomo, Sany, LiuGong, Hyundai, Kubota. At Luoyang Heng Guan, we provide comprehensive material certifications, raceway hardness reports, and dimensional inspection data to guarantee that your bearings meet all operational requirements and international standards.
|
|
Conclusion
Lubrication is the most controllable component in excavator slewing bearing life. Choosing the appropriate lubricant, applying it properly, and keeping intervals makes simple maintenance a dependable investment. It offers extended service life and constant performance with a premium bearing.
FAQ
Q1: Recommended grease type?
A: NLGI 1–2 lithium complex or polyurea grease with EP additives. Marine/cold applications may need specialist grades.
Q2: How to detect under-greasing?
A: Increased slewing noise, uneven rotation, or high drive motor current. Inspect grease at purge points.
Q3: Can I mix grease brands?
A: No. Mixing incompatible thickeners can cause sudden loss of film strength.
Q4: Are bearings pre-greased?
A: Yes, but rotate several times after installation to redistribute lubricant.
Q5: How do sealed bearings help?
A: Double-lip seals retain grease and block contaminants, extending effective re-greasing intervals.
Take the Next Step with Luoyang Heng Guan
Ready to extend your excavator slewing bearing life with premium lubrication practices and high-quality bearings? Contact the experts at Luoyang Heng Guan today to get personalized guidance and product recommendations. Email us at mia@hgb-bearing.com to discuss your machine, application, and precise bearing needs. Our team is here to ensure you achieve optimal performance and longevity.
References
1. Harris, T. A., & Kotzalas, M. N. (2007). Rolling Bearing Analysis (5th ed.). CRC Press.
2. Lugt, P. M. (2013). Grease Lubrication in Rolling Bearings. John Wiley / SKF.
3. ISO (2012). ISO 15243: Rolling Bearings — Damage and Failures.
4. Brandlein, J., et al. (1999). Ball and Roller Bearings: Theory, Design and Application (3rd ed.). John Wiley.
5. Rothe Erde GmbH (2020). Slewing Rings: Engineering and Application Manual.
6. Khonsari, M. M., & Booser, E. R. (2008). Applied Tribology: Bearing Design and Lubrication (2nd ed.). John Wiley.

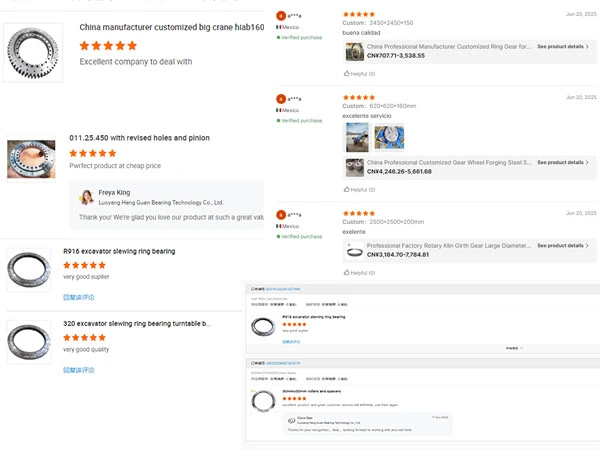

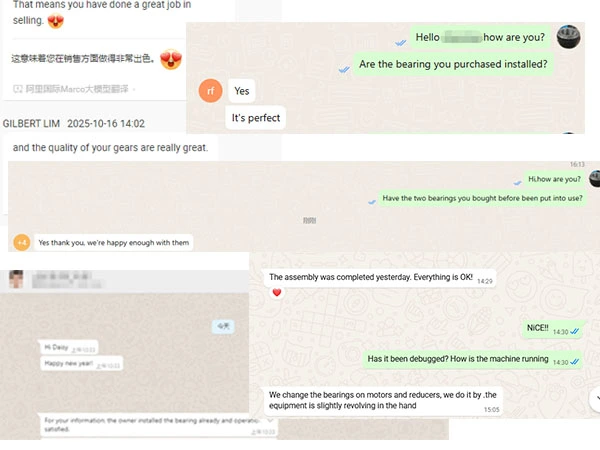

WHAT OUR CUSTOMERS SAY
