Roller Slewing Rings – Heavy-Duty Rotating Solutions for Industrial Applications

When your equipment handles extreme loads and demands continuous rotation under harsh conditions, you need a bearing solution that won't let you down. Roller Slewing Rings are engineered specifically for these challenges. Unlike standard ball Slewing Bearings, roller slewing bearings utilize cylindrical or conical rollers as rolling elements, offering superior load capacity and excellent stability. These large-diameter rotating components can withstand axial, radial, and moment loads simultaneously, maintaining smooth rotation even under heavy loads. Whether you operate cranes, mining excavators, or wind turbines, our products provide the reliable performance your critical applications demand.

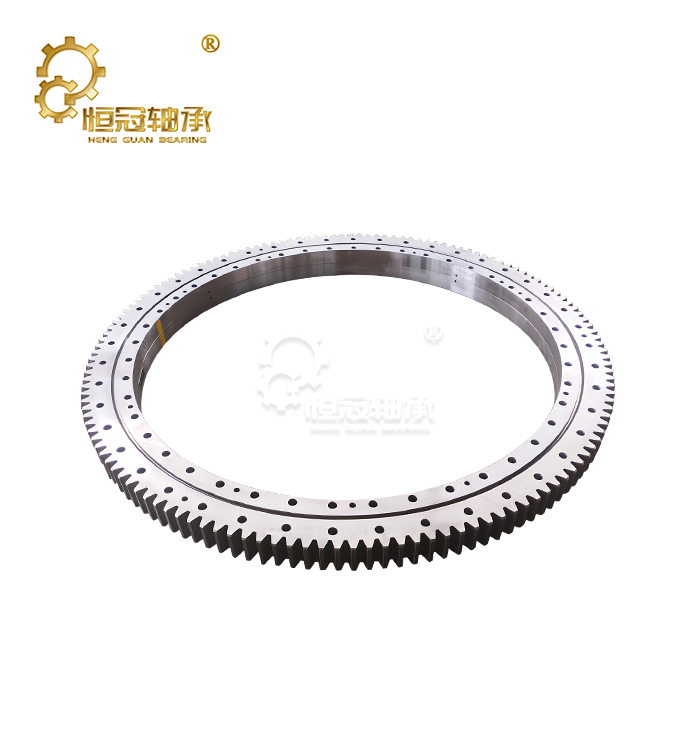

Product Details

Our roller slewing bearings utilize precisely designed cylindrical and hollow or tapered rollers, with optimized angle ratios. This design ensures even load distribution across the raceway, minimizing contact stress and thus extending service life.

Construction:

· Inner and outer rings manufactured from high-strength 50Mn or 42CrMo alloy steel

· Rolling elements made from GCr15 bearing steel with surface hardness HRC 58-62

· Integrated mounting holes for simplified installation

· Oil-resistant NBR seals to protect against contamination

· Optional internal or external Gear configurations

Size Range:

· Diameter: 500mm – 10,000mm

· Cross-section height: 100mm – 500mm

The raceways are induction hardened to achieve optimal surface hardness while maintaining core toughness. Precision grinding ensures the raceway profile accuracy is within 0.01 millimeters, which is crucial for smooth rotation and long-term durability.

Why Choose Us?

Demonstrated Fabricating Capability

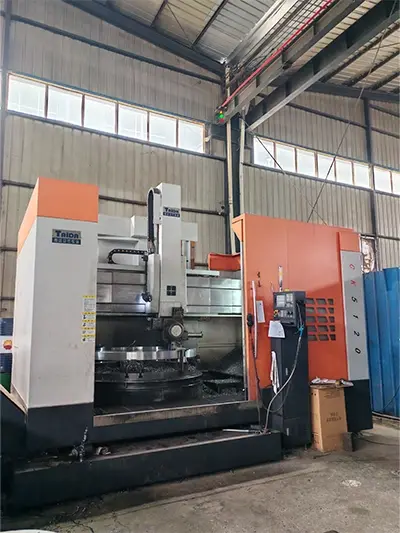

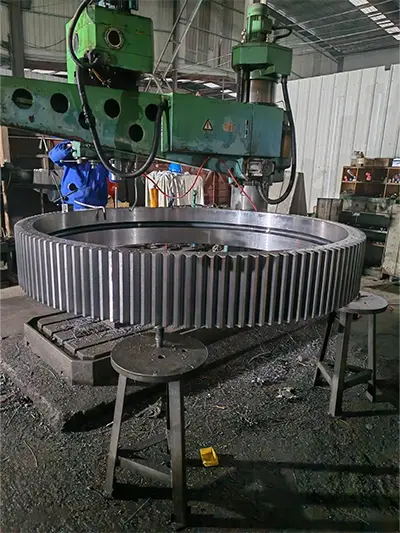

Located in Luoyang, the heart of China's bearing manufacturing industry, we possess advanced CNC vertical machining centers, a comprehensive quality control system, precision forming equipment, and high-precision grinding equipment. Our production workshop can process bearings with diameters ranging from 50 mm to 10,000 mm, with accuracy grades from P0 to P4.

Engineering Experience

With over 20 years in slewing bearing innovation, our 50-member designing group gives specialized discussion, custom plan, and establishment direction. We bolster ancient item turn around building and non-standard customization based on your particular requirements.

Quality Standards

ISO 9001 certified and RoHS compliant, our orientation meet worldwide benchmarks counting Clamor, ISO, and GB. Each unit experiences arrange estimation, vibration testing, and non-destructive examination some time recently shipment.

Global Trust

We as of now serve clients in over 50 nations over North America, Europe, Southeast Asia, the Center East, and past. Our items provide reliable execution in requesting situations from Ice mining destinations to leave development ventures.

Technical Specifications

Certification

Features and Benefits

High Load Capacity

Roller contact provides significantly larger load-bearing surface area compared to ball bearings. This translates to higher radial and axial load ratings—essential for cranes, excavators, and heavy machinery where loads frequently exceed 100 tons.

Enhanced Stability

The roller geometry reduces deformation under load, maintaining rotational accuracy even when subjected to moment loads. Your equipment experiences less wobble and better positioning precision during operation.

Impact Resistance

Tapered and cylindrical rollers distribute shock loads more effectively than point-contact elements. This matters when your machinery encounters sudden impacts from material handling or rough terrain operation.

Extended Service Life

Lower contact stress means reduced wear rates. In field applications, properly maintained roller slewing bearings often achieve 20,000+ operating hours before requiring replacement—minimizing downtime and lifecycle costs.

Compact Design

Despite their high load capacity, roller slewing rings maintain relatively compact cross-sections. This allows you to design more efficient machinery with better weight distribution and lower center of gravity.

Applications

Development Machinery

Excavators, versatile cranes, tower cranes, and boring rigs depend on items to handle both machine weight and energetic loads amid operation.

Mining Equipment

Mining excavators, portable crushers, and stackers/reclaimers work in grating, high-load situations where roller heading give the vital durability.

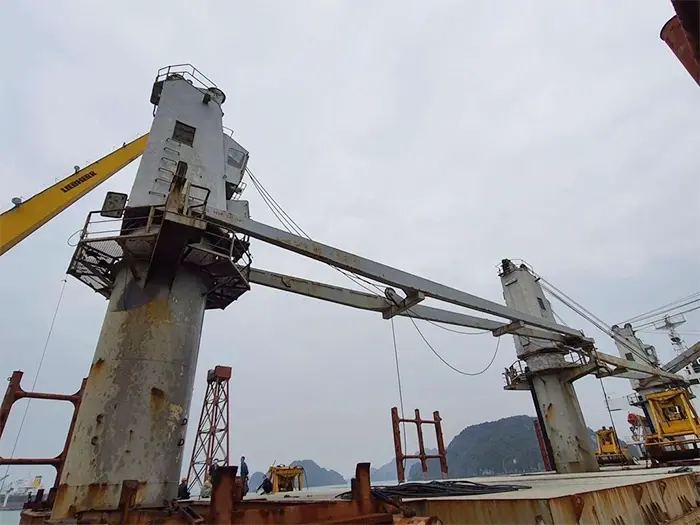

Port Machinery

Container cranes, dispatch loaders, and unloaders require heading that bolster overwhelming loads whereas keeping up smooth turn for exact positioning.

Wind Power

Yaw and pitch orientation in wind turbines utilize roller plans to handle persistent swaying developments and wind loads over 20+ year benefit lives.

Special Equipment

Tunnel boring machines, radar stages, military turrets, and mechanical turntables advantage from the tall solidness and stack capacity of roller configurations.

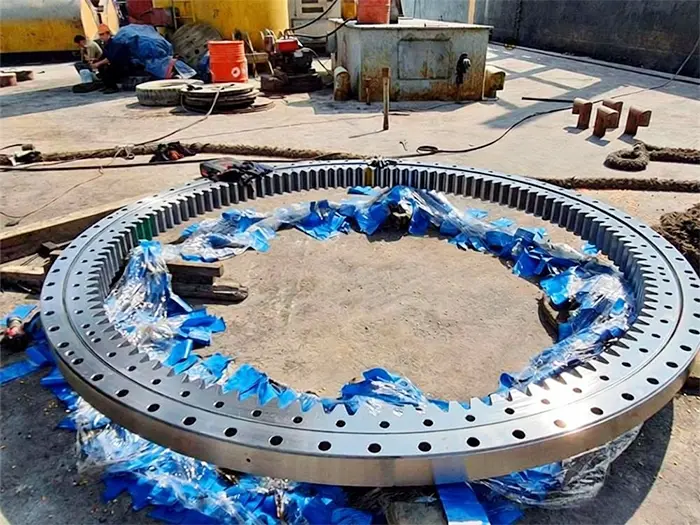

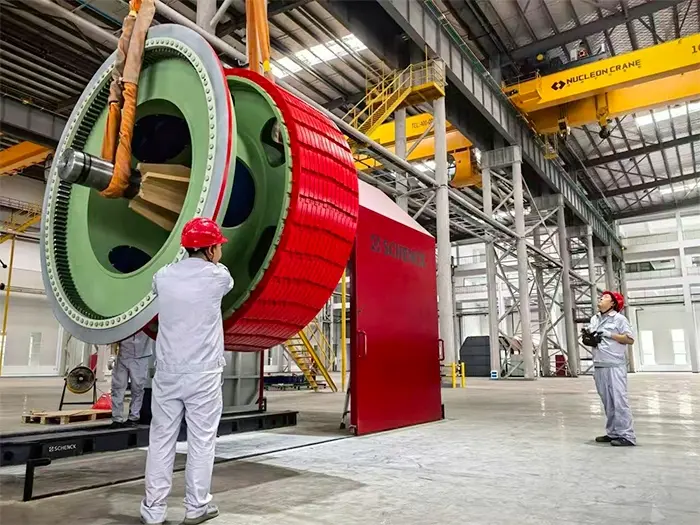

Installation Guide

Pre-Installation Inspection

Check the flatness of the mounting surface (error less than 0.05 mm over a 100 mm range). Check the alignment of the impact gaps and the condition of the sealing strips. Remove the protective coating and apply the recommended lubricant to the raceways.

Mounting Procedure

1. Position the bearing on the lower mounting surface

2. Insert and hand-tighten all mounting bolts in a star pattern

3. Torque bolts to specification in multiple passes (typically 3-4 stages)

4. Check rotational resistance—it should be smooth without binding

5. Fill lubrication system according to grease specifications

Initial Run-In

Operate at 30% rated load for the first 10 hours. Check bolt torque after 50 operating hours and retorque if necessary.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication Schedule

Re-grease every 100-200 operating hours or every 3 months, whichever comes first. Use lithium-based EP2 grease compatible with bearing seals. Apply grease until you see old grease purging from the seal area.

Inspection Points

· Monthly: Check for abnormal noise, vibration, or temperature rise

· Quarterly: Verify bolt torque and inspect seals for damage

· Annually: Measure raceway wear if possible, check gear tooth condition

Storage

If putting away for amplified periods, coat raceways with rust-preventive oil, turn quarterly, and store in a dry, temperature-controlled environment.

FAQ

Q: What's the contrast between roller and ball slewing bearings?

A: Roller orientation utilize line contact instep of point contact, giving 2-3 times higher stack capacity in the same envelope estimate. They're favored for heavy-duty applications.

Q: Can you customize bearing dimensions?

A: Yes. We plan custom orientation based on your stack calculations and space limitations. Give us with working conditions and we'll prescribe the ideal configuration.

Q: What accuracy review ought to I choose?

A: P0 suits common development apparatus. P6 works for applications requiring superior rotational precision. P5 and P4 are for accuracy hardware like radar stages or testing machines.

Q: How do I calculate required bearing size?

A: Share your pivotal stack, outspread stack, and minute stack values with our engineers. We'll perform bearing life calculations and suggest fitting models.

Q: What's ordinary lead time?

A: Standard sizes transport inside 2-3 weeks. Custom plans regularly require 6-8 weeks depending on complexity and current generation plan.

Contact Us

Ready to discuss your Roller Slewing Rings requirements? Our engineering team is here to help you select the right bearing solution. Reach out to us at mia@hgb-bearing.com for technical support and quotations.
