Welding Positioners Slewing Bearing

Welding Positioners Slewing Bearing

Product Details

When your welding automation system demands consistent precision and reliable rotation, our Welding Positioners Slewing Bearing delivers exactly that. Engineered specifically for industrial robots and welding positioners, this high-precision slewing bearing features dimensions of 1300×998×100mm. It provides exceptional rotational accuracy with axial clearance controlled between 0.02-0.1mm, outstanding rigidity, and superior positioning repeatability. These characteristics make it an ideal solution for modern intelligent manufacturing environments where precise angle control and frequent start-stop cycles are critical for production efficiency.

The bearing incorporates precision-engineered raceway geometry that guarantees smooth, reliable movement throughout its service life. You'll benefit from its compact design that maximizes load capacity while minimizing installation space. Our manufacturing capabilities extend from 50mm to 10,000mm in diameter, so whether you require standard sizes or custom dimensions, we can meet your specific application requirements.

Constructed from high-strength 50Mn or 42CrMo alloy steel, the bearing undergoes specialized tooth surface quenching treatment. This process significantly enhances wear resistance and extends service life, even under demanding continuous operation conditions. The result is a robust component that maintains its performance characteristics over thousands of operational cycles.

Why Choose Us?

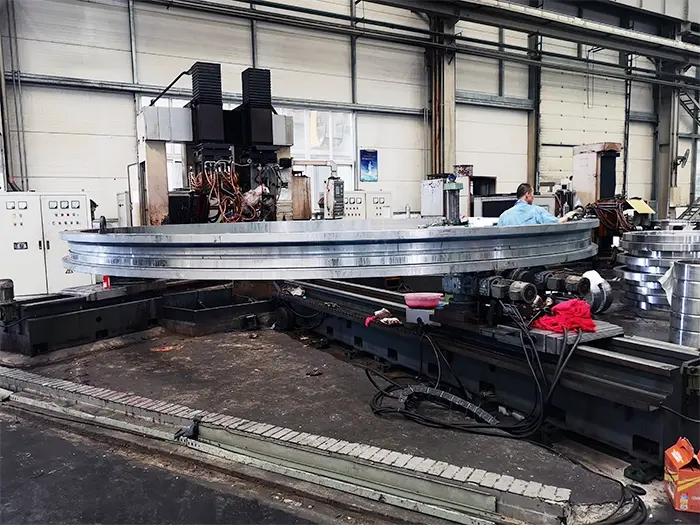

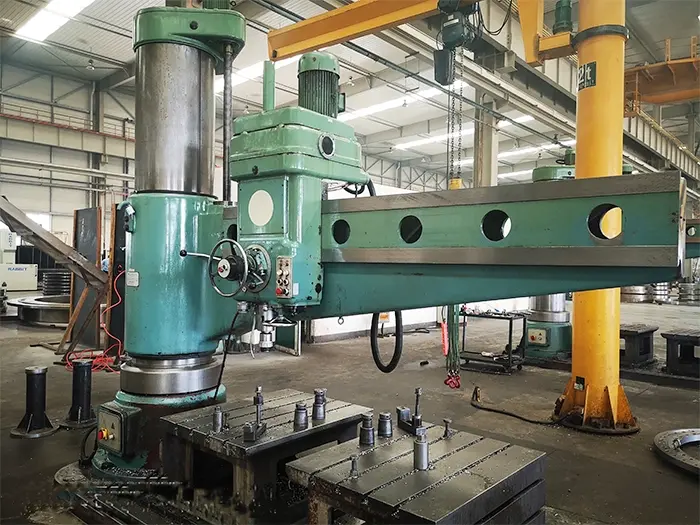

At Luoyang Heng Guan Bearing Innovation, we leverage over 20 years of bearing manufacturing experience for your projects. Our facility in Luoyang—the heart of China's bearing industry—is equipped with advanced CNC vertical lathes, CNC quenching machines, Gear shapers, and precision grinding equipment. This enables us to maintain tight tolerances and consistent quality across all production runs.

Our team of 50+ dedicated engineers specializes in the design and manufacturing of slewing bearings. We understand the technical challenges you face in automation applications. That’s why we provide comprehensive technical consultation, from initial product selection through to installation guidance. If you are working with legacy equipment, our reverse engineering services can reproduce bearings from existing physical samples, even without 3D drawings.

We are ISO 9001 certified and ensure all products comply with RoHS directives. Our quality control process includes coordinate measuring machines (CMM), vibration testing, and service life validation. Every bearing is fully traceable from raw material selection to final inspection. This rigorous approach has earned us a trusted partnership with clients in over 50 countries, including the United States, Germany, the United Kingdom, and Australia.

​​​​​​​

Technical Specifications

Features and Benefits

High Precision Rotation
Axial clearance controlled within 0.02-0.1mm enables repeatable positioning accuracy of ±0.01°. This precision ensures your welding torch maintains the correct position throughout complex joint configurations, reducing rework and improving weld quality.

Frequent Cycle Capability
Designed to handle high-frequency start-stop operations without performance degradation. Your positioner can move rapidly between weld positions, reducing cycle time and increasing throughput on your production line.

24-Hour Continuous Operation
Robust construction and advanced heat treatment allow for continuous duty cycles. You can run multi-shift operations without scheduled bearing rest periods, maximizing equipment utilization.

Low Maintenance Design
A sealed raceway configuration minimizes contamination ingress. The low-emission, low-debris design is suited for clean manufacturing environments while reducing maintenance intervals and associated downtime.

Excellent Load Distribution
Optimized contact angle and raceway geometry efficiently distribute combined loads—axial, radial, and moment—across the rolling elements. This extends bearing life even when handling heavy workpieces at extended reach distances.

Applications

Our Welding Positioners Slewing Bearing serves as a critical component in various automation systems:

· Welding Positioners: Provides smooth, precise rotation for positioning weldments at optimal angles, improving weld access and quality

· Industrial Robots: Supports base rotation and axis motion in multi-axis robotic welding cells and material handling systems

· Turntables and Indexers: Enables accurate angular positioning in automated assembly lines and inspection stations

· Automated Workstations: Facilitates part manipulation in CNC loading systems and flexible manufacturing cells

The bearing particularly excels in applications requiring precise angle control combined with heavy load support, making it suitable for automotive component welding, structural steel fabrication, and pressure vessel manufacturing.

Testing & Certification

Every bearing undergoes comprehensive quality verification before shipment. Our testing protocol includes dimensional inspection on coordinate measuring machines, vibration analysis to verify smooth operation, and hardness testing of heat-treated surfaces. We maintain ISO 9001:2015 certification and produce all bearings in compliance with ISO and DIN standards. RoHS compliance ensures environmental responsibility across global markets.

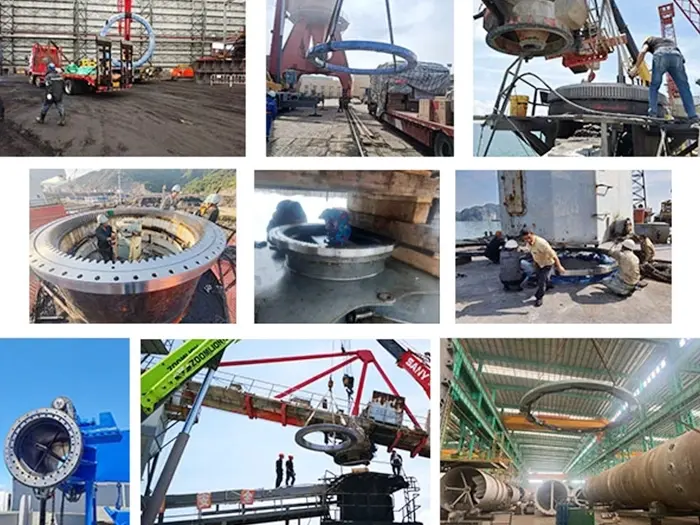

Installation Guide

1. Pre-Installation Inspection: Verify mounting surfaces are flat, clean, and free from burrs. Check bolt hole alignment and thread condition.

2. Bearing Placement: Position the bearing carefully onto the mounting surface, aligning bolt holes. Avoid impact or dropping.

3. Bolt Installation: Install mounting bolts finger-tight initially. Use the specified bolt grade (typically 8.8 or 10.9).

4. Torque Sequence: Tighten bolts in a star pattern to the specified torque value in three stages: 30%, 70%, then 100% of final torque.

5. Gear Mesh: If using external gear drive, adjust backlash to manufacturer specifications (typically 0.2-0.4mm).

6. Final Verification: Check rotation smoothness by hand. Verify axial and radial play meet specification before applying power.

Our engineering team provides detailed installation drawings and can offer remote or on-site support for critical installations.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Packaging & shipping​​​​​​​

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication: Apply appropriate grease (NLGI Grade 2 lithium-based) to the gear teeth and raceways every 500 operating hours or quarterly, whichever comes first. Use a lubricant compatible with your operating temperature range.

Inspection Plan: Check mounting bolt torque monthly for the first six months, then quarterly. Inspect seals for damage or wear. Monitor gear teeth for abnormal wear patterns that may indicate misalignment.

Cleaning: Keep external surfaces clean using dry compressed air or soft brushes. Avoid high-pressure water jets that may compromise the seals.

Operating Practices: Avoid shock loads and operate within the rated load capacities. Sudden stops or starts accelerate wear on rolling elements and raceways.

Proper maintenance significantly extends bearing service life, protecting your investment and reducing the total cost of ownership.

FAQ

Q: What is the ordinary lead time for standard sizes?

A: Standard measurement heading ordinarily transport inside 3-4 weeks. We keep up stock of common sizes for speedier delivery.

Q: Can you fabricate orientation to coordinate my existing mounting pattern?

A: Yes. We offer invert building administrations. Send us your current bearing or nitty gritty measurements, and we'll make a congruous replacement.

Q: What exactness grades do you offer?

A: We make heading in P0, P6, P5, and P4 accuracy grades. For welding positioners, P5 or higher is ordinarily recommended.

Q: Do you give establishment support?

A: Yes. We offer establishment direction by means of documentation, inaccessible interview, and can organize on-site back for complex applications.

Q: What is the anticipated benefit life?

A: Benefit life depends on stack, speed, and support. Beneath legitimate conditions with appraised loads, anticipate 20,000+ working hours. We can perform life calculations for your particular application.

Q: Can you customize measurements exterior the standard 1300×998×100mm?

A: Completely. Our fabricating extend covers 50-10,000mm distance across. Share your prerequisites, and we'll give a custom arrangement.

Contact Us

Ready to enhance your Welding Positioners Slewing Bearing performance? Our engineering team is available to discuss your specific bearing requirements and provide technical solutions tailored to your application. Reach us at mia@hgb-bearing.com for quotations, technical specifications, or application support.
