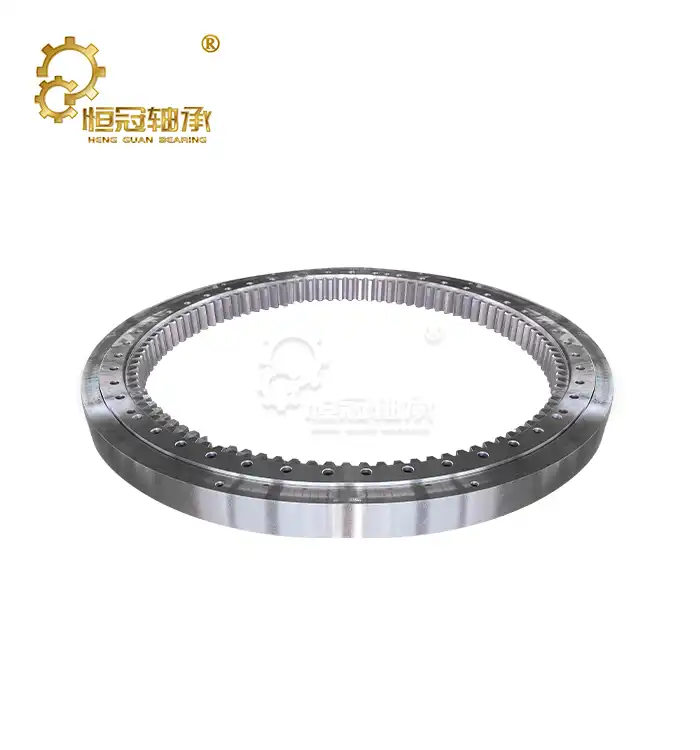

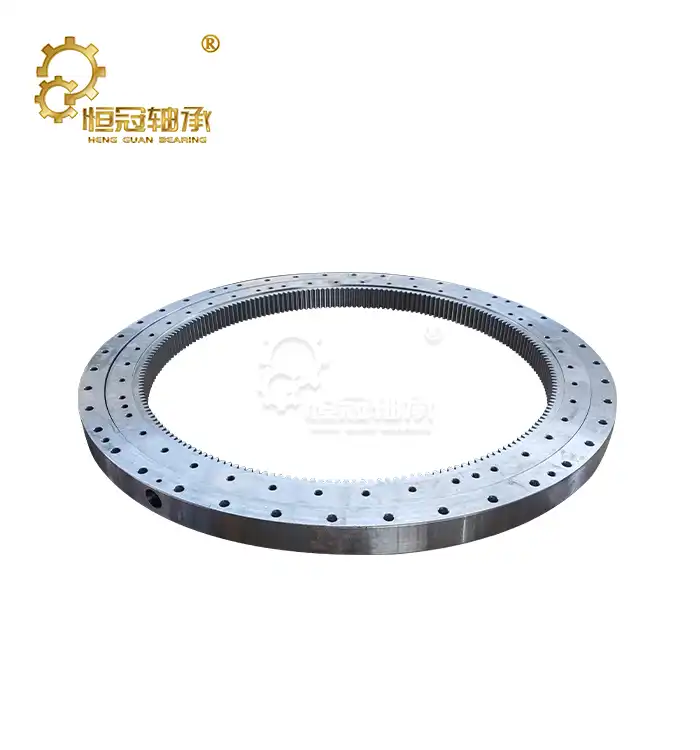

New Holland Excavator Slewing Bearing: Precision-Engineered for Reliable Performance

At Luoyang Heng Guan Bearing Technology Co., Ltd., we manufacture Slewing Bearings specifically designed to match the original equipment specifications of New Holland excavators across the entire model range—from compact 1.5-ton units to heavy-duty 90-ton machines. Our New Holland Excavator slewing bearing products feature exact mounting hole patterns, identical gear modules, and structural dimensions that ensure bolt-on installation without modification.

You face demanding working conditions daily. Whether you're breaking through rock formations, rotating heavy loads at maximum reach, or operating in dusty construction sites, your equipment endures high-impact forces and abrasive environments. We understand these challenges. That's why our bearings are built using 50Mn and 42CrMo forged alloy steel rings, combined with advanced induction hardening to achieve raceway hardness of HRC 55-62. This manufacturing approach directly addresses your most critical concerns: premature raceway wear, gear tooth breakage, and rotational instability that leads to costly downtime.

Product Structure and Design

Single-Row Four-Point Contact Ball Bearings

These bearings serve small to medium New Holland models efficiently. The gothic arch raceway design allows each steel ball to contact the inner and outer rings at four points simultaneously. This configuration distributes combined axial, radial, and moment loads effectively while maintaining a compact axial height. You get smooth rotation with minimal noise—ideal for precision work in confined spaces.

Single-Row Cross-Roller Bearings

Cross-roller designs position cylindrical rollers alternately at 90-degree angles. This arrangement provides exceptional rigidity and load capacity in both directions. When your application involves frequent direction changes and high tilting moments, this structure delivers superior performance.

Three-Row Roller Bearings

Heavy-duty New Holland models require maximum load capacity. Three-row designs separate load paths: upper and lower rows handle axial forces while the middle row carries radial loads. This specialized structure withstands extreme tilting moments generated during deep digging or lifting operations with extended boom reach.

Contact our engineering team: mia@hgb-bearing.com

Technical Specifications

New Holland Model Product Parameters

Manufacturing Process and Material Selection

Forging and Heat Treatment

We start with integral ring forging from 50Mn or 42CrMo alloy steel. The forging process refines grain structure and eliminates internal voids. Subsequent normalizing treatment relieves residual stress and homogenizes the material properties throughout the ring cross-section.

Precision Machining

CNC vertical lathes machine the raceway profiles to precise tolerances. Our machining centers drill and tap mounting holes with position accuracy within ±0.2mm. This precision eliminates installation misalignment issues that cause premature failure.

Solutions to Your Key Concerns

Load Capacity

Heavy lifting and extended boom operations create massive tilting moments. Our engineering team performs finite element analysis on each New Holland Excavator slewing bearing design to verify stress distribution under your actual working conditions. The raceway geometry and roller/ball sizing are optimized to prevent plastic deformation and surface spalling.

Service Life

Frequent bearing replacement disrupts your project schedules and increases operating costs. We extend bearing life through three critical factors: material purity (secondary refined steel with controlled inclusion content), optimized heat treatment (uniform hardness distribution), and precision grinding (raceway surface roughness Ra 0.4μm or better).

Custom Engineering Services

On-Site Measurement and Reverse Engineering

When original drawings are unavailable or the model is discontinued, our engineers travel to your location with precision measuring instruments. We capture all critical dimensions: outer diameter, pitch circle diameter, gear parameters, and mounting interface details. Using this data, we create exact replacement bearings through reverse engineering—often with performance improvements based on wear pattern analysis of your removed bearing.

Load-Specific Design

Unusual duty cycles or attachments (like hydraulic hammers) may exceed standard bearing ratings. Provide us with your operating parameters: boom length, bucket capacity, slewing speed, and duty cycle. We'll calculate actual loads and moments, then design a bearing with appropriate safety margins. This prevents under-specification failures.

Quality Assurance and Testing

Every bearing undergoes comprehensive inspection before shipment:

• Dimensional verification using coordinate measuring machines (±0.01mm accuracy)
• Raceway hardness testing at multiple points (Rockwell hardness tester)
• Gear tooth profile inspection (gear measuring centers)
• Surface roughness measurement (profilometer)
• Non-destructive testing for internal defects (ultrasonic or magnetic particle inspection)
• Assembly clearance verification (dial indicators)

Why Choose Heng Guan Bearing?

We've served the development hardware industry for over 30 a long time. Our designing group gets it the particular requests of excavator applications. We do not fair make bearings—we illuminate operational problems.

Our 50-person specialized staff incorporates pros in metallurgy, heat treatment, gear design, and tribology. This ability guarantees that each bearing we deliver reflects current best hones in stack investigation, material determination, and fabricating processes.

FAQ

Q: How do I decide the adjust bearing for my excavator?

A: Send us your show number or bearing measurements, and we'll distinguish the redress replacement.

Q: What is the commonplace conveyance time?

A: Common models dispatch inside one week. Custom or non-standard Bearing ordinarily require 3-4 weeks depending on specifications and current generation schedule.

Q: Can you fabricate larger than usual bearings?

A: Yes. We create large-diameter heading up to 10,000 mm.

Q: What guarantee do you provide?

A: We offer a 12-month guarantee against fabricating defects.

Q: Do you offer establishment guidance?

A: Yes. Establishment manuals and specialized bolster are provided.

Q: How do I keep up the slewing bearing?

A: Assess seals frequently, grease up each 100 hours, and check jolt torque periodically.

Q: What causes untimely bearing failure?

A: Common causes incorporate destitute grease, dishonorable establishment, defilement, and overloading.

Q: Can you supplant orientation from other manufacturers?

A: Yes. We can supply consistent substitutions based on your bearing details.

Contact Us

Need a replacement New Holland Excavator slewing bearing or technical assistance? Our team is ready to help.

Email: mia@hgb-bearing.com
