Large Precision Gear Shaft Benefits for High-Torque Systems
If a machine has to pass high torque day in and day out, theShaft/large-precision-gear-shaft"> large precision gear shaft at the heart of the drivetrain determines how stable and efficient the whole system will be. A weak or poorly finished shaft leads to vibration, gear wear, and unplanned stops that are expensive to fix. A well-made large precision gear shaft carries power smoothly, keeps gears aligned, and supports long service intervals. Heng Guan Bearing combines design knowledge and meticulous production to provide shafts that meet tough operating conditions. Read on to find out how the appropriate shaft can beef up your high-torque system.
How Does a Large Precision Gear Shaft Improve High-Torque Transmission Performance?
High-torque systems need the shaft to withstand twisting and bending forces at the same time without compromising its alignment. The big precision gear shaft is made from robust alloy steel. The teeth and journals are heat-treated and polished with great care. Torque is transmitted smoothly from the drive source to the load. Large shaft precision engineering also entails designing the diameter, tooth profile, and shoulder transitions as a whole. This helps to disperse stress and maintain a constant gear mesh.

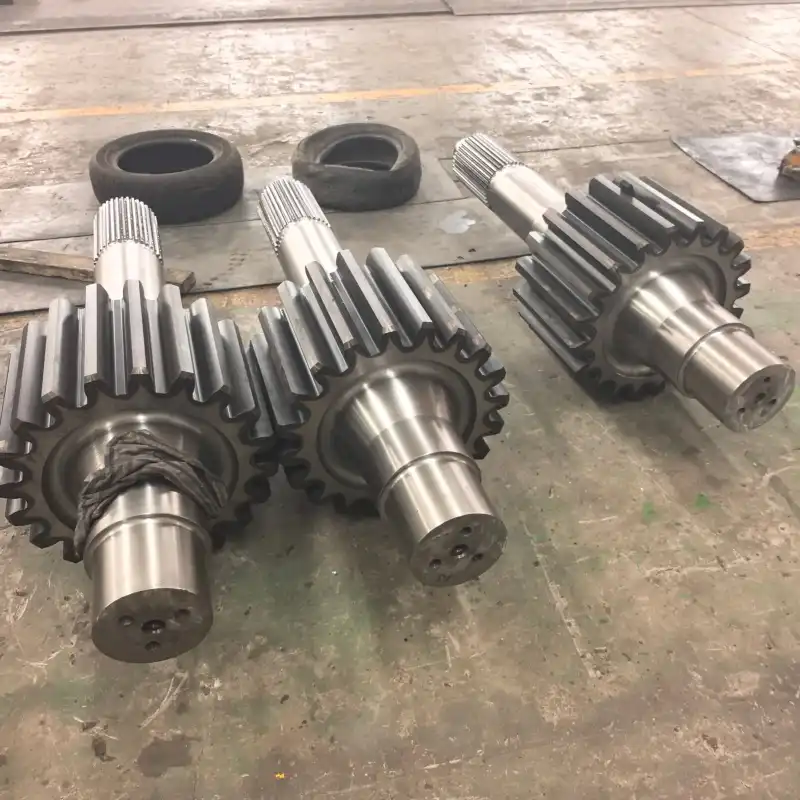

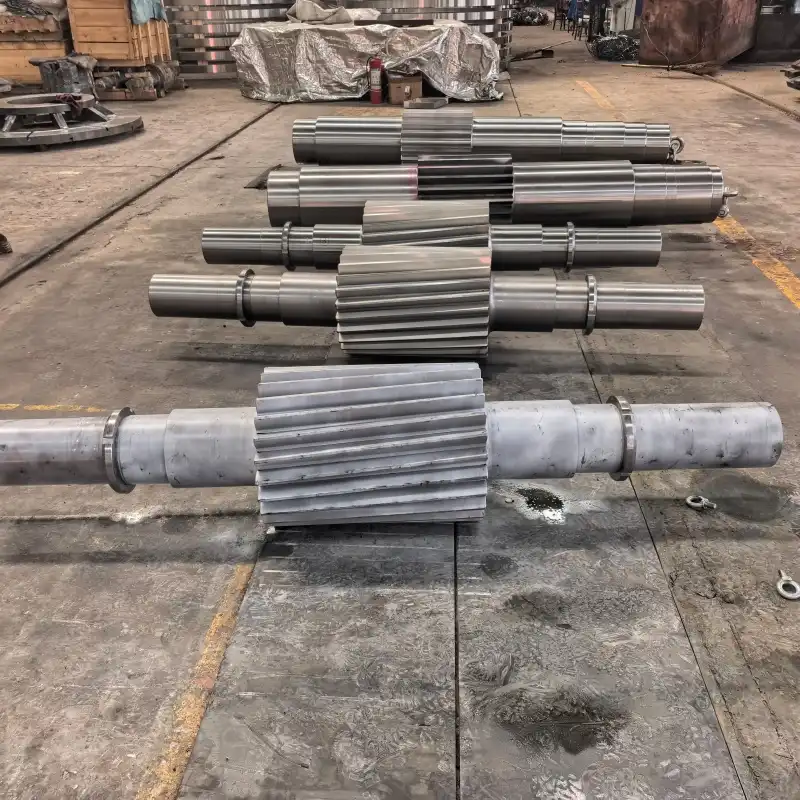

We have a shaft-gear integrated design where the gear and the shaft are machined as one piece, eliminating a common point of failure. They are manufactured from big forging blanks which provide a superior grain structure and fatigue resistance than welded or fabricated forms. Heng Guan Bearing experts can modify length, diameter, module, and keyway for your specific gearbox and bearing arrangement so the shaft is a natural part of your design from day one. It offers quieter operation with smoother power flow and reliable output under heavy load. Here are some significant design characteristics and how they assist performance:
| Design Feature | Benefit in High-Torque Use |
|---|---|
| Alloy steel material | Strong torque capacity |
| Heat-treated teeth | High surface hardness |
| Ground journals | Accurate bearing fit |
| Custom keyway and diameter | Easy integration |
| Forged, one-piece construction | Better grain structure and fatigue resistance |
Technical Specifications
| Parameter | Specification |
|---|---|
| Shaft Diameter | Ø250 mm – Ø1200 mm (custom sizes available) |
| Total Length | 2000 mm – 8000 mm (special lengths on request) |
| Gear Module | M8 – M25+ (larger modules available) |
| Maximum Weight | Up to 5 tons, single-piece construction |
| Alloy Steel Options | 42CrMo, 35CrMo, 40Cr |
| Carburizing Grade Steel | 18Cr2Ni4WA, 20Cr2Ni4 |
| Other Materials | 45#, custom alloys per application |
| Precision Grades | P0, P6, P5, P4 (depending on application) |
| Heat Treatment | Quenching and tempering (alloy steel); carburizing and quenching (surface-hardened types) |
| Teeth Finish | Ground or gear-shaved after heat treatment |
| Balancing | Multi-stage dynamic balancing |
|
|
Can Precision Machining Reduce Vibration, Backlash, and Gear Wear?
Yes, and here is where accuracy is key. Accurate turning and grinding are the foundation of large shaft precision engineering, such that the shaft runs true and each tooth meets its mate at the right angle. Tight tolerances decrease vibration, prevent backlash, and distribute contact uniformly across the tooth face, reducing wear and extending maintenance intervals.
Heng Guan Bearing is located in Luoyang, which is known as the "Bearing Town" of China. Our mature processing base, experienced designers, and advanced equipment, including CNC vertical machining centers and CNC gear hobbing machines, help us control quality from raw material to finished product. CNC quenching assures consistent hardness, and the teeth are honed or gear-shaved following heat treatment to maintain geometric correctness. Carefully polished and balanced, a big precision gear shaft will run quietly and maintain its accuracy after many hours of operation.
Each order ships with material certificates, dimensional inspection reports, and heat treatment records. If you need a specific tolerance level, send your drawings to mia@hgb-bearing.com, and our team will suggest a suitable machining plan.
| Process Step | What It Controls |
|---|---|
| Forging | Grain structure and fatigue resistance |
| Heat treatment | Uniform hardness; hard surface with a tough core |
| Turning and grinding | Shaft runout and bearing fit |
| Tooth grinding or shaving | Tooth geometry and backlash |
| Dynamic balancing | Vibration at operating speed |
Heavy-Duty Applications in Industrial Machinery, Cranes, and Power Transmission Systems
Large gear shafts are employed wherever powerful, smooth power is needed. They drive the mills, presses, and conveyors of industrial equipment. They are used to sustain lifting and slewing mechanisms of high loads for lengthy durations in cranes and port equipment. They securely transmit torque via gearboxes and reducers in power transmission systems, including wind power, mining, and metallurgical equipment.
Heng Guan Bearing products are already being used in the construction, mining, port, lifting, and new energy sectors. Our clients in over 50 countries depend on consistent quality. Every application is distinct thus we provide custom design and flexible manufacture to suit a big precision gear shaft to the space, speed and load of your equipment. plans not available means we can reverse engineer from existing or worn parts or we can construct to your 2D or 3D plans or samples. Here’s a short summary in the table below.
| Application | Typical Requirement | Example Equipment |
|---|---|---|
| Industrial machinery | Steady torque, low vibration | Mills, presses, conveyors, rotary furnaces |
| Cranes and port equipment | High load capacity | Port gantry cranes, deck cranes, large excavators |
| Wind power and mining | Long service life | Wind turbine main drives, ball mills, crushers, rolling mill drives |
| Shipbuilding and offshore | Corrosion resistance, reliability | Marine propulsion, steering gear drives |
What Should Buyers Check When Selecting a Large Precision Gear Shaft Supplier?
Picking the appropriate partner matters as much as picking the correct design. Firstly, look at the supplier’s design and engineering expertise, because large shaft precision engineering is as much about competent people as it is about machinery. Then inquire about material grade, heat-treating process, accuracy grade, and test equipment so you know each shaft is tested before it ships. Flexibility in customizing, straightforward communication, and rapid technical service.
Heng Guan Bearing provides precise grades from P0 to P4, ISO 9001-certified manufacturing, and a customer-oriented approach to transform your needs into a viable solution. With over 20 years of precision machining expertise and a staff of more than 50 workers. 4–8 weeks for standard bespoke items, depending on size and complexity. Expedited manufacture is available for emergency situations. To discuss your project, Contact Us with your drawings and working conditions, and our engineers will reply with a tailored recommendation for your large precision gear shaft.
| Checkpoint | What to Ask |
|---|---|
| Engineering experience | Can the supplier design and reverse engineer to your drawings or samples? |
| Material quality | Which steel grades are offered, and are material certificates supplied? |
| Heat treatment | Quenching and tempering, or carburizing, and how is uniform hardness verified? |
| Accuracy grades | Which precision grade is achievable for your application? |
| Documentation | Are dimensional reports and heat treatment records included with each order? |
Conclusion
A large precision gear shaft helps with torque transfer, vibration, and wear. Suitable for heavy industrial use. Custom design and good manufacture assist Heng Guan Bearing to develop dependable and long life high torque systems.
FAQ
Q: What does a large precision gear shaft do?
A: It transmits heavy torque and keeps gears accurately aligned.
Q: Can the shaft be customized?
A: Yes. Diameter, length, module, and keyway can be adjusted to your needs, and sizes beyond the standard range can be reviewed by our engineers.
Q: How does precision machining help?
A: It reduces vibration, backlash, and wear, extending service life.
Q: Which industries use these shafts?
A: Industrial machinery, cranes, ports, mining, and wind power.
Q: What should I check in a supplier?
A: Engineering experience, material quality, accuracy grades, testing, and service.
Q: What is the typical lead time?
A: Standard custom parts take about 4–8 weeks, depending on size and complexity. Expedited production is available for critical needs, subject to the production schedule.
Ready to Power Your High-Torque System? Contact Us Today
Contact Heng Guan Bearing for a tailored solution:
- Shaft diameters from Ø250 mm to Ø1200 mm, lengths up to 8000 mm
- ISO 9001-certified production, custom sizing, and material options
- Engineering support for design, drawings, and reverse engineering
- Proven solutions for mining, wind power, marine, and heavy machinery
Send your drawings and requirements to mia@hgb-bearing.com, and our engineers will recommend the right large precision gear shaft for your project. Let's build stronger, smoother power transmission together.
References
1. Budynas, R. G., & Nisbett, J. K. (2014). Shigley's Mechanical Engineering Design. McGraw-Hill.
2. Norton, R. L. (2020). Machine Design: An Integrated Approach. Pearson.
3. Dudley, D. W. (1984). Handbook of Practical Gear Design. McGraw-Hill.
4. Hamrock, B. J., Schmid, S. R., & Jacobson, B. O. (2004). Fundamentals of Machine Elements. McGraw-Hill.
5. American Gear Manufacturers Association. (2016). ANSI/AGMA 2001-D04: Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth.
6. Harris, T. A., & Kotzalas, M. N. (2006). Essential Concepts of Bearing Technology. CRC Press.
