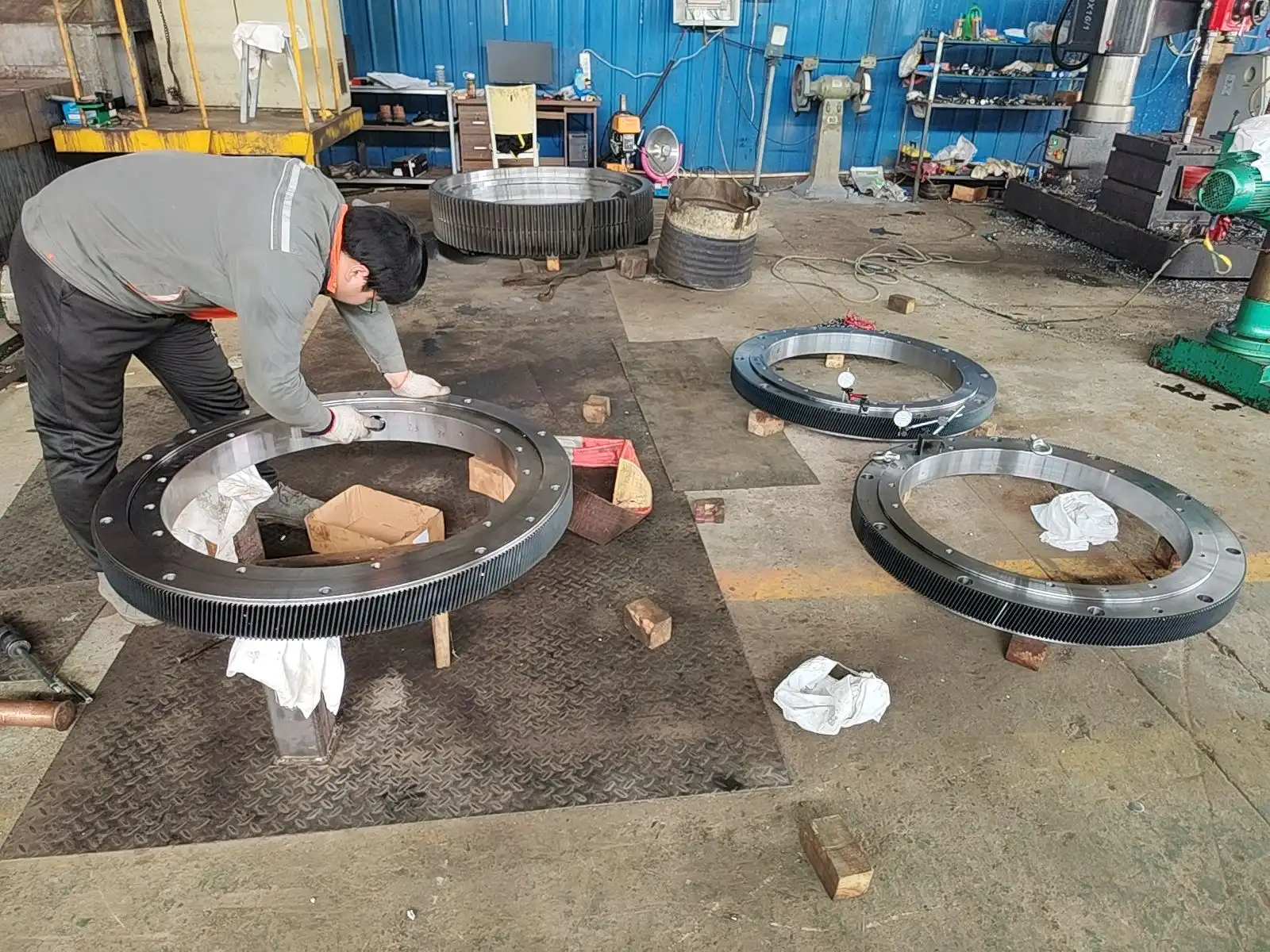

Why Use RD 900 slewing bearing in Heavy-Duty Applications?

Heng Guan Bearing builds the RD 900 slewing bearing for machines that cannot afford to fail under extreme loads. In this blog, we explain why this triple-row roller design, especially with the RD 900 internal gear option, is trusted in heavy-duty equipment. Keep reading to see how its separated load paths, flexible drive options, and real-world uses can support your next project.

What Makes RD 900 Slewing Bearing Suitable for Heavy Loads?

The RD 900 slewing bearing is based on one basic idea: separating the loads. Each of its three separate roller rows does its thing. The axial higher row presses down, the axial lower row supports upward tension, and the radial middle row takes side stresses. Because no row has to share its contact route, radial loads don’t eat into vertical capacity, maintaining your safety margin even when side pressures are unexpected.

The rings are manufactured from 42CrMo alloy steel, the raceways are induction hardened to HRC 55-62, and the rollers are GCr15 matched to sub-micron diameter bands. Heng Guan Bearing provides five size classes to choose from to suit your machine.

RD 900 Internal Gear Design for Compact Power Transmission

The RD 900 internal gear variant has the teeth cut in the inner ring so that the drive may sit within the bearing bore. This results in a compact package and protects pinions, motors and gearboxes from weather, dust and radiant heat, a major benefit on steel-mill ladle turrets and offshore pedestal cranes, where heat and corrosion lurk just outside the bearing. The distinct roller rows of the RD 900 slewing bearing ensure that large axial and radial loads are nevertheless supported. Cleaner exterior profile and more flexibility in the surrounding structure are further benefits for designers.

The whole range includes 58 basic variants equally divided between external and internal gear types, including a no-gear option for hydraulic or friction drives. All models are manufactured with induction-hardened raceways, vacuum-degassed GCr15 rollers, and 100% CMM dimensional inspection; thus, a 1.3 m mid-size crane bearing and a 6.7 m tunnel boring machine main bearing are covered by the same quality system. If your equipment requires a powerful, compact power transmission, the internal gear configuration is a perfect solution. Now, let’s examine how it impacts rotation.

How Does RD 900 Internal Gear Improve Rotation and Torque Control?

The RD 900 internal gear enables various pinions to mesh with the internal gear, simultaneously transmitting torque across several driving points rather than loading a single tooth zone. The split system means smoother rotation and better control at low speed, and the valuable redundancy of being able to continue operating with one drive unit out of action – an important consideration for tunnel boring machines and offshore cranes where downtime is very costly. The internal gear arrangement also contains the drive train within the mast or pedestal, protecting it from salt spray, dust, radiant heat and physical damage.

Every RD 900 slewing bearing is inspected with thorough dimensional examination, hardness mapping over the raceway profile, and rotational torque testing at multiple angles, so you receive the rotation you plan for. Heat-number traceable material certifications and detailed inspection reports are standard, and the three raceway profiles are machined in one setup to preserve their geometric connection. If you want help choosing the right gear layout for your drive, send your requirements to mia@hgb-bearing.com, and the Heng Guan Bearing engineers will guide you toward a suitable configuration.

Which Heavy-Duty Applications Benefit from RD 900 Slewing Bearing?

The RD 900 slewing bearing is most effective in tough situations with heavy loads. The radial row absorbs the side stresses from the waves and keeps the suspended load constant. The drive is covered in the pedestal to protect it from corrosion. Tunnel boring machines use Class 50 bearings with the RD 900 internal gear to transfer heavy force through rock, employing many motor-driven pinions, often eight to sixteen pinions per ring for dispersed torque and built-in redundancy. Steel mill ladle turrets need large capacity for tilting moments, a drive shielded inside the turret column, and high-temperature grease certified for 200°C continuous operation.

In addition to ship unloaders, Heng Guan Bearing also provides mobile harbor cranes and mining draglines, and paperwork is created for classification-body certification when needed. The combination of segregated load channels, induction-hardened raceways, and a variable gear configuration allows one product family to handle such a wide range of extreme-duty equipment.

How Luoyang Heng Guan Solves Your RD 900 Slewing Bearing Challenges

• Extreme work, one product family. All 58 standard types are made in-house and include a wide range of sizes from a 1.25 m mid-size crane bearing to a 6.7 m tunnel boring machine main bearing. They are available in five size classes and three drive configurations (190 non-geared, 191 external, 192 internal).
• Engineered with separate load routes. The RD 900 slewing bearing has three distinct rows of rollers, each carrying compression, tension, and radial loads in its own raceways, so radial loads never diminish axial load capacity.
• Hardness and control of material. The 42CrMo forgings are quenched and tempered for core toughness, and the GCr15 rollers are vacuum-degassed with controlled inclusions; the raceways are induction-hardened to 55–62 HRC and precision ground in one pass.
• Multi-pinion drive assistance. The internal gear arrangement of the RD 900 allows for 8 to 16 pinions per ring, which provides both dispersed torque and built-in redundancy to keep tunnel boring machines and offshore cranes functioning even if one of the drive units is down.
• Environment-matched choices.High-temperature greases for steel mill ladle turrets (continuous operation at 200°C), fluoroelastomer seals, thermal-spray coatings for offshore platforms, and improved labyrinth seals with purged-air interfaces for the dustiest mining locations.
• Documentation of categorization bodies. Material certifications with heat number traceability, heat treatment records, complete CMM dimensional inspection reports, hardness mapping, and rotational torque sheets are provided as standard, suitable for DNV, ABS, Lloyd’s, and CE audits.
• Engineered help. More than 50 engineers verify load charts, drive arrangements, and pedestal layouts, provide full CAD models, and even carry out a trial build prior to serial release.
• Fast and flexible supply. Stock goods arrive in 7 to 15 days. Custom configurations take 4 to 6 weeks. Non - standard sizes or unusual gear modules may be reverse-engineered from your current bearing.

Conclusion

The RD 900 slewing bearing combines separated load paths, flexible gearing, and proven quality for demanding duty. With the RD 900 internal gear option and Heng Guan Bearing’s customization support, you get compact, controlled, and dependable rotation where it matters most.

FAQ

Q: What makes the RD 900 different from double-row bearings?

 It uses three independent roller rows, so load types do not share a contact path and radial forces do not reduce axial capacity.

Q: What size range is available?

 DL 1,250–6,735 mm across five size classes and 58 standard models, split evenly between external and internal gear configurations.

Q: Why choose the RD 900 internal gear?

 It protects the drivetrain from weather, dust, and radiant heat, and supports compact, multi-pinion torque transmission.

Q: Can it handle radial and axial loads together?

Yes. The middle radial row works independently of the upper and lower axial rows, so high side loads do not eat into vertical capacity.

Q: What is the delivery time?

Stock items ship in 7–15 days, and custom builds take 4–6 weeks depending on configuration.

Talk to Heng Guan Bearing About Your RD 900 Project

Planning a heavy-duty machine? Send your drawings, load data, or application details to mia@hgb-bearing.com. The Heng Guan Bearing team will help you select the right RD 900 slewing bearing and provide a tailored quotation promptly.

References

1. Harris, T. A., & Kotzalas, M. N. (2006). Rolling Bearing Analysis: Essential Concepts of Bearing Technology (5th ed.). CRC Press.

2. International Organization for Standardization. (2006). ISO 76: Rolling Bearings — Static Load Ratings.

3. International Organization for Standardization. (2007). ISO 281: Rolling Bearings — Dynamic Load Ratings and Rating Life.

4. Potočnik, R., Göncz, P., Flašker, J., & Glodež, S. (2010). Static capacity of a large double row slewing ball bearing with hardened raceway. Meccanica, 45, 927–935.

5. Smolnicki, T., Derlukiewicz, D., & Stańco, M. (2008). Evaluation of load distribution in the superstructure rotation joint of single-bucket caterpillar excavators. Automation in Construction, 17(3), 218–223.

6. Hamrock, B. J., Schmid, S. R., & Jacobson, B. O. (2004). Fundamentals of Machine Elements (2nd ed.). McGraw-Hill.
