Which External Gear Slewing Bearing Fits Your Crane Application?

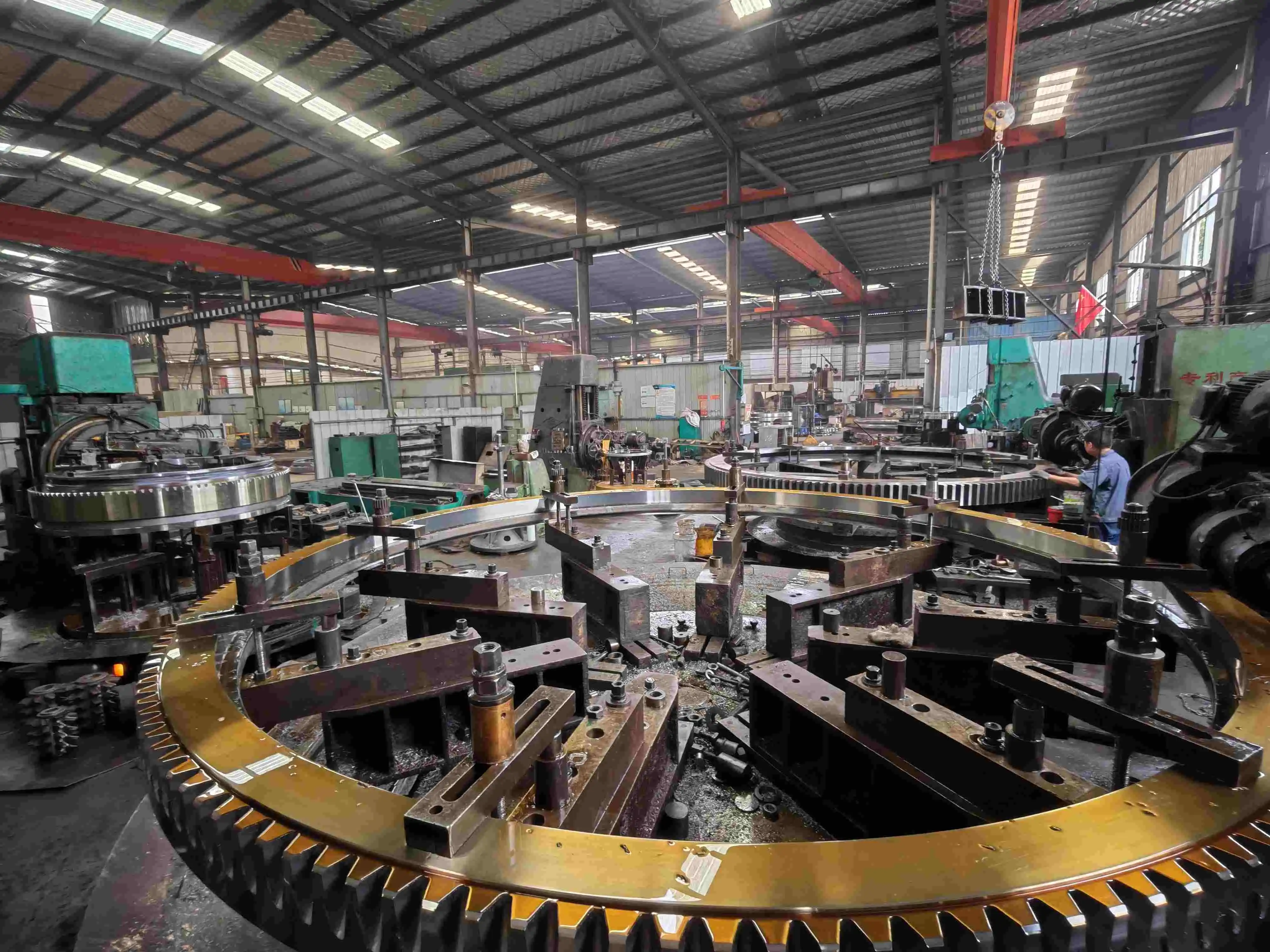

The selection of the correct External Gear Slewing Bearing may determine whether a crane functions well for ten years or requires continuous maintenance. Heng Guan Bearing helps lifting equipment makers fit bearings to actual duty cycles, from tiny mobile units to huge port gear. This tutorial walks you through load capacity, raceway design, gear module compatibility, and crane-specific options. You will learn how a high-performance external gear slewing bearing guarantees safer and more efficient operation. Continue reading to determine the right setup for your project.
What Load Capacity Does Your External Gear Slewing Bearing Need?
The first thing to determine is the load capacity. The crane bearing is subjected to axial force, radial force, and tilting moment at the same time. First, establish the maximum weight you will be lifting, the boom length, and the wind or dynamic forces your crane will face at your job site. Now, compare these figures with the static and dynamic ratings of each external gear slewing bearing.
Heng Guan Bearing external gear slewing bearing is a high-performance item, manufactured from grade alloy steel with strengthened raceways for smooth rotation under heavy and shifting loads. Furthermore, we recommend keeping a sufficient safety margin so that the crane may safely handle the peaks. The choice is driven by normal duty levels as shown in the table below.
| Duty Level | Typical Crane Use | Recommended Structure |
|---|---|---|
| Light | Small truck-mounted cranes, workshop jibs | Single-row four-point contact ball |
| Medium | Tower and crawler cranes | Double-row ball or cross roller |
| Heavy | Port and offshore cranes | Three-row roller |
| Extra heavy | Ship loaders and mining hoists | Three-row roller, reinforced raceway |
Which Raceway Design Best Suits Your Crane's Working Conditions?
How smooth and how long your slewing system will run depends on the raceway design. The designs of single-row, four-point-contact ball raceways are small and are used extensively for light and medium cranes. The cross cylindrical roller design provides greater stiffness and rotational precision. The three-row cylindrical roller construction is best for the toughest lifting jobs. The load is distributed to distinct raceways for remarkable capacity.
Heng Guan Bearing produces all these designs, double-row ball and combination ball-and-roller types, with outer diameters from 200 mm to 10,000 mm. Choose the level of precision needed for your crane, as each high performance external gear slewing bearing is available in P0, P6, P5, or P4 accuracy. Let your working environment be your guide—from dust and humidity to constant high duty cycles. With the correct raceway, a high-performance external gear slewing bearing ensures stable swing motion even under the most demanding situations. The primary raceway configurations are compared below.
| Raceway Structure | Key Strength | Best-Fit Application |
|---|---|---|
| Single-row four-point contact ball | Compact, cost-effective, combined load | Truck cranes, small jibs |
| Double-row ball | Higher tilting moment capacity | Tower and crawler cranes |
| Cross cylindrical roller | High rigidity and rotational accuracy | Precision positioning turntables |
| Three-row roller | Extremely high axial and moment capacity | Port, offshore, and mining cranes |
| Ball-and-roller combination | Balanced capacity in a limited height | Retrofits with tight envelopes |
How Do Gear Module and Pinion Compatibility Affect Crane Performance?
Even a perfect bearing will not operate well if the gear does not fit the driving pinion. The tooth width, hardness, and gear module have to be coordinated to provide smooth torque transmission and minimum noise. Tooth wear occurs early if the module is too tiny for the load. Well-matched pairs mesh evenly and enhance service life. Heng Guan Bearing professionals will analyze your motor power, slewing speed, and pinion data and provide the optimal gear specification for your External Gear Slewing Bearing.
If you would like personal advice, send your drawings and working parameters to mia@hgb-bearing.com, and our team will suggest a tailored solution. A high-performance external gear slewing bearing with a correctly sized gear helps your crane start, stop, and position loads more precisely. The table below lists the key matching points.
| Factor | Why It Matters |
|---|---|
| Gear module | Sets tooth strength and load transfer |
| Tooth hardness | Improves wear resistance |
| Pinion alignment | Ensures even meshing and low noise |
External Gear Slewing Bearing Selection for Mobile, Tower, and Port Cranes
Each kind of crane exerts varied demands on its slewing bearing; therefore, it is useful to consider how your equipment really functions. Due to the lightweight and small dimensions of mobile cranes, a single-row four-point contact ball high performance external gear slewing bearing is an ideal solution. Tower cranes operate at height and need a stiff, precise rotation; hence, double-row ball or cross roller types are generally selected.
Port cranes are never idle in their work on containers and bulk goods, underpinned by the strength of a three-row roller framework. Heng Guan Bearing custom-makes designs for lifting, construction, port, and mining equipment, and we ship to Europe, America, and Asia. Choosing the correct high-performance external gear slewing bearing for the kind of crane you have saves you downtime and preserves your investment. The Table below gives the main technical characteristics common to the range.
| Parameter | Specification |
|---|---|
| Inner diameter | 50 mm – 8,000 mm |
| Outer diameter | 200 mm – 10,000 mm |
| Height | 50 mm – 500 mm |
| Gear module | M4 – M40 (customizable) |
| Gear surface hardness | 55 – 62 HRC |
| Precision grades | P0, P6, P5, P4 |
| Base material | 42CrMo, 50Mn alloy steel |
| Rolling elements | GCr15SiMn bearing steel |
| Operating temperature | -40°C to +80°C |
Conclusion
The right External Gear Slewing Bearing depends on load, raceway design, gear matching, and crane type. By evaluating these four points together, you can select a high-performance external gear slewing bearing that delivers stable, long-lasting service. Heng Guan Bearing is ready to support your next lifting project.
FAQ
Q1: What diameter range does Heng Guan Bearing offer?
A: We build external gear slewing bearings with inner diameters from 50 mm to 8,000 mm and outer diameters up to 10,000 mm.
Q2: Which accuracy grades are available?
A: P0, P6, P5, and P4 grades are available.
Q3: Which raceway is best for port cranes?
A: A three-row cylindrical roller structure is usually preferred for heavy port duty.
Q4: Why does gear module matter?
A: It sets tooth strength and ensures smooth meshing with the pinion.
Q5: Can the bearing be customized?
A: Yes, we provide personalized design and flexible production to fit your crane.
Get Your Crane Bearing Solution Today
Ready to upgrade your crane's rotation system? Share your load data and drawings with Heng Guan Bearing, and our engineers will recommend the right External Gear Slewing Bearing. Email us at mia@hgb-bearing.com today and let us build a reliable, cost-effective solution for you.
References
1. ISO 76:2006. Rolling Bearings — Static Load Ratings. International Organization for Standardization.
2. ISO 281:2007. Rolling Bearings — Dynamic Load Ratings and Rating Life. International Organization for Standardization.
3. ISO 6336-1:2019. Calculation of Load Capacity of Spur and Helical Gears. International Organization for Standardization.
4. Harris, T. A., & Kotzalas, M. N. (2006). Essential Concepts of Bearing Technology (5th ed.). CRC Press.
5. Hamrock, B. J., Schmid, S. R., & Jacobson, B. O. (2004). Fundamentals of Machine Elements (2nd ed.). McGraw-Hill.
6. ANSI/AGMA 2001-D04. Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth. American Gear Manufacturers Association.
