Ball Bearing Slewing Ring - Precision Rotating Solutions

Luoyang Hengguan Bearing Technology provides high-performance ball bearing slewing rings engineered for heavy-duty pivoting applications. Our products feature four-point contact and double-row structures, capable of withstanding combined axial, radial and tilting loads within a single compact assembly. With outer diameter ranging from 50mm to 2,000mm and precision grades including P0, P6, P5 and P4, our slewing rings eliminate the need for complicated multi-bearing combinations. Manufactured from 42CrMo and 50Mn alloy steel, paired with GCr15SiMn high-purity bearing steel rolling elements, each unit maintains micrometer-level operational precision and a service life of over 50,000 hours. Backed by ISO 9001 certification and more than 20 years of professional bearing manufacturing experience, our products are widely applied in precision robotics, aerospace systems and industrial automation across 50+ countries.

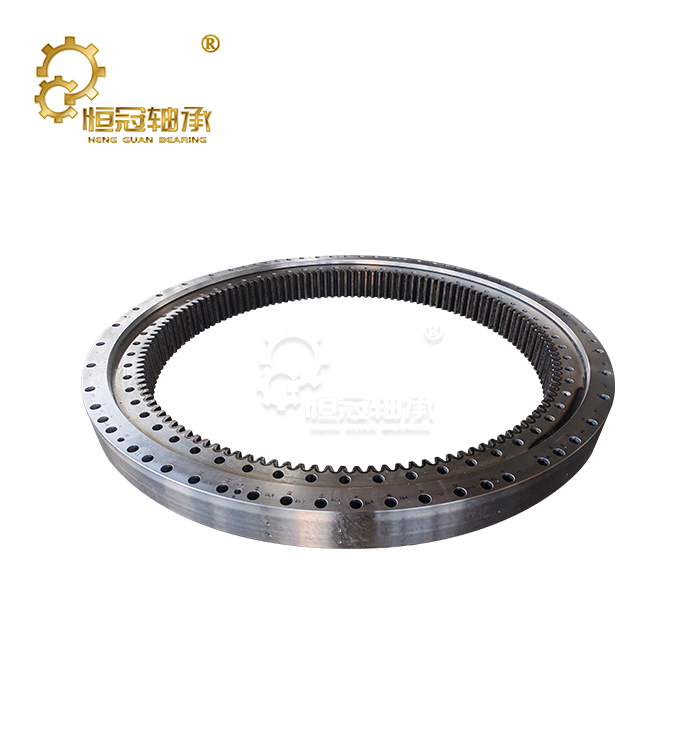

Ball Bearing Slewing Ring Details

Our products act as structural rotary joints between fixed bases and rotating superstructures. The integrated design of inner and outer rings, together with precisely arranged steel balls separated by spacers, replaces traditional kingpost structures, greatly reducing assembly difficulty and daily maintenance costs.
We supply multiple types of slewing rings, including deep groove ball slewing rings, four-point contact ball slewing rings and customized models to meet different load distribution demands. The four-point contact structure is especially suitable for working conditions requiring comprehensive multi-directional load resistance.
Raceways are precision ground to achieve a surface roughness below Ra 0.4μm. This high-quality finish effectively reduces friction coefficients by nearly 30% compared with ordinary products, extending service life and lowering overall energy consumption.

Technical Specifications

Why Choose Us

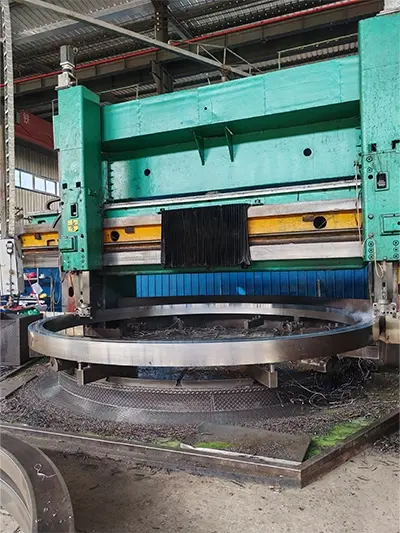

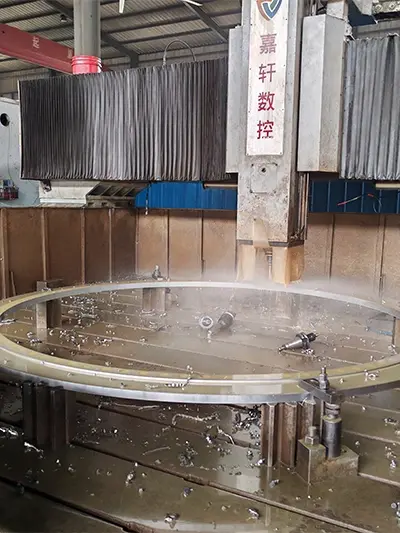

Manufacturing Precision

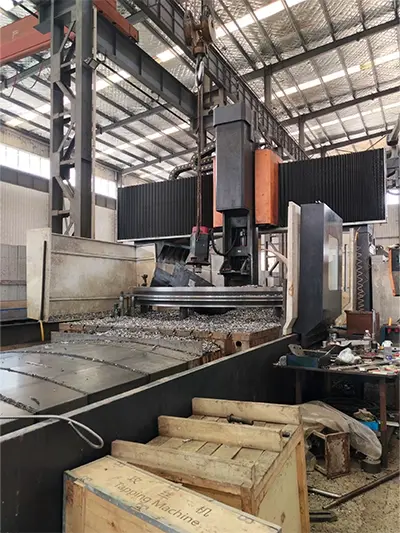

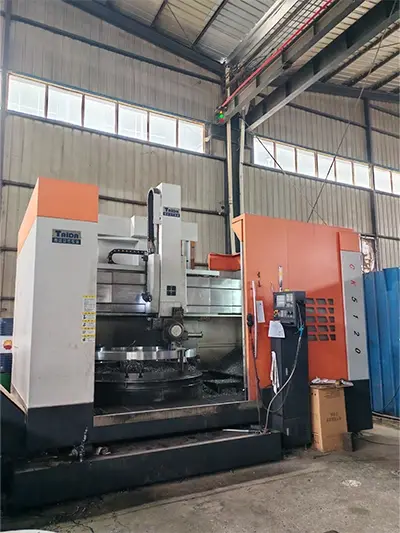

Our CNC vertical lathes and machining centers maintain processing tolerances within ±0.01mm. This precision ensures consistent performance across production batches.

Material Expertise

We adopt premium 42CrMo and 50Mn alloy steels with complete material certification. Professional heat treatment processes deliver a hardness range of HRC 55–62, delivering excellent wear resistance and structural durability.

Customization Capability

Our engineering team handles non-standard specifications from 50mm to 10,000mm diameters. Whether you require integrated Gear teeth, special sealing systems, or unique mounting configurations, we provide technical consultation and 3D design support without requiring you to supply initial drawings.

Global Supply Chain Experience

With products operating in Europe, North America, Southeast Asia, and the Middle East, we understand international compliance requirements. Our bearings meet DIN, ISO, and GB standards, simplifying your procurement process.

Features and Benefits

Micrometer-Level Accuracy

Precision machining delivers rotational accuracy within micrometer tolerances. This high precision ensures reliable positioning for robotic arms and medical imaging equipment.

Reduced Friction Performance

Optimized raceway geometry cuts friction coefficients by 30%. It effectively lowers operating temperatures and reduces energy consumption, which is critical for battery-powered mobile equipment.

Extended Service Life

High-purity GCr15SiMn bearing steel resists fatigue crack propagation. Combined with proper lubrication, the bearings achieve a service life of over 50,000 hours before the first maintenance.

Low Noise Operation

Precision grinding and balanced ball arrangement limit operating noise to below 60 decibels. This advantage is essential for medical devices and laboratory automation systems.

Simplified Maintenance

Standard mounting dimensions and accessible grease ports minimize downtime. Your maintenance team can complete routine lubrication and inspection without special tools.

Applications

Industrial Robotics

Ball bearing slewing rings serve as rotary joints for robotic arms that require high-precision angular positioning under variable loads. The low-friction design enables smooth motion control.

Medical Equipment

CT scanners and surgical positioning systems rely on quiet, vibration-free rotation. Our sealed variants prevent contamination while maintaining outstanding positional accuracy.

Aerospace Systems

Satellite tracking antennas and radar systems demand lightweight designs with high structural stability. Our high-precision grades support angular accuracy within 0.001°.

Precision Instruments

Testing equipment and metrology systems benefit from excellent thermal stability and repeatable positioning, delivered by our slewing rings in temperature-controlled working environments.

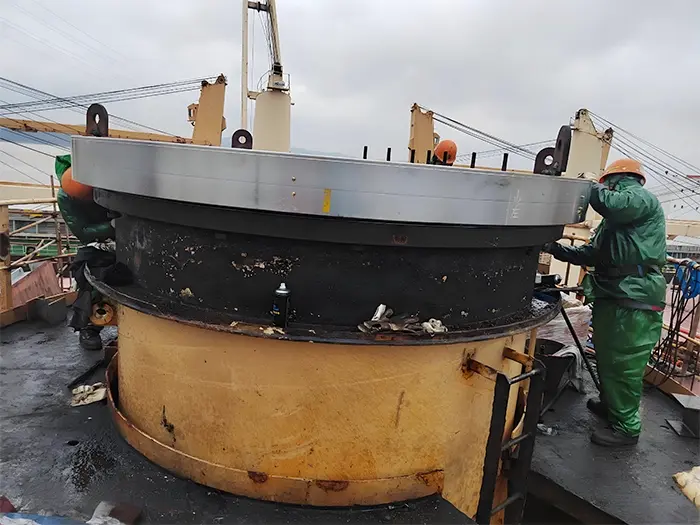

Installation Guide

Pre-Installation Checks

Verify mounting surfaces for flatness within 0.05mm per 100mm. Clean all contact surfaces to remove protective coatings and debris.

Mounting Procedure

Position the slewing ring with gear alignment marks oriented correctly. Install mounting bolts in a star pattern, tightening gradually to specified torque values. Avoid full torque in single passes—use three progressive tightening stages.

Lubrication

Apply specified grease type through lubrication ports until slight excess appears at seals. Rotate the bearing several revolutions to distribute lubricant evenly across raceways.

Initial Operation

Run the assembly at 25% rated speed for the first hour. Monitor temperature and noise levels. Retighten mounting bolts after initial operation period.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Testing & Certification

Each ball bearing slewing ring experiences dimensional confirmation utilizing facilitate measuring machines (CMM) with ±0.002mm precision. Vibration testing recognizes potential awkward nature some time recently shipment.

Our ISO 9001 certified quality framework guarantees full traceability from crude fabric certification through last review. RoHS compliance documentation goes with universal shipments.

Life testing machines mimic operational conditions, approving execution beneath combined stack scenarios. We keep up test records for quality reviews and client confirmation.

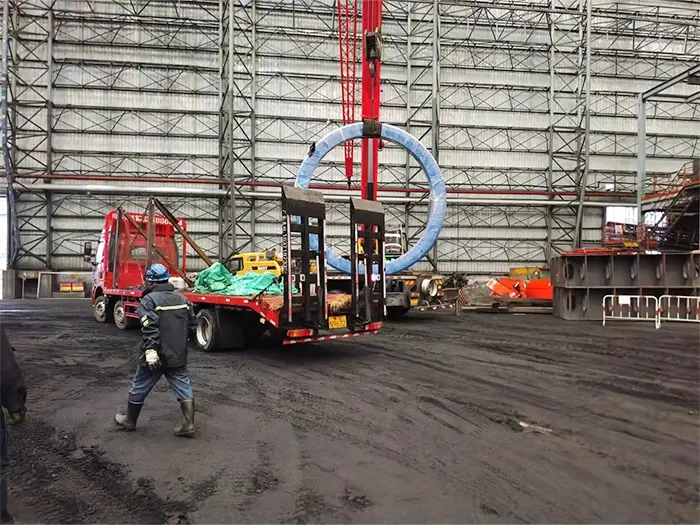

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Customer Reviews

"The exactness and quality of these pinion Shafts surpassed our desires. Culminate fit and smooth operation in our mechanical gearboxes." - Fabricating Design, Germany

"Excellent client benefit and quick conveyance. The custom alterations were precisely what we required for our application." - Venture Supervisor, Joined together States

Maintenance and Care

Lubrication Schedule

Relubricate every 500 operating hours or six months, whichever occurs first. Use only specified grease grades—mixing lubricants causes compatibility issues.

Inspection Intervals

Check mounting bolt torque quarterly. Inspect seals for damage or wear monthly. Monitor operational noise for changes indicating internal wear.

Storage Recommendations

Store unused bearings in temperature-controlled environments (15-25°C). Maintain protective coatings on raceways. Rotate stored bearings quarterly to prevent brinelling.

FAQ

Q: What diameter range can you manufacture?

A: Our standard range covers 50mm to 2,000mm. For larger diameters up to 10,000mm, we provide custom engineering solutions.

Q: Do you supply bearings with integrated gears?

A: Yes. We machine external gears, internal gears, or supply non-geared variants based on your specifications.

Q: What precision grade should I specify?

A: P6 suits general industrial applications. P5 fits precision robotics. P4 serves aerospace and metrology equipment requiring extreme accuracy.

Q: Can you work from my existing bearing samples?

A: Absolutely. Our reverse engineering service measures your existing components and produces replacement specifications, even without original drawings.

Q: What lead time should I expect?

A: Standard configurations ship within 3-4 weeks. Custom designs require 6-8 weeks including engineering review.

Contact Us

Ready to discuss your ball bearing slewing ring requirements? Our engineering team provides technical consultation and custom solutions. Reach us at mia@hgb-bearing.com for specifications and quotations.
