Slewing Bearing Customize

Custom Slewing Bearings – Tailored Solutions for Your Equipment

When standard bearings cannot meet your specific operational requirements, Slewing Bearing Customize solutions become essential. At Luoyang Heng Guan Bearing Technology, we specialize in designing and manufacturing custom slewing bearings tailored to your unique application needs. Whether you're dealing with exceptional loads, unusual mounting configurations, or special environmental conditions, our engineering team delivers precisely engineered solutions. With over 20 years of industry experience and manufacturing capabilities spanning from 50 mm to 10,000 mm in diameter, we transform your design challenges into reliable rotational solutions.

Product Details

Our custom slewing bearing process begins with a deep understanding of your equipment's specific demands. We don't just adapt existing designs—we engineer bearings from the ground up to meet your exact specifications.

Configurable Components:

· Raceway Configuration:Choose from single-row four-point contact, double-row ball, or three-row roller designs based on your load characteristics

· Gear Options:Internal gears, external gears, involute profiles, or cycloidal tooth forms

· Mounting Interface:Custom flanges, non-standard bolt hole patterns, or machined positioning shoulders.

· Sealing Systems:High-temperature seals, high-pressure configurations, or specialized environmental protection seals.

· Drive Integration:Gear-driven, friction-driven, or linear motor-compatible designs

Size Range:

· Bore Diameter: 50 mm – 10,000 mm

· Cross-Section Height: 20 mm – 600 mm

· Custom dimensions are available based on your provided drawings.

Material Selection:

· Ring Material: High-strength 50Mn or 42CrMo alloy steel

· Rolling Elements: GCr15 bearing steel, precision-ground.

· Seals: Oil-resistant, wear-resistant NBR (Nitrile) rubber.

· Surface Treatment: Customizable based on environmental requirements (e.g., coatings, plating).

Why Choose Us?

Engineering Expertise

Our team of over 50 dedicated engineers leverages two decades of specialized expertise in bearing design and manufacturing for every custom project. We don't just manufacture parts—we provide engineered solutions for complex rotation challenges.

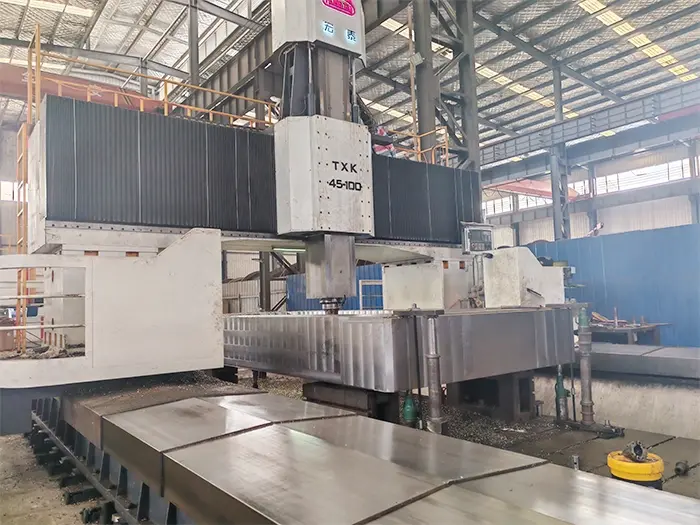

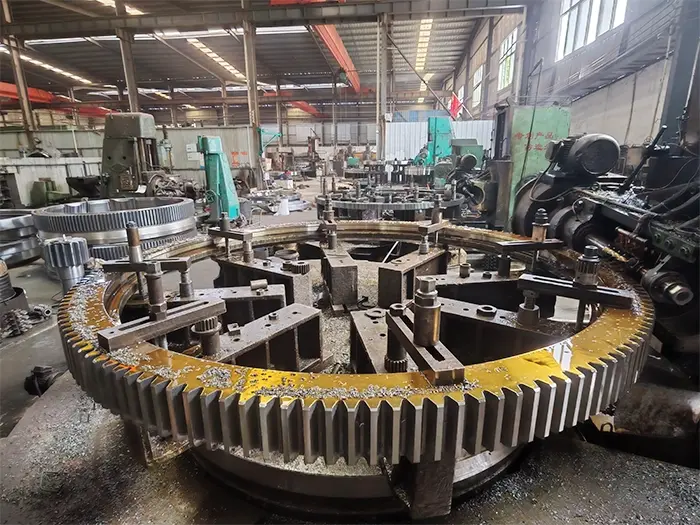

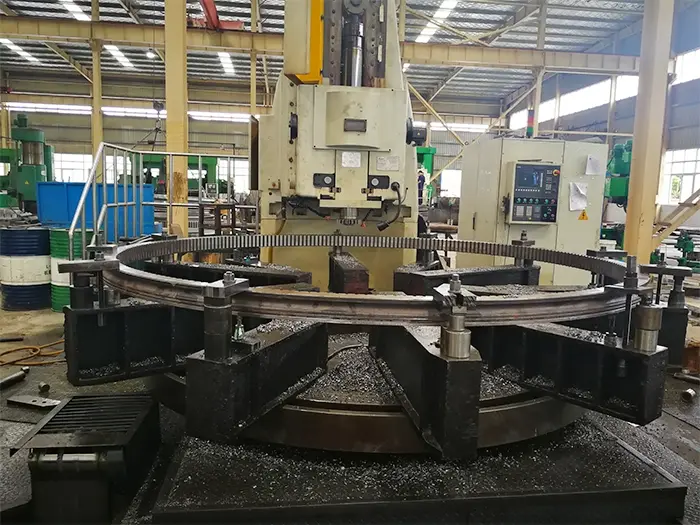

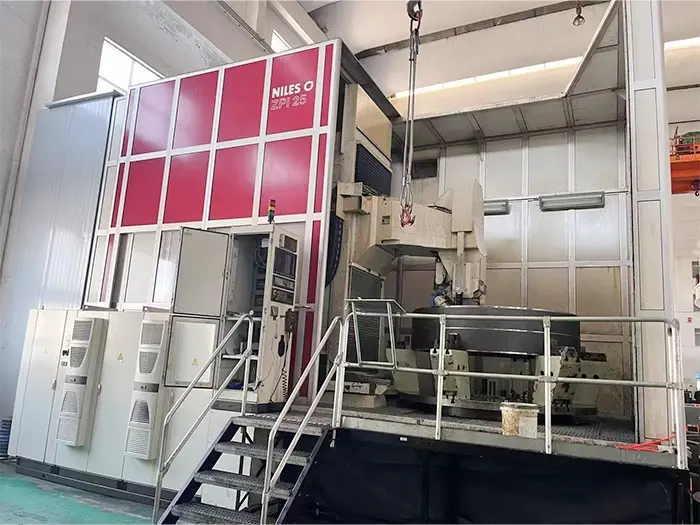

Advanced Manufacturing Capabilities

· CNC vertical lathes for large-diameter components

· CNC quenching machines for precise heat treatment

· CNC gear shapers for accurate tooth profiles

· Machining centers for complex geometries

· Grinding equipment for high-precision surface finishing

· Large gear hobbing machines for external and internal gears

Precision Grades Available

We manufacture to precision grades P0, P6, P5, and P4 (aligned with ISO Normal, P6, P5, P4), allowing you to optimally balance performance requirements with budget constraints.

Comprehensive Customization Services

· Technical consultation and application analysis

· Custom product design (we handle projects even without 3D drawings)

· Old product reverse engineering and mapping

· Non-standard machining parts (large gears, Shafts, ring gears, couplings)

· Installation guidance and technical support

Quality Systems

Our ISO 9001 certified manufacturing processes ensure consistent quality. Our products comply with DIN, ISO, and Chinese National (GB) standards, and meet RoHS environmental compliance requirements.

Global Trust

We have delivered solutions to over 50 countries across North America, Europe, the Middle East, Asia, and Africa, supporting industrial operations worldwide

Technical Specifications

Features and Benefits

Application-Specific Design

Unlike off-the-shelf products, each custom bearing is engineered for your exact load patterns, speeds, and environmental conditions. This translates directly into extended service life and lower total maintenance costs.

Flexible Configuration Options

Your equipment is unique—your Slewing Bearing Customize should be too. We adapt raceway geometry, gear specifications, and mounting interfaces to fit within your specific design constraints.

Material Optimization

We select materials and heat treatment processes specifically suited to your operating environment, whether that involves corrosive atmospheres, extreme temperatures, or high-shock conditions.

Reduced Get together Complexity

Custom mounting interfaces and integrated features can eliminate additional components, simplifying your assembly process and reducing overall system weight.

Performance Validation

Every custom bearing undergoes rigorous testing, including dimensional verification, hardness testing, and load testing, to ensure it meets your specified performance criteria.

Applications

Industrial Robots

Precision joints requiring compact designs with high moment capacity and precise positioning.

Medical Equipment

CT scanners, radiation therapy systems, and surgical robots demanding smooth, precise rotation and cleanroom-compatible operation.

Aerospace and Defense

Antenna positioning systems, turrets, and tracking equipment where absolute reliability is critical.

Precision Instruments

Telescopes, radar systems, and measurement equipment requiring minimal friction and high repeatability.

Custom Machinery

Special-purpose equipment, prototype development, and unique industrial applications that standard catalog products cannot fulfill.

Testing & Certification

Our comprehensive quality verification process includes:

· Dimensional Inspection: Coordinate measuring machines (CMM) verify all critical dimensions.

· Material Testing:Hardness testing and metallurgical analysis confirm specified material properties.

· Surface Quality:Roughness measurement and visual inspection ensure the required finish.

· Assembly Verification:Pre-delivery functional testing validates smooth and correct operation.

· Full Traceability:Complete documentation tracks every product from raw material to finished item.

Our manufacturing is certified to the ISO 9001 Quality Management System, ensuring consistent quality control. Our products also comply with RoHS environmental standards, meeting global regulatory requirements for restricted substances.

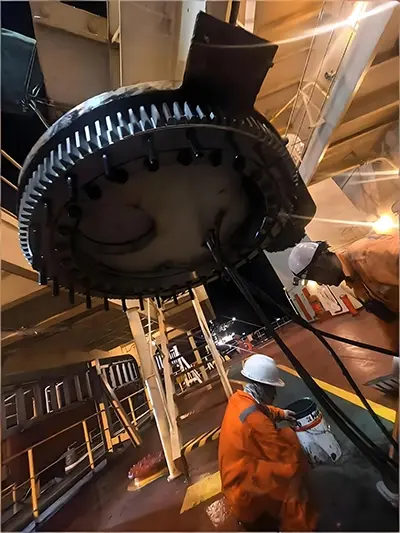

Installation Guide

Pre-Installation Checks:

1. Verify mounting surface flatness and cleanliness.

2. Confirm bolt hole alignment and thread condition.

3. Check bearing dimensions against the provided installation drawings.

4. Inspect all seal surfaces for any damage.

Installation Process:

1. Position the bearing onto the cleaned and prepared mounting surface.

2. Insert all bolts through the mounting holes, but do not tighten them initially.

3. Check alignment using dial indicators or other appropriate measuring tools.

4. Tighten the bolts in a star (cross) pattern to the specified torque value.

5. Verify smooth, free rotation of the bearing before applying the full operational load

Important Considerations:

1. Avoid impact forces during handling and transportation.

2. Use proper lifting equipment for large-diameter or heavy bearings.

3. Strictly follow the torque specifications provided for your custom design.

4. Always consult your custom design documentation for any specific requirements..

Our engineering team provides detailed installation guidance specific to your custom bearing design.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

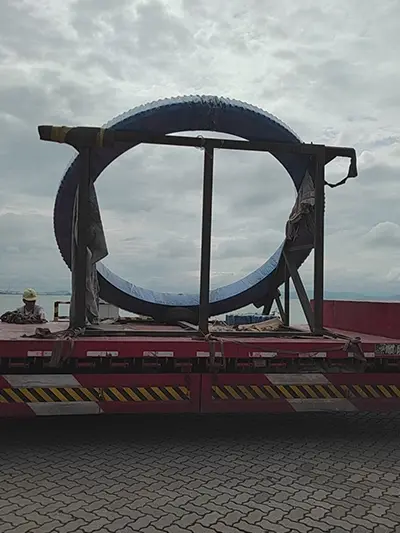

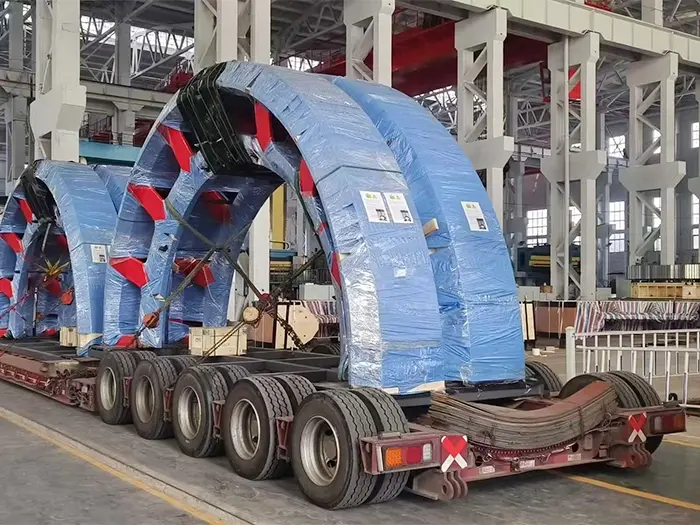

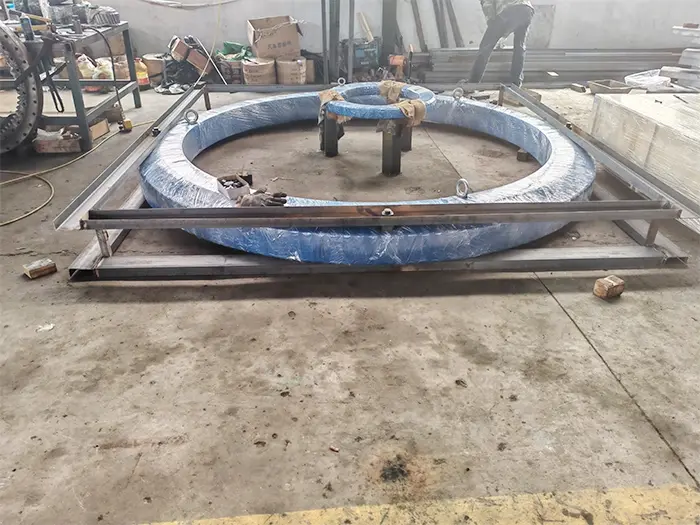

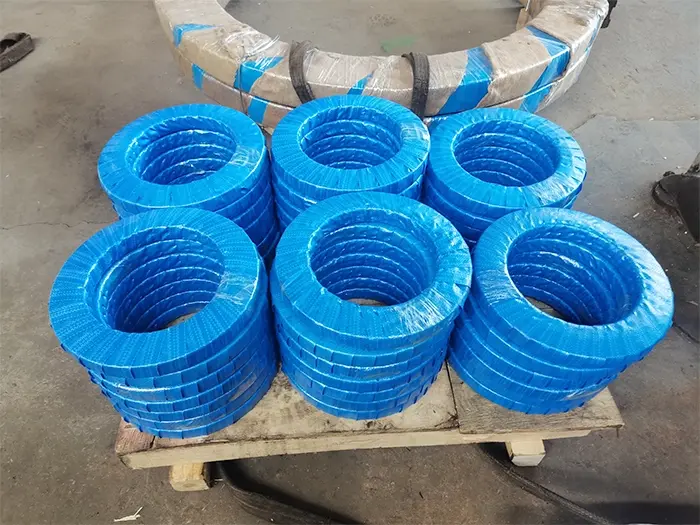

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Regular Inspection Schedule:

· Visual inspection for seal integrity: Monthly

· Bolt torque verification: Every 6 months

· Rotation smoothness check: Quarterly

· Lubrication assessment: Based on operating hours

Lubrication:

Re-lubrication intervals depend on your specific operating conditions and custom seal configuration. Consult your bearing documentation for detailed recommendations.

Warning Signs:

· Increased rotation resistance

· Unusual noise during operation

· Visible seal damage or lubricant leakage

· Excessive play or wobble

Service Life Extension Tips:

To maximize the lifespan of your bearing: protect it from contamination, maintain proper lubrication, and avoid shock loads that exceed its design specifications. Custom bearings engineered for your specific application typically offer a longer and more reliable service life compared to adapted standard bearings.

FAQ

Q: How long does a custom bearing development project take?

A: A typical timeline ranges from 2 to 4 weeks from final design approval to production completion, depending on the project's complexity and size. Expedited service is available upon request.

 Q: Do I need to provide 3D CAD files?

A: Not necessarily. We can work from 2D drawings, samples of existing bearings, or even reverse-engineer your current component through our technical drawing recreation services.

Q: What is the minimum order quantity (MOQ) for custom bearings?

A: We evaluate each project individually. Even single-piece prototypes are feasible for development and testing purposes.

Q: Can you manufacture bearings to match or replace those from other manufacturers?

A: Yes. Provide us with dimensions, photographs, or the physical bearing, and we'll produce a seamless replacement—often with design improvements based on our application analysis.

Q: What information do you need to start a custom project?

A: We require details such as load requirements, operating speeds, environmental conditions, space constraints, and mounting interface specifics. Our engineers will then guide you through the entire specification process.

Q: How do custom bearings compare in cost to standard catalog products?

A: The initial unit cost is higher. However, our custom solutions often reduce the total system cost through superior performance, longer service life, and the elimination of adaptation components or assemblies.

Contact Us

Ready to discuss your Slewing Bearing Customize requirements? Our engineering team is here to help transform your challenges into solutions. Reach out to us at mia@hgb-bearing.com for technical consultation and project evaluation.
