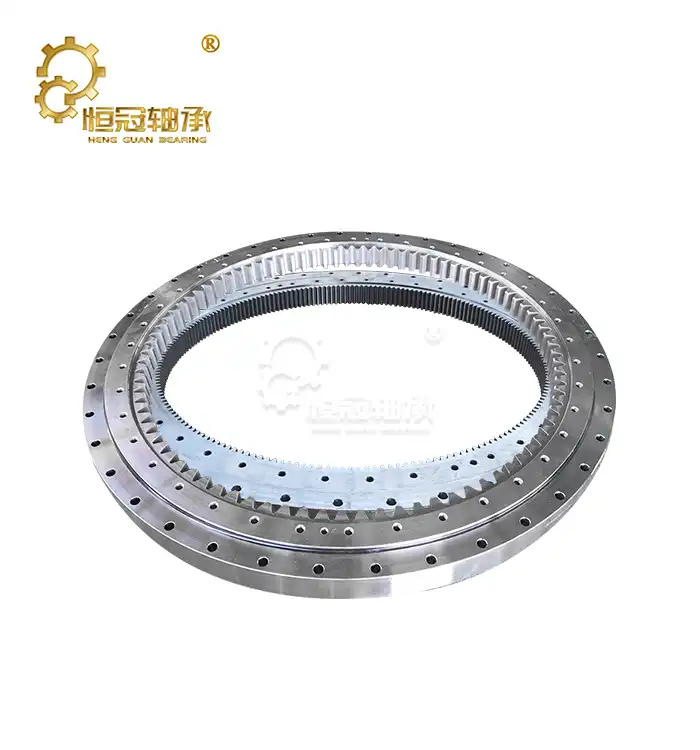

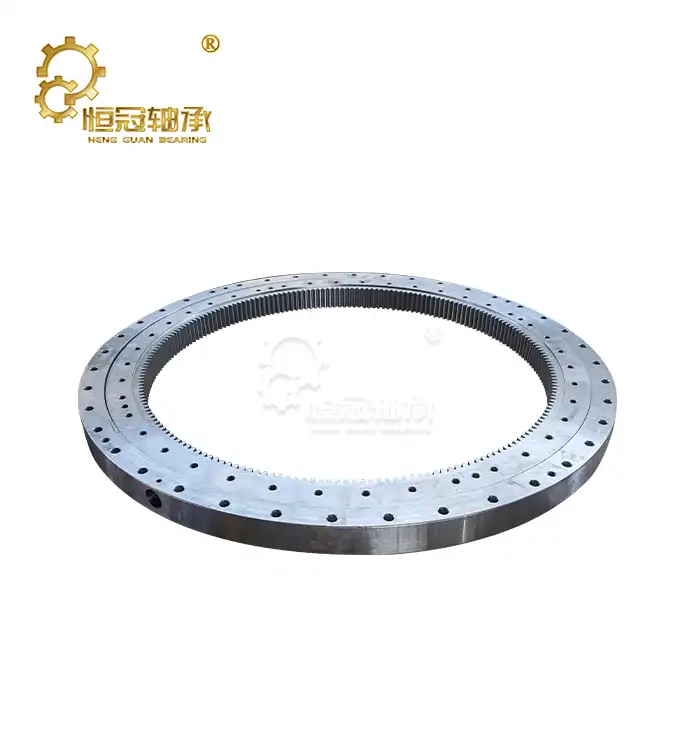

Yuchai Excavator slewing bearing

Yuchai Excavator Slewing Bearing: Precision-Engineered for Heavy-Duty Performance

The Yuchai Excavator Slewing Bearing becomes the critical pivot point that determines uptime and operational efficiency. This high-precision rotational component enables smooth 360-degree swing motion while withstanding axial loads，radial loads，tilting moments simultaneously. Unlike generic alternatives, a properly specified product matches your machine's exact gear module, bolt pattern, and load rating—preventing costly premature failures and ensuring seamless integration with your swing motor assembly.

Yuchai Model Product Parameters

Contact our engineering team: mia@hgb-bearing.com

What Makes Our Yuchai Excavator Slewing Bearing Different?

Structural Design Tailored to Real-World Loads

Single-Row Four-Point Contact Ball Bearings

Compact plan with low starting torque. Perfect for smaller scale and mini and compact

 excavators (YC08 to YC35 arrangement) working in restricted spaces. The four-point contact geometry disseminates loads proficiently whereas keeping up tight spiral play.

Crossed Roller Bearings

High inflexibility and stack capacity in a thin profile. Culminate for mid-range models (YC60 to YC150) where space imperatives meet overwhelming bucket loads.

Three-Row Roller Bearings

Maximum load-carrying capacity for expansive machines (YC360 to YC500). The upper and lower hub roller lines handle upsetting minutes amid overwhelming lifting, whereas the spiral push oversees swing powers amid unearthing.

Materials and Heat Treatment That Extend Service Life

We forge our bearing rings from42CrMoand50Mnalloy steel—not ordinary carbon steel. The forging process creates a uniform grain structure that resists fatigue cracking.

Our raceway surfaces undergomedium-frequency induction hardeningto achieve HRC 55-62 hardness. This hardened layer extends 3-5mm deep, providing long-term wear resistance even under abrasive contamination. The result? Your Yuchai Excavator slewing bearing maintains rotational accuracy throughout its service life, reducing vibration and cab shake.

Sealing Systems That Keep Contaminants Out

Mud, dust, and water infiltration cause 60% of premature bearing failures. Our triple-lip seal design combines:

· Outer deflector ring to shed bulk debris

· Primary elastomer seal (NBR material) for dust exclusion

· Secondary grease-retention seal to maintain lubrication film

This configuration protects the raceway even in high-dust environments like demolition sites or coastal construction zones.

Manufacturing Capabilities That Support Your Operations

Precision Machining Infrastructure

Our production facility handles bearings from 50mm to 10,000mm diameter using:

· CNC vertical lathes for accurate raceway profiling

· CNC gear hobbing machines for precise external/internal gearing

· Grinding equipment for final surface finish (Ra 0.8μm or better)

This equipment ensures your replacement bearing matches OEM mounting dimensions without modification to your chassis or upper frame.

Customization for Non-Standard Requirements

Do you have older Yuchai models with discontinued parts? Our reverse engineering service provides solutions:

1. On-site measurementusing portable CMM equipment

2. Wear pattern analysisto identify root causes of previous failures

3. Optimized redesignaddressing original weaknesses (improved sealing, upgraded materials, modified heat treatment zones)

4. Manufacturing to your exact specificationswithout requiring original drawings

We've successfully replicated bearings for legacy equipment where OEM parts are no longer available, reducing your replacement cost by 40-60% compared to aftermarket imports.

Technical Support That Solves Real Problems

Load Capacity Concerns

Can your bearing handle heavy bucket loads during deep excavation?

We perform finite element analysis (FEA) on custom designs to verify stress distribution. Our engineering team calculates safety factors based on your actual operating conditions—bucket size, material density, duty cycle—not just catalog ratings.

Service Life Optimization

How do you extend bearing life in high-utilization fleets?

Beyond material quality, we optimize:

· Contact stress distributionthrough precise raceway geometry

· Lubrication retentionvia improved grease channel design

· Fatigue resistanceusing controlled heat treatment to balance surface hardness with core toughness

Corrosion Protection

Operating near coastlines or in chemical processing environments?

We apply zinc-rich primer and epoxy topcoat systems that pass 500-hour salt spray testing. For extreme conditions, we offer stainless steel rolling elements as an upgrade option.

Installation Accuracy

Worried about mounting errors causing gear mesh problems?

We provide torque specifications, bolt tightening sequences, and run-out tolerance guidelines. Our technical team offers remote video support during installation to verify proper assembly.

Quality Verification You Can Trust

Every bearing undergoes:

· Ultrasonic flaw detectionon forged blanks to eliminate internal defects

· Hardness depth verificationconfirming the quenched layer meets specifications

· Gear accuracy measurement(DIN 3961 standards) ensuring smooth pinion engagement

· Dimensional inspectionvia CMM, guaranteeing bolt hole alignment within ±0.1mm

· Rotational torque testingconfirming smooth operation without binding

We maintain ISO9001 certification with full process traceability from raw material to final packaging.

Why Choose Luoyang Heng Guan Bearing Technology?

We focus on solving the real challenges you face:

Comprehensive estimate rangecovering 50-10,000mm diameter applications

Four exactness grades available(P0, P6, P5, P4) coordinating your exactness requirements

Global trade experiencewith demonstrated execution in 50+ countries

Fast conveyance from stockfor common Yuchai models, decreasing your downtime

Custom building supportfor non-standard applications and legacy equipment

Our ISO9001-certified fabricating office in Luoyang—China's bearing innovation hub—combines three decades of industry experience with advanced CNC production equipment. This guarantees you get steady quality whether requesting a single substitution bearing or outfitting an whole fleet.

FAQ

Q: How regularly ought to I grease up my product?

A: Apply EP2 oil each 50–100 working hours, or more habitually in dusty conditions.

Q: What are the early signs of bearing failure?

A: Pounding commotion, intemperate play, or metal particles in grease.

Q: Can I utilize a nonexclusive bearing to diminish costs?

A: No. Utilizing the rectify detail is fundamental for security and performance.

Q: How do I confirm jolt tightness?

A: Check jolt torque after the to begin with 100 hours, at that point each 500 hours.

Q: What is the contrast between ball and roller bearings?

A: Ball bearing suit lighter loads, whereas roller bearing offer higher stack capacity for heavy-duty applications.

Get Expert Assistance for Your Application

Selecting the right Yuchai Excavator slewing bearing requires understanding your specific operating conditions. Contact our technical specialists at mia@hgb-bearing.com for personalized support.
