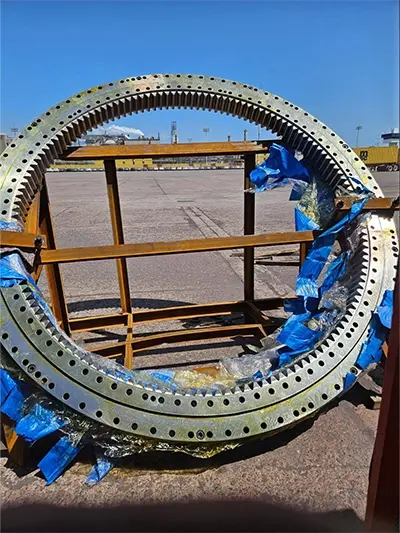

External Gear Slewing Bearing

External Gear Slewing Bearing

Product Details

When your equipment demands reliable rotation under heavy loads, an External Gear Slewing Bearing delivers the precision and durability you need. This specialized rotational bearing features gear teeth on its outer ring, enabling direct engagement with your drive pinion for efficient power transmission. Whether you're operating tower cranes, excavators, or wind turbines, our products provide smooth rotational movement while handling combined axial, radial, and moment loads simultaneously. Manufactured to strict ISO standards in Luoyang's bearing technology hub, each unit undergoes rigorous quality control to ensure consistent performance in your critical applications.

Our product utilizes a precision-engineered structure where the external ring gear meshes directly with your drive system. This configuration offers excellent torque transmission efficiency while maintaining compact installation dimensions. You'll find these bearings available in multiple internal geometries—single-row four-point contact ball, double-row ball, three-row roller, and cross-roller designs—each optimized for specific load profiles and operational requirements.

The bearing assembly consists of an inner ring, outer ring with integral gear teeth, rolling elements, spacers, and high-performance seals. Our engineering team can customize mounting hole patterns, seal materials, and gear specifications to match your exact mounting requirements.When your equipment demands reliable rotation under heavy loads, an External Gear Slewing Bearing delivers the precision and durability you need. This specialized rotational bearing features gear teeth on its outer ring, enabling direct engagement with your drive pinion for efficient power transmission. Whether you're operating tower cranes, excavators, or wind turbines, our products provide smooth rotational movement while handling combined axial, radial, and moment loads simultaneously. Manufactured to strict ISO standards in Luoyang's bearing technology hub, each unit undergoes rigorous quality control to ensure consistent performance in your critical applications.

Our product utilizes a precision-engineered structure where the external ring gear meshes directly with your drive system. This configuration offers excellent torque transmission efficiency while maintaining compact installation dimensions. You'll find these bearings available in multiple internal geometries—single-row four-point contact ball, double-row ball, three-row roller, and cross-roller designs—each optimized for specific load profiles and operational requirements.

The bearing assembly consists of an inner ring, outer ring with integral gear teeth, rolling elements, spacers, and high-performance seals. Our engineering team can customize mounting hole patterns, seal materials, and gear specifications to match your exact mounting requirements.

Why Choose Us?

Technical Specifications

Certification

Features and Benefits

External Gear Design

The integrated outer ring gear eliminates the need for a separate gear coupling assembly. This reduces assembly complexity, minimizes potential failure points, and improves torque transmission efficiency.

Multiple Rolling Element Configurations

Different internal geometries allow for optimization based on specific load conditions. The four-point contact design excels in applications primarily subjected to axial loads, while the three-row roller design handles extreme moment loads.

Precision Heat Treatment

Our CNC hardening process ensures uniform hardness distribution across the raceways and gear teeth. This controlled metallurgical process extends service life and reduces wear rates.

High-Performance Sealing

Integrated seals protect internal components from contaminants while maintaining lubrication. Nitrile rubber is available for standard applications, or fluorocarbon rubber for chemical resistance.

Load Integration Capability

These external gear slewing bearings can simultaneously withstand axial thrust, radial forces, and overturning moments. This multi-directional load handling capability simplifies structural design and reduces the number of components.

Modular Customization

We can adapt mounting hole patterns, gear tooth counts, and lubrication methods to match your equipment layout. This flexibility speeds up installation and improves maintainability.Applications

Development Machinery

Tower cranes, versatile cranes, concrete pump trucks, and excavators depend on these heading for boom revolution and turret swivel functions.

Renewable Energy

Wind turbine yaw and pitch frameworks utilize slewing orientation with outside gears to keep up ideal edge introduction for control era efficiency.

Material Handling

Port cranes, loaders, and material handling equipment require smooth, controlled rotation under variable load conditions.

Heavy Industry

Steelmaking converters, rolling equipment, and mining equipment utilize these rotary devices in harsh, high-temperature, and highly contaminated environments.

Defense Systems

Radar platforms, missile launchers, and fire control systems require precise rotation with minimal backlash.

Entertainment Equipment

Large amusement rides and stage equipment require reliable rotation with strict safety margins.

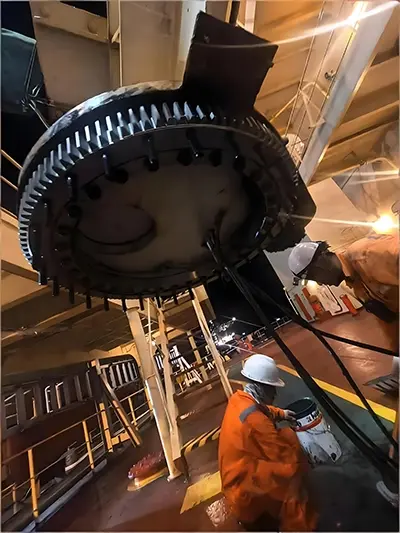

Installation Guide

Verify mounting surface levelness inside indicated resis

Pre-Installation Inspectiontances. Check that jolt gaps adjust appropriately and surfaces are clean and free from burrs.

Mounting Surface Preparation

Apply anti-corrosion coating to mounting faces. Guarantee satisfactory bolster around the whole circumference to anticipate localized push concentrations.

Bolt Installation

Use high-strength jolts with indicated review markings. Fix in a star design arrangement to the torque values given in your specialized documentation. Re-check torque after beginning operation period.

Gear Work Adjustment

Set pinion-to-ring adapt backfire concurring to the module determination. Inaccurate work can cause quickened wear or noise.

Initial Lubrication

Fill all oil fittings with the indicated grease review. Pivot the bearing a few insurgencies to disseminate oil equitably over rolling surfaces.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

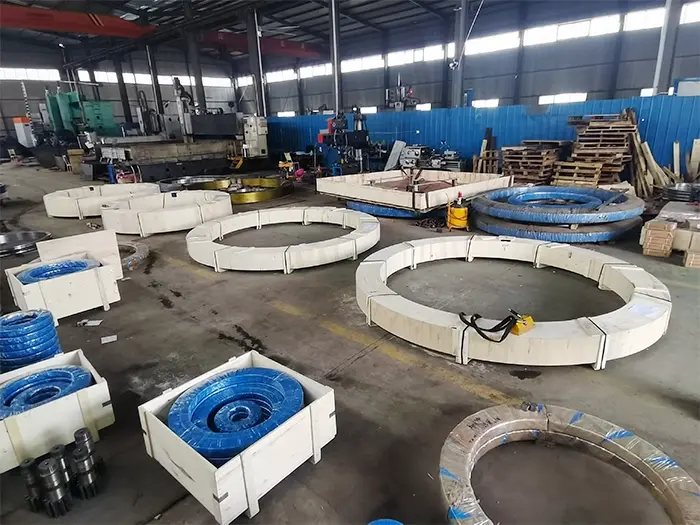

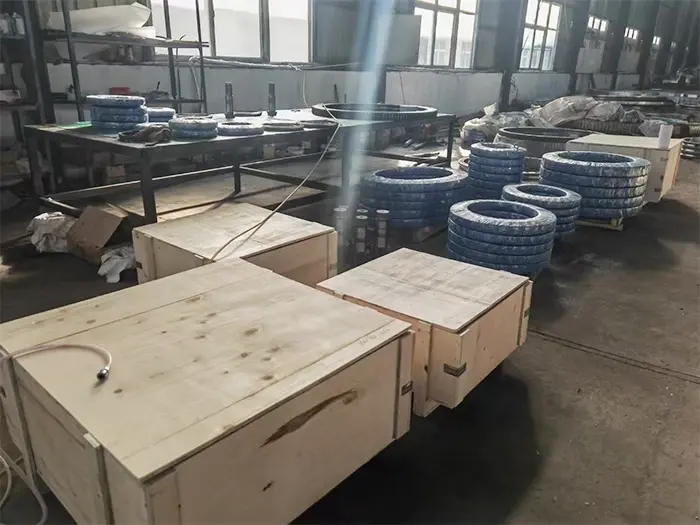

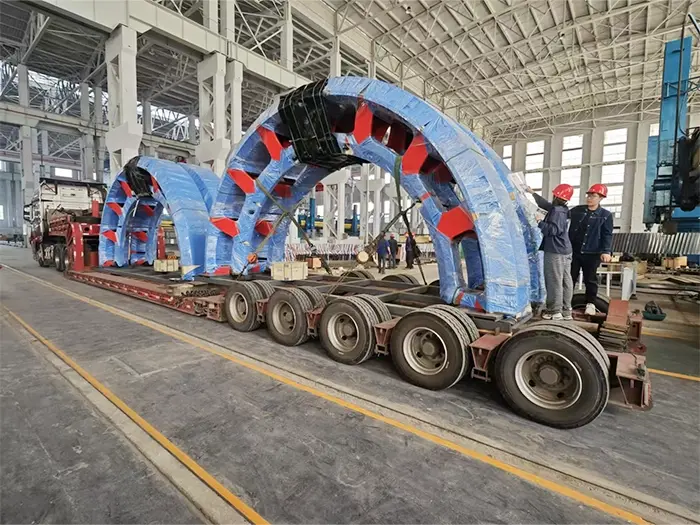

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

​​​​​​​

Maintenance and Care

Lubrication Schedule

Relubricate through oil fittings each 100 working hours beneath typical conditions. Increment recurrence in dusty or high-temperature environments.

Periodic Inspection

Check for unusual commotion, vibration, or temperature rise amid operation. Review seals for harm or grease spillage each 500 hours.

Bolt Torque Verification

Re-check mounting jolt torque after the to begin with 50 hours of operation, at that point each 1,000 hours thereafter.

Gear Tooth Examination

Inspect outside adapt teeth for wear, setting, or break arrangement amid planned upkeep intervals.

Replacement Indicators

Excessive play, diligent anomalous clamor, or unmistakable raceway harm flag the require for bearing substitution. Contact our specialized group for appraisal guidance.

FAQ

Q: What's the most extreme external distance across you can manufacture?

A: Our generation capability amplifies to 10,000mm external distance across with comparing equip modules up to M40.

Q: Can you give orientation for turn around building projects?

A: Yes. We offer estimation mapping administrations for existing heading when unique drawings are unavailable.

Q: What accuracy review ought to I indicate for my application?

A: P0 suits common mechanical utilize. P6 works for standard crane applications. P5 and P4 are prescribed for exactness situating frameworks. Our engineers can offer assistance you select based on your rotational exactness requirements.

Q: Do you supply the drive pinion with the bearing?

A: We can fabricate coordinating pinions as portion of our custom machining administrations. Give your proportion and mounting requirements.

Q: What's your normal lead time for standard sizes?

A: Standard arrangements dispatch inside 3-4 weeks. Custom plans require 6-8 weeks depending on complexity.

Q: How do I decide the adjust bearing sort for my stack conditions?

A: Share your hub stack, outspread stack, and tilting minute values with our specialized group. We'll suggest the ideal rolling component setup.

Contact Us

For technical consultation or quotation requests regarding External Gear Slewing Bearing solutions, reach our engineering team at mia@hgb-bearing.com. We're ready to support your project requirements.
