Rotary Table Bearing

Rotary Table Bearing - Precision Engineering for Your Industrial Applications

When your mechanical equipment requires reliable rotation under heavy load conditions, Rotary Table Bearing  becomes a critical component. These precisely engineered bearings are designed to withstand simultaneous radial, axial, and moment loads in demanding industrial environments. Whether you are using CNC machine tools, precision turntables, or automated production equipment, our products provide the accuracy and durability your operations demand. Luoyang Hengguan Bearing Technology Co., Ltd., with over 20 years of manufacturing experience and modern production capabilities, is committed to providing you with bearing solutions that meet international standards and exceed performance expectations in real-world applications.

Product Details

Our products feature a compact design and excellent dimensional stability. The precision Gear system utilizes gear grinding technology to achieve Grade 6 accuracy, ensuring smooth and stable power transmission. From material selection to final inspection, every bearing undergoes rigorous quality control throughout the manufacturing process.

Dimension Range:

· Standard size: 540 mm × 360 mm × 60 mm

· Manufacturing capability: 50 mm to 10,000 mm diameter

· Custom sizes available for special applications

Materials:

· Ring material: High-strength 50Mn and 42CrMo alloy steel

· Rolling elements: GCr15SiMn bearing steel

· Seals: Oil-resistant nitrile rubber for contamination protection

Why Choose Us?

Fabricating Expertise

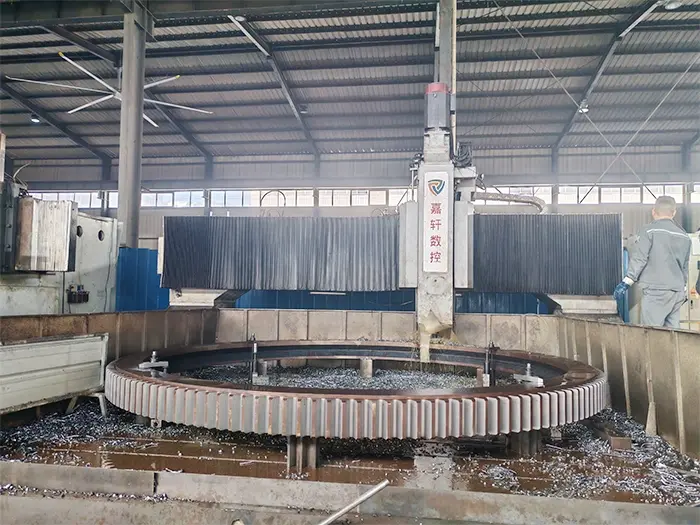

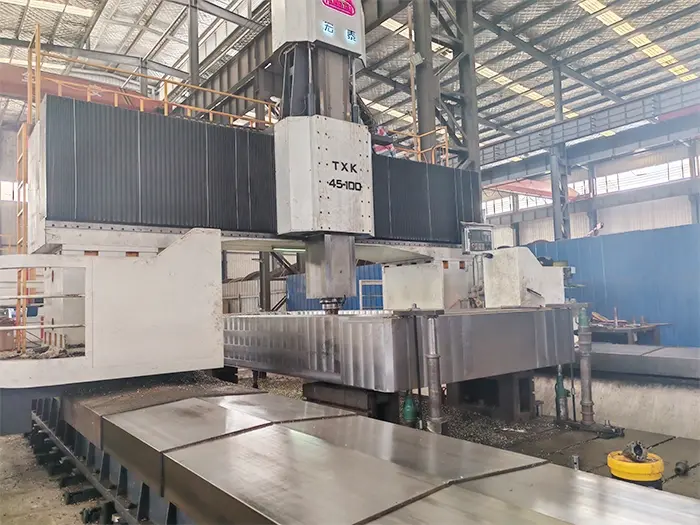

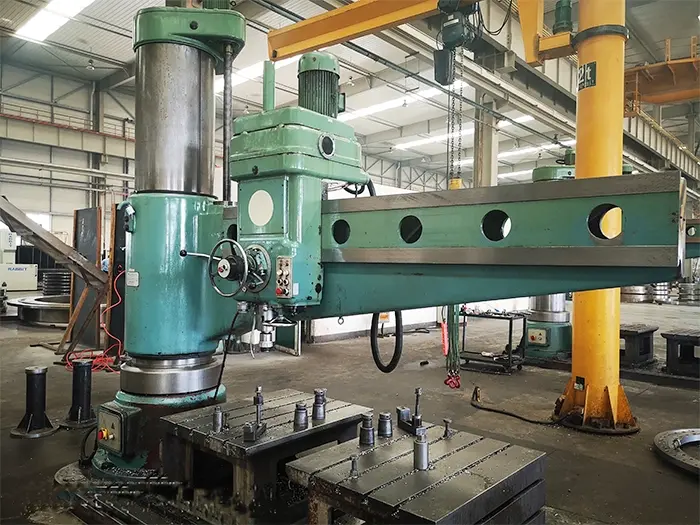

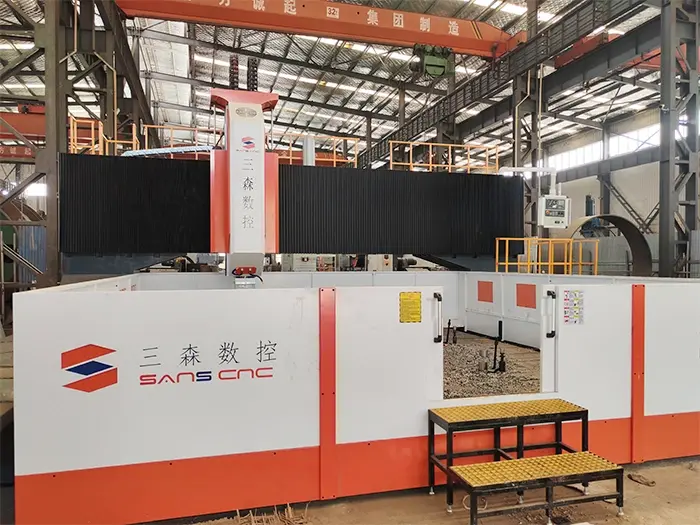

Located in Luoyang, the heartland of China's bearing industry, we have a professional team of over 50 engineers dedicated to research, development, and precision manufacturing. Our factory is equipped with CNC vertical machining centers, CNC quenching machines, forming machines, and grinding equipment to ensure stable and reliable product quality.

Proven Worldwide Reliability

Our products serve customers in over 50 countries worldwide, including the United States, Germany, the United Kingdom, Italy, and Australia. This global reach reflects our commitment to quality and service.

Flexible Customization

Thanks to our in-house design and manufacturing capabilities, we can handle non-standard requirements. From surveying antique items to providing personalized custom solutions, we can adapt to your specific working conditions.

ISO9001 Certified Quality

Our quality administration framework guarantees traceability from crude materials to wrapped up items. Each bearing meets universal measures counting ISO, Commotion, and GB details, with RoHS compliance for natural necessities.

Technical Specifications

Features and Benefits

High Load Capacity

This integrated design can simultaneously withstand radial, axial, and bending loads. This feature reduces the number of components required for assembly, thereby simplifying the design and lowering maintenance requirements.

Superior Rotational Accuracy

Ground gear surfaces and tight manufacturing tolerances deliver consistent positioning accuracy. Your machine tools maintain precision even during extended production runs.

Extended Service Life

Advanced heat treatment processes create hardened surfaces that resist wear while maintaining core toughness. This combination means fewer Rotary Table Bearing replacements and reduced downtime.

Defilement Protection

Integrated seals keep oils in and contaminants out. Your heading keep up execution indeed in challenging mechanical situations with tidy or moisture.

Applications

CNC Machine Tools

Precision turntables and rotary indexers require the precision bearings we provide. Your machining operations will achieve tighter tolerances and superior surface finishes.

Industrial Automation

Robotic positioners and mechanized assembly systems rely on smooth, predictable rotation. Our bearings ensure your automated equipment operates reliably through millions of cycles.

Specialized Equipment

From measuring instruments to testing equipment, applications requiring precise rotation will benefit from our meticulous manufacturing and quality control processes.

Heavy Machinery

Construction equipment, material handling systems, and production machinery operate under demanding conditions, where our robust and durable designs are essential.

Testing & Certification

Our quality assurance process includes comprehensive testing using coordinate measuring machines and vibration analysis equipment. Every Rotary Table Bearing undergoes strict dimensional verification and performance validation.

We keep up ISO9001 certification and guarantee RoHS compliance for all items. Our fabricating forms take after worldwide benchmarks counting Noise, ISO, and GB specifications.

Installation Guide

Preparation

Clean all mounting surfaces thoroughly. Verify dimensions against your drawings. Check that Shaft and housing tolerances match bearing specifications.

Mounting Process

1. Apply appropriate lubricant to contact surfaces

2. Position the bearing carefully to avoid damage to seals or raceways

3. Tighten mounting bolts in a cross pattern to the specified torque

4. Verify smooth rotation before full assembly

Initial Setup

Check clearances after installation. Rotate the bearing through several complete cycles. Verify that your measuring equipment confirms expected accuracy.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

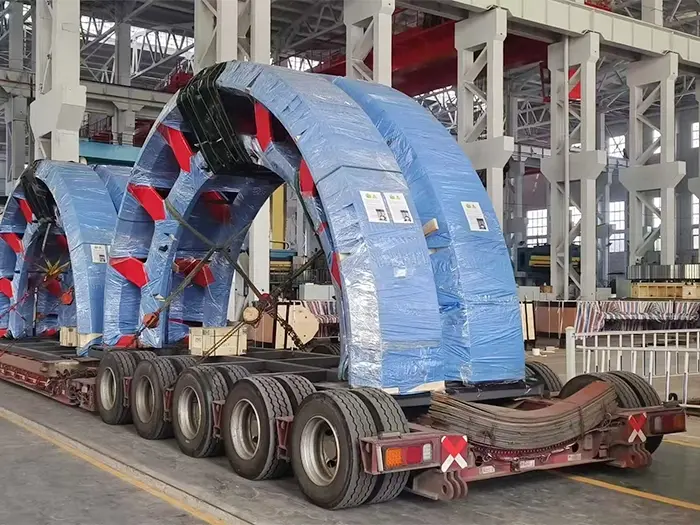

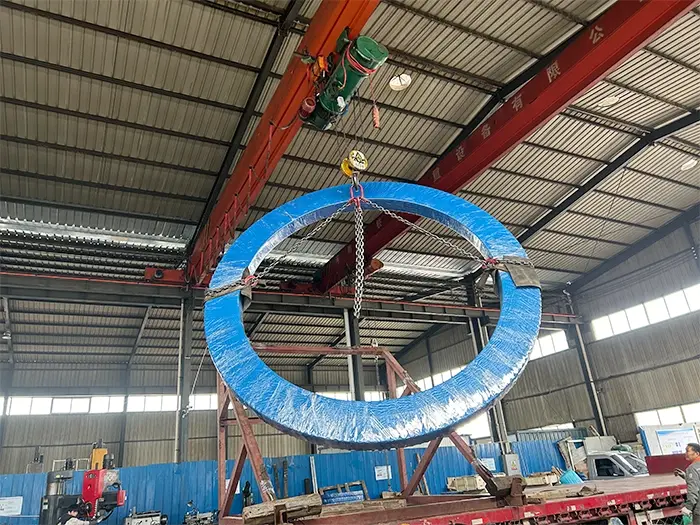

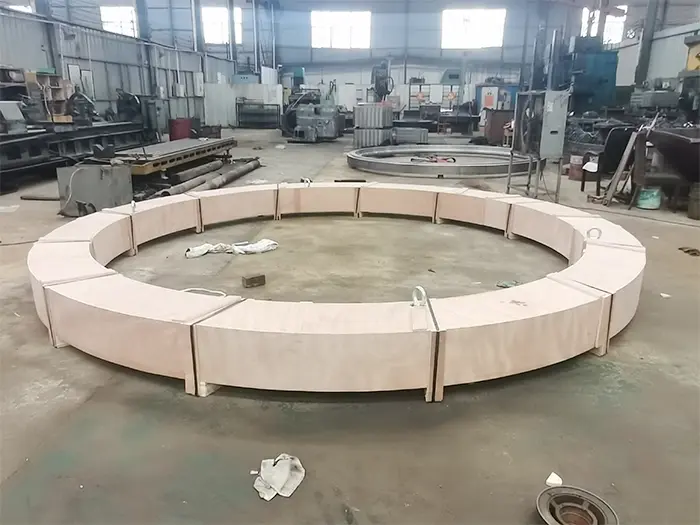

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Positive customer reviews

Our quality and service have received widespread praise from our customers.

Maintenance and Care

Standard Inspection

Monitor turn smoothness amid typical operation. Tune in for abnormal clamor that might demonstrate defilement or wear. Check seals occasionally for harm or deterioration.

Lubrication

Follow your gear manufacturer's suggestions for oil interims. Utilize greases congruous with nitrile elastic seals. Dodge over-lubrication, which can increment working temperatures.

Operating Conditions

Keep working temperatures inside indicated ranges. Ensure orientation from intemperate stun loads. Keep up cleanliness around bearing ranges to avoid contamination.

FAQ

Q: What lead time can you provide?

A: Standard sizes transport from stock inside one week. Custom orientation regularly require 4-6 weeks depending on determinations and quantity.

Q: Do you acknowledge little amount orders?

A: Yes, we back both model amounts and bulk generation. Our adaptable fabricating framework obliges your venture requirements.

Q: Can you fabricate orientation from client drawings?

A: Completely. We give mapping administrations for existing orientation and fabricate from your 2D or 3D drawings with dimensional confirmation all through production.

Q: What accuracy grades are available?

A: We make items in P0, P6, P5, and P4 accuracy grades to coordinate your application requirements.

Q: How do you guarantee quality for worldwide customers?

A: Each bearing experiences dimensional review, hardness testing, and utilitarian confirmation. We give total test reports with shipments and keep up full generation traceability.

Contact Us

Ready to discuss your Rotary Table Bearing requirements? Our engineering team is available to help you select the right solution for your application. Reach us at mia@hgb-bearing.com for technical consultation and quotations.

Luoyang Heng Guan Bearing Technology Co.,Ltd - Engineering precision into every rotation
