What Load Capacity Does PC450-6 Excavator Slewing Bearing Need?

Every excavator swing imposes large and variable stresses on its slewing bearing. So, understanding the necessary capacity is the first step to a dependable purchase. Buy a Komatsu PC450-6 – a 45-tonne class machine –and you’ll get an overall bearing envelope of about 1,563 × 152 mm that spins under combined axial, radial, and moment stresses on every dig cycle, which means that underspec’ing capacity is the single most costly error a buyer can make. Luoyang Heng Guan Bearing Technology Co., Ltd. (Heng Guan Bearing) is a manufacturer of slewing bearings for construction and lifting equipment. Slewing bearings are offered with diameters ranging from 50 mm to 10,000 mm, with raceways induction-hardened to HRC 55–62 to a case depth of 3–5 mm. This article informs you about the load capacity required for a PC450-6 Excavator Slewing Bearing and how to check it. Read on for essential elements, pressures, ratings, and checks.

What Load Factors Affect PC450-6 Excavator Slewing Bearing Selection?

The selection starts with three load categories operating at the same time, which are axial load due to the weight of the machine, radial load due to swinging and digging, and overturning moment due to the boom, stick, and bucket. A PC450-6 Excavator Slewing Bearing has to take all three at the same time, and the reason Heng Guan uses a single-row four-point contact ball design for this tonnage class is that the four-point design spreads each load type to a distinct contact patch so no single arc of the raceway is overworked.

The same principle applies to a Port crane slewing bearing where the jib and cargo produce a similar moment on a considerably bigger diameter, and the four-point contact design is again the typical response. The bearing fits the machine, not the other way around! Heng Guan Bearing examines the operating load, rotation speed, and mounting area before suggesting a design. The primary load factors are summarized in the table below.

Load Factors That Drive Slewing Bearing Selection

How Do Digging Forces Affect PC450-6 Excavator Slewing Bearing Capacity?

Digging forces are dynamic. Bucket penetration, breakout, and fast swing cycles all send shock loads through the slewing ring, so capacity should be judged against peak conditions rather than average ones — and a hard-rock face will throw peak loads at the bearing that are easily two to three times the steady-state figure.

A PC450-6 Excavator Slewing Bearing working in hard ground sees higher peaks than one moving loose material, and its raceway hardness (HRC 55–62 with a 3–5 mm induction-hardened case) and ring strength (50Mn or 42CrMo alloy steel) must reflect that. Heng Guan Bearing's rings are forged rather than cast, which gives the through-thickness toughness that shock-loaded dig cycles demand, and gear teeth are precision-machined to ISO 10 accuracy standards for full compatibility with the PC450-6 swing motor.

Engineers who select a Port crane slewing bearing follow a similar method, checking the worst lifting position instead of the typical one, and the same forged-ring/hardened-raceway combination is what carries a 1,000-tonne-per-hour ship unloader through decades of tide-driven loading. When you send your machine data and working conditions, our team can match the bearing to your real duty cycle. You can reach us at mia@hgb-bearing.com.

PC450-6 Excavator Slewing Bearing Load Ratings, Safety Factors, and Design

Raceway shape and material translate into meaningful values for the load ratings. Static capacity is life under slow or stationary circumstances, and dynamic capacity is rotational life, and they are computed from the raceway diameter, ball complement, and material hardness, not from a catalog page. Then safety factors add a margin on top of the calculated load.

The value depends on how demanding the application is. For excavator duty, a generous factor is appropriate because of shock loading, while for a steady-speed port crane slewing bearing, the same factor can be slightly tightened without compromising safety. Generally, a PC450-6 Excavator Slewing Bearing requires a big margin due to shock stress and a Port crane slewing bearing is tested with the same care. Good design is also about bolt strength, gear shape, and sealing.

Heng Guan Bearing provides precise grades P0, P6, P5, and P4, and tailor-made structures, so that the rating, gear, and mounting holes may be aligned in one design. The bearing conforms to ISO requirements for the local Chinese market and JB/T 2300-2011. The table below displays the design choices and how they support capacity.

Design Elements That Support Load Capacity

How Can Buyers Verify PC450-6 Excavator Slewing Bearing Load Capacity?

Verification should be documented. Ask the supplier for a load capacity curve, material certificates, hardness records, and dimensional inspection reports for the PC450-6 Excavator Slewing Bearing you plan to buy. Compare the curve against your calculated loads and confirm that the safety margin matches your working conditions — Heng Guan confirms the curve on coordinate measuring machines, validates gear accuracy on dedicated gear inspection stations, and supports each shipment with full material traceability from steel mill to final inspection.

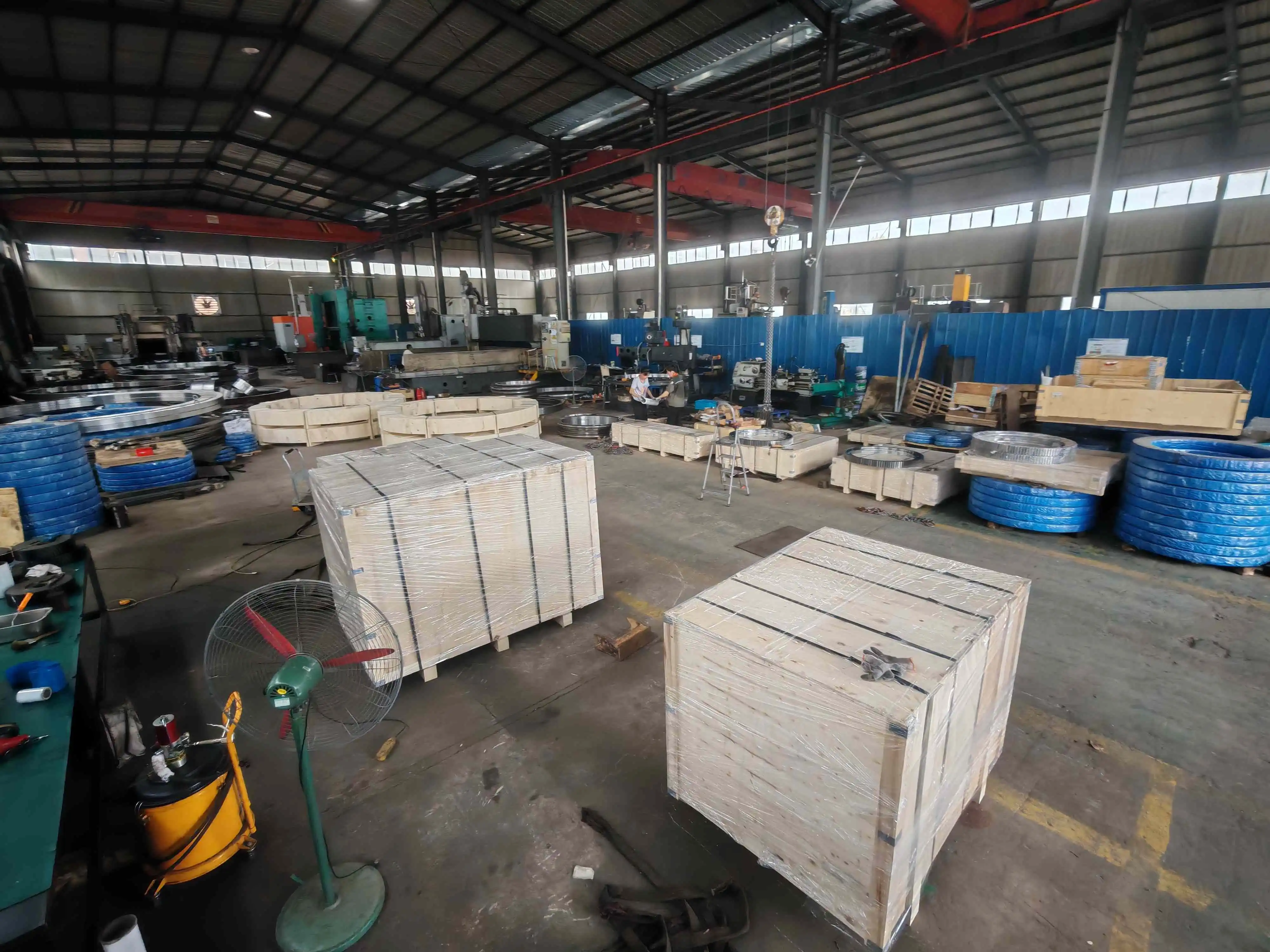

The same review applies when sourcing a Port crane slewing bearing, because a curve that looks strong on paper only helps if the test records support it. Heng Guan Bearing operates advanced production equipment — CNC vertical lathes, CNC quenching machines, CNC gear shapers, and large gear hobbing machines — supported by vibration analysis and life testing under simulated operating conditions. Experienced engineers are available to explain every figure, and under proper maintenance, you can expect 8,000–12,000 operating hours from a properly specced PC450-6 bearing. Send your drawing and duty details, and we will help you confirm the right capacity before you place an order.

Conclusion

The right capacity for a PC450-6 Excavator Slewing Bearing comes from understanding combined loads, peak digging forces, and sensible safety margins, then confirming them with documents. Working with Heng Guan Bearing gives you engineering support and reliable manufacturing.

FAQ

Q1: Which loads act on a PC450-6 Excavator Slewing Bearing?

Axial load from the machine weight, radial load from swing and digging, and overturning moment from boom and bucket reach — all three act together on every dig cycle.

Q2: Why do digging forces matter?

Shock loads set the peak stress the bearing must survive, and a hard-rock face can produce peak forces two to three times the steady-state load.

Q3: Is a Port crane slewing bearing similar?

Yes, both handle combined axial, radial, and moment loads, though port cranes see more steady-state lifting and less shock loading than excavators.

Q4: What do safety factors do?

They add a margin above the calculated working load so the bearing can survive peak conditions without premature brinelling or fatigue.

Q5: What should I ask a supplier for?

Load capacity curves, material certificates, hardness records, dimensional and gear inspection reports — and confirmation that production is ISO 9001 certified.

How Heng Guan Solves Your PC450-6 Load Capacity Challenges

Need a bearing matched to your machine's real loads? Email your drawings and working conditions to mia@hgb-bearing.com, and Heng Guan Bearing will respond with a professional recommendation and quotation. Let our engineers help you choose a PC450-6 Excavator Slewing Bearing you can rely on.

References

1. International Organization for Standardization. (2007). ISO 281: Rolling Bearings – Dynamic Load Ratings and Rating Life.

2. International Organization for Standardization. (2006). ISO 76: Rolling Bearings – Static Load Ratings.

3. Harris, T. A., & Kotzalas, M. N. (2006). Essential Concepts of Bearing Technology. CRC Press.

4. Hamrock, B. J., Schmid, S. R., & Jacobson, B. O. (2004). Fundamentals of Machine Elements. McGraw-Hill.

5. Stachowiak, G. W., & Batchelor, A. W. (2013). Engineering Tribology. Butterworth-Heinemann.

6. Budynas, R. G., & Nisbett, J. K. (2014). Shigley's Mechanical Engineering Design. McGraw-Hill.
