VSA201094-N Slewing Bearings
Gear: External gear, module m8 / 148 teeth, pitch circle d0 per medias official data
Dimensions: bore 022 mm × OD ? mm × height 56 mm, weight 90.998 kg (Schaeffler medias official)
Load capacity: dynamic axial Ca = 198 kN, static axial C0a = 1,770 kN, dynamic radial Cr = 179 kN, static radial C0r = 810 kN
Tooth force Fz max = 42.0 kN (per medias data)
Max. radial load on fixing screws Fr zul = 181.7 kN (friction-locking mount)
Clearance spec: Standard_SL: 0–0.3 mm; precision class P0 / P6 / P5 available
Material: 50Mn / 42CrMo4 rings, GCr15 balls, double-lip NBR seals, -25 to +80 °C operating range
Standard series envelope — mounting-compatible with the whole VSA Standard 20 family across the 414 → 1094 (or 755 → 1055) raceway range
Primary application: Heavy Cranes and Excavators (heavy slewing section)
- Product Description
VSA201094-N Slewing Bearings — INA VSA Standard 20 External Gear Four-Point Contact Ball Slewing Ring
Luoyang Heng Guan Bearing Technology Co., Ltd. is a factory direct supplier of VSA201094-N Slewing Bearings, which are a direct replacement for the INA VSA Standard 20 series. The four-point contact ball slewing ring is equipped with external gearing, has a diameter of 1,022 mm, a height of 56 mm, a weight of 90.998 kg and a static axial load of 1,770 kN. Heng Guan is ISO 9001 certified with 30+ years industry expertise and a staff of 50+ individuals situated in Luoyang. The model is supplied to clients worldwide with MOQ 1 piece.
What Is the VSA201094-N?
The VSA201094-N Slewing Bearings is the biggest member of the INA VSA Standard 20 series range of external gear slewing rings. It is a single row ball slewing bearing, four point contact which can take combined axial, radial and tilting moment loads in one compact ball row in 56 mm section height.
Each ball is in touch with the raceway at four locations simultaneously, hence a single ring may handle load combinations that would normally need two separate angular contact bearings. This results in a more compact mounting system for heavy slewing applications such as big tower cranes, gantry cranes and heavy excavators without compromising load capability.
External gear with 148 teeth, module 8, and normalised (N) tooth profile. The drive is accessible for field servicing, as a pinion meshes from outside OD of the outer ring.
VSA201094-N Full Specifications
Parameter | Value |
Model | VSA201094-N |
Structure | Four-point contact ball, single row |
Inner ring bore (di) | 1,022 mm |
Total height (H) | 56 mm |
Weight | 90.998 kg |
Gear module (m) | 8 mm |
Number of teeth (z) | 148 |
Dynamic axial load (Ca) | 198 kN |
Static axial load (C0a) | 1,770 kN |
Dynamic radial load (Cr) | 179 kN |
Static radial load (C0r) | 810 kN |
Max. radial load on fixing screws (Fr zul) | 181,700 N |
Tooth force — continuous / peak | 28.3 kN / 42.0 kN |
Radial clearance | Standard_SL: 0–0.3 mm |
Operating temperature | -25 to +80 °C |
Ring material | 50Mn / 42CrMo4 |
Ball material | GCr15 |
Seal | Double-lip NBR |
Precision class | P0 / P6 / P5 |
Specifications sourced from Schaeffler medias official catalogue.
Materials & Construction
The ring material may be supplied in 50Mn or 42CrMo4. 50Mn gives strong core toughness. 42CrMo4 in quenched and tempered state has higher fatigue resistance under repeated shock loads which is significant in excavator and crane swing applications.
The raceways are induction hardened to 55–62 HRC surface hardness with a ductile core to withstand impact without breaking. The fatigue performance of GCr15 bearing steel balls is stable throughout the whole range of specified loads. Double-lip NBR seals minimise entry of pollutants and keep grease within, which is especially applicable to outdoor or dusty operation situations.
All rings adhere to DIN, ISO and GB standards.
Application Areas
The VSA201094-N is suited to large-diameter external-gear slewing applications, including:
· Heavy cranes and gantry cranes — C0a of 1,770 kN supports heavy hook loads and tilting moments at the 1,094 mm raceway band
· Heavy excavators and mining shovels — external gear configuration pairs with swing pinions under high shock-load conditions
· Large solar trackers and slewing drives — the -25 to +80 °C operating range and sealed design suit outdoor PV installations
· Wind turbine yaw systems — external gear pinion mounts on the tower top and remains accessible for maintenance
· Radar and antenna platforms — stable load sharing with side-mounted pinion drives
· Offshore and marine equipment — surface treatment options are available; consult Heng Guan for specific corrosion requirements
· Large rotary turntables and test platforms — suitable when the drive must be positioned beside the table
Manufacturing Capabilities at Heng Guan

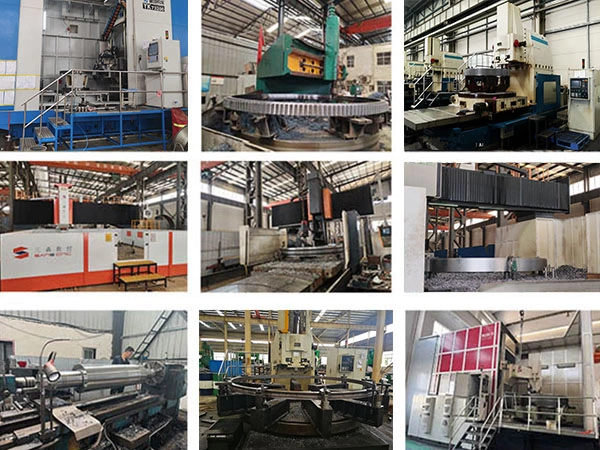

Heng Guan's production floor for slewing rings includes CNC vertical lathes, CNC quenching machines, CNC gear shapers, large gear hobbing machines, and machining centers. Each unit is verified using coordinate measuring machines and vibration testers. Raw material and process records are maintained for full traceability from steel input to finished ring.
Available precision grades are P0, P6, and P5. The production diameter range covers 50 mm to 10,000 mm. OEM and ODM orders are supported, including custom bore dimensions, section heights, gear profiles, and surface treatments. Existing part number mapping is accepted.
Products have been exported to customers in the United States, Germany, the United Kingdom, Italy, Norway, Australia, and the Middle East region, among others.
FAQ
Q: What is the VSA201094-N?
A: The VSA201094-N is the biggest four-point contact ball slewing ring with external gear in the INA VSA Standard 20 series. It has a diameter 1,022 mm and height 56 mm, it weighs 90.998 kg and supports a static axial load of 1,770 kN.
Q: What are the technicalities?
A: 148 teeth, normal profile (N), module 8, external gear. Continuous tooth force limit is 28.3 kN, max is 42.0 kN.
Q: What is the difference between VSA201094-N, VSU201094 and VSI201094-N?
A: They all have the VSA Standard 20 envelope (56 mm height) and 1,094 mm raceway diameter. VSA201094-N external gear teeth (m8/z148) VSI201094-N internal gear teeth (m8/z125) VSU201094 gearless, weight 77 kg. Selection is based on your drive setup.
Q: Is it a drop-in replacement for the original INA bearing?
A: Original INA Model reference is VSA201094-N. Heng Guan produces to the same mounting quality as an independent manufacturer.
Q: What is the suggested re-greasing interval?
A: The industry norm is to re-lubricate the raceway every 100 hours of operation for heavy equipment such as excavators. In high humidity or continuous-rotation situations, an automated lubrication system keeps grease in good condition. Check interval with your equipment OEM.
Q: Is VSA201094-N in stock?
A: Standard stock units ship within 2-3 business days. MOQ is 1 pcs. Call us for current availability, CAD drawings and price.
Contact Us
For inquiries about VSA201094-N Slewing Bearings, including pricing, availability, and technical support, contact Heng Guan Bearing at mia@hgb-bearing.com. MOQ is 1 pc.
