Mining Machinery Girth Gear

Mining Machinery Girth Gear - Heavy-Duty Transmission Solutions

When your mining operations demand reliable transmission solutions, our Mining Machinery Girth Gear delivers proven performance under extreme conditions. Engineered for heavy-duty applications like ball mills, rotary kilns, and dryers, these girth gears serve as critical transmission components that keep your equipment running efficiently. We manufacture gears ranging from 1000mm to 5000mm in outer diameter, using premium alloy steels and advanced heat treatment processes. Each gear undergoes rigorous quality control to ensure it meets your operational requirements. Whether you need standard specifications or custom solutions, our engineering team provides technical support throughout your project.

Product Details

Our girth gears feature either a segmented design or integral Forged/cast construction. The fragmented plan permits for less demanding transportation and on-site gathering, especially useful for large-diameter applications. Indispensably development gives improved basic keenness for medium-sized installations.

We utilize high-grade combination steels counting ZG35CrMo, ZG42CrMo, 34CrNiMo6, and 42CrMo. These materials offer great quality, durability, and wear resistance. If your application requires particular fabric properties, we can oblige custom fabric requests.

The fabricating handle incorporates exactness machining and warm treatment. Teeth experience medium-frequency acceptance solidifying, accomplishing surface hardness of HRC55-60. The equip body undergoes quenching and tempering treatment to guarantee ideal center sturdiness whereas keeping up surface durability.

Why Choose Us?

Extensive Fabricating Experience

With over 20 years in bearing and exactness component fabricating, our group gets it the specialized challenges in mining applications. We've provided circumference gears to operations over 50+ countries.

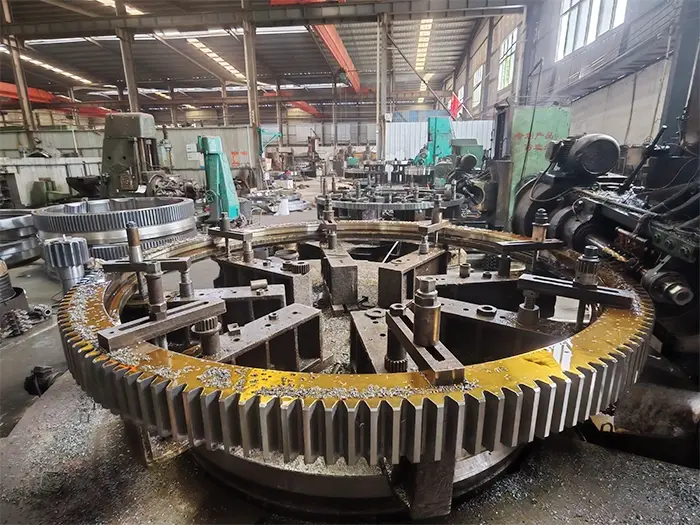

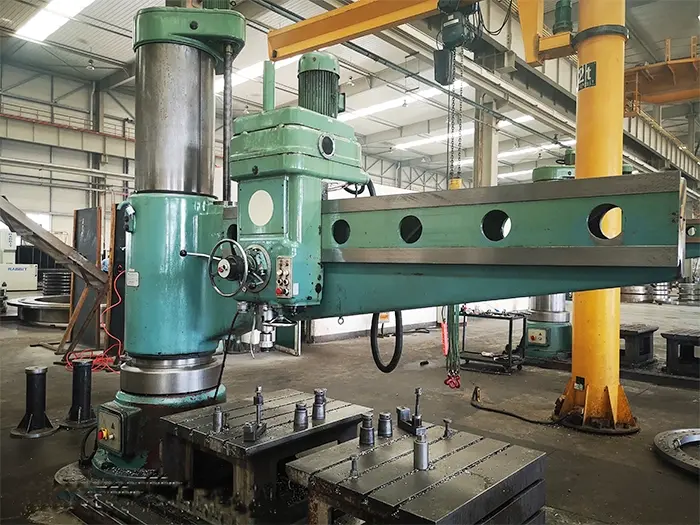

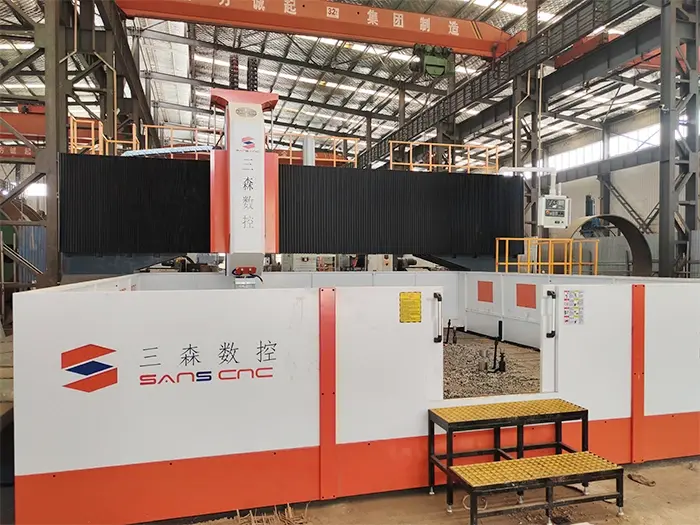

Advanced Generation Capabilities

Our office houses CNC vertical machines, CNC quenching machines, CNC adapt shapers, machining centers, pounding machines, and huge gear hobbing machines. This gear empowers us to keep up tight resiliences and steady quality.

Quality Administration System

We keep up ISO9001 certification and guarantee RoHS compliance. Each item experiences documented inspection with full traceability from crude fabric to wrapped up gear.

Customization Support

Whether you give 3D drawings or require switch designing from existing components, our specialized group conveys custom-made solutions. We handle non-standard measurements, uncommon tooth profiles, and interesting mounting configurations.

Engineering Support

Our group gives specialized interview, item plan help, fabricating direction, and establishment back. We work with you to optimize gear specifications for your particular gear and working conditions.

Technical Specifications

Certification

Features and Benefits

Superior Wear Resistance

Medium-frequency induction hardening creates a hardened tooth surface layer while maintaining a tough core. This combination extends service life in abrasive mining environments where dust and particle contamination are common.

High Load Capacity

The quenched and tempered base material provides excellent strength-to-weight ratio. This allows the gear to transmit high torque loads without premature fatigue failure.

Precision Tooth Geometry

CNC gear shaping ensures accurate tooth profiles that reduce vibration and noise during operation. Proper tooth contact distribution minimizes stress concentrations and improves power transmission efficiency.

Flexible Installation Options

Segmented designs facilitate transportation to remote mining sites and simplify replacement procedures. Bolt-together construction enables installation without requiring complete equipment disassembly.

Dimensional Stability

Stress-relief heat treatment eliminates internal residual stresses that could cause warping. This ensures the gear maintains its geometry throughout years of thermal cycling and mechanical loading.

Applications

Grinding Equipment

Ball mills, semi-autogenous mills, and rod mills rely on girth gears for consistent rotation under variable loads. Our gears handle the shock loads generated during ore processing.

Thermal Processing Equipment

Rotary kilns, coolers, and dryers operate in high-temperature environments. The heat treatment process we use maintains material properties even when exposed to elevated ambient temperatures.

Crushing Systems

Gyratory crushers and cone crushers require girth gears that withstand impact loading. Our material selection and hardening processes provide the necessary durability.

Material Handling

Large conveyor systems and bucket wheel excavators depend on reliable rotation. The precision manufacturing reduces maintenance requirements in continuous-duty applications.

Testing & Certification

Every Mining Machinery Girth Gear undergoes comprehensive quality control:

· 100% ultrasonic flaw detection to identify internal defects

· Complete tooth profile inspection using coordinate measuring equipment

· Hardness uniformity testing across the tooth surface and core

· Dimensional verification against engineering drawings

· Material certification documentation

Our manufacturing facility maintains ISO9001 certification. Products comply with RoHS environmental standards.

Installation Guide

Pre-Installation Inspection

Verify that the gear dimensions match the equipment specifications. Check mounting surface levelness and jolt gap arrangement. Review teeth for any transportation damage.

Mounting Preparation

Thoroughly clean all mounting surfaces. Guarantee bolster structure gives satisfactory unbending nature. Confirm jolt quality meets specifications.

Assembly Procedure

For sectioned gears, position portions concurring to get together drawings. Introduce and torque mounting bolts in a crisscross pattern to guarantee indeed clamping constrain. Confirm adapt runout utilizing dial indicators.

Alignment Verification

Check gear mesh with the pinion utilizing contact pattern analysis. Alter mounting as required to accomplish appropriate tooth contact over the confront width.

Lubrication

Apply fitting equip grease some time recently beginning operation. Confirm grease framework functionality.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Regular Assessment Schedule

Monitor tooth wear designs month to month amid beginning operation, at that point quarterly once wear stabilizes. Check for breaks, setting, or spalling on tooth surfaces.

Lubrication Management

Maintain appropriate grease thickness and defilement levels. Supplant grease agreeing to oil investigation comes about or maybe than settled intervals.

Bolt Pressure Monitoring

Verify mounting jolt torque after the to begin with week of operation, at that point incorporate in quarterly assessment schedule. Retorque as necessary.

Wear Measurement

Document tooth thickness estimations to track wear rates. This information makes a difference anticipate remaining benefit life and arrange replacements.

Operating Condition Records

Log any bizarre vibrations, temperature increments, or clamor changes. These pointers frequently go before unmistakable damage.

FAQ

Q: What lead time ought to I anticipate for a custom circumference gear?

A: Standard determinations regularly dispatch inside 8-12 weeks. Custom plans require extra designing time, by and large 12-16 weeks total.

Q: Can you make gears bigger than 5000mm?

A: Yes. Whereas our standard extend covers 1000-5000mm, we handle bigger breadths through our amplified fabricating capabilities. Contact Us with your particular requirements.

Q: Do you give establishment supervision?

A: We offer establishment direction and can organize on-site specialized bolster for complex establishments. This benefit guarantees legitimate gathering and starting operation.

Q: How do I decide the adjust module for my application?

A: Module determination depends on transmitted torque, pinion details, and working speed. Our building group can perform these calculations based on your gear data.

Q: What documentation do you give with each gear?

A: Each equip ships with fabric certificates, dimensional assessment reports, warm treatment records, and ultrasonic testing documentation.

Contact Us

For technical specifications, custom quotations, or engineering support on your Mining Machinery Girth Gear requirements, reach out to our team at mia@hgb-bearing.com . We're ready to assist with your project.
