What Are the Advantages of Sealed Excavator Slewing Bearings?
What advantages do sealed excavator slewing bearings offer, and are they really necessary for heavy-duty construction and mining equipment? The answer is yes, because sealing directly determines service life, maintenance frequency, and overall operating stability in harsh working environments. Luoyang Heng Guan Bearing Technology Co., Ltd., a professional slewing bearing manufacturer based in Luoyang, China, develops high-performance slewing ring solutions designed for extreme conditions, where dust, moisture, and heavy loads constantly challenge equipment reliability. In excavators used for construction, mining, and earthmoving, sealed structures play a crucial role in preventing contamination, reducing wear, and ensuring smooth and consistent rotational performance over long service cycles.
Why Sealed Excavator Slewing Bearings Excel in Harsh Environments
Rotary components are exposed to dust, mud, water, and abrasive material on construction and mining sites. Bearings without seals lose oil, let impurities in, and deteriorate raceway surfaces faster. Sealed excavator slewing bearings tackle these issues with superior sealing technology and durable materials.
- Seal Material: High-quality excavator slewing bearings use double-lip seals made from imported nitrile rubber or fluororubber. These materials resist hydrocarbons, high temperatures, and chemical attack, forming a tight barrier that retains grease and blocks debris.
- Material & Hardening: Bearing rings are forged from 42CrMo or 50Mn alloy steel, induction-hardened to HRC 55–60 at a depth of 2.5–5 mm. This ensures wear resistance even if minor contamination occurs.
- Environmental Suitability: Excavator slewing bearing sealed designs are essential for marine operations, demolition sites, and open-pit mines, where abrasive or corrosive conditions are extreme.
| Working Environment | Primary Threat | Sealed Design Response | Applicable Excavator Class |
|---|---|---|---|
| Open-pit mining | Rock dust, abrasive slurry | Double-lip fluororubber seals + HRC 55–60 raceways | Ultra-large (90+ tons) |
| Marine/port operations | Saltwater, humidity | Nitrile or fluororubber seals, corrosion-resistant steel | Special excavators |
| Urban construction | Concrete slurry, rain | Double-lip seal retains grease, blocks water ingress | Small & medium (6–30 tons) |
| Demolition | Fine particulate, debris | Dust-and-mud-resistant structure, sealed ring interface | Large (30–90 tons) |
| Landscaping/utility | Soil, moisture | Compact single-row sealed design | Mini (1–6 tons) |
Tip: Fluororubber seals outperform nitrile in environments above 120°C or where hydraulic fluids are present. Confirm seal material with your supplier to prevent premature failures. For guidance, contact mia@hgb-bearing.com
Key Performance Benefits of Sealed Excavator Slewing Bearings
Sealed configurations improve bearing performance across load capacity, rotation smoothness, dimensional consistency, and service life.
- Rolling Elements: Made from GCr15SiMn high-purity bearing steel, ensuring high fatigue strength in excavator slewing bearing applications. Seals prevent abrasive contamination that causes micro-pitting and spalling.
- Structural Configurations:
- Single-row four-point contact ball: Mini to medium machines.
- Double-row ball: Large excavators needing higher safety factors.
- Triple-row roller: Ultra-large mining machines with maximum moment and axial load capacity.
| Performance Aspect | Unsealed Bearing | Sealed Bearing | Impact on Maintenance |
|---|---|---|---|
| Re-lubrication frequency | High (frequent contamination) | Reduced (seals retain grease) | Moderate saving |
| Unplanned failure rate | Higher (contamination ingress) | Lower (ingress blocked) | Significant saving |
| Bearing replacement cost | Higher (shorter life) | Lower (extended service life) | Significant saving |
| Drive motor wear | Accelerated (friction spike) | Normal (stable low friction) | Moderate saving |
| Labor for inspection | More frequent | Less frequent | Moderate saving |
Maintenance Tip: Follow the excavator slewing bearing bolt-tightening protocol (diagonal sequence at 30%, 70%, 100% torque, then retighten after 100 operating hours) to protect the seals and prevent premature bearing damage.
How the Right Bearing Improves Equipment Uptime
Machine downtime is the costliest consequence of bearing failure. Sealed bearings improve uptime by:
- Blocking contaminant ingress, reducing emergency replacements.
- Providing correct structural configurations to avoid overload.
- Covering a wide size range:
- Inner diameter: 500–5000 mm
- Outer diameter: 600–5500 mm
- Height: 100–500 mm
- Custom oversized options available

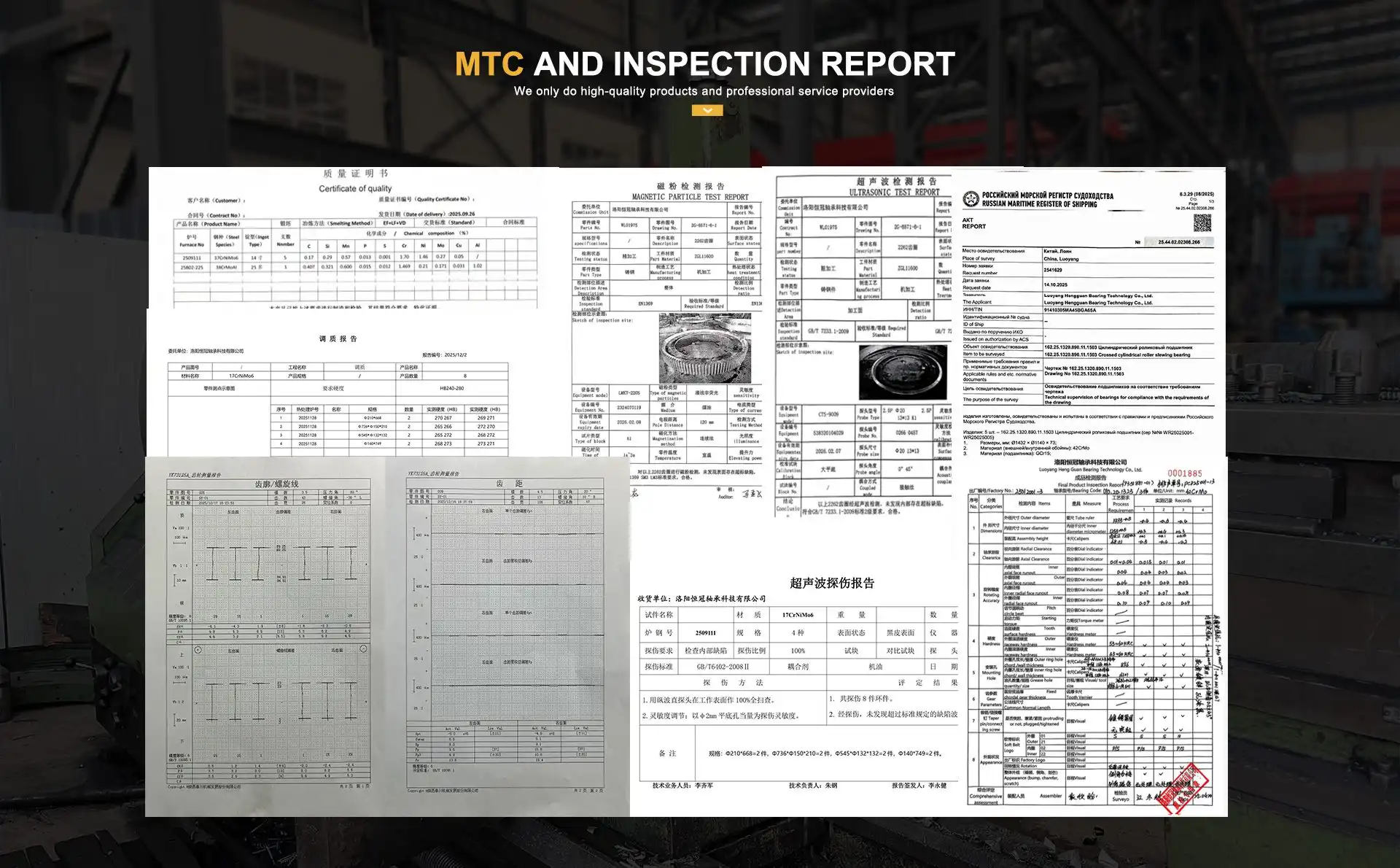

All bearings are certified to ISO, CE, and RoHS, with traceable material and manufacturing certifications. Pre-installation verification — checking part numbers, mounting holes, and seal condition — prevents avoidable failures.
Conclusion
Sealed excavator slewing bearings provide:
- Enhanced environmental resistance
- Greater performance consistency
- Lower maintenance costs
- Higher equipment uptime
Luoyang Heng Guan Bearing Technology Co., Ltd., based in China’s recognized bearing hub, delivers these products with advanced production equipment and rigorous quality control.
|
|
FAQ
Q1: What seal materials are used?
A: Nitrile rubber for standard use, fluororubber for high temperature or chemical exposure.
Q2: Which structure is recommended for a 50-ton excavator?
A: Double-row ball structure.
Q3: Do your bearings fit brands like Komatsu or Volvo?
A: Yes, compatible with Carter, Komatsu, Volvo, Hitachi, Doosan, Sany, LiuGong, Hyundai, Kubota, and more.
Q4: What accuracy grades are available?
A: ABEC 3, 5, 7, and 9.
Q5: Can oversized bearings be manufactured?
A: Yes, inner diameters up to 5000 mm and custom sizes beyond.
Ready to Improve Excavator Reliability?
If your equipment operates in harsh environments such as mining, construction, or marine applications, sealed performance is critical to reducing failures and maintenance costs.
Luoyang Heng Guan Bearing Technology Co., Ltd. specializes in high-performance excavator slewing bearings designed with advanced sealing systems, high-strength alloy materials, and precision heat treatment processes to ensure long service life under extreme conditions.
We provide full technical support, including model selection, structural optimization, and customized production based on operating loads and machine specifications. Contact our engineers: mia@hgb-bearing.com
Send your requirements or drawings today to receive a tailored solution and quotation.
References
1. Harris, T. A., & Kotzalas, M. N. (2007). Rolling Bearing Analysis: Essential Concepts of Bearing Technology (5th ed.). CRC Press.
2. Brandlein, J., Eschmann, P., Hasbargen, L., & Weigand, K. (1999). Ball and Roller Bearings: Theory, Design and Application (3rd ed.). John Wiley & Sons.
3. International Organization for Standardization. (2007). ISO 76: Rolling Bearings — Static Load Ratings. ISO.
4. Rothe Erde GmbH. (2020). Slewing Rings: Engineering and Application Manual. Rote Erde – Thyssenkrupp.
5. Shigley, J. E., & Mischke, C. R. (2004). Mechanical Engineering Design (7th ed., Chapter 11). McGraw-Hill.
6. Zaretsky, E. V. (Ed.). (1992). STLE Life Factors for Rolling Bearings. Society of Tribologists and Lubrication Engineers.
