Large Gear Ring

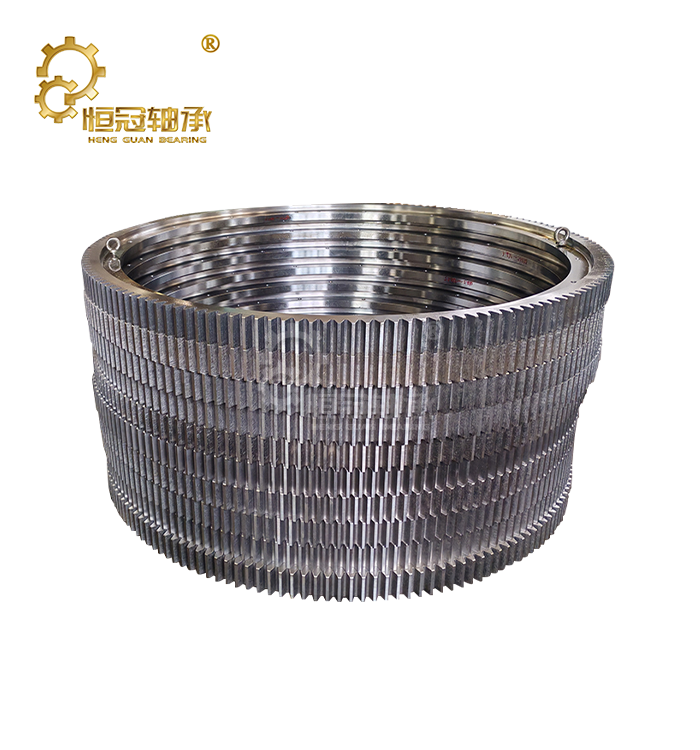

Large Gear Ring – Heavy-Duty Transmission Component for Industrial Equipment

Luoyang Heng Guan Bearing Technology supplies precision-engineered large Gear ring arrangements from 1000mm to 8000mm diameter, particularly designed for high-torque rotational equipment in mining, cement, and metallurgical industries. Our circular gears highlight modified involute tooth profiles with arc-optimized roots, achieving surface hardness of HRC58-62 through CNC induction hardening. Fabricated from 42CrMo and 34CrNiMo6 alloy steel, each product undergoes finite element analysis to balance rigidity with weight optimization. With ISO9001 certification and over 20 years of bearing technology expertise, we provide customized solutions including segmented assembly designs, sensor integration ports, and anti-corrosion coatings for extreme working conditions up to 400°C.

Large Gear Ring Details

Your pivoting hardware requests dependable control transmission beneath extraordinary conditions. Our product serves as the essential torque exchange instrument in rotating furnaces, ball plants, and dryers—equipment preparing thousands of tons daily.

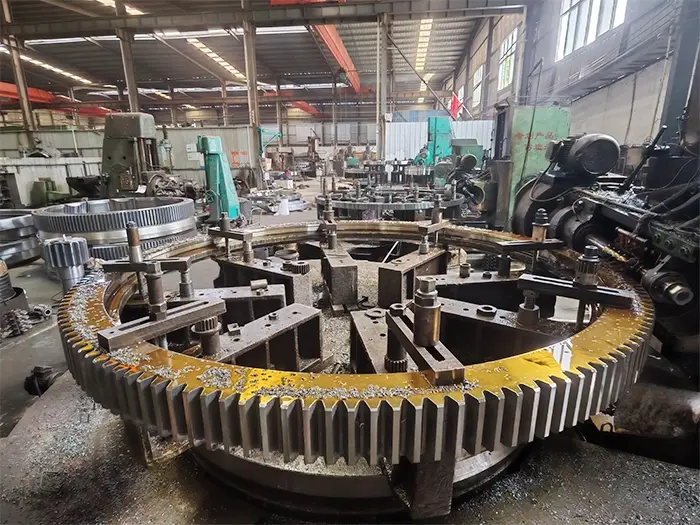

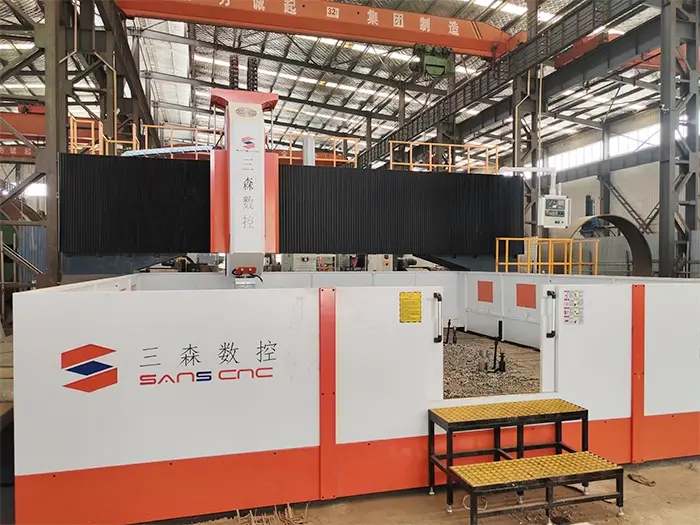

Each ring starts with manufactured combination steel spaces. We utilize CNC vertical machines and expansive gear hobbing machines to accomplish exact tooth geometry. The modified involute profile disperses push absent from tooth roots, amplifying fatigue life by 40% compared to standard designs.

For establishments surpassing transport limits, we offer segmented ring structure. Laser tracking calibration guarantees gathering exactness within 0.02mm across bolt joints. This modular approach fathoms your coordinations challenges without compromising structural integrity.

Why Choose Us

Dimensional Capability: Our CNC hardware machines rings from 1000mm to 8000mm. Few providers offer this range with reliable quality control.

Material Traceability: Each billet experiences ultrasonic testing before machining. We keep up full documentation from steel mill certification to last assessment reports.

Custom Building: Your application may require oil channels, mounting interfaces, or thermal barrier coatings. Our 50-member R&D group has illuminated non-standard challenges for clients over 50+ countries.

Delivery Reliability: We keep up raw material stock for common details. Lead times begin at 6 weeks for standard setups, with expedited options accessible.

Technical Specifications

Features and Benefits

Arc-Optimized Tooth Root

Finite element modeling identified stress concentration points. Our arc treatment reduces peak stress by 30%, directly addressing premature crack initiation you may have experienced with conventional gears.

Dual Heat Treatment Options

Induction hardening creates a wear-resistant case while maintaining a tough core. For abrasive environments like mineral processing, we recommend through-hardening with subsequent tempering for balanced properties.

Segmented Assembly Design

Transport a 6-meter ring through standard containers? Our bolted segment solution maintains circular runout under 0.5mm after assembly—critical for vibration-free operation at 2-5 RPM.

Sensor Integration Ports

Predictive maintenance systems require real-time data. We machine threaded ports for vibration sensors and temperature probes during initial fabrication, avoiding costly field modifications.

Applications

Cement Rotary Kilns

Your kiln operates continuously at shell temperatures reaching 400°C. Our large gear ring withstands thermal expansion cycles while maintaining tooth engagement accuracy, preventing the production stoppages caused by misalignment.

Mining Ball Mills

Grinding 200 tons of ore hourly generates shock loads during charge tumbling. The modified tooth profile absorbs these impacts without pitting, extending your maintenance intervals from 18 to over 30 months

Metallurgical Dryers

Sintering operations expose gears to corrosive fumes and particulate contamination. Optional Ni-P composite coatings protect tooth flanks, reducing wear rates by 60% in documented field trials.

Shield Tunneling Machines

Cutterhead drives require precise torque distribution across multiple pinions. We match tooth helix angles and spacing to your existing gearbox, ensuring smooth load sharing during rock excavation.

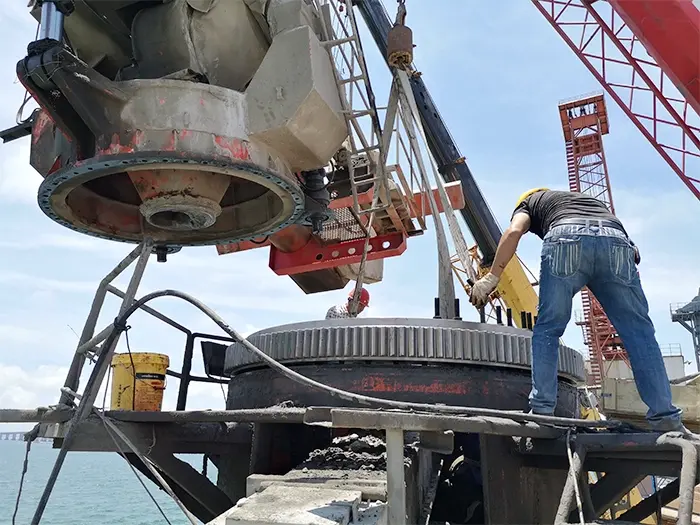

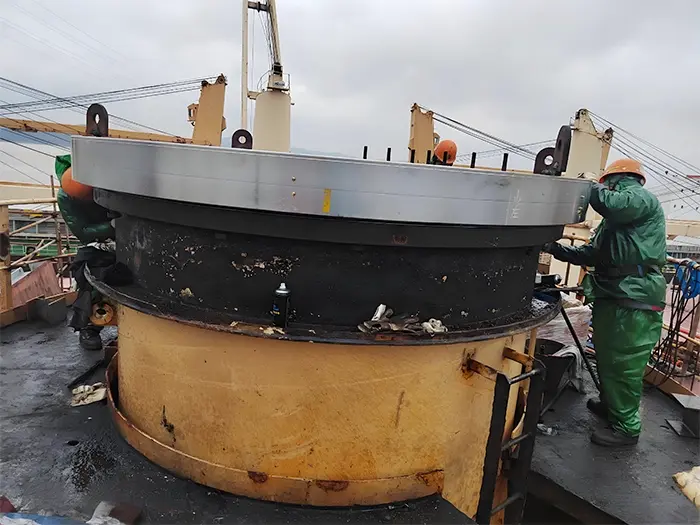

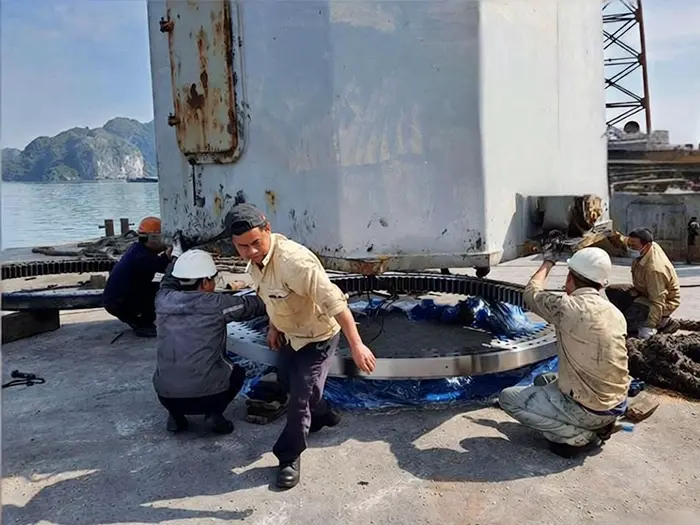

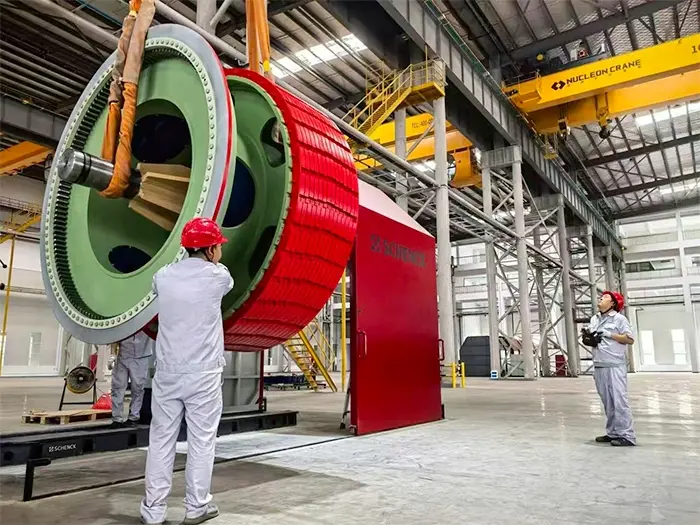

Installation Guide

1. Pre-Installation Inspection: Verify mounting surface flatness within 0.15mm per meter. Clean all bolt holes and keyways.

2. Segmented Ring Assembly: Apply anaerobic sealant to joint faces. Torque bolts in star pattern to specified preload values.

3. Alignment Procedure: Use dial indicators to achieve 0.3mm maximum radial runout. Check backlash at four quadrants—target 1.5-2.5mm for thermal expansion clearance.

4. Lubrication System: Connect forced spray or drip systems before operation. We recommend ISO VG 460 gear oil for most applications.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

​​​​​​​

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Testing & Certification

Every gear undergoes coordinate measurement of tooth profiles using our CMM systems. We verify pitch deviation, tooth thickness, and runout against DIN 3962 standards. Ultrasonic examination detects subsurface defects before quenching.

Our quality system follows ISO9001:2015 protocols. Material certificates trace chemical composition to original steel mill heat numbers. You receive inspection reports documenting all dimensional and metallurgical data with each shipment.

Packaging & shipping

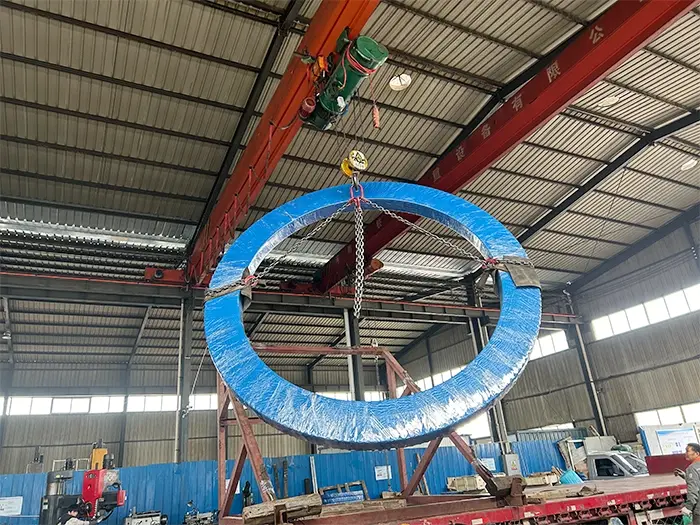

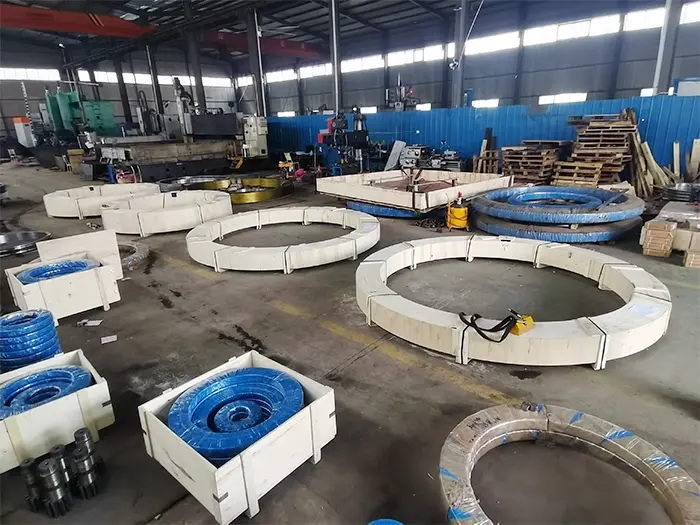

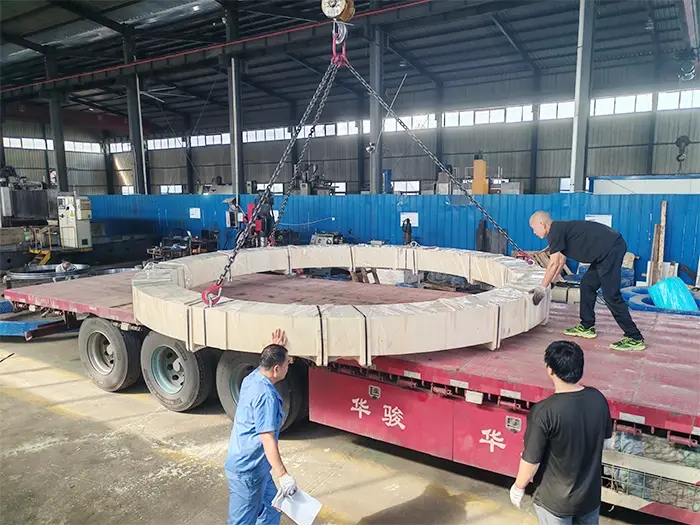

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication Schedule: Inspect oil flow weekly. Analyze lubricant samples quarterly for metal particles indicating wear progression.

Tooth Inspection: Document flank contact patterns after 500 operating hours. Uneven wear indicates misalignment requiring immediate correction.

Bolt Retorque: Check mounting bolt tension after initial 100 hours, then annually. Thermal cycling can reduce preload by 15-20%.

Wear Limits: Replace the ring when tooth thickness reduces by 10% of original dimension or when pitting covers 30% of active flank area.

Customer Reviews

"The 4200mm girth gear on our cement kiln has operated for 26 months without measurable wear. Previous supplier's rings required replacement every 18 months."

— Maintenance Manager, European Cement Producer

"Segmented design allowed installation without disassembling our mill trunnions. Saved us $40,000 in downtime costs."

— Project Engineer, Australian Mining Operation

FAQ

Q: Can you manufacture rings larger than 8000mm?

A: Yes, we've produced up to 10,000mm diameter for special projects. Contact our engineering team to discuss your requirements.

Q: What's the typical lead time for a 3500mm ring?

A: Standard material specification ships in 8 weeks. Custom alloys or coatings add 2-3 weeks.

Q: Do you provide installation supervision?

A: Our field service engineers offer on-site guidance for complex installations. This service is available globally.

Q: How do I specify the correct module and tooth count?

A: Send us your pinion specifications and operating torque. We'll calculate the optimal configuration for your application.

Contact Us

Ready to solve your power transmission challenges? Our engineering large gear ring's team is available to discuss your specific requirements.

Email: mia@hgb-bearing.com
