Crusher Gear Shaft

Crusher Gear Shaft – High-Performance Transmission Component for Heavy-Duty Crushing Equipment

Product Details

When you operate crushing equipment in mining, quarrying, or aggregate production, you need components that won't fail under extreme conditions. The Crusher Gear Shaft serves as the critical load-bearing transmission element connecting your motor to the crushing mechanism. It transmits enormous torque while withstanding continuous impact loads and high-frequency vibration. Our product is manufactured through integral forging technology, ensuring complete material flow lines and optimal mechanical properties. This design delivers reliable power transmission in jaw crushers, cone crushers, impact crushers, and other heavy-duty applications where downtime costs you money.

Each shaft features an optimized stepped-shaft design based on finite element analysis. This engineering approach minimizes stress concentration at diameter transitions. The precision-ground bearing mounting surfaces maintain system concentrically during operation. We offer multiple connection options including parallel keys, involut splines, and interference fits to match your specific equipment requirements.

Our manufacturing process combines large-scale press forging with deep quenching and tempering treatment (core hardness HB260-300). The gear teeth undergo carburizing and hardening to achieve surface hardness of HRC58-62. This dual-hardness structure gives you wear-resistant teeth with a tough, shock-absorbing core.

Why Choose Us?

Engineering Experience You Can Trust

Luoyang Heng Guan Bearing Technology has over 20 years of practical experience in precision bearing and shaft manufacturing. Our engineering team understands the demanding conditions your equipment faces.

Proven Production Capabilities

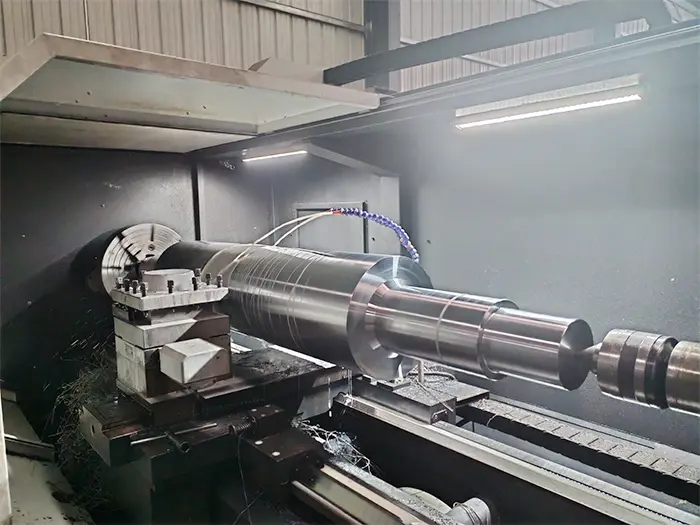

We operate CNC vertical lathes, CNC quenching machines, CNC gear shapers, machining centers, grinding machines, and large gear hobbing equipment. This allows us to control quality at every manufacturing stage.

Flexible Customization Services

We provide technical consultation, product design, manufacturing, and installation guidance. If you need non-standard dimensions or special material specifications, we can work from your 2D drawings (3D drawings not required for custom orders).

Global Quality Standards

Our facility is ISO 9001 certified. Products comply with DIN, ISO, and GB standards, and meet RoHS requirements for international markets.

Reliable Supply Chain

We've exported to over 50 countries across North America, Europe, Southeast Asia, the Middle East, and Africa. Our customers include operations in South Africa, the United States, Germany, the United Kingdom, Italy, and Australia.

Technical Specifications

Certification

Features and Benefits

Integral Forged Construction

The gear and shaft body are forged as a single piece. This eliminates the weak points found in welded or shrink-fit assemblies. You get superior load transfer capacity and extended service life.

Optimized Tooth Profile Design

We use large-module involute gear teeth with profile modification. This design reduces stress concentration and noise while improving load distribution across the tooth face.

Precision Bearing Seats

High-precision grinding on bearing mounting surfaces ensures proper alignment. This reduces vibration and extends bearing life in your equipment.

Multi-Functional Shoulder Design

Precisely machined shoulders and relief grooves provide accurate positioning for gears, bearings, and seals. This simplifies assembly and ensures repeatable concentricity.

Flexible Connection Interfaces

We offer parallel keys, splines, or interference fits depending on your torque transmission requirements and assembly preferences.

Advanced Heat Treatment

Deep quenching and tempering throughout the shaft provides toughness to absorb shock loads. Surface carburizing and hardening on gear teeth delivers wear resistance where you need it most.

Applications

Our Crusher Gear Shaft products serve multiple crusher types across various industries:

Jaw Crushers

Swing jaw drive shafts and eccentric shafts for primary crushing applications

Cone Crushers

Main shafts and eccentric assembly gear shafts for secondary and tertiary crushing

Impact Crushers

Rotor main shafts and drive gear shafts for high-speed impact crushing

Hammer Crushers

Rotor shafts and transmission gear shafts for grinding and pulverizing operations

Gyratory Crushers

Main drive shafts for large-scale primary crushing installations

These components operate in mining operations, aggregate production plants, construction material processing, and recycling facilities worldwide.

Testing & Certification

Every product undergoes rigorous quality verification:

· 100% Ultrasonic Flaw Detection: Identifies any internal defects in the forging

· Complete Dimensional Inspection: Verifies all critical dimensions meet drawing specifications

· Hardness Gradient Testing: Confirms proper heat treatment depth and hardness profile

· Dynamic Balance Verification: Ensures smooth rotation and reduced vibration

Our office keeps up ISO 9001 certification. Items meet worldwide benchmarks and comply with RoHS orders for limited substances.

Installation Guide

Pre-Installation Inspection

Check shaft measurements and bearing situate resistances. Confirm equip teeth for any shipping harm. Clean all mounting surfaces thoroughly.

Bearing Installation

Heat orientation to 80-100°C some time recently mounting on shaft. Guarantee legitimate bearing fit agreeing to shaft resilience and bearing bore detail. Introduce heading decisively against shoulder.

Housing Assembly

Apply arrangement apparatuses to confirm concentricity some time recently fixing lodging jolts. Take after torque details for all fasteners.

Lubrication

Apply suitable adapt oil or oil to teeth and heading concurring to hardware producer proposals. Check grease level some time recently beginning startup.

Alignment Verification

Confirm arrangement with driven components. Degree runout if details require. Make alterations some time recently full-load operation.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

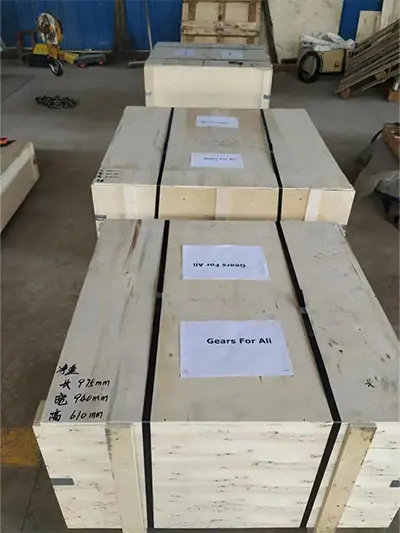

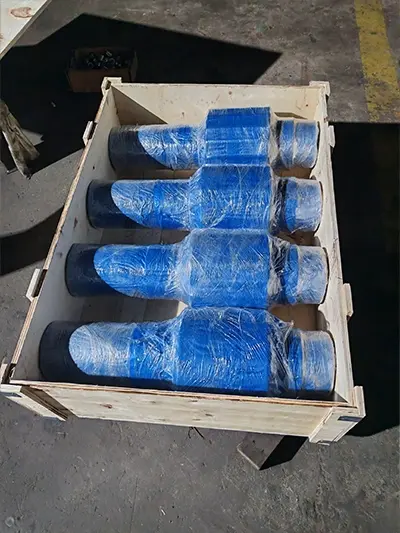

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Regular Lubrication

Maintain legitimate oil levels. Alter oil at interims suggested for your working conditions. Heavy-duty applications require more visit changes.

Periodic Inspection

Examine adapt teeth for wear designs. Check for setting, scoring, or unusual contact designs. Screen bearing condition through vibration analysis.

Seal Maintenance

Replace harmed seals promptly to avoid defilement. Review seal contact surfaces amid planned maintenance.

Load Monitoring

Avoid supported operation past plan stack capacity. Sudden stack spikes quicken wear and may cause stretch cracks.

Storage Recommendations

Store save shafts in dry, temperature-controlled situations. Apply rust preventive coating to machined surfaces. Bolster shafts appropriately to avoid distortion.

Customer Reviews

"We supplanted our unique shaft with Heng Guan's unit in our cone crusher. Establishment was direct, and we've seen made strides unwavering quality over the past 18 months."

— Acquirement Supervisor, South African Mining Operation

"The designing bolster amid our customization prepare was intensive. The wrapped up shaft met all our dimensional and fabric requirements."

— Support Design, European Total Producer

"Delivery timeline was met in spite of our tight plan. The quality documentation given was total and supportive for our inside records."

— Operations Chief, North American Quarry

FAQ

Q: What lead time ought to I anticipate for standard sizes?

A: Standard measurement shafts regularly dispatch inside 4-6 weeks. Custom determinations may require 8-10 weeks depending on complexity.

Q: Can you fabricate shafts from customer-provided drawings?

A: Yes. We work from 2D specialized drawings. Our designing group can too help with plan optimization if needed.

Q: What fabric certifications do you provide?

A: We supply fabric test reports, warm treatment records, and dimensional assessment reports with each order.

Q: Do you offer specialized back for installation?

A: Our building group gives establishment direction and can reply specialized questions all through the process.

Q: What is the least arrange quantity?

A: We acknowledge single-piece orders for custom shafts and standard items. Examine your particular necessities with our team.

Q: How do I indicate the rectify shaft for my crusher model?

A: Give your crusher producer, demonstrate number, and any existing portion numbers. We can cross-reference or work from your dimensional details.

Contact Us

Ready to discuss your Crusher Gear Shaft and crusher transmission needs? Our engineering team is available to help you select or customize the right solution.

Email: mia@hgb-bearing.com

Luoyang Heng Guan Bearing Technology Co., Ltd – Delivering precision-engineered transmission components for demanding industrial applications worldwide.
