Internal Gear Ring

1. Product Introduction: The ring gear is a key annular gear component. Its teeth are distributed along the inner circumference and mesh with the outer pinion (planet gear), forming a compact and efficient transmission system.
2. Product Structure: Utilizing a high-precision involute tooth profile, the optimized design ensures smooth, impact-free meshing with the planet gears, resulting in high transmission efficiency and significantly reduced noise and vibration.
3. Size Range: 50mm-5000mm.
4. Customization Supported: Whether you have specific size, tooth profile, or structure requirements, our engineering team can provide you with professional custom solutions.
5. Materials Available: 45#, 42CrMo, 20CrMnTi. Custom materials are available upon request.
6. Applications:
Construction machinery, wind power equipment, port machinery, military equipment, metallurgical equipment, new energy, and special equipment

Product Description

High-Precision Internal Gear Ring for Industrial Applications

When your machinery requires precise rotational power transmission within confined spaces, selecting the right gear assembly is crucial. Luoyang Hengguan Bearing Technology Co., Ltd.'s internal gear rings offer a mature and reliable solution to meet the demands of demanding industrial applications. Our products feature teeth distributed along the inner circumference, allowing for smooth meshing with external pinions or planetary gears to create efficient, space-saving transmission systems. With over 20 years of manufacturing experience and ISO9001 certification, we offer high-precision products with diameters ranging from 50mm to 5000mm and modules from M1 to M20 and above to meet your specific torque transmission needs.

Product Details

Our products feature a high-precision involute tooth profile design. This optimized geometry ensures smooth, shock-free mating with planetary gears or pinions.

The result is higher transmission efficiency and a significant reduction in equipment noise and vibration.

We manufacture these components using premium materials, including 45# steel, 42CrMo, and 20CrMnTi. Each material is carefully selected to ensure specific mechanical properties. Depending on your operating conditions, we employ appropriate heat treatment processes to ensure ideal hardness and wear resistance.

The internal gear design offers significant advantages. The teeth are fixed within a ring structure, improving cleanliness. Internal gears offer superior lubrication compared to external gears. Most importantly, internal gears experience lower transmission contact pressure, thus reducing long-term wear.

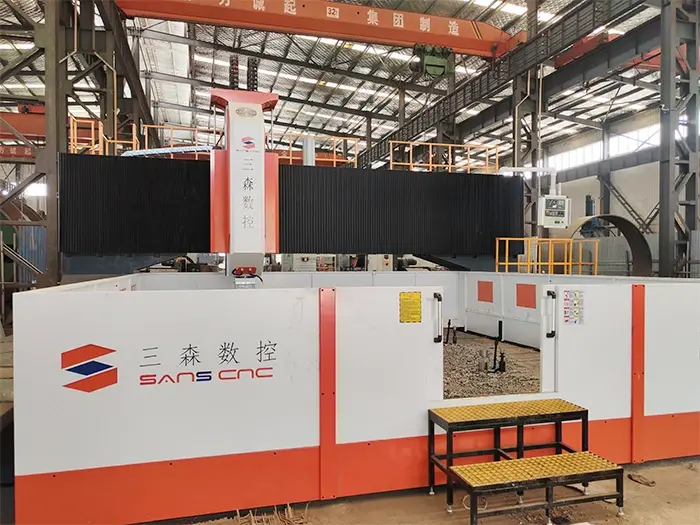

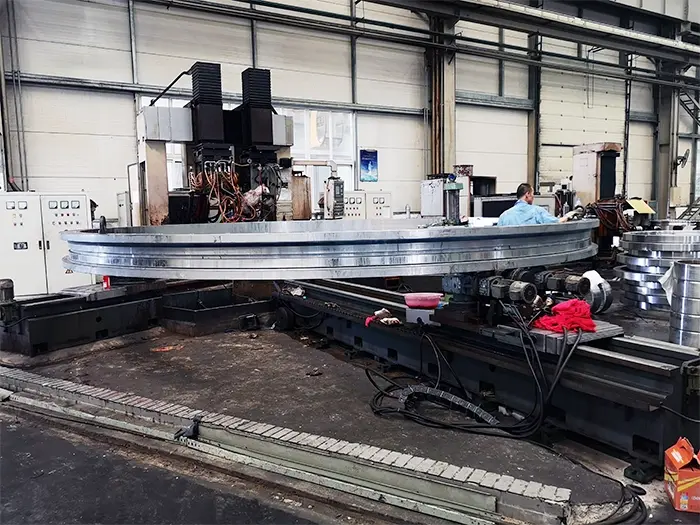

Our production base in Luoyang, the center of China's bearing industry, is equipped with CNC vertical machining centers, CNC milling machines, machining centers, and large gear hobbing machines. This advanced equipment enables us to maintain stringent flexibility and consistent quality for every product.

Why Choose Us?

Reliable Engineering Technology

We have over 50 R&D and manufacturing experts who integrate more than 30 years of experience in bearing and adaptive component manufacturing into every project.

Flexible Customization Capabilities

Whether you need specific dimensions, tooth profiles, or basic modifications, our design team can provide professional customized solutions. We support traditional product mapping and personalized non-standard customization, even without 3D drawings.

Four Accuracy Grades

We offer components in four accuracy grades: P0, P6, P5, and P4, allowing you to choose the appropriate grade based on your application requirements.

Global Quality Standards

Our products comply with ISO, Clarmor, and GB international standards. RoHS compliance ensures our environmental responsibility. ISO 9001 certification reflects our commitment to quality management.

Globally Recognized Success Stories

We have successfully served customers in over 50 countries, including the USA, Germany, the UK, Italy, Australia, and the entire Middle East.

Comprehensive Professional Support

From initial professional discussions to product design, manufacturing, and installation guidance, our design team provides support at every stage.

Certification

Internal Gear Ring certification

Technical Specifications

Parameter	Specification
Size Range	50mm – 5000mm
Module Range	M1 – M20+
Tooth Width	10mm – 300mm+ (customizable)
Material Options	45#, 42CrMo, 20CrMnTi, Custom materials available
Heat Treatment	Gear hardening based on working conditions
Precision Grades	P0, P6, P5, P4
Tooth Profile	High-precision involute
Manufacturing Tolerance	According to ISO/DIN standards
Surface Treatment	Customizable based on application
Weight Range	Custom calculated per specification

Features and Benefits

Involute Tooth Profile

Ensuring a stable contact ratio and smooth power transmission throughout the meshing cycle, thus reducing shock loads and extending component life.

Protective Tooth Structure

The internal structure protects the teeth from external contaminants, maintaining a cleaner operating environment and reducing maintenance frequency.

Lower Contact Stress

Compared to external gears, the internal structure distributes stress more effectively, directly reducing wear and extending maintenance intervals.

Enhanced Lubrication Retention

The enclosed tooth profile helps retain grease for longer, improving performance in harsh environments.

Compact System Design

Compared to external gear structures, internal gears achieve the same gear ratio in a smaller space.

Wide Module Range

From light to heavy-duty applications, our M1 to M20+ series meets a variety of torque transmission needs.

Material Flexibility

A wide selection of materials allows you to optimize for strength, wear resistance, or cost based on specific operating conditions.

Applications

Construction Machinery

Excavators, cranes, and concrete mixers rely on internal Gear rings for smooth slewing and rotation functions under heavy loads.

Wind Control Equipment

Turbine yaw and pitch frameworks require exactness inner adapting for dependable operation over millions of cycles.

Port Machinery

Container cranes and ship-to-shore hardware request vigorous items that withstand ceaseless operation and unforgiving marine environments.

Metallurgical Equipment

Ladle turrets, nonstop casters, and fabric taking care of frameworks advantage from the strength and accuracy of quality inside gearing.

Military Equipment

Turret drives and versatile stage frameworks require the unwavering quality and exactness our fabricating forms deliver.

New Vitality Sector

Solar following frameworks and vitality capacity gear progressively utilize item innovation for situating accuracy.

Special Equipment

Robotics, excitement rides, and specialized mechanical apparatus regularly indicate inside adapt setups for space and execution advantages.

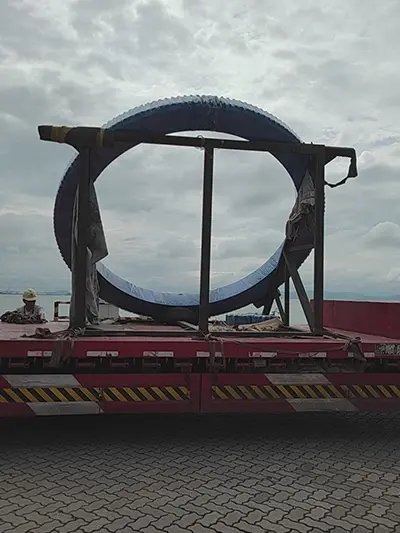

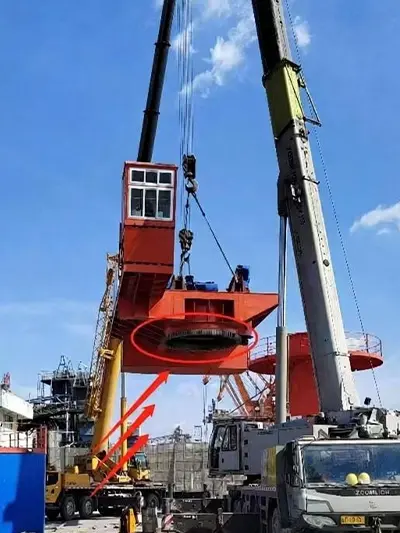

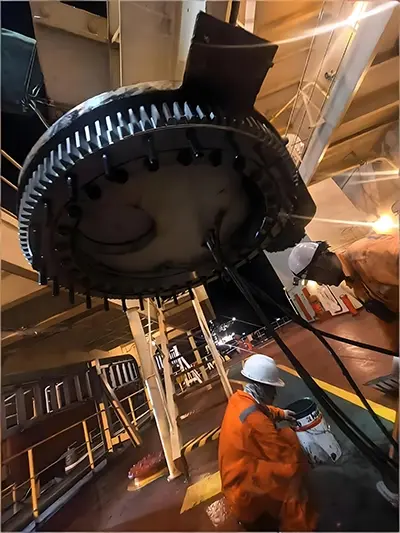

Installation Guide

Pre-Installation Inspection

Verify measurements coordinate your detail. Check for shipping harm. Guarantee mounting surfaces are clean and flat.

Alignment Procedures

Position the item concentrically with mating components. Utilize arrangement installations to keep up legitimate centering amid installation.

Mounting Sequence

Follow your gear manufacturer's torque details for latches. Fix jolts in a star design to guarantee indeed weight distribution.

Initial Lubrication

Apply indicated oil to teeth some time recently to begin with operation. Confirm oil conveyance over the full tooth width.

Verification Steps

Rotate the gathering physically to check for smooth operation. Tune in for bizarre clamor demonstrating misalignment or interference.

If you require nitty gritty establishment direction particular to your application, our building group is accessible to assist.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

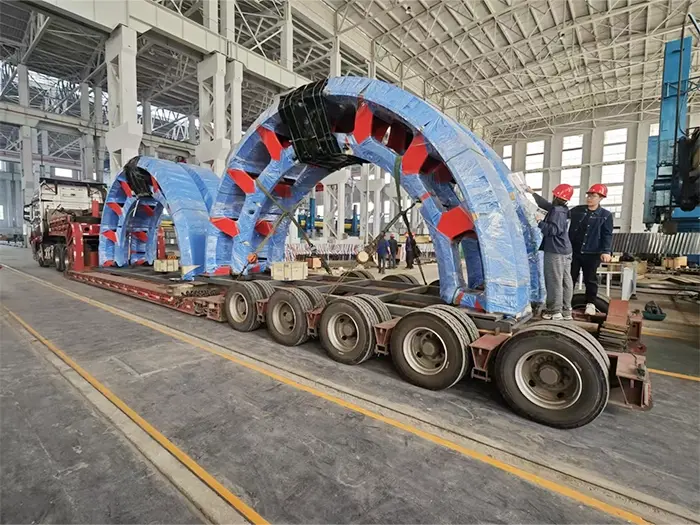

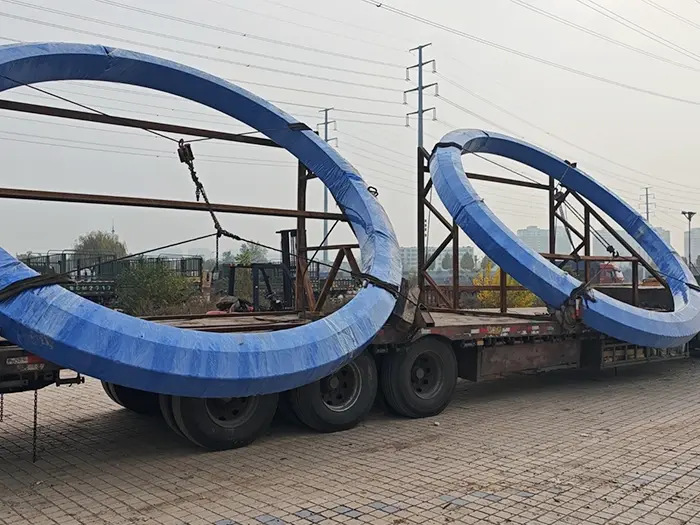

Packaging & shipping

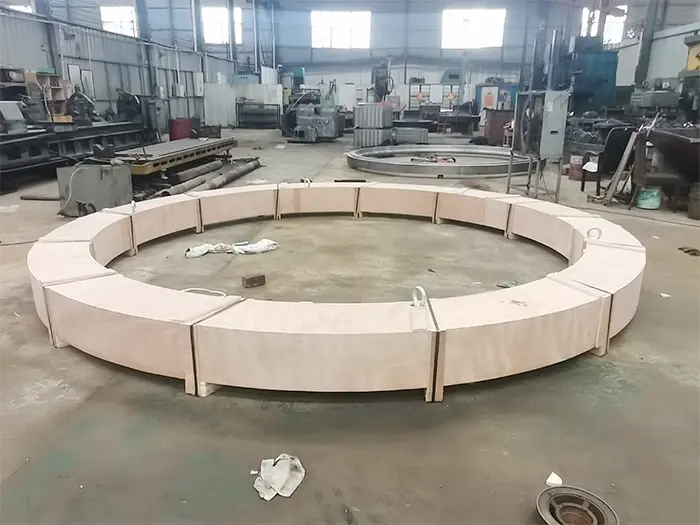

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Regular Review Schedule

Examine tooth surfaces each 500 working hours for signs of irregular wear, setting, or split formation.

Lubrication Intervals

Relubricate concurring to your working conditions. Heavy-duty applications may require month to month benefit, whereas lighter employments can amplify to quarterly intervals.

Cleaning Procedures

Remove gathered flotsam and jetsam from tooth spaces. Utilize suitable solvents that won't harm seals or surface treatments.

Wear Monitoring

Document tooth thickness estimations over time. This information makes a difference anticipate substitution timing some time recently disappointment occurs.

Environmental Protection

In destructive situations, assess defensive coatings frequently and touch up as required to avoid quickened deterioration.

FAQ

Q: Can you make items with non-standard tooth profiles?

A: Yes, our designing group can plan and create custom tooth profiles based on your particular coinciding prerequisites and execution goals.

Q: What warm treatment choices are available?

A: We offer through-hardening, case solidifying, and specific tooth solidifying depending on your stack conditions and wear expectations.

Q: How do I decide the rectify module for my application?

A: Our engineers can offer assistance you calculate the fitting module based on your torque necessities, speed, and space limitations. Contact Us with your application details.

Q: What is your commonplace lead time for custom sizes?

A: Custom items regularly require 4-8 weeks depending on measure and complexity. Contact us for particular venture timelines.

Q: Do you give establishment back for universal customers?

A: Yes, we offer farther establishment direction and can orchestrate on-site specialized back for qualifying projects.

Q: Can you reverse-engineer an existing product?

A: Completely. Send us your existing component and we'll perform point by point mapping to create correct substitutions or made strides plans.

Contact Us

Need technical specifications or a custom quote? Our engineering team is ready to discuss your Internal Gear Ring requirements. Email us at mia@hgb-bearing.com for prompt assistance.
