What Are the Key Benefits of Bridge Scraper Slewing Bearing Design?

Have you ever thought about how big clarifiers and sludge scraper systems keep turning even when they are constantly under a lot of pressure and in an environment that is very corrosive? The Bridge Scraper Slewing Bearing is often the key part that holds the answer. This bearing is the most important part of rolling stability and load control in current water treatment and naval engineering. The Bridge Scraper Slewing Bearing from Luoyang Heng Guan Bearing Technology Co., Ltd. is made to last and work accurately for a long time, even in harsh environments like desalination plants and sewage treatment plants. The design of slewing bearings has gotten more complex as the need for reliability and efficiency in industry has grown. The Bridge Scraper Slewing Bearing can handle complex axial, radial, and bending moment loads at the same time and can rotate continuously. This piece talks about why Heng Guan Bearing Technology is a trusted global seller in this field and how its structure design, ability to distribute load, and resistance to rusting all work together to make it perform better.

Key Structural Features of Bridge Scraper Slewing Bearing for Enhanced Stability and Precision Performance

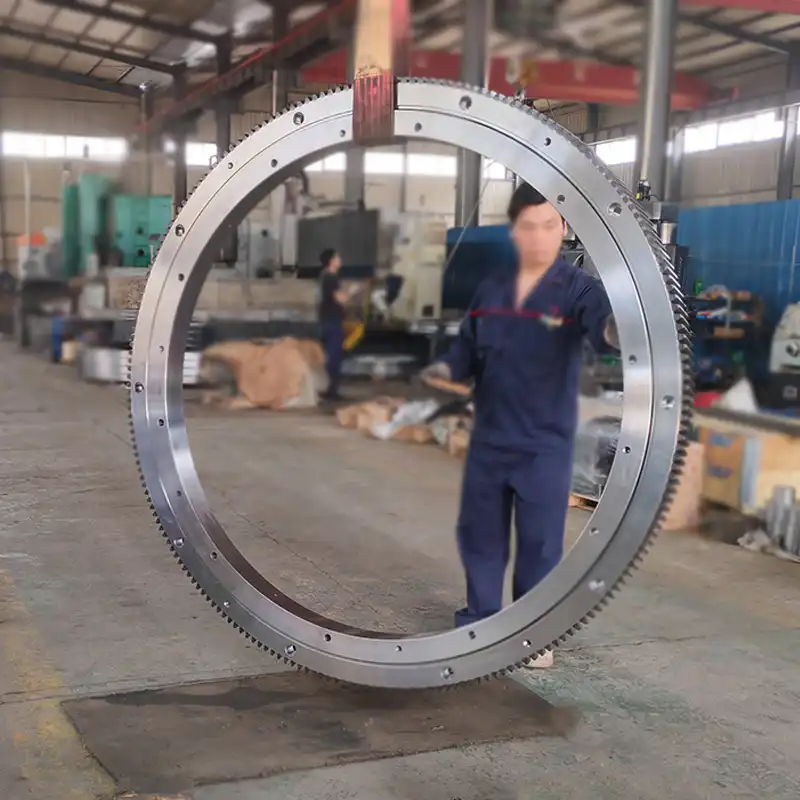

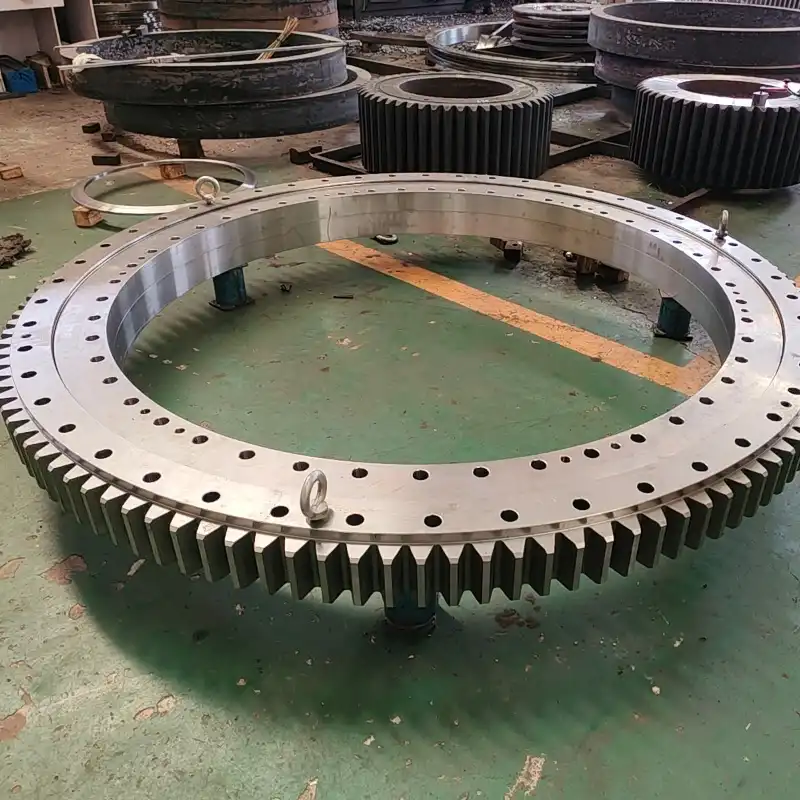

The Bridge Scraper Slewing Bearing has a single-row, four-point contact ball structure, which is important for keeping it stable when it's being loaded from different directions. This design supports axial loads from sludge buildup, radial forces from scraper arms, and twisting moments due to uneven working resistance, all at the same time. The bearing is made by LYHGB. It is made of high-quality 50Mn or 42CrMo alloy steel and GCr15SiMn rolling elements to make sure it is very resistant to wear and has a strong structure.

The hardened track, which is 55–62 HRC and 3.5–5.0 mm deep, is one of the best things about this design. In constant spinning, this makes sure that the surface doesn't wear down as quickly and that it lasts a long time. The rusting and blackening process also adds a protective layer that makes it more resistant to weathering. This makes it perfect for use in seas and wastewater.

Structural Parameters of Bridge Scraper Slewing Bearing

Thanks to this optimized structure, the Bridge Scraper Slewing Bearing delivers stable rotation and precise alignment even under harsh operating conditions, making it a core component in modern clarifier systems.

How Does Bridge Scraper Slewing Bearing Improve Load Distribution and Operational Efficiency in Continuous Operation?

One of the best things about the Bridge Scraper Slewing Bearing is that it can spread out heavy loads properly while it's running all the time. In bridge-type scraper devices, uneven buildup of sludge often causes axial and rotational forces to change. The four-point contact design spreads these forces across many contact zones, which greatly lowers stress in one area and stops wear from happening too soon.

Luoyang Heng Guan Bearing Technology Co., Ltd. uses cutting-edge CNC machining and heat treatment methods to make sure that the bearing shape is exact. This directly improves load balance and spinning efficiency. This lowers the friction force and lowers the amount of energy used over time.

A Comparison of Operational Efficiency

In continuous 24/7 operation systems, this improved efficiency significantly reduces downtime and maintenance costs. For engineering support and customized solutions, Heng Guan Bearing Technology can be contacted at mia@hgb-bearing.com, ensuring tailored solutions for different industrial requirements.

Bridge Scraper Slewing Bearing Performance Advantages in Harsh Industrial and High-Load Working Environments

The Bridge Scraper Slewing Bearing is designed to work in harsh settings like saline plants, sewer treatment plants, and marine engineering systems. Its improved surface oxidation and blackening process creates a thick, protected film that makes it much more resistant to rust caused by hydrogen sulphide and saltwater.

The multiple-lip NBR sealing device also keeps water, dust, and chemical toxins out of the bearing raceway. This makes sure that the oil works well even when it's running 24 hours a day, seven days a week. Each Bridge Scraper Slewing Bearing is made by LYHGB to meet the C5-M anti-corrosion standards and IP67 sealing protection requirements. This makes sure that the bearings will work reliably in tough industrial settings.

The bearing can also handle big jobs with measurements of up to 2152 × 1922 × 67 mm, which makes it a good choice for heavy-duty scraper bridge systems. Its strong structure makes sure that it works well even when the load changes, which is very important for marine environmental protection equipment and big wastewater treatment systems.

What Are the Key Selection Criteria and Maintenance Tips for Bridge Scraper Slewing Bearing Systems?

When choosing the right Bridge Scraper Slewing Bearing, you need to carefully think about the load conditions, the surroundings, and how often the machine will be used. Engineers have to figure out if the system has high axial loads, rotational stresses, or constant shifting moments. For uses that need very accurate spinning, choosing the right grade (P5 or P4) is also very important.

Key Selection Guidelines:

Maintenance is also very important. Lubrication, checking of seals, and tightening of bolts on a regular basis ensure long-term operating stability. It is also suggested that vibration tracking be used to find early signs of wear.

Luoyang Heng Guan Bearing Technology Co., Ltd. offers full technical support, such as customisation and engineering advice, to make sure that every Bridge Scraper Slewing Bearing meets the exact needs of the project. This method helps stretch the life of equipment and cuts down on unplanned breaks in manufacturing settings.

Conclusion

The Bridge Scraper Slewing Bearing plays a vital role in ensuring stable rotation, high load capacity, and long-term corrosion resistance in modern clarifier and wastewater treatment systems. Its ability to withstand continuous axial, radial, and tilting moment loads makes it an essential component for 24/7 industrial operation in harsh marine and sewage environments.

FAQ

Q1: Where is the Bridge Scraper Slewing Bearing mainly used?

A: It is mainly used in clarifiers, sewage treatment, and desalination systems.

Q2: What makes it corrosion-resistant?

A: Oxidation treatment and sealed structure provide strong corrosion protection.

Q3: Can it handle continuous operation?

A: Yes, it is designed for 24/7 industrial operation.

Q4: What loads does it support?

A: It supports axial, radial, and tilting moment loads simultaneously.

Q5: Is customization available?

A: Yes, Heng Guan provides full customization based on project requirements.

Get Engineering-Optimized Bridge Scraper Slewing Bearing Solutions for Long-Term Reliability

For customized Bridge Scraper Slewing Bearing solutions, technical consultation, or professional product selection support, are you looking for improved corrosion resistance, higher load capacity, or longer service life in your clarifier or wastewater system?

Contact Luoyang Heng Guan Bearing Technology Co., Ltd. for expert engineering assistance tailored to your project requirements. Our technical team provides full support, including structural design evaluation, material selection guidance, and precision grade recommendations to ensure optimal performance in harsh industrial environments. Email: mia@hgb-bearing.com

Our engineers typically respond within one business day, providing fast and professional support for global industrial projects.
