Deck Crane Slewing Bearing

1. Product Description: This heavy-duty slewing bearing is designed specifically for large marine equipment, measuring 4950 × 4100 × 270 mm. Made of high-quality alloy steel and undergoing a full quenching and tempering heat treatment, it offers excellent load-bearing capacity, smooth operation, and an exceptionally long service life, meeting the long-term, stable operation requirements of marine equipment in harsh marine environments.
2. Product Structure: Three-row roller slewing bearing. Excellent load capacity: Perfectly adapted to the complex load-bearing environments of ships.
3. Dimension Range: Product dimensions: 4950 × 4100 × 270 mm. Machinable range: 50 mm - 10,000 mm. Custom sizes are available to meet specific size requirements.
4. Materials: Ring material: High-strength alloy steels such as 50Mn and 42CrMo. Rolling elements: Balls or rollers made of GCr15SiMn bearing steel. Seal material: Oil-resistant and wear-resistant nitrile rubber.
5. Applications:
Engineering machinery: Marine lifting equipment, marine propulsion systems, specialized marine equipment, and marine engineering equipment.

Product Description

Deck Crane Slewing Bearing - High-Performance Marine Rotational Solution

Product Details

When your marine operations demand reliability and precision, a Deck Crane Slewing Bearing becomes the cornerstone of your equipment's performance. This heavy-duty rotational component is engineered specifically for large-scale marine deck cranes operating in challenging ocean environments. Our product delivers exceptional load capacity, smooth rotation, and extended service life. Built from premium alloy steel and treated through comprehensive heat treatment processes, it ensures your deck crane operates seamlessly even under harsh marine conditions. With dimensions of 4950 × 4100 × 270 mm, this three-row roller configuration handles complex loading scenarios typical in shipboard operations.

The bearing features an integrated design that combines inner and outer rings with precision-manufactured rolling elements. This structure enables simultaneous handling of axial forces, radial loads, and tilting moments. You get stable rotation and precise positioning exactly when you need it most.

Why Choose Us?

Industry Involvement You Can Trust

Based in Luoyang, China's bearing fabricating center, we bring over 20 years of specialized information in slewing bearing innovation. Our group of 50+ committed engineers centers only on exactness bearing solutions.

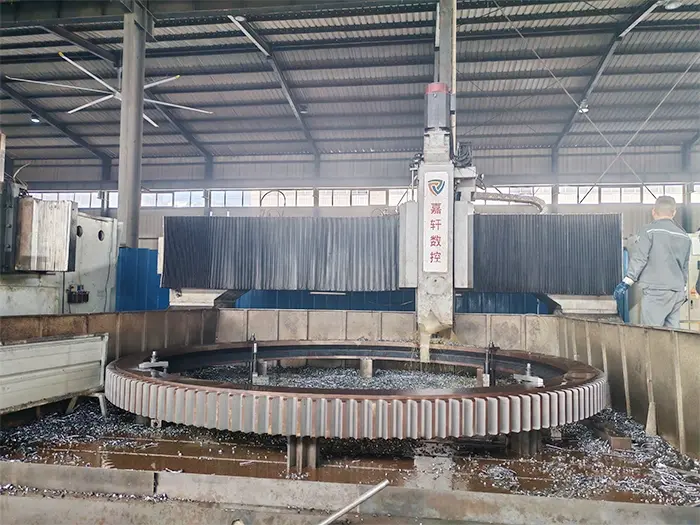

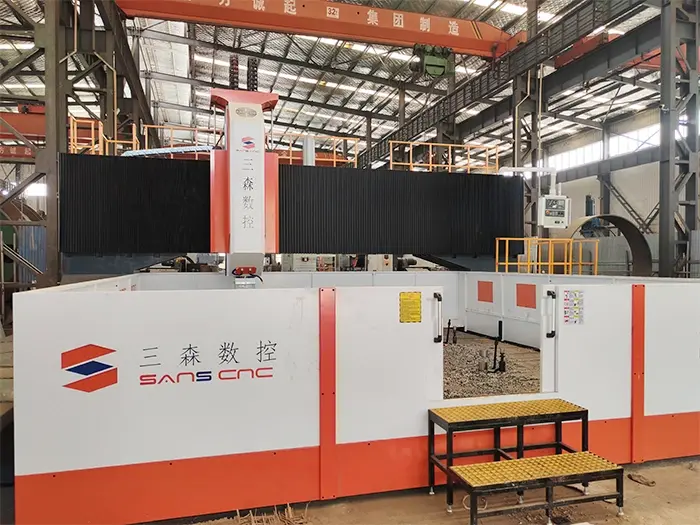

Manufacturing Excellence

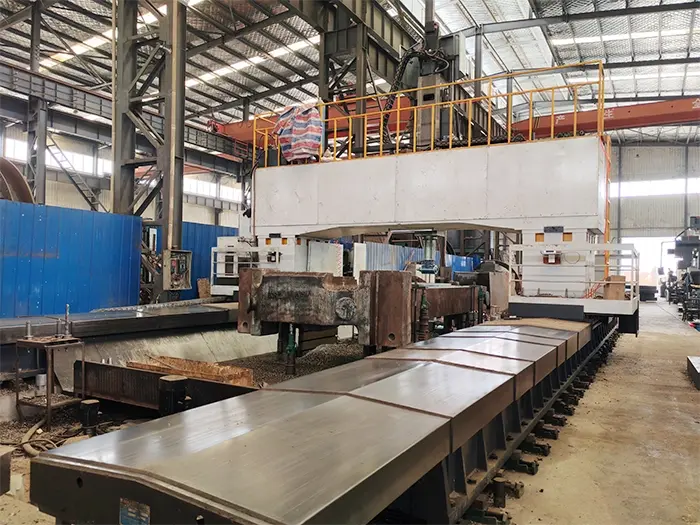

We deliver slewing bearing extending from 50mm to 10,000mm in diameter, covering precision grades P0, P6, P5, and P4. Our ISO 9001-certified factory employs progressed CNC vertical machines, heat treatment machines, Gear shapers, and grinding equipment to guarantee steady quality.

Global Reach

With a global presence spanning 50+ countries—including the United States, Germany, the United Kingdom, and Australia—our products are trusted by industry peers worldwide. We adhere to international standards and deliver accordingly.

Comprehensive Service

From initial design consultation and custom engineering to installation guidance and legacy product support—including reverse engineering—we support you throughout the entire product lifecycle. We also specialize in non-standard customization, even without 3D drawings.

Certification

Deck Crane Slewing Bearing certification

Technical Specifications

Parameter	Specification
Product Type	Three-row roller slewing bearing
Dimensions (OD × ID × H)	4950 × 4100 × 270 mm
Diameter Range	50 mm – 10,000 mm (customizable)
Ring Material	50Mn / 42CrMo high-strength alloy steel
Rolling Element Material	GCr15SiMn bearing steel
Seal Material	Nitrile rubber (oil & wear resistant)
Heat Treatment	Full quenching and tempering
Precision Grades Available	P0, P6, P5, P4
Corrosion Protection	Marine-grade anti-corrosion coating
Operating Temperature Range	-40°C to +80°C
Standards Compliance	ISO, DIN, GB

Features and Benefits

Superior Load Capacity

The three-row roller design distributes forces efficiently. You can handle heavy lifting operations without compromising stability or safety.

Smooth Rotational Performance

Precision CNC machining ensures tight tolerances. It can reduce vibration and make quieter operation, and better positioning accuracy for your deck crane.

Extended Service Life

High-grade alloy steel combined with optimized heat treatment achieves excellent wear resistance. You reduce downtime and replacement costs significantly.

Marine Environment Compatibility

Special anti-corrosion treatment protects against saltwater exposure and humidity. Your Deck Crane Slewing Bearing maintains performance despite harsh oceanic conditions.

Flexible Customization

We tailor dimensions, materials, and configurations to meet your specific vessel requirements. Standard products ship rapidly, while custom solutions are built precisely to your specifications.

Applications

Marine Deck Equipment
Ship-mounted pillar cranes and deck cranes rely on dependable slewing systems for efficient cargo handling and material positioning.

Vessel Propulsion Systems
Rudder mechanisms and thruster assemblies require precise rotational control, which our bearings deliver consistently.

Specialized Marine Platforms
Research vessels, naval ships, and offshore platforms depend on stable bearing performance under dynamic loading conditions.

Offshore Engineering Equipment
Platform cranes and drilling rigs operating in demanding marine environments trust our slewing bearing technology for their critical rotational functions.

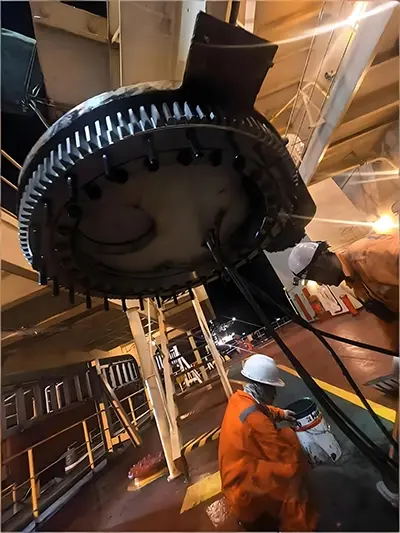

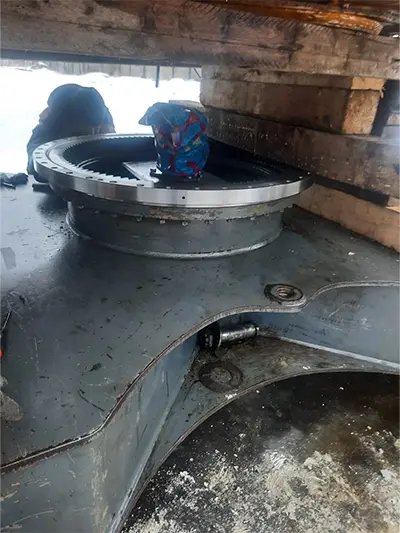

Installation Guide

Pre-Installation Inspection

Verify all mounting surfaces are clean, level, and free from burrs. Check jolt gaps for appropriate alignment.

Mounting Surface Preparation

Ensure levelness meets indicated resistances. Apply suitable anti-corrosion preliminary to contact surfaces.

Bearing Positioning
Carefully position the bearing using appropriate lifting equipment. Precisely align the bolt holes before tightening.

Bolt Torque Sequence
Tighten all mounting fasteners in a star (cross) pattern. Adhere strictly to the specified torque values. Re-torque all fasteners after the initial run-in period.

Lubrication Application
Fill all lubrication channels according to the manufacturer’s specifications. Use a marine-grade grease suitable for your operating temperature range.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Deck Crane Slewing Bearing partners

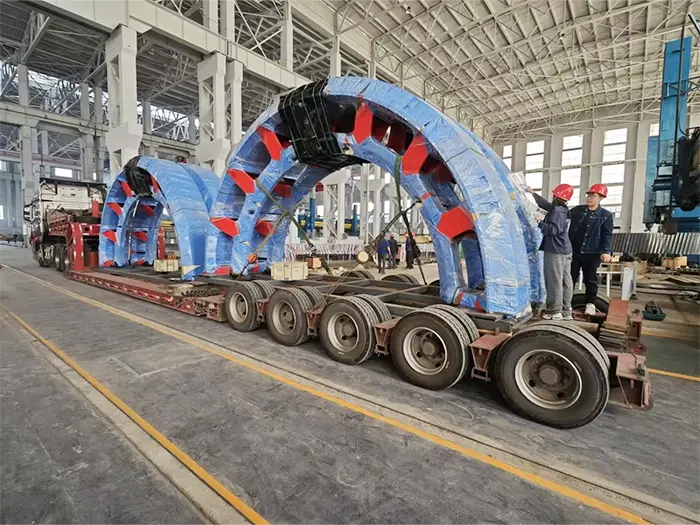

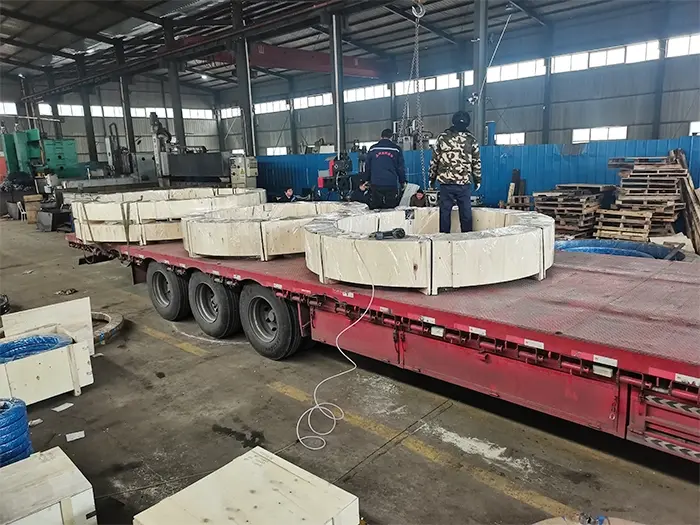

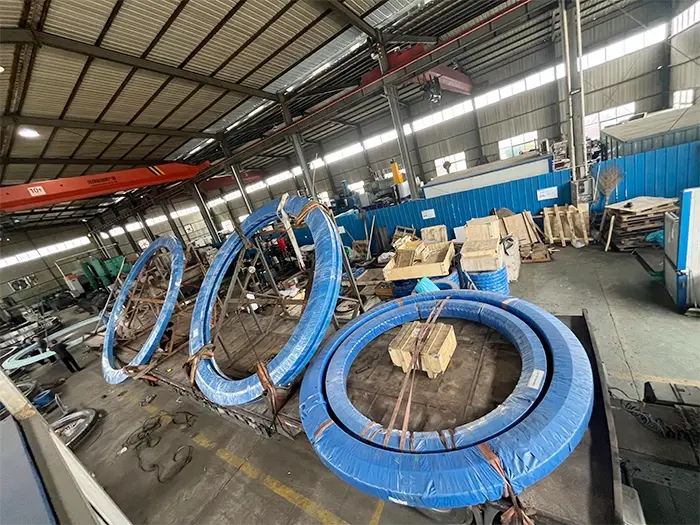

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Positive customer reviews

Our quality and service have received widespread praise from our customers.

Maintenance and Care

Regular Lubrication Schedule
Replenish grease every 100 operating hours or monthly, whichever comes first. Increase lubrication frequency under high-load or continuous-operation conditions.

Visual Inspections
Monthly, inspect seals for integrity and check for abnormal wear patterns or corrosion. Address any irregularities immediately.

Bolt Preload Verification
Re-torque all mounting bolts every 500 operating hours. Replace any damaged or corroded fasteners immediately.

Operational Monitoring
Listen for unusual noise during slewing rotation. Excessive vibration or increased resistance indicates potential issues requiring immediate inspection.

Environmental Protection
Rinse exposed surfaces with fresh water after saltwater exposure. Maintain protective coatings to prevent corrosion.

FAQ

Q: What size range can you manufacture?
A: We manufacture slewing bearings with diameters ranging from 50 mm to 10,000 mm. Custom sizes are also available for specialized applications.

Q: How long does custom maufacturing take?

A: Standard customization requires 4-6 weeks. Complex non-standard design may require 8-10 weeks depending on specifications.

Q: Do you provide installation support?
A: Yes, we offer detailed installation guidance and technical consultation throughout the entire process.

Q: What precision grade ought to I choose?

A: P0 suits common applications. P6 offers moved forward precision for standard marine gear. P5 and P4 serve high-precision requirements.

Q: Can you work from our existing bearing samples?

A: Certainly. We offer reverse-engineering services for legacy products, even without original drawings.

Q: What quality certifications do you hold?

A: We keep up ISO 9001 certification and guarantee RoHS compliance.
