Why Do Engineers Prefer Uncoiling Machine Slewing Ring in Automation Lines?
Why do engineers who work with steel and technology depend on the Uncoiling Machine Slewing Ring more and more to make coil handling systems more efficient, stable, and accurate? When working at high speeds, it's important to keep stress under control and movement smooth so that work doesn't stop and materials don't distort. The Uncoiling Machine Slewing Ring from Luoyang Heng Guan Bearing Technology Co., Ltd. is designed to handle big coils in steel mills and automatic processing lines. It can keep running smoothly even when it's under loads of several tonnes and on a constant job cycle. As technology for automating tasks improves, engineers are actively looking for slewing ring options that have a high load capacity, an accurate gear gearbox, and a long service life. In order to meet these needs, the Uncoiling Machine Slewing Ring has an external gear design, strengthened raceways, and improved sealing systems. This piece talks about why it's become the best choice for modern automation lines and how Heng Guan Bearing Technology is still helping the steel industry grow around the world.
How Does Uncoiling Machine Slewing Ring Improve Tension Control and Continuous Coil Unwinding Stability?
The Uncoiling Machine Slewing Ring is a key part of keeping the tension fixed while the coil is being unwound. In lines that handle steel, uneven strain can cause strips to bend, surfaces to get damaged, or production to be held up. The Uncoiling Machine Slewing Ring was created by Luoyang Heng Guan Bearing Technology Co., Ltd. Its external gear structure makes it possible for the drive system and mandrel assembly to rotate in perfect sync with each other. This makes sure that unwinding is smooth and controlled.
Its four-point or multi-row roller structure properly spreads axial, horizontal, and bending moment loads, which is very important when working with heavy steel sheets. The strengthened track lowers changes in friction, which lets the bearings keep turning without becoming unstable. Engineers like this method because it makes production more consistent by reducing vibrations by a large amount when running at high speeds.
Tension Control Performance Comparison
| System Type | Tension Stability | Vibration Level | Efficiency |
|---|---|---|---|
| Traditional Bearing System | Medium | High | Moderate |
| Uncoiling Machine Slewing Ring | High | Low | High |
Additionally, the external gear design improves transmission efficiency by approximately 25%, ensuring smoother torque delivery. This makes the Uncoiling Machine Slewing Ring a preferred choice in modern automated coil handling systems where precision and stability are critical.
|
|

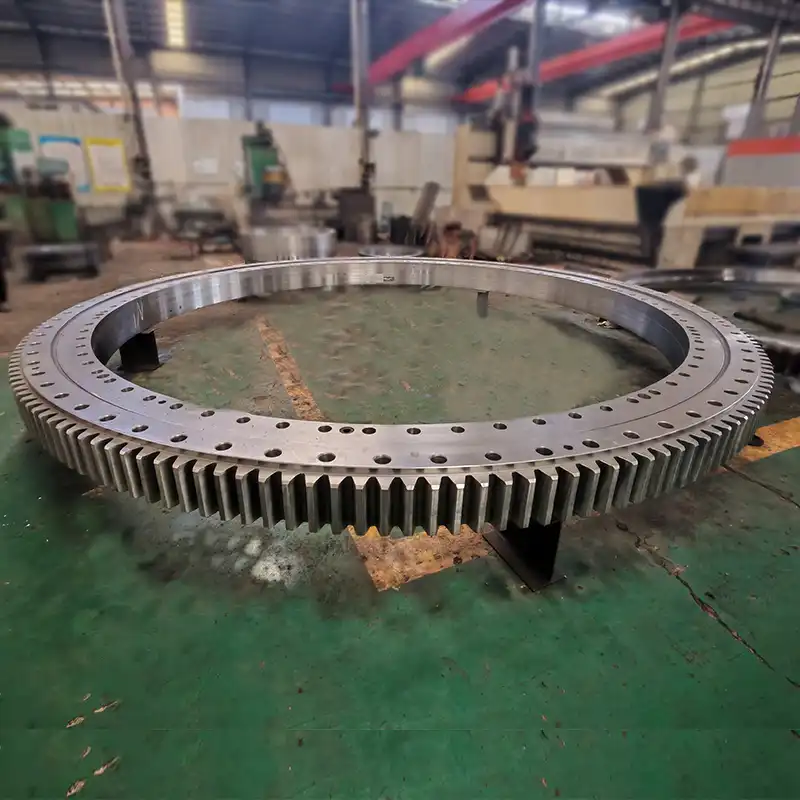

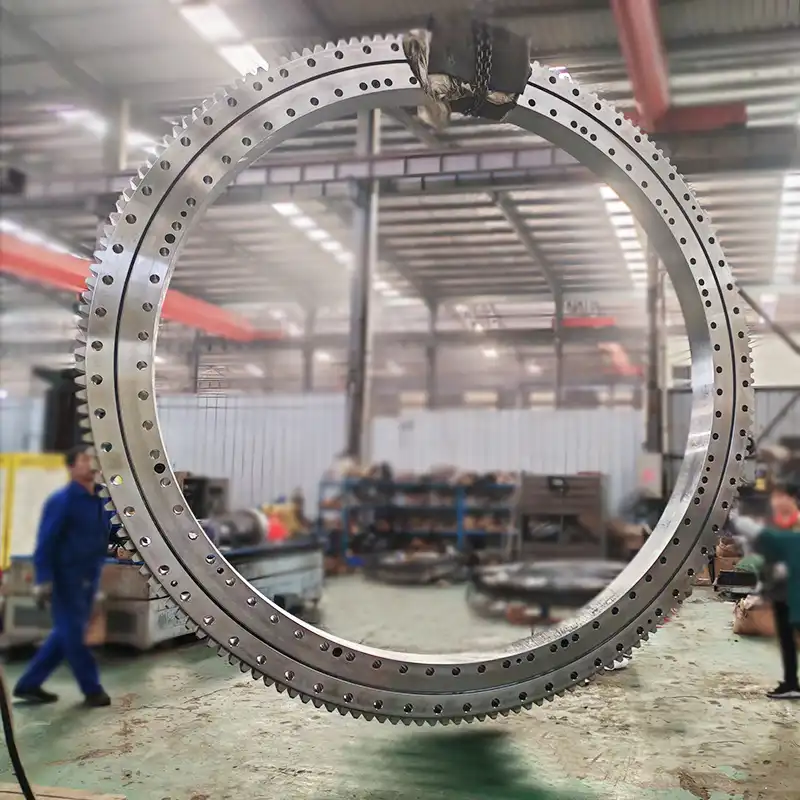

Key Design Features of Uncoiling Machine Slewing Ring for High-Speed and High-Load Industrial Automation Systems
The Uncoiling Machine Slewing Ring is engineered with a high-strength alloy steel structure, typically using 50Mn and 42CrMo materials combined with GCr15SiMn rolling elements. This ensures excellent wear resistance and structural integrity under heavy coil loads. The external gear teeth are integrally machined and hardened to HRC 55–60, providing strong resistance against abrasion in dusty and high-temperature steel plant environments.
Luoyang Heng Guan Bearing Technology Co., Ltd. applies precision CNC machining and advanced heat treatment processes to ensure dimensional accuracy and gear engagement stability. The compact 90 mm profile design allows easy integration into existing automation systems without requiring major structural modifications.
Structural Specifications Overview
| Parameter | Specification |
|---|---|
| Structure Type | External gear slewing ring |
| Material | 50Mn / 42CrMo + GCr15SiMn |
| Gear Hardness | HRC 55–60 |
| Dimension Range | 50 mm – 10,000 mm |
| Standard Size Example | 1598 × 1305 × 90 mm |
The design eliminates additional gear components by integrating external teeth directly into the slewing ring, reducing assembly complexity and improving mechanical efficiency. This makes the Uncoiling Machine Slewing Ring highly suitable for high-speed automation systems requiring reliability and precision.
Uncoiling Machine Slewing Ring Applications in Automated Production Lines: Efficiency, Accuracy, and Reliability Benefits
The Uncoiling Machine Slewing Ring is widely used in hot rolling mills, cold rolling mills, stainless steel production lines, and coil service centers. It serves as the core rotational connection between the fixed base and mandrel system, enabling controlled coil unwinding and precise strip feeding into downstream processing equipment.
In automated production lines, consistency is critical. The Uncoiling Machine Slewing Ring ensures stable rotational movement even under uneven coil weight distribution. Its multi-layer sealing system prevents dust and scale particles from entering the raceway, maintaining long-term lubrication stability. This directly improves operational reliability in steel environments.
At this stage, engineers are encouraged to evaluate system integration requirements carefully. For technical consultation and selection support, users can contact Luoyang Heng Guan Bearing Technology Co., Ltd. at mia@hgb-bearing.com for customized engineering solutions.
The bearing’s ability to handle complex loads makes it essential in automation lines where precision timing and continuous feeding are required. Its contribution to reducing downtime and improving throughput is one of the key reasons it is widely adopted in modern steel processing systems.
What Factors Should Be Considered When Selecting an Uncoiling Machine Slewing Ring for Automation Equipment?
Selecting the right Uncoiling Machine Slewing Ring requires careful evaluation of operational conditions such as coil weight, rotation speed, and duty cycle. Engineers must ensure that the bearing can handle combined axial, radial, and tilting moment loads while maintaining stable performance under continuous operation.
Selection Criteria Table:
| Factor | Recommendation |
|---|---|
| Coil Load | Heavy-duty multi-ton capacity |
| Speed Requirement | High-speed stable rotation |
| Gear Precision | Hardened external gear |
| Structure Type | Roller or ball multi-row design |
Maintenance is equally important for long-term reliability. Regular lubrication, gear inspection, and sealing condition checks help maintain optimal performance. Luoyang Heng Guan Bearing Technology Co., Ltd. also provides installation guidance and reverse engineering support when original design drawings are unavailable.
Engineers are encouraged to select precision grades (P5 or P4) for high-accuracy automation systems. Proper selection ensures improved efficiency, reduced vibration, and longer operational life of the Uncoiling Machine Slewing Ring in demanding industrial environments.
Conclusion
With the growing demand for intelligent manufacturing and high-speed automation, reliability and precision have become essential engineering requirements rather than optional features. The Uncoiling Machine Slewing Ring meets these demands by combining structural strength with precision transmission performance, ensuring long-term stability under harsh industrial conditions.
|
|
FAQ
Q1: Where is the Uncoiling Machine Slewing Ring mainly used?
A: It is used in steel coil handling and automation production lines.
Q2: What is its main structural feature?
A: It uses an external gear integrated slewing ring design.
Q3: Can it handle heavy coil loads?
A: Yes, it is designed for multi-ton industrial coil loads.
Q4: What improves its transmission efficiency?
A: External gear design improves efficiency by about 25%.
Q5: Is customization available?
A: Yes, Heng Guan provides full customization from 50 mm to 10,000 mm.
Get Reliable Engineering Support for High-Performance Uncoiling Machine Slewing Ring Systems
For customized Uncoiling Machine Slewing Ring solutions, technical consultation, or application-specific engineering support, are you looking to improve load capacity, enhance transmission efficiency, or optimize stability in your automation line?
Contact LYHGB for professional engineering assistance tailored to steel and industrial automation systems. Our technical team provides full support, including structural design evaluation, gear configuration optimization, and material selection guidance, to ensure stable and efficient operation under heavy coil loads and continuous production cycles. Email: mia@hgb-bearing.com
Our engineering team typically responds within one business day, providing fast and professional support for global industrial projects.
