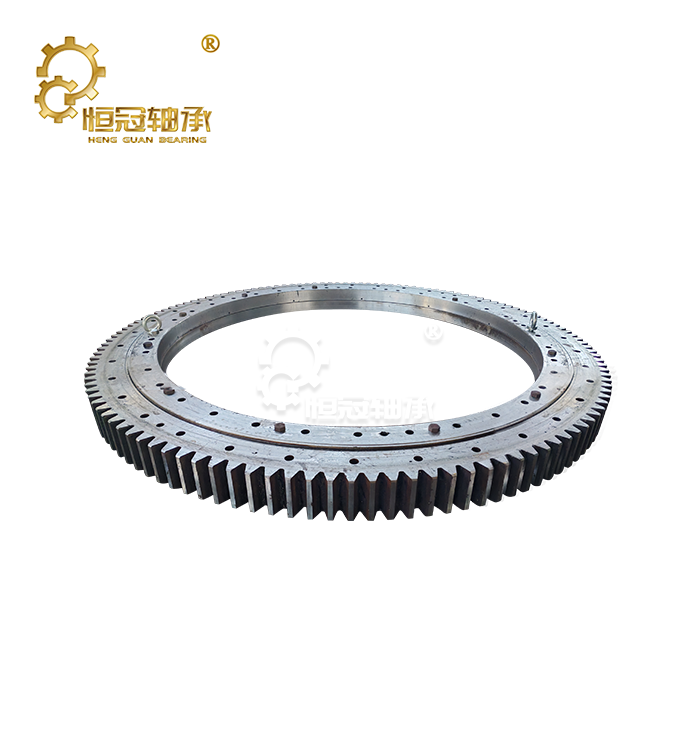

High-Performance Marine Slewing Ring Bearings for Offshore Applications

At Luoyang Hengguan Bearing Technology, we manufacture heavy-duty Marine Slewing Ring Bearings engineered for harsh offshore and coastal environments. Marine Slewing Ring Bearings integrate load bearing, power transmission and rotational functions into a single compact unit.

Available in outer diameters ranging from 200 mm to over 10,000 mm and section heights from 80 mm to 500 mm, these bearings reach P5 precision grade. Raceway surfaces are induction hardened to HRC 55–60 for superior wear resistance.

Forged from high-strength 50Mn / 42CrMo alloy steel rings and fitted with GCr15 high-precision steel rolling elements, our slewing rings deliver stable, long service life for marine cranes, offshore platforms and critical maritime equipment.

Marine Slewing Ring Bearings Details

Slewing rings act as mechanical joints to enable continuous 360° rotation for marine machinery. These integrated components simultaneously withstand axial, radial and tilting moment loads, while resisting seawater corrosion and severe salt spray.

We provide three mainstream structural configurations:

• Single-row four-point contact ball: Compact structure for light and medium load conditions
• Cross roller slewing bearing: Balanced load capacity and high structural rigidity
• Three-row roller slewing bearing: Maximum load capacity for heavy-duty offshore working conditions

Core Technical Configuration

• Bearing Rings: High‑strength 50Mn / 42CrMo alloy steel
• Rolling Elements: High‑precision GCr15 bearing steel
• Sealing System: Oil‑resistant NBR rubber seals to prevent seawater and dust ingress

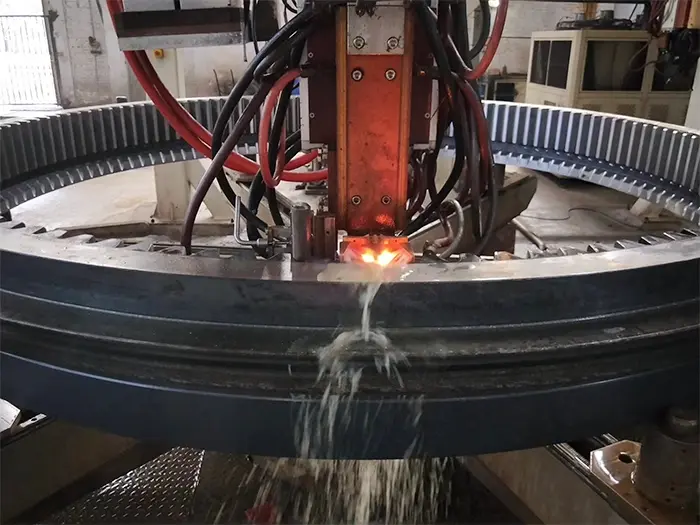

• Heat Treatment: Induction hardened raceways (Surface HRC 55–60, Core hardness HB 260–300)

Our full manufacturing range covers outer diameters from 50 mm to 10,000 mm, with optional precision grades: P0, P6, P5 and P4.

Why Choose Us

Over 20 Years of Bearing Expertise

Located in China’s core bearing industrial cluster, our company owns profound accumulation in the Slewing Bearing industry. Our professional team of more than 50 engineers focuses on slewing bearing R&D and high-precision manufacturing.

Proven Global Track Record

​​​​​​​Our slewing bearings have been exported to dozens of countries worldwide. With stable quality and reliable performance, our products are widely applied in marine, offshore, metallurgy, construction and other harsh working conditions.

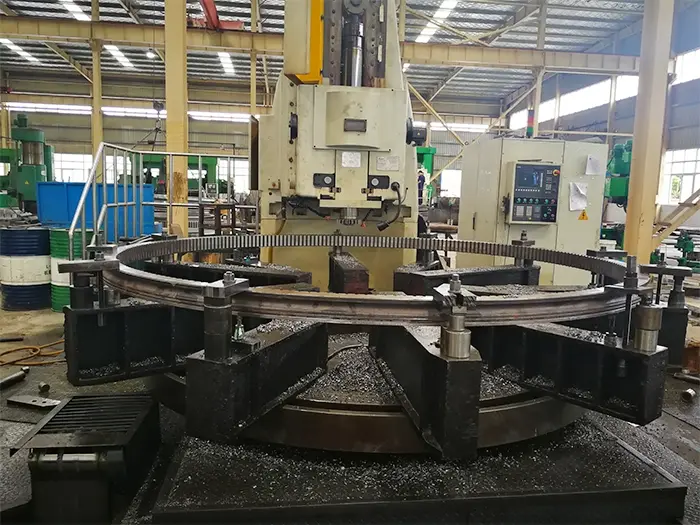

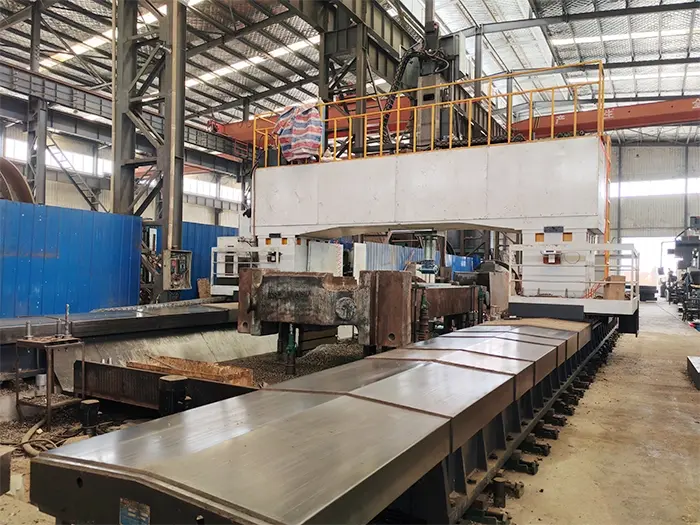

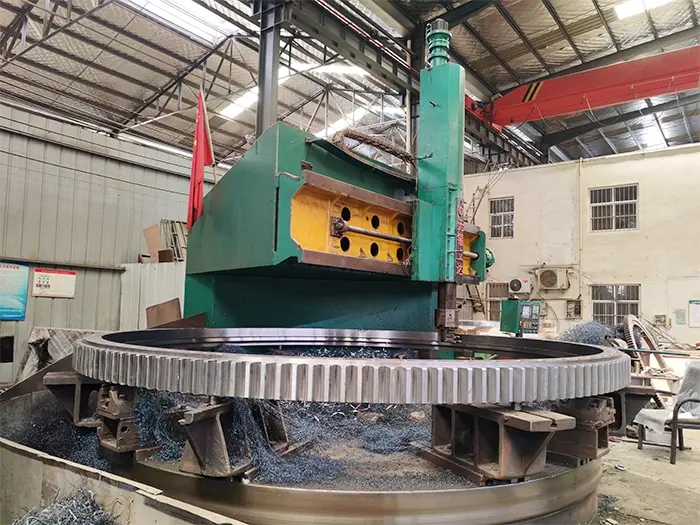

We provide non-standard design services according to your installation dimensions, bolt patterns and gear parameters. Our workshop is equipped with CNC vertical machines, CNC quenching equipment, CNC gear cutters and large gear hobbing machines.

End-to-End Support

We offer full lifecycle support covering technical consultation, product design, on-site installation guidance and reverse engineering for old models. Custom solutions are available even without complete 3D drawings.

Technical Specifications

Features and Benefits

Corrosion-Resistant Design

Professional seals and specialized surface treatments provide reliable protection against salt spray and intermittent seawater immersion. It effectively extends service life in offshore environments and reduces long-term maintenance costs.

High Load Capacity

Three-row roller structures simultaneously withstand heavy axial, radial and tilting moment loads. They enable heavier load handling with excellent overall stability.

Precision Rotation

P5 precision machining ensures smooth, low-friction rotation. It improves positioning accuracy for cranes and offshore platforms while lowering energy consumption.

Exceptional Durability

Induction-hardened raceways (HRC 55–60) deliver superior wear resistance, paired with a tough core hardness of HB 260–300. This dual hardness structure prevents cracking under impact loads in harsh offshore operations.

Custom Integration

We design custom slewing bearings to match your exact bolt patterns, mounting dimensions and gear specifications. It eliminates costly on-site modifications and simplifies installation.

Applications

Marine slewing ring bearings are basic components in:

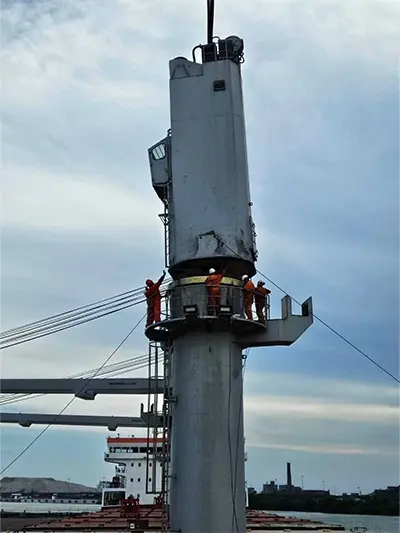

Shipborne Deck Cranes: Enable 360° rotation for cargo handling and knuckle-boom cranes in rough sea conditions

• Mobile Harbour Cranes: Support fast, precise positioning during container loading operations
• Offshore Platform Cranes: Provide stable rotation for drilling, repair supply and maintenance lifting
• Floating Cranes: Handle dynamic loads during heavy-lift operations in open water
• Offshore Wind Turbine Installation: Facilitate platform rotation and component positioning during turbine assembly
• FPSO Turret Mooring Frameworks: Maintain structural integrity under continuous tension and harsh weather
• Azimuth Thrusters: Enable reliable drive system rotation in underwater or salt-air environments

These applications require bearings that maintain critical stability and low frictional torque under enormous loads while resisting constant moisture exposure.

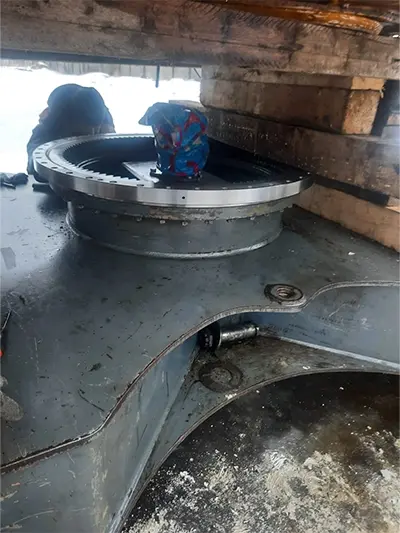

Installation Guide

Pre-Installation Checks

1. Verify mounting surface flatness (typically ≤0.5 mm per meter)

2. Clean all mounting surfaces and remove protective coatings

3. Inspect bolt holes for alignment and damage

4. Check seal integrity and apply recommended marine-grade grease

Installation Steps

5. Position bearing on mounting surface, aligning bolt holes

6. Install bolts in a star pattern, tightening to 50% torque initially

7. Complete tightening in stages to specified torque (provided in bearing documentation)

8. Verify axial and radial clearances using dial indicators

9. Connect gear drive (if applicable) and verify smooth engagement

10. Perform trial rotation and check for binding or unusual noise

Important Notes

· Never strike the bearing directly during installation

· Use proper lifting equipment for large-diameter units

· Follow torque specifications to prevent ring deformation

· Ensure seals remain undamaged during handling

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Testing & Certification

Quality Control Process

Every bearing undergoes rigorous testing:

· Dimensional inspection using coordinate measuring machines

· Vibration testing to verify smooth rotation

· Raceway hardness verification with portable hardness testers

· Load testing to confirm capacity ratings

Certifications

· ISO 9001 Quality Management System

· RoHS Compliance

· Products manufactured to ISO, DIN, and GB standards

Traceability

We maintain full documentation from raw material sourcing through final inspection. Each bearing includes quality certification and test reports.

Maintenance and Care

Routine Inspection Schedule

· Monthly: Visual inspection for seal damage and leakage

· Quarterly: Grease replenishment through lubrication ports

· Annually: Comprehensive rotation test and clearance measurement

Lubrication Requirements

Use marine-grade lithium complex grease with water-resistant properties. Apply fresh grease until purging old grease from seals. Typical relubrication intervals range from 3-6 months depending on operating conditions.

Troubleshooting Common Issues

· Increased rotation resistance: Check for inadequate lubrication or seal damage

· Abnormal noise: Inspect for contamination or worn rolling elements

· Excessive clearance: Verify bolt torque and check for mounting surface settling

Storage Recommendations

Store bearings horizontally in dry, covered areas. Maintain factory-applied preservative coating until installation. Rotate stored bearings quarterly to prevent raceway deformation.

FAQ

Q: What diameter range can you manufacture?

A: We produce bearings from 50 mm to 10,000 mm diameter. Most marine applications fall between 200 mm and 5,000 mm.

Q: How do I select the right bearing type for my crane?

A: It depends on your load conditions. Single-row designs suit lighter applications, while three-row configurations handle extreme moment loads. Contact our engineers with your specifications for a recommendation.

Q: Do you provide installation support?

A: Yes. We offer installation guidance, torque specifications, and technical consultation throughout the installation process.

Q: What's your typical lead time for custom bearings?

A: Standard customizations take 4-6 weeks. Complex non-standard designs may require 8-10 weeks. We'll provide a specific timeline after reviewing your requirements.

Q: Can you design bearings from old product measurements?

A: Absolutely. We offer reverse engineering services based on your existing bearing dimensions and mounting specifications.

Q: How do your bearings resist corrosion in saltwater environments?

A: We use specialized NBR seals, corrosion-resistant materials, and protective surface treatments designed specifically for marine conditions.

Contact Us

Ready to discuss your marine slewing ring bearings requirements? Our engineering team is here to help you select the right solution for your application.
