Uncoiling Machine Slewing Ring

Uncoiling Machine Slewing Ring – Heavy-Duty Rotational Support for Steel Coil Handling

At Luoyang Hengguan Bearing Technology Co., Ltd., we professionally design high-performance uncoiling machine slewing rings for heavy-duty steel processing environments. Our standard external gear slewing ring in size 1598 × 1305 × 90 mm is specially developed for coil handling equipment in metallurgical plants.Made of premium 50Mn & 42CrMo alloy steel, with gear tooth hardness reaching HRC 55–60, this slewing ring stably bears multi-ton coil loads while maintaining high rotational accuracy.The external gear structure improves transmission efficiency by 25%, ensuring stable operation for hot rolling, cold rolling and steel service centers.We support custom production with a size range from 50 mm to 10,000 mm, to match your on-site equipment parameters and working conditions.

Uncoiling Machine Slewing Ring Details

This slewing ring acts as the core rotational connecting part between the fixed base and mandrel assembly. It integrates three core advantages: hardened raceway structure, precision external gear teeth and high-performance multi-layer sealing design.

Structural Composition

It consists of inner and outer races, with high-strength rolling elements (balls or rollers) installed in between.External gear teeth are integrally machined on the outer diameter, realizing direct meshing with drive pinions.It eliminates extra gear accessories and greatly reduces overall assembly difficulty.

Load Handling Mechanism

During operation, the bearing simultaneously bears axial load from coil weight, radial load from strip tension, and tilting moment caused by unbalanced loading.Adopting cross roller or triple-row roller structure, it evenly disperses complex loads and extends service life for long-term continuous operation.

Operational Advantages

Hardened gear teeth effectively resist abrasion in dusty steel plant environments.Strict heat treatment stabilizes material performance and reduces thermal deformation under temperature fluctuation.The compact 90 mm low-profile design saves vertical installation space and is easy to adapt to existing equipment layout.

Why Choose Us

Manufacturing Capacity

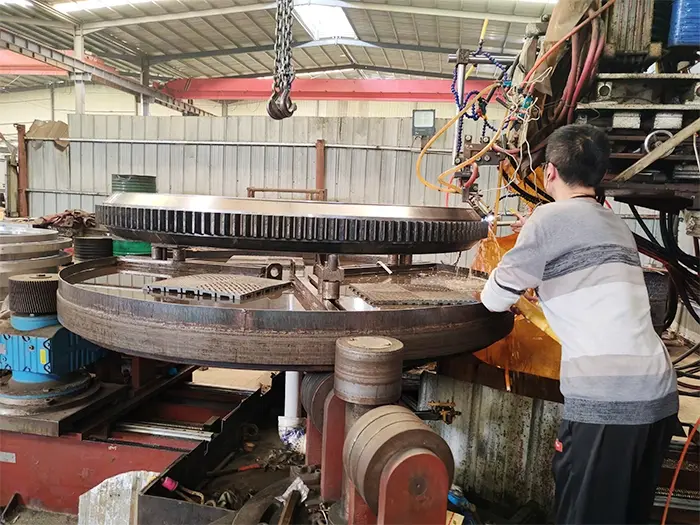

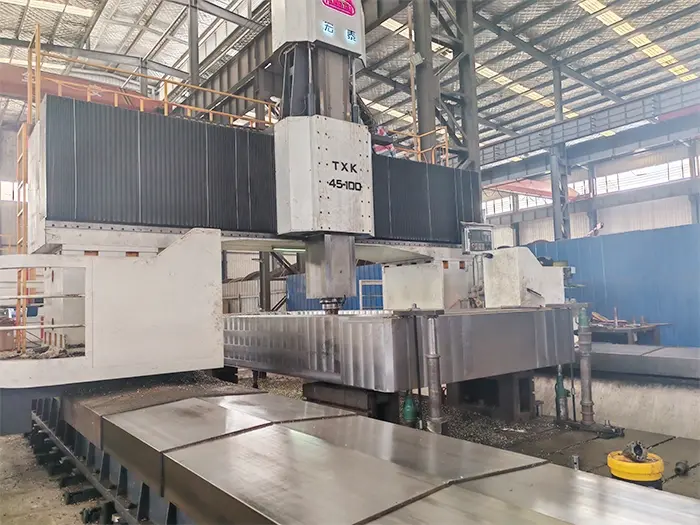

We are equipped with CNC vertical lathes, CNC quenching machines and gear hobbing equipment to ensure dimensional tolerances comply with ISO standards. Our workshop supports diameters ranging from 50 mm to 10,000 mm, with precision grades of P0, P6, P5 and P4 available.

Technical Support

Our engineering team provides professional bearing selection support based on your coil weight, uncoiling speed and duty cycle. We offer complete installation guidance, and can conduct reverse engineering for existing bearings through on-site testing when original drawings are unavailable.

Quality Control

Every product undergoes dimensional inspection and vibration testing before shipment. We maintain full traceability from raw material procurement to final assembly, with all procedures documented in accordance with ISO 9001 requirements.

Global Experience

With 20 years of professional bearing industry experience, we ensure stable manufacturing and reliable product performance. We have supplied uncoiling machine slewing rings to steel manufacturers across more than 50 countries, including South Africa, Germany and the United States.

Technical Specifications

Features and Benefits

High-Temperature Stability:

Special heat treatment processes enable operation in environments surpassing 60°C, common near hot rolling lines. Material properties stay stable, preventing premature raceway deformation.

Dust-Resistant Sealing:

The multi-layer seal design blocks fine metallic particles generated during coil processing. This extends lubrication intervals and reduces maintenance downtime.

Shock Load Absorption:

Optimized raceway geometry disseminates impact forces when coils are stacked onto the mandrel. This design feature prevents localized stress concentrations that lead to early fatigue failures.

Extended Lubrication Cycles:

We specify high-temperature lubricant formulations consistent with steel process working conditions. Proper initial lubrication supports 100-200 hour intervals under standard duty, reducing maintenance frequency.

Precise Positioning:

Low rotational resistance and negligible backlash guarantee reliable coil alignment during threading operations. This precision prevents strip edge damage and decreases scrap rates in your production line.

Applications

Steel Processing Facilities:

Hot rolling mills use our bearings in coil handling machines that position 20-30 ton coils for entry into rolling stands. The components withstand tilting moments during initial strip threading and maintain alignment throughout the unwinding cycle.

Cold Rolling Operations:

High-speed uncoiling lines require vibration dampening and rotational smoothness to prevent surface defects on finished products. Our precision-grade options support feed rates exceeding 300 meters per minute.

Stainless Steel Production:

Corrosion-resistant material grades and specialized coatings protect bearing surfaces in environments where scale and acid residues are present. This extends replacement intervals in challenging operating conditions.

Silicon Steel Manufacturing:

Automated coil storage systems employ our uncoiling machine slewing rings in stacker equipment, where precise positioning and load-holding capacity are critical for safe material handling.

Heavy Equipment Manufacturing:

Beyond steel processing, these bearings support rotary tables in large vertical lathes, pressure vessel manufacturing equipment, and casting manipulation systems where heavy loads and slow rotation speeds are typical.

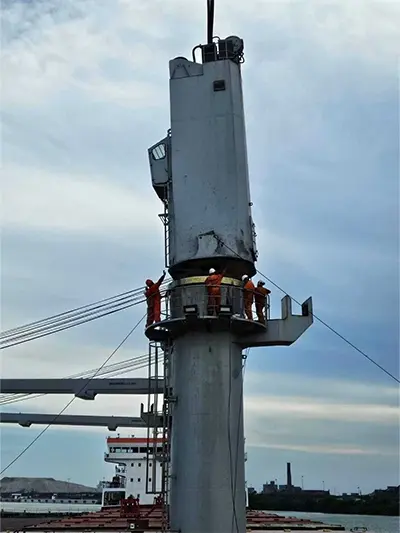

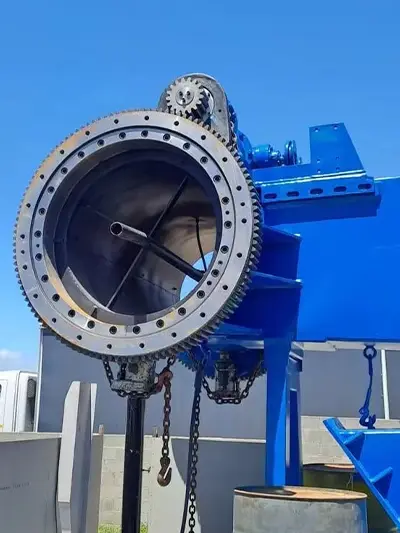

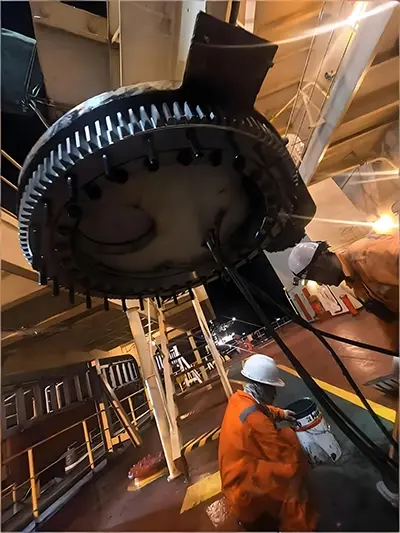

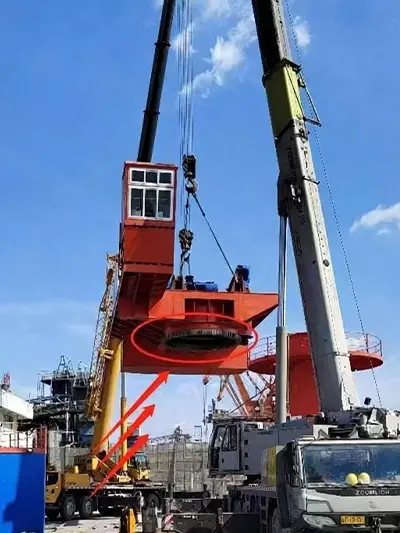

Installation Guide

Pre-Installation:

Verify mounting surface flatness within 0.2 mm per meter. Clean all contact surfaces to remove protective coatings and debris. Inspect bolt holes for thread damage or dimensional deviations.

Positioning:

Use lifting equipment rated for the bearing's weight. Align bolt hole patterns before lowering the unit onto the mounting surface. Avoid dragging or sliding, which can damage seal lips.

Bolt Tightening:

Apply anti-seize compound to bolt threads. Tighten in a star pattern sequence, bringing all fasteners to 50% of final torque, then 100%. Use a calibrated torque wrench to achieve specified preload values.

Pre-Operation Check:

Rotate the bearing manually through one complete revolution to verify smooth movement. Check for unusual resistance or noise. Confirm proper gear mesh engagement with your drive pinion before applying power.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Testing & Certification

All units undergo dimensional verification using coordinate measuring machines to confirm tolerance compliance. Vibration testing identifies potential assembly defects before shipment. Our manufacturing processes are certified to ISO 9001 standards, and materials comply with RoHS directives for global market compatibility.

We maintain production records for each bearing batch, enabling traceability if field analysis is required. Load testing equipment validates static and dynamic capacity ratings published in our technical documentation.

Packaging & shipping

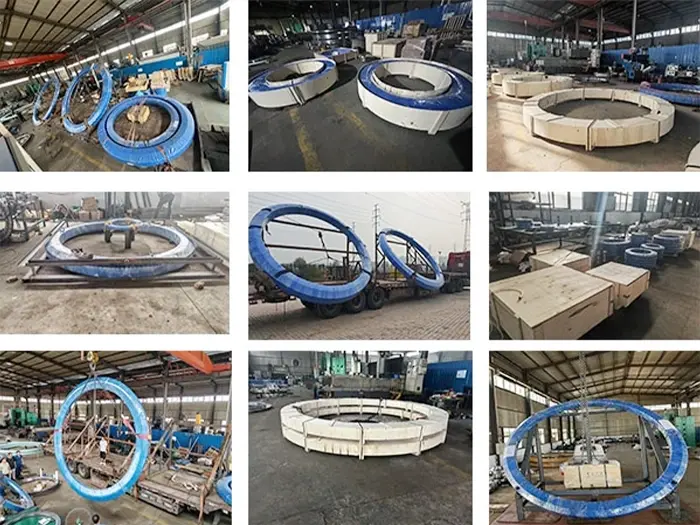

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication Schedule:

Standard operations require regreasing every 100-200 hours. High-tension or continuous-duty applications benefit from 50-hour intervals on raceways and daily gear lubrication. Use NLGI Grade 2 grease with EP additives.

Inspection Points:

Monitor mounting bolt torque monthly during the first three months of operation, then quarterly. Examine seals for grease leakage or cracking. Listen for changes in operational noise that might indicate developing raceway damage.

Common Issues:

Premature noise typically results from lubricant contamination, loose mounting bolts, or raceway pitting from overload conditions. Seal failure appears as grease leakage at the base or metallic particles in purged lubricant during maintenance.

Service Life Expectations:

With proper load management and maintenance according to L10 life calculations, your bearing should perform for 5-10 years in standard production environments. Document operating hours and maintenance activities to support predictive replacement planning.

FAQ

Q: Can I use a ball-type bearing for 40-ton coils?

A: For loads exceeding 25 tons, we recommend triple-row roller or cross-roller configurations rather than ball-type designs. Rollers provide better load distribution across a larger contact area, reducing stress concentrations.

Q: What causes gear tooth wear patterns?

A: Uneven wear usually indicates misalignment between the bearing and drive pinion. Verify parallel mounting surfaces and check for bent Shafts or eccentric rotation.

Q: How do I identify seal failure?

A: Look for grease leakage around the base perimeter or the presence of metallic particles in grease samples taken during routine maintenance.

Q: What's the maximum operating temperature?

A: Standard configurations handle continuous operation up to 80°C. Higher temperatures require specialty lubricants and may affect seal material selection.

Q: Do you provide installation training?

A: Yes, our technical team offers on-site guidance for initial installations and can provide documentation in multiple languages for your maintenance personnel.

Contact Us

For technical inquiries, custom specifications, or quotation requests, reach our engineering uncoiling machine slewing ring's team at mia@hgb-bearing.com. We respond within 24 hours with application-specific recommendations.
