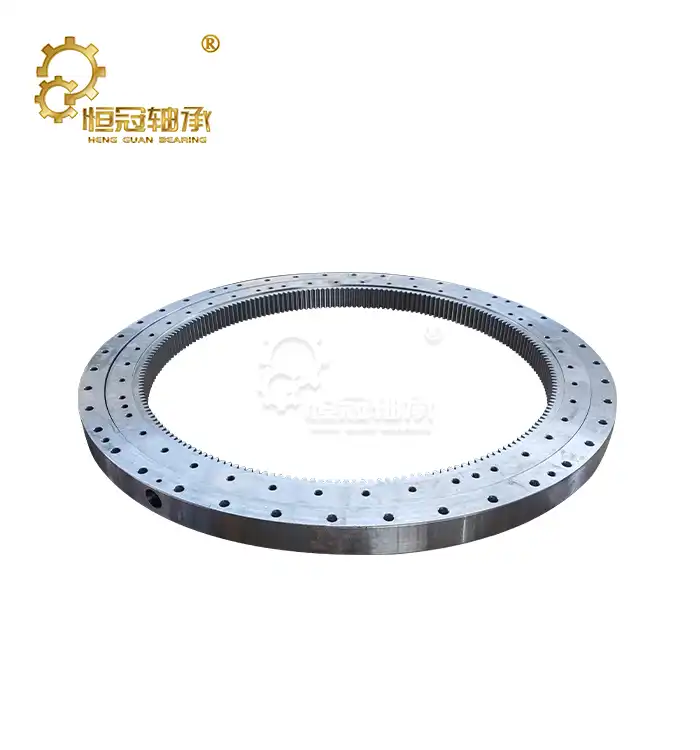

John Deere Excavator slewing bearing

John Deere Excavator Slewing Bearing: Engineering Solutions for Heavy-Duty Applications

This rotating connection for John Deere Excavator Slewing Bearing enables smooth 360-degree turntable motion while supporting combined axial, radial, and moment loads. You face real challenges on job sites—dust infiltration, impact shocks, and continuous high-torque cycles. These conditions accelerate wear and can cause swing drift or unexpected downtime. At Luoyang Heng Guan Bearing Technology, we engineer precision slewing rings that address these operational pain points directly through proven metallurgy and precision manufacturing processes.

Contact our engineering team: mia@hgb-bearing.com

Product Structure and Design

Core Bearing Configurations

Single-Row Four-Point Contact Ball Bearing

This configuration suits compact to mid-size John Deere models (17G through 350G series). The four-point contact geometry distributes loads across the ball raceway, delivering smooth rotation with minimal friction. You benefit from lower operating noise and extended service intervals in standard construction applications.

Single-Row Cross-Roller Bearing

For heavy-duty applications requiring higher rigidity, crossed cylindrical rollers provide superior load distribution. The perpendicular roller arrangement increases contact area, reducing stress concentration. This design handles the elevated moment loads typical of deep excavation and material handling cycles.

Three-Row Roller Bearing

Large mining-class excavators (450, 670G, 800, 870G series) demand maximum load capacity. Our three-row design separates axial and radial load paths through dedicated roller rows. This structure delivers exceptional resistance to tilting moments during peak bucket loading and unloading operations.

Technical Performance Parameters

John Deere Model Product Parameters

Manufacturing Standards and Materials

Alloy Steel Selection

We forge bearing rings from 50Mn and 42CrMo structural steel grades. The integral forging process creates a dense grain structure that resists fatigue crack initiation. Chemical composition and mechanical properties meet GB/T 699 and GB/T 3077 standards respectively.

Heat Treatment Process

Raceway surfaces undergo medium-frequency induction hardening to achieve 55-62 HRC surface hardness. The hardened layer penetrates 3-5mm depth, providing wear resistance while maintaining core toughness. This controlled hardening prevents brittle failure under impact loading—a common failure mode when excavators encounter buried obstacles or rocky soil.

Application Environments

Mining and Quarry Operations

Your equipment faces continuous impact loading when breaking overburden or loading blasted rock. The John Deere Excavator slewing bearingmust absorb these shock forces without raceway spalling. Our three-row roller designs distribute peak loads across multiple contact points, extending bearing life in these severe duty cycles.

Forestry Operations

Timber harvesting generates irregular lateral forces as grapples and processors handle logs on uneven terrain. The bearing experiences combined tilting moments and rotational loads. Cross-roller configurations provide the necessary rigidity to maintain positioning accuracy during precision cutting operations.

Quality Control and Testing

Every bearing undergoes dimensional verification using coordinate measuring machines. We verify:

• Raceway roundness and surface finish
• Mounting hole position accuracy
• Gear tooth profile deviation
• Hardness distribution uniformity

Assembled units pass rotation torque testing and seal integrity checks before shipment. Full material traceability documentation accompanies each order.

Stock Availability and Custom Solutions

We keep up prepared stock of common setups for fast sending. Standard models dispatch inside 5-7 trade days all inclusive, minimizing your hardware downtime.

For suspended models or non-standard applications, our building group gives Reverse engineering services. We perform on-site estimation and make substitution bearing with comparable or moved forward execution versus unique details. This capability demonstrates basic when OEM parts confront long lead times or supply cessation.

On-Site Measurement Service

When original drawings are unavailable, we dispatch engineers to your location with precision measurement equipment. Our team captures:

• Outer diameter and bolt circle dimensions
• Gear module and tooth count
• Mounting interface geometry
• Wear pattern analysis

This data drives optimized replacement designs that address the root causes of premature failure in your specific operating conditions.

Installation Support and Technical Guidance

Proper installation directly impacts bearing service life. We provide detailed mounting procedures covering:

• Surface preparation and flatness requirements
• Bolt tightening sequence and torque values
• Initial lubrication procedures
• Rotation torque verification

Manufacturing Capabilities

Our Luoyang office works progressed CNC vertical machines taking care of breadths up to 10,000mm. Equip hobbing machines cut indispensably teeth with repeatable exactness. CNC-controlled Induction hardening hardware guarantees uniform Heat treatment over the full raceway circumference.

This coordinates generation capability—from forging through last inspection—maintains quality consistency over generation runs. You get bearing made beneath ISO 9001 certified forms with RoHS compliance for worldwide administrative prerequisites.

FAQ

Q: How can I distinguish a falling flat slewing bearing?

A: Observe for irregular commotion, expanded swing resistance, intemperate play, or metal particles in grease.

Q: How regularly ought to the bearing be lubricated?

A: Each 100 working hours beneath ordinary conditions; more habitually in dusty or marine environments.

Q: Can I overhaul to a higher-capacity bearing?

A: Yes. Our engineers can assess overhaul choices based on your application.

Q: What causes swing float on slopes?

A: Intemperate bearing clearance or equip backfire caused by wear and insufficient lubrication.

Q: Do you give mounting components for modified frames?

A: Yes. We can supply custom mounting plates and support rings.

Q: How does Induction hardening make strides performance?

A: It increments wear resistance whereas keeping up center durability for superior durability.

Q: Which seal fabric is best for pressure driven liquid exposure?

A: Viton seals give prevalent resistance to water powered oils compared with standard NBR seals.

Contact Our Engineering Team

For technical specifications, bearing selection assistance, or custom solution development for Jone Deere Excavator slewing bearing, reach our applications engineers at mia@hgb-bearing.com.
