Cat Excavator slewing bearing

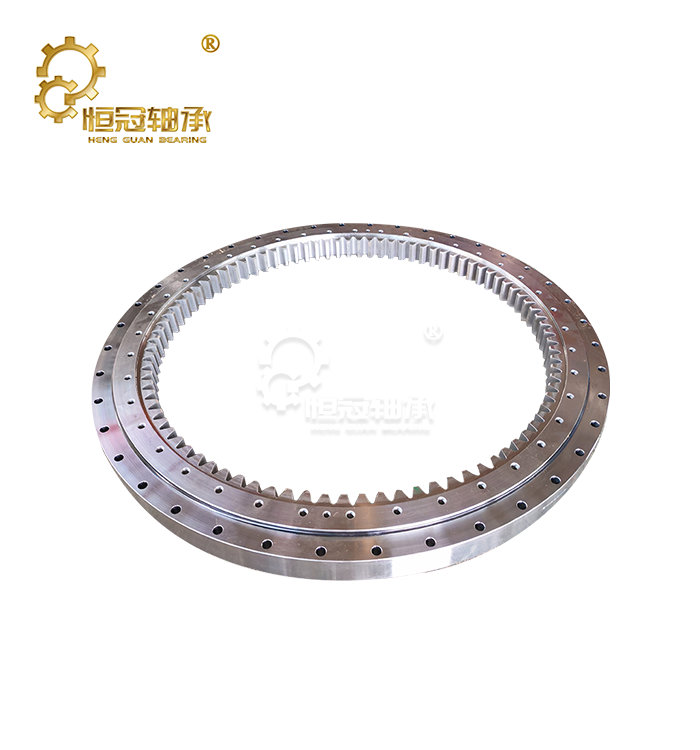

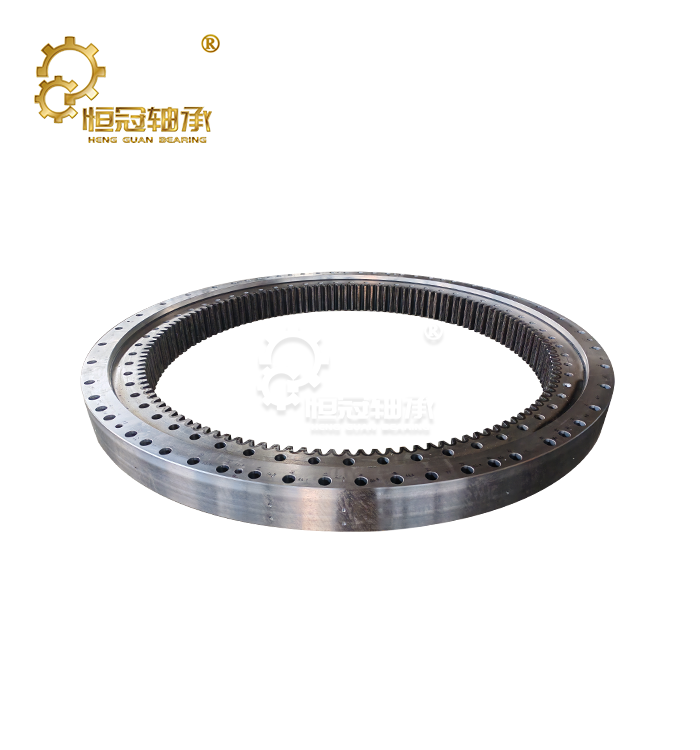

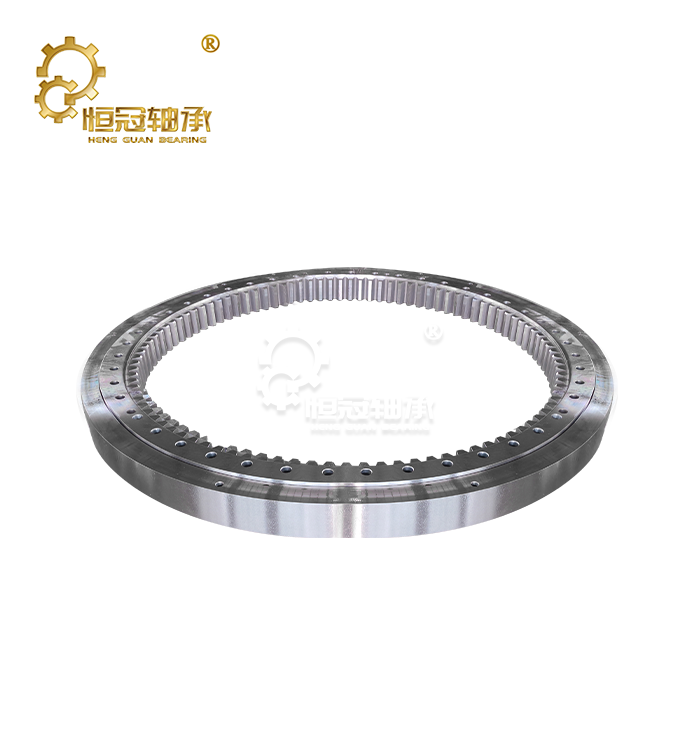

Cat Excavator Slewing Bearing - Precision Engineered for Caterpillar Equipment

When you operate a Caterpillar excavator, you need components that match the machine's demanding standards. At Luoyang Heng Guan Bearing Technology, we manufacture drop-in replacement Cat Excavator Slewing Bearing solutions for models ranging from 6 to 90 tonnes. Whether you're running a CAT312 on urban construction sites or operating a CAT390 in mining applications, our bearings deliver the load capacity, durability, and rotational precision your equipment requires. Each unit features mounting interfaces fully compatible with OEM specifications, ensuring straightforward installation without modification.

Our product line covers the complete CAT excavator range—from compact CAT307 units through heavy-duty CAT390 machines. We understand that downtime costs you money, which is why we focus on manufacturing bearings that simply work when you need them.

Understanding Slewing Bearing Design for Caterpillar Excavators

A slewing bearing serves as the critical rotating joint between your excavator's upper structure and undercarriage. This component simultaneously manages three distinct force types: axial loads from bucket weight and lifted materials, radial forces generated during digging cycles, and tipping moments as the boom extends to maximum reach.

Commonly Used Structural Forms:

A small, flexible, single-row, four-point contact ball structure that can simultaneously withstand axial force, radial force, and overturning moment is used. It makes little noise and runs nicely.

Strong load-bearing capacity, high stiffness, superior impact resistance, and anti-overturning performance are all provided by a single-row crossed-roller or three-row roller structure. Extreme operating circumstances like heavy loads, high-frequency rotation, and mine crushing are appropriate for it.

Technical Specifications

CAT Model Product Parameters

Material Specification and Heat Treatment

Your Cat Excavator slewing bearing's performance depends directly on material quality and processing methods. We manufacture inner and outer rings from 50Mn or 42CrMo alloy structural steel. These materials are integrally Forged—not welded or fabricated—creating a uniform grain structure throughout the component. This matters because forged construction eliminates weak points where cracks typically initiate under cyclic loading.

HRC52–58 surface hardness is attained by medium-frequency induction hardening of the raceways. This hardening depth creates a robust core that supports a wear-resistant surface layer that extends about 2 to 3 mm into the base material. To preserve surface polish and dimensional accuracy, we precisely grind the raceways after they have hardened. In high-load applications, this combination prolongs service intervals, avoids premature wear, and resists spalling.

Exhibition

Quality Control Process

To confirm mounting interface dimensions, raceway geometry, and gear tooth profiles, each bearing is subjected to dimensional verification utilizing coordinate measuring equipment. Before shipment, we perform vibration analysis and rotational torque testing to find any assembly problems. Heat treatment records record the hardening conditions for each production batch, and material certifications trace the steel composition back to the mill.

If you need to confirm component specifications during service intervals, this documentation offers traceability and supports your maintenance records.

Frequently Asked Questions

Q: Will these bearings fit my Caterpillar excavator without modifications?

A: Yes. Our bearing units are manufactured to OEM-compatible dimensions. Bolt hole patterns, mounting surfaces, and gear specifications match original equipment, allowing direct installation using your existing hardware and procedures.

Q: What's the typical lead time for standard CAT model bearings?

A: We maintain inventory of common sizes for frequently serviced models. Standard configurations typically ship within 7–14 days. Custom specifications or less common models require 4–6 weeks depending on production schedule.

Q: Can you manufacture bearings for older or discontinued CAT models?

A: Yes. If you can provide the existing bearing for measurement or dimensional drawings, we can reverse-engineer and manufacture replacement units. Our team has successfully produced bearings for equipment where OEM parts are no longer available.

Q: What information do you need to quote a replacement bearing?

A: We need your excavator model number (e.g., CAT320D) or the bearing's dimensional specifications: outer diameter, inner diameter, height, and gear tooth count. Photos of the bearing's mounting configuration also help ensure correct fitment.

Q: Do you provide installation support?

A: We supply installation guidelines specific to your bearing configuration and can provide technical consultation during installation. For complex projects or fleet overhauls, we can arrange on-site technical support depending on location.

Get Technical Support for Your CAT Excavator

Contact our technical team at mia@hgb-bearing.com with your excavator model number or Cat Excavator slewing bearing specifications. We'll provide dimensional confirmation, lead time estimates, and technical documentation to support your maintenance planning.
