Excavator Slewing Ring Bearing Solutions for Mining and Construction

When an excavator stops working in the middle of a mining site, every minute of downtime costs money. Lost work, idle workers, and missed deadlines add up quickly. The excavator slewing ring bearing is often the part that's to blame. It holds up the upper structure, cushions the impact of digging, and lets the machine turn all the way around without losing its accuracy. Spec choice like this isn't small for me and building teams; it affects efficiency, safety, and the total cost of ownership. The wrong choice of bearings, bad hardening of the material, and weak sealing can all cause early failures that no fleet manager wants to deal with. That's where Heng Guan Bearing comes in. Our company has been making excavator slewing bearings for a long time and knows how to help fleet owners and OEMs find the right bearing for the right machine. Let's look at what's important.

What Makes an Excavator Slewing Ring Bearing Critical to Excavator Performance?

The slewing ring bearing on an excavator sits between the upper house and the base. It does three things at once: it supports the axial load, absorbs the rotational force, and stops the rolling moment caused by a fully extended, loaded boom. It's not like a normal bearing because it has fixing holes, gear teeth, and rolling elements all in one small piece. This means that even small production flaws can shorten its service life.

Ring distortion due to bad fitting or insufficient raceway strengthening is still the main reason why things fail quickly. A well-designed bearing has raceways that are induction-hardened to HRC 55–60 and a hardened depth of 2.5–5 mm. This gives the surface resistance to wear while keeping a tough core to absorb impact. The rolling elements, which are usually made of GCr15SiMn bearing steel, spread the weight across gothic-arch raceway profiles that lower contact stress and lower the amount of power needed for smooth rotation by the drive motor.

Working with a reliable excavator slewing ring bearing partner is very important if you want your machine to keep digging through long shifts without having to be shut down for no reason. Find out how the main configurations stack up in these ways:

Key Types, Load Capacity, and Material Selection for Excavator Slewing Ring Bearing

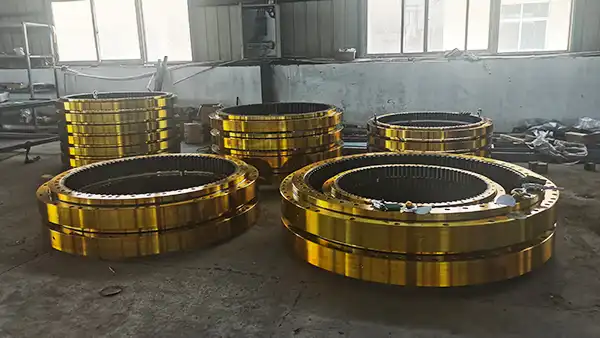

The bearings for excavators are not all the same. Single-row four-point contact ball bearings are often used in small and medium-sized tools to make movement smooth while taking up little space. Larger excavators and demolition tools tend to use roller-type high-quality excavator slewing bearings because the line contact between the rollers and raceways makes them much more resistant to shock. The biggest mining shovels use three-row roller designs that can handle axial, radial, and moment loads separately. This makes the capacity work better in all directions.

The material is just as important as the shape. Good rings are made of 42CrMo or 50Mn alloy steel and have raceways that have been induction-hardened. This makes the surface hard so that it doesn't wear down and keeps the core tough so it can take contact. Sealing is also very important. In the harsh environments where excavators work every day, double-lip seals made from imported NBR or fluororubber keep out dust, mud, and water. The gear teeth are hardened to HRC 45–50 to make sure they mesh with the drive pinion for a long time.

The following table lists the most important technical features of a good digger slewing bearing:

When you need help matching these parameters to your specific machine, reach out to Heng Guan Bearing's engineering team at mia@hgb-bearing.com with your model number or dimensional drawings — they will confirm compatibility or propose a custom design tailored to your application.

How Do You Choose the Right Excavator Slewing Ring Bearing for Mining Applications?

In mining, dust, vibration, heavy loads, and continuous duty cycles are all things that can really damage bearings. To find a digger slewing ring bearing for mining equipment, you should start by finding out the outer diameter, inner diameter, height, bolt circle, and gear module of the machine. All of them must fit perfectly, because a bad fit causes stress to build up, which shortens the life of the bearings.

In harsh mine settings, where a weak seal lets in dirt and oil more quickly than imagined, the quality of the seal is just as important for the excavator slewing bearing manufacturer. Normal conditions call for relubrication every 250–500 hours; when it's dusty or there is a lot of load, that time interval drops to 100–250 hours. After the first 100 hours of use, all mounting bolts should be re-torqued to the correct values. This should be done in three stages, with 30% of the rated torque being applied first, then 70%, and finally 100%. The flatness of the installation surface shouldn't be more than 0.1 mm per metre of variation.

To make your choice easier, here is a list of common excavator models and the slewing bearing sizes that go with them:

Compatible brands include Caterpillar, Komatsu, Liebherr, Volvo, Hitachi, Doosan, Hyundai, JCB, Sany, and LiuGong. For older or obsolete models, Heng Guan Bearing also offers reverse-engineering services — send the damaged bearing or detailed measurements, and the team can produce a replacement even without original drawings.

Why Choose a Custom Excavator Slewing Ring Bearing Manufacturer for Heavy-Duty Projects?

Working with a skilled backhoe slewing bearing maker is important because heavy-duty projects don't always fit into normal catalogue sizes. Luoyang is known as China's "Bearing Town," and Heng Guan Bearing is located there. They have been making bearings for over 20 years and have a 50-person research and development team, as well as advanced CNC vertical machining centers, quenching equipment, and gear hobbing machines that can handle diameters from 50 mm to 10,000 mm and precision grades P0, P6, P5, and P4.

The business makes single-row four-point contact ball structures, double-row divergent ball structures, three-row roller structures, and other shapes that are made to the exact specifications of each customer. Every excavator slewing ring bearing goes through full-traceability quality control, which includes checking the quality of the raw materials and testing for dimensions and vibration. Each one ships with ISO 9001, CE, and RoHS compliance. Custom configurations usually take 4–6 weeks, but it depends on how complicated they are. Standard sizes ship in 2–3 weeks.

This open, customer-first production is what makes Heng Guan Bearing a good choice for teams that need a high-quality excavator slewing bearing made to exact specifications:

Conclusion

The slewing ring bearing on your excavator affects how well it turns, digs, and holds up under load. Every choice you make affects uptime and the total cost of ownership. This includes choosing the right configuration and material and making sure the parts fit perfectly and seal well. Heng Guan Bearing can help you choose or build the right bearing because they are engineers and can make it fit your needs. Contact them today and put their experience to work for your fleet.

FAQ

Q: What is an excavator slewing ring bearing?

A: The large rotational bearing between an excavator's upper structure and undercarriage enables 360° rotation while carrying axial, radial, and moment loads simultaneously.

Q: How do I pick the right bearing type?

A: Match diameter, height, bolt pattern, and load to your machine's specifications. An excavator slewing bearing manufacturer like Heng Guan Bearing can confirm fitment from your model number or drawings.

Q: What material suits mining-grade bearings?

A: 42CrMo or 50Mn alloy steel with induction-hardened raceways (HRC 55–60) and GCr15SiMn rolling elements is the industry standard for durability under shock loads.

Q: Can Heng Guan Bearing produce custom sizes?

A: Yes — from 50 mm to 10,000 mm in diameter across four precision grades, tailored to customer drawings. Standard sizes ship in 2–3 weeks; custom configurations take 4–6 weeks.

Q: How often should the bearing be inspected?

A: Under normal conditions, check seals and lubrication every 250–500 hours. In dusty or high-load mining environments, reduce that to 100–250 hours. Re-torque mounting bolts after the first 100 hours and inspect annually thereafter.

Get Your Excavator Running Smoothly Again

Ready to source a reliable excavator slewing ring bearing for your next mining or construction project? Heng Guan Bearing delivers:

• Full size range — 50 mm to 10,000 mm diameter, covering mini excavators to mining shovels
• Custom engineering — reverse-engineering from samples, non-standard dimensions, and OEM/ODM support
• Proven reliability — ISO 9001, CE, and RoHS certified, serving 50+ countries worldwide
• Fast turnaround — 2–3 weeks for standard sizes, 4–6 weeks for custom builds

Contact the Heng Guan Bearing team today at mia@hgb-bearing.com with your specifications, and let our engineers help you find or build the perfect fit.
