CT Scanner Gear
2. Product Structure: Hardened and precision-ground teeth.
3. Dimensions: 1268mm × 1268mm × 140mm
4. Strong Customization Capabilities: We offer a wide range of custom services, with ring gear diameters ranging from 50mm to 10,000mm. We can also provide custom sizes, tooth profiles, and mounting interfaces based on your specific design.
5. Material: Select the material you require.
- Product Description

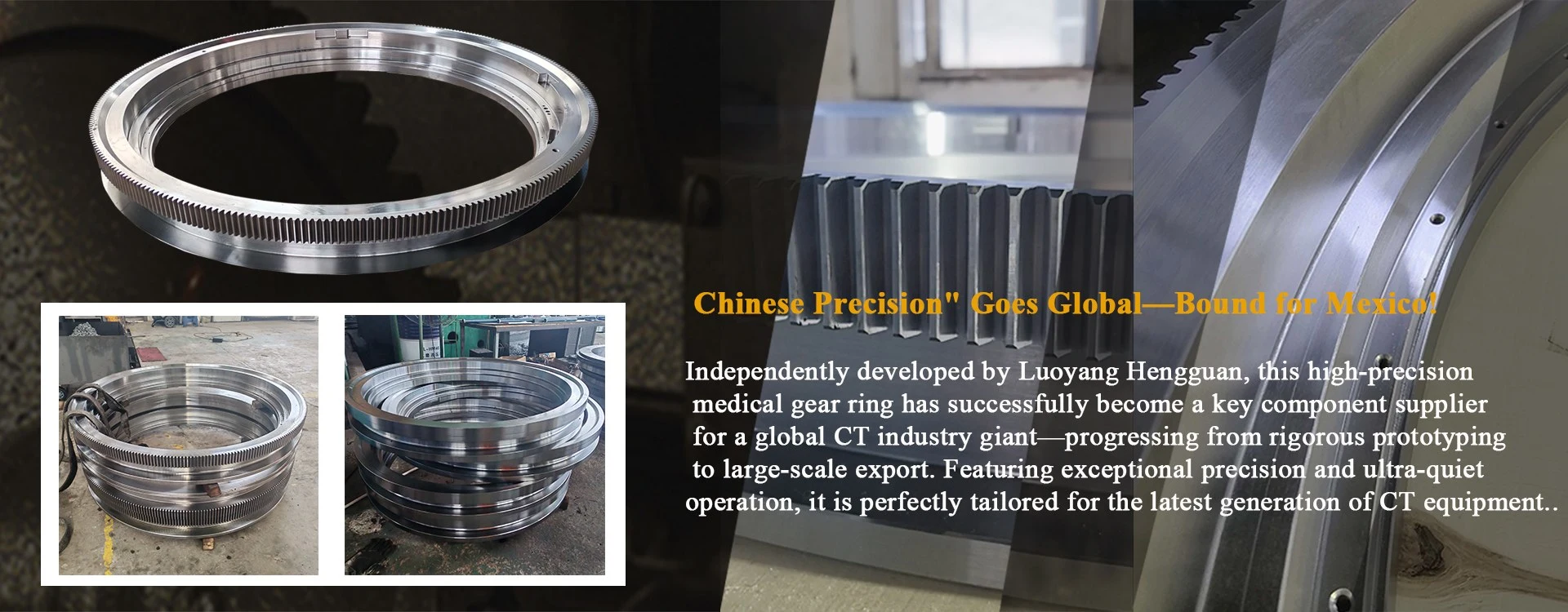

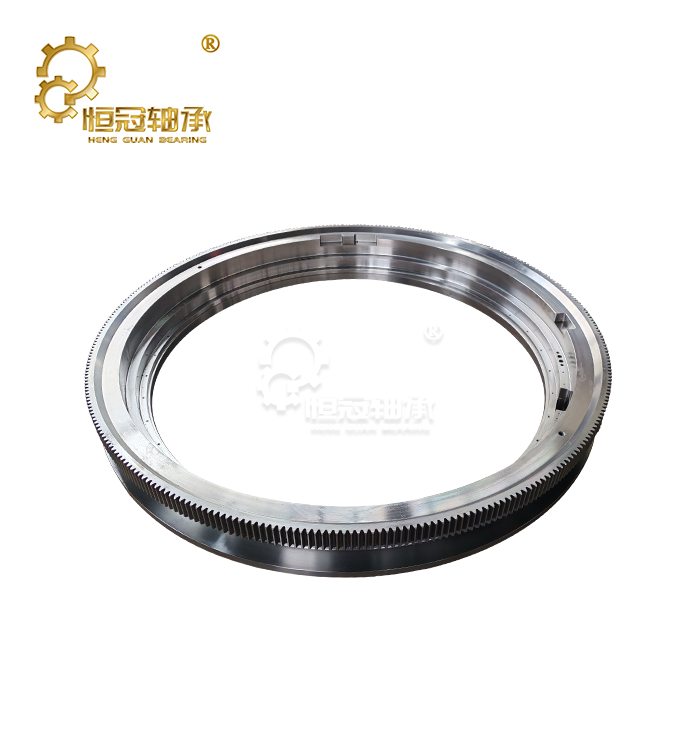

CT Scanner Gear - High-Precision Medical Imaging Component
Luoyang Heng Guan Bearing Technology provides enterprise-grade CT Scanner Gear designed for ultra-high-precision medical gantry rotating systems. Our product range features IT6-level precision grinding, with hardened gear teeth optimized for speeds exceeding 200 RPM. With overall dimensions of 1268mm × 1268mm × 140mm and tooth surface hardness reaching HRC 58-62, this gear ensures low-noise operation and eliminates image artifacts caused by mechanical vibration. Backed by over 20 years of manufacturing expertise and ISO 9001 certification, we customize ring gears from 50mm to 10,000mm in diameter, complying with AGMA 12-15 and DIN 3-5 standards for demanding medical imaging applications worldwide.
CT Scanner Gear Details
A CT scanner gantry requires exceptional rotational precision to deliver diagnostic-quality images. Our CT Scanner Gear meets this challenge through precision manufacturing processes. Each gear undergoes vacuum carburizing heat treatment, followed by precision grinding to achieve minimal transmission error.
The gear structure incorporates optimized tooth micro-geometry with tip and root relief. This design compensates for elastic deformation under centrifugal loads during high-speed rotation. You benefit from improved dimensional stability over extended scanning sessions, maintaining clearances even as operating temperatures fluctuate.
We produce these gears using high-alloy steels such as 18CrNiMo7-6, selected for low thermal expansion coefficients. This material selection ensures consistent performance in both fixed hospital installations and mobile imaging units.
Why Choose Us
Proven Industry Experience
Our team leverages 20+ years of professional expertise in precision bearing and gear manufacturing. We have successfully delivered custom solutions to customers across 50+ countries, including medical equipment manufacturers in Germany, the United States, and Southeast Asia.
Advanced Manufacturing Capabilities

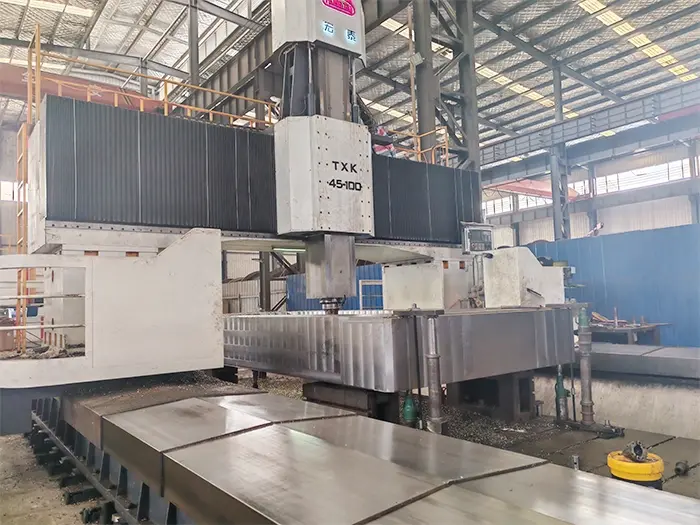

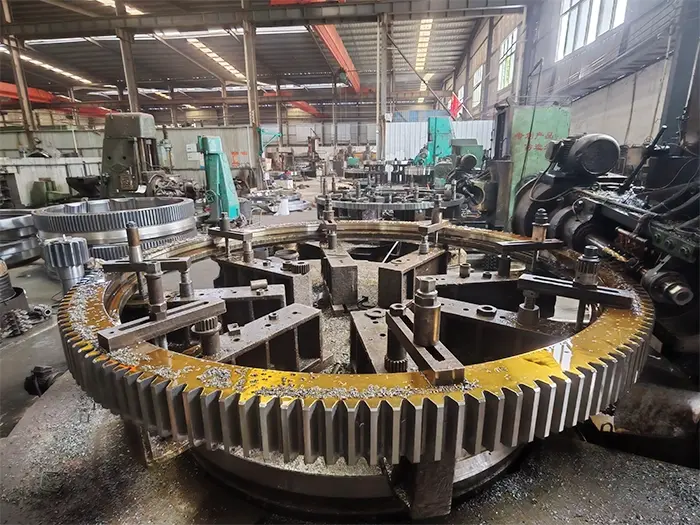

You have access to CNC vertical lathes, CNC quenching machines, and large gear hobbing equipment. Our precision grinding machines achieve surface roughness below Ra 0.4μm, critical for vibration-free operation.
Flexible Customization Options
We adapt to your specific requirements. Whether you need modified tooth profiles, custom mounting interfaces, or non-standard dimensions, our 50+ member R&D team provides complete design support—even without 3D drawings.
Quality Assurance System
Every gear undergoes coordinate measuring machine inspection and magnetic particle testing. We provide full traceability documentation from raw material selection through final quality verification.
Technical Specifications
Parameter | Specification |
Outer Diameter | 1268 mm |
Inner Diameter | 1268 mm |
Total Height | 140 mm |
Precision Grade | IT6 / DIN 3-5 / AGMA 12-15 |
Tooth Hardness | HRC 58-62 |
Material | 18CrNiMo7-6 high-alloy steel |
Surface Roughness | Ra < 0.4 μm |
Customization Range | 50 mm - 10,000 mm diameter |
Heat Treatment | Vacuum carburizing + precision grinding |
Operating Speed | >200 RPM (compatible) |
Testing & Certification
Every external gear ring undergoes coordinate measurement to verify tooth profile accuracy. We use vibration analysis to detect imbalances before shipment. Material certification documents trace steel composition back to the mill.
Our ISO 9001 quality system ensures process consistency. Inspection records accompany each order for your traceability requirements. RoHS compliance documentation is available for components entering regulated markets.
Features and Benefits
Ultra-High Precision Grinding
Gears are machined to IT6 precision levels. This high accuracy effectively eliminates rotational vibration that causes CT image artifacts, improving diagnostic reliability.
Hardened Tooth Surface
Vacuum carburizing creates a wear-resistant surface layer. The gear delivers extended service life, reducing replacement frequency and total cost of ownership.
Optimized Tooth Geometry
Optimized micro-geometry minimizes backlash and noise. Patients benefit from quieter scanning procedures, while maintaining geometric accuracy in reconstructed 3D images.
Low Thermal Expansion Materials
High-alloy steel construction maintains tight clearances during thermal cycling. This stability ensures consistent performance under varying ambient conditions for mobile CT units.
High Torque Density Design
The gear withstands high centrifugal forces in multi-slice scanner applications. It reliably supports 128-slice or 256-slice systems at maximum rotational speeds.
Applications
High-Speed Multi-Slice CT Systems
Our CT scanner gear supports 128-slice and 256-slice medical scanners. The gear maintains sub-millimeter positional accuracy while withstanding extreme centrifugal loads at high RPM.
Industrial Non-Destructive Testing Equipment
Manufacturing facilities deploy our gears in heavy-duty industrial CT systems. These drive large gantries for scanning aerospace engine components and automotive parts in vibration-prone factory environments.
Mobile Medical Imaging Units
Emergency vehicles and field hospitals demand robust solutions. Our gears withstand external shocks and temperature fluctuations while delivering consistent rotational torque for portable scanners.
Research and Development Facilities
Universities and research centers integrate our precision gears into experimental imaging systems. Custom configurations support prototype development and validation of advanced imaging techniques.
Installation Guide
Pre-Installation Inspection
Verify dimensions against supplied CMM inspection reports. Check mounting surface flatness to ensure compliance with specified tolerances.
Mounting Procedure
Thoroughly clean all contact surfaces. Apply the recommended lubricant to gear tooth surfaces prior to assembly. Align the gear with the mounting interface using precision alignment fixtures.
Torque Specifications
Follow the equipment manufacturer’s specified torque values for all fasteners. Use calibrated torque tools to ensure uniform clamping force.
Initial Testing
Perform low-speed rotational testing. Check for abnormal noise and vibration. Run full-speed trials gradually, verifying smooth operation across the entire RPM range.
Exhibition
We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc
Partners
Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.
|
|
Testing & Certification
We perform comprehensive quality control aligned with medical device standards:
- Coordinate Measuring Machine (CMM): Verifies Lead deviation (Fα), Profile deviation (Fβ), and Total Composite Error (Fi)
- Magnetic Particle Inspection (MPI): Detects surface and subsurface defects
- Profilometer Testing: Confirms surface roughness specifications
- Dynamic Balancing: Ensures low-decibel operation for clinical environments
- Contact Pattern Analysis: Validates tooth engagement under loaded conditions
Our manufacturing facility holds ISO 9001 certification. Products comply with RoHS standards for global regulatory acceptance.
Maintenance and Care
Lubrication Schedule
Inspect lubricant levels every 500 operating hours. Use manufacturer-approved synthetic lubricants suitable for medical environments.
Periodic Inspection
Examine tooth surfaces every 1,000 hours for wear patterns. Check mounting bolts for proper torque retention quarterly.
Cleaning Procedures
Remove debris using lint-free cloths and approved solvents. Avoid abrasive materials that may damage precision-ground surfaces.
Performance Monitoring
Track acoustic levels and vibration signatures. Significant changes may indicate need for adjustment or component replacement.
FAQ
Q: Can you manufacture gears for older CT scanner models?
Yes, we provide reverse engineering services. Send us your existing gear or technical drawings, and we'll produce compatible replacements.
Q: What lead time should I expect for custom orders?
Standard customizations require 6-8 weeks. Complex modifications may extend to 10-12 weeks depending on specifications.
Q: Do you support small batch production?
We accommodate orders from single prototype units to large production runs. Minimum order quantities are flexible based on your requirements.
Q: How do you ensure dimensional accuracy for large-diameter gears?
Our CNC vertical lathes and grinding equipment handle components up to 10,000mm diameter. Every gear undergoes full CMM inspection with documented reports.
Q: What materials are available besides 18CrNiMo7-6 steel?
We work with various high-alloy steels and specialized aerospace-grade polymers. Material selection depends on your specific load, speed, and noise requirements.
Contact Us
Ready to discuss your CT scanner gear requirements? Our engineering team provides technical consultation and custom design support. Reach us at mia@hgb-bearing.com for quotations and specifications.
