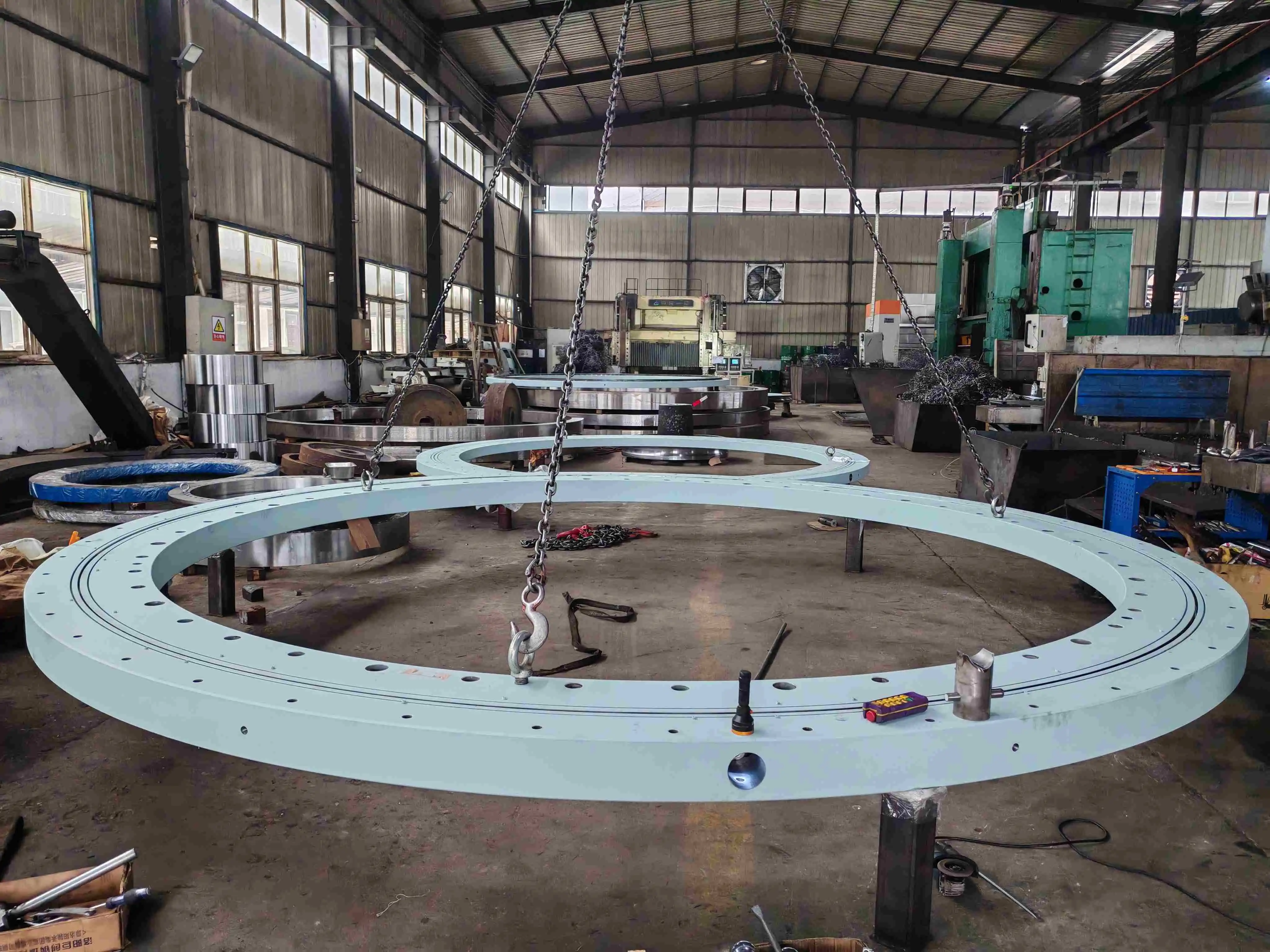

010.75.3550 Slewing Bearing Buying Guide for Heavy Equipment

If you are looking for big-diameter rotating components for cranes, ports, or mining rigs, then the 010.75.3550 Slewing Bearing is worth a serious look before you make your purchase. This book takes customers through the practical checkpoints that matter most, building on the manufacturing expertise of Heng Guan Bearing (LYHGB), a Luoyang-based producer with over 30 years of experience in the design of slewing rings from 50 mm to 10,000 mm in diameter. Whether you’re repairing an old part on an excavator or selecting a component for a new tower crane, early checking of specs, dimensions, and supplier competence is what eliminates expensive mismatches.

What Specifications Should Buyers Check for a 010.75.3550 Slewing Bearing?

It's good to know the numbers before asking for a quotation. The prefix "01" identifies the single-row four-point contact ball series, and the third digit indicates the drive configuration: 010 is the non-geared standard, 011.75.3550 has an external gear (module 20, 191 teeth, tip diameter 3,880 mm), and 013.75.3550 has an internal gear (module 20, 162 teeth, tip diameter 3,220 mm). The 010.75.3550 Slewing Bearing is practically provided as a heavy-duty single-row slewing bearing, which is designed to sustain axial load, radial load, and tilting moment concurrently.

Examples include crane superstructures, port turntables, and welding positioners for wind tower sections. Approved dimensions are listed here; manufactured according to JB/T 2300-2011, always verify final numbers against the approved drawing for your unique batch.

010.75.3550 Slewing Bearing Load Capacity and Dimensional Requirements

It's basically a 3550mm slewing ring bearing; therefore, the load capacity and envelope dimensions are directly related. Buyers should obtain the certified load-moment diagram rather than use catalog averages, as real capacity is a function of raceway hardening depth, ball diameter, and cage design. The rings are manufactured from 50Mn alloy steel with induction-hardened raceways at 55-62 HRC; the 75 mm balls are made from GCr15 bearing steel, and a ZQSn10-1 bronze cage preserves ball spacing under combined stress.

The static specifications are 26,900 kN axial, 18,400 kN radial, and a 14,200 kN·m overturning moment. Friction torque at maximum load is less than 680 N·m. Design life (L10) exceeds 20,000 hours in normal service with proper preloading and relubrication every 500 operating hours.

How Do You Verify Mounting Dimensions and Bolt Patterns Before Ordering?

This is where a lot of consumers get into difficulty, since a bearing that matches up on paper in diameter may not bolt up properly if the hole circle, bolt count, or thread size is different from the original equipment. For each 010.75.3550 Slewing Bearing you want to buy, ask for a verified 2D design with both bolt circles, hole spacing, counterbore depth, and total mounting height including seals. The outer ring has a 3,686 mm bolt circle with 56 holes, and the inner ring has a 3,412 mm bolt circle with 45 holes, for a total of 101 bolts, and the mating structure must maintain flatness within 0.1/1000 mm.

To replace a worn-out unit, measure the old bearing directly (tolerance ±2 mm on D₁, D₂, and height) and photograph the mounting interface. If the flatness deviation of the platform is >0.15/1000, the geometry may be restored by on-site machining. If you need to do a drawing check against your equipment, you may contact the engineering team via mia@hgb-bearing.com, which speeds up the back-and-forth vs generic sales inboxes.

How Can Buyers Select a Reliable 010.75.3550 Slewing Bearing Supplier?

Picking the correct supplier is as important as picking the right part number, particularly for a product this large, where lead times and shipping logistics come into play. Look for manufacturers who have their own forging, heat-treatment, raceway grinding, drilling, and gear-cutting lines under an ISO 9001 quality system instead of outsourcing essential stages, since it corresponds with tighter tolerance control. It is also worth inquiring about the testing capabilities – records of hardness testing, dimensional inspection, and load verification offer assurance that the heavy-duty single-row slewing bearing obtained will work as described.

An able supplier will also be able to reverse engineer from a worn sample, optimize the raceway based on FEA for your specific duty cycle, and offer flexible volumes from a single prototype to 100+ batch replacements; Heng Guan heavy duty single row slewing bearing is built around exactly this in-house design and manufacturing model, with standard lead times of 4-6 weeks and 6-8 weeks for geared custom variants.

Conclusion

A 010.75.3550 Slewing Bearing performs best when specifications, mounting dimensions, and supplier quality are all verified upfront. Careful sourcing protects your equipment's uptime and long-term reliability.

FAQ

Q1: What equipment typically uses a 010.75.3550 Slewing Bearing?

A: Heavy-duty cranes of 150–300 tonne class, port shiploaders and stacker-reclaimers, welding positioners for wind tower sections, aerial work platforms, and radar mounts commonly use this size and structure class.

Q2: Is this bearing geared or non-geared?

A: The "010" designation denotes the non-geared, single-row four-point contact ball structure; external gear (011.75.3550) and internal gear (013.75.3550) variants are available on request.

Q3: How do I confirm the bolt pattern matches my equipment?

A: Request a certified drawing, and where possible, measure the existing bearing's bolt circles directly — the 3,686 mm outer and 3,412 mm inner circles must match within ±2 mm.

Q4: What materials are used in this bearing's rings?

A: Rings are forged from 50Mn alloy steel with induction-hardened raceways at 55–62 HRC, paired with GCr15 steel balls and a ZQSn10-1 bronze cage.

Q5: Can Heng Guan Bearing customize a 3550mm slewing ring bearing?

A: Yes. Reverse engineering from a worn sample, FEA load optimization, custom bolt patterns, and marine zinc-nickel coatings (1,000+ hours of salt spray resistance per ASTM B117) can all be discussed with the engineering team directly.

Q6: What lead time should buyers plan for?

A: Standard configurations ship in 4–6 weeks, while geared or fully customized variants require 6–8 weeks, so align your maintenance or project schedule with the supplier early.

Ready to Source Your Slewing Bearing?

If you're evaluating a 010.75.3550 Slewing Bearing for your next project, Heng Guan Bearing's team can review your drawings, confirm mounting fit, and verify application loads before you order. Reach out at mia@hgb-bearing.com for a technical response within 24 hours and move your project forward with confidence today.

References

1. Ministry of Industry and Information Technology of the People’s Republic of China. JB/T 2300-2011, Slewing Bearings. Machinery Industry Standard of the People’s Republic of China, 2011.

2. International Organization for Standardization. ISO 76:2006, Rolling Bearings — Static Load Ratings. Geneva: ISO, 2006.

3. International Organization for Standardization. ISO 281:2007, Rolling Bearings — Dynamic Load Ratings and Rating Life. Geneva: ISO, 2007.

4. The cited ANSI/ABMA STD 26.2-2014, Thrust Bearings for Slewing Rings, could not be reliably verified. It should not be used as a technical reference in its current form.

5. Harris, T. A., & Kotzalas, M. N. Rolling Bearing Analysis, 5th ed. Boca Raton, FL: CRC Press/Taylor & Francis, 2007. Two volumes: Essential Concepts of Bearing Technology and Advanced Concepts of Bearing Technology.

6. Brändlein, J., Eschmann, P., Hasbargen, L., & Weigand, K. Ball and Roller Bearings: Theory, Design and Application, 3rd ed. Chichester: John Wiley & Sons, 1999. ISBN 978-0-471-98452-8.
