NK450B Swing Bearing – Heavy-Duty Slewing Solution for Construction Machinery

Product Details

When your construction equipment demands reliable rotational performance under extreme loads, the NK450B Swing Bearing delivers. Engineered for heavy-duty applications, this Slewing Bearing combines optimized structural design with premium materials to ensure smooth operation and extended service life. The NK450B features single-row cross roller or double-row ball configurations, offering exceptional load distribution across both axial and radial directions. With an inner diameter ranging from 450-500mm and overall height of 60-80mm, this bearing provides the stability your equipment needs while maintaining compact dimensions. Whether you're operating excavators, cranes, or rotary drilling rigs, the product ensures your machinery performs consistently in demanding environments.

Our design philosophy prioritizes practical engineering solutions. The bearing utilizes 42CrMo and 50Mn uncommon combination steel for the base structure, combined with GCr15SiMn high-purity bearing steel rolling components. This combination provides superior wear resistance and load capacity—critical factors when your equipment operates continuously on construction sites.

Why Choose Heng Guan Bearing?

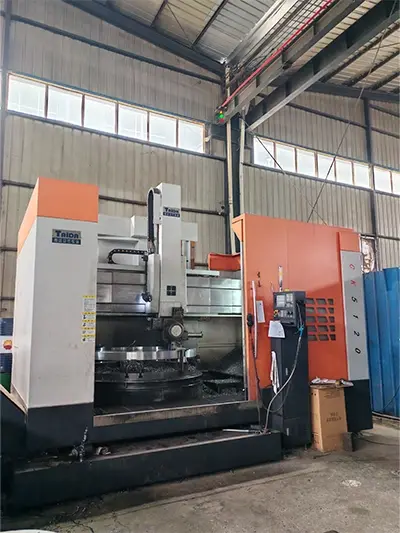

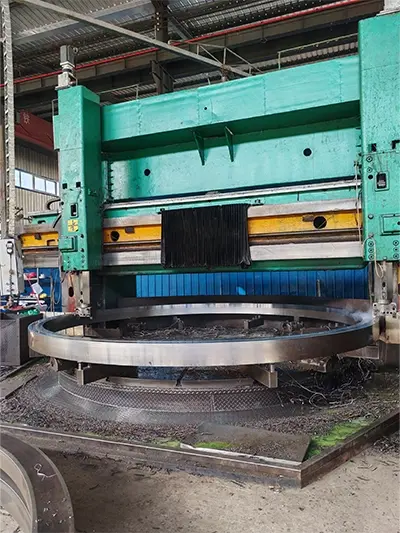

ISO 9001 Certified Manufacturing

Our manufacturing facility maintains strict quality control all through each fabricating organize. Each bearing experiences dimensional confirmation and execution testing some time recently shipment.

Extensive Industry Experience

With over 20 years in bearing innovation, our building group gets it the particular challenges you confront in development apparatus applications. We apply this information to provide heading that perform dependably in real-world conditions.

Global Standards Compliance

All items meet ISO, Noise, and GB guidelines. RoHS compliance guarantees natural duty over worldwide markets.

Custom Building Capability

Our group can alter existing plans or create modern arrangements based on your particular stack prerequisites, space limitations, or working conditions. We back both standard and non-standard configurations.

Proven Worldwide Track Record

Customers in over 50 nations depend on our bearings, counting clients in Germany, the Joined together States, Australia, and the Center East.

Technical Specifications

Certification

Features and Benefits

Optimized Load Distribution

The cross roller or double-row ball course of action guarantees indeed stack dissemination over the raceway. This design reduces stress concentration, extending bearing life even under the asymmetric loading conditions common in excavator swing operations..

High-Purity Bearing Steel

GCr15SiMn rolling components experience controlled warm treatment to accomplish uniform hardness. This comes about in steady rolling contact and decreased wear rates amid operation.

Compact Profile Design

The 60-80mm stature keeps up a moo profile, permitting integration into space-constrained apparatus plans without compromising stack capacity.

Dual Sealing Protection

Integrated seals anticipate contaminant entrance whereas holding oil. This assurance is fundamental when working in dusty or damp situations normal of development sites.

Flexible Accuracy Options

Available in P0, P6, P5, and P4 exactness grades, you can select the rotational exactness level that matches your application necessities and budget.

Applications

The NK450B Swing Bearing serves critical rotational functions across multiple industries:

Construction Machinery

· Crawler cranes: Main boom rotation and load positioning

· Excavators: Upper structure swing mechanism

· Rotary drilling rigs: Mast rotation and positioning systems

Material Handling Equipment

· Portal cranes: Horizontal slewing operations

· Container spreaders: Load orientation adjustment

Industrial Manufacturing

· Steelmaking converters: Vessel rotation during tapping operations

· Continuous casting equipment: Ladle turret positioning

Specialized Applications

· Large amusement rides: Platform rotation systems

· Stage machinery: Rotating stage mechanisms

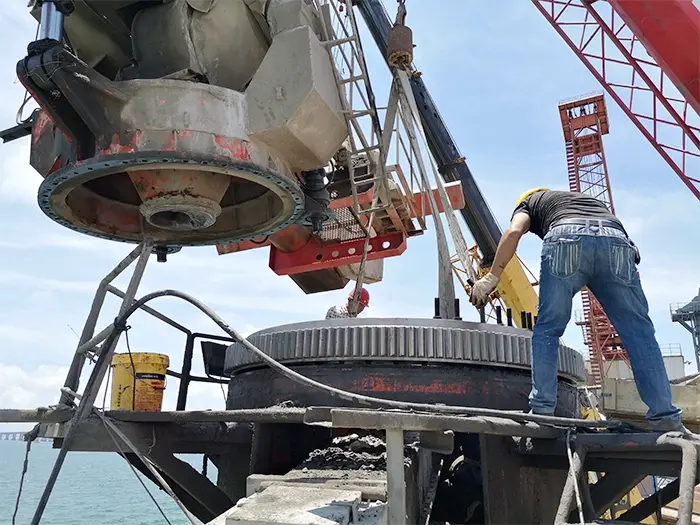

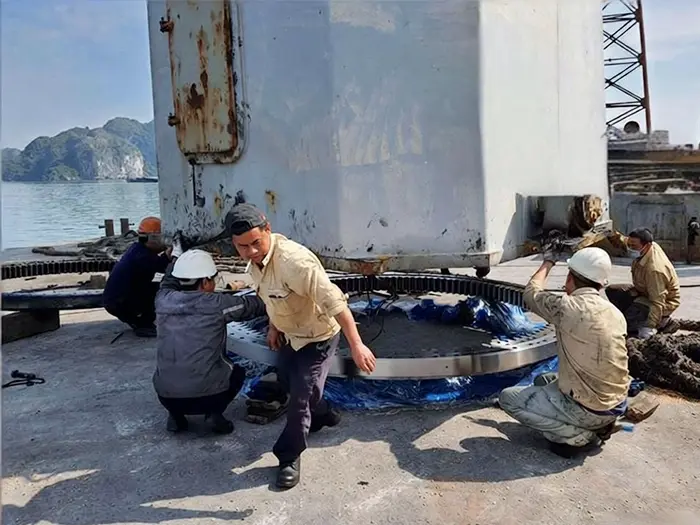

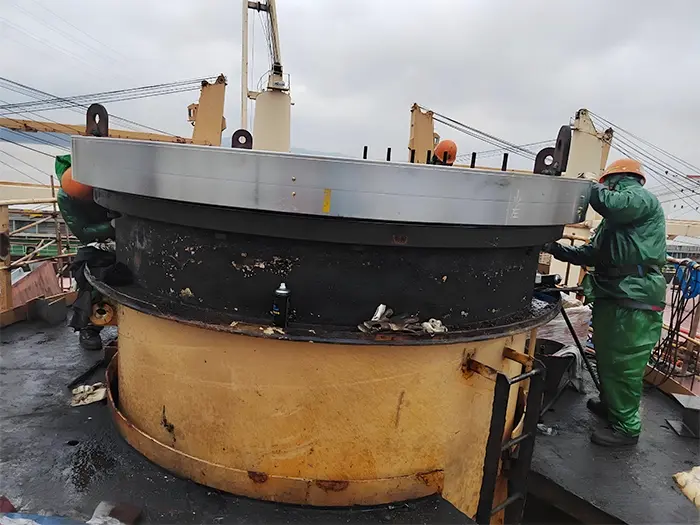

Installation Guide

Pre-Installation Inspection

Verify mounting surfaces are clean, flat, and free from burrs. Check that bolt holes align correctly with the bearing mounting pattern.

Mounting Surface Preparation

Ensure mounting surfaces meet flatness specifications (typically within 0.05mm per 100mm). Apply a thin layer of anti-corrosion compound to prevent fretting corrosion.

Bolt Tightening Sequence

Use a star pattern tightening sequence. Apply torque in three stages: 30%, 70%, then 100% of specified torque. Verify torque values after initial operation period (typically 100 hours).

Lubrication Application

Fill lubrication channels with recommended grease. Rotate the bearing slowly through several full rotations to distribute lubricant evenly across rolling elements.

Alignment Verification

After installation, check rotational resistance and listen for abnormal noise. Excessive resistance or irregular sounds indicate misalignment requiring immediate correction.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

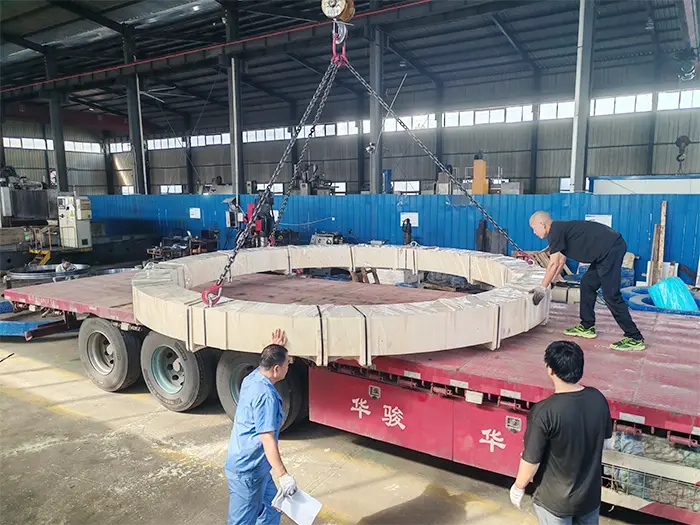

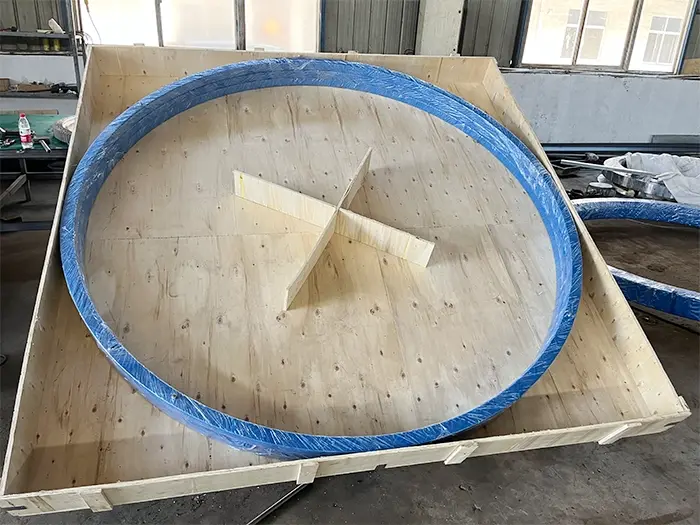

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).​​​​​​​

Maintenance and Care

Lubrication Schedule

Relubricate every 200-400 operating hours, depending on load conditions and environment. Use lithium-based grease with EP additives suitable for heavy loads.

Periodic Inspection

Inspect seals quarterly for damage or wear. Check mounting bolts for proper torque semi-annually. Monitor rotational smoothness during regular equipment operation.

Contamination Prevention

Keep mounting areas clean during maintenance. Replace damaged seals immediately to prevent abrasive particle entry.

Storage Recommendations

Store unused bearings in a dry, temperature-controlled environment. Maintain protective coating and rotate periodically if storage exceeds six months.

FAQ

Q: Can you customize the NK450B for specific load requirements?

A: Yes, we modify internal geometry, material specifications, and precision grades based on your load profile and operating conditions.

Q: What is the typical lead time for standard NK450B bearings?

A: Standard configurations ship within 2-3 weeks. Custom designs require 4-6 weeks depending on modification complexity.

Q: Do you provide 3D models for design integration?

A: We supply 2D technical drawings with detailed dimensions. For custom projects, we can work from your existing equipment specifications.

Q: What precision grade should I select?

A: P0 suits general construction equipment. P6 or P5 is recommended for applications requiring smoother rotation and reduced vibration. Contact our engineers for application-specific guidance.

Q: How does the NK450B compare to internal Gear slewing bearings?

A: The NK450B is a non-geared slewing bearing optimized for applications where external drive systems are used. If you need integrated gear drive, we offer both internal and external gear slewing bearing options.

Contact Us

Need technical specifications or a quote? Our engineering team is ready to assist with NK450B Swing Bearing selection and custom solutions. Reach us at mia@hgb-bearing.com for prompt support.
