What Industries Use 023.30.900 Slewing Bearing?

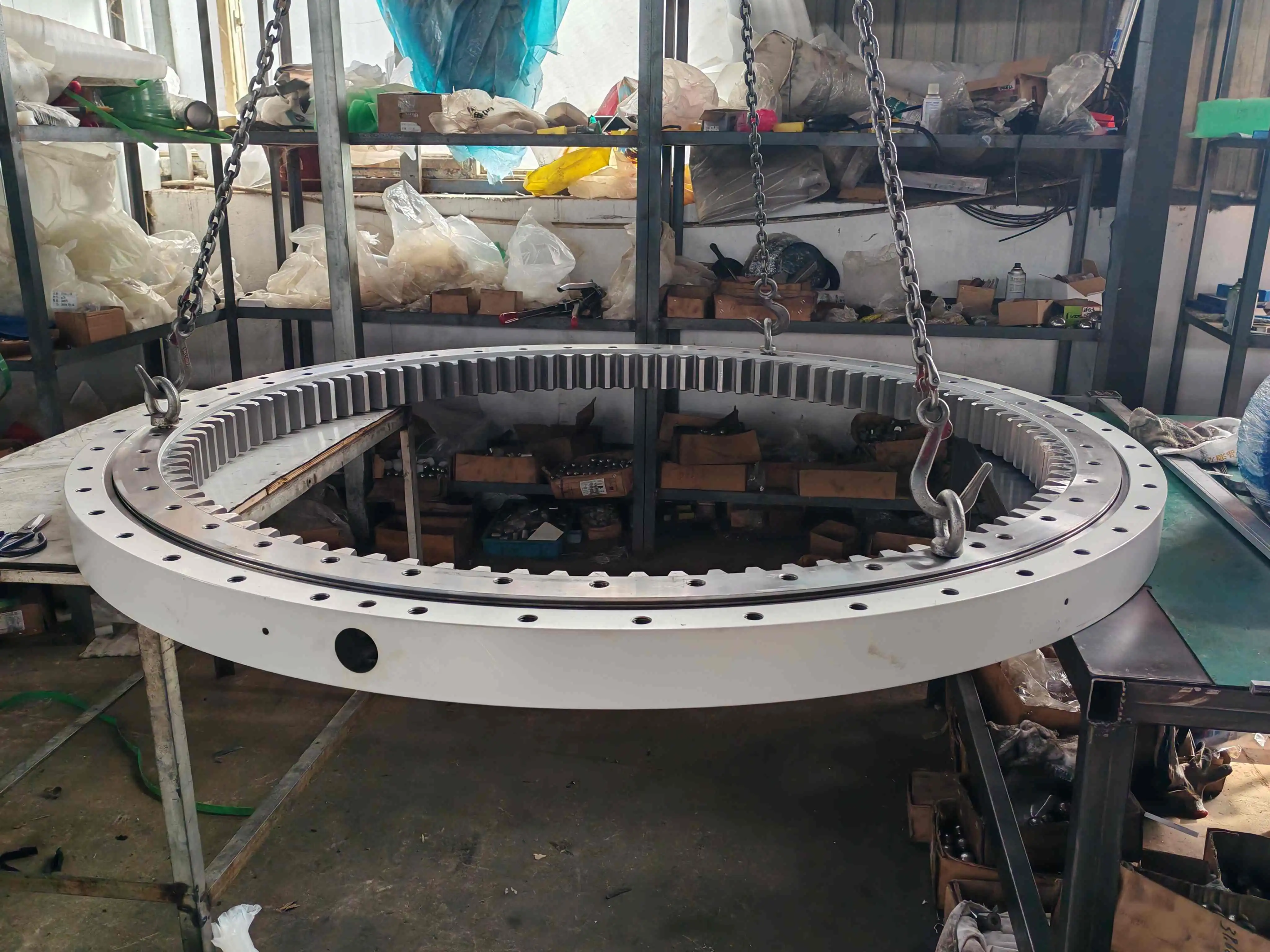

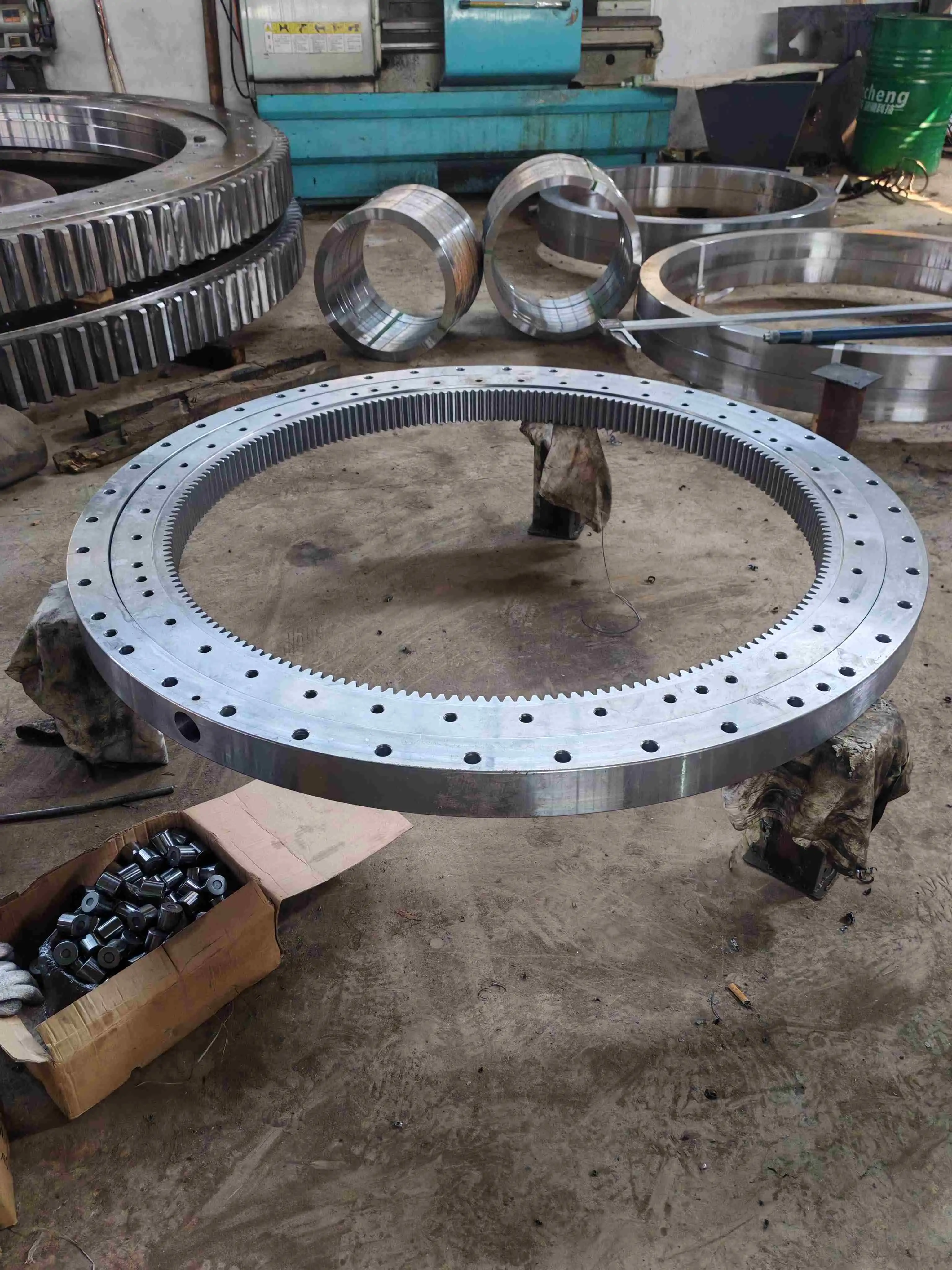

When engineers ask which industries rely on precise rotating components, the 023.30.900 Slewing Bearing is one of the first names. This is a heavy-duty ring, part of the 02 series double-row differential ball family, produced in accordance with JB/T 2300-2011, with an internal gear machined into the inner ring bore. The driving pinion meshes from inside the bearing, which keeps the gear mesh enclosed and frees up the outer envelope for boom or counterweight layout. Internal gear bearing 023.30.900 is made of forged 42CrMo, hardened to 58-62 HRC on the raceway and 55-62 HRC on the tooth surface by induction treatment. The static axial load rating is around 2580 kN, and the L10 life is more than 10,000 working hours under rated load. This high-duty ring is made by Heng Guan Bearing Technology Co., Ltd. (LYHGB) and is used in construction, mining, port handling, renewable energy, and piling equipment.

What Makes the 023.30.900 Slewing Bearing Suitable for Heavy Loads?

To understand why the 023.30.900 Slewing Bearing works so well under large loads, it helps to look at the design concept of the 02 series. The raceway shape is the same for the gearless 020.30.900 and the external-gear 021.30.900, but the 023.30.900 takes a different approach: it manufactures the Fellows Stub involute spur gear on the inner ring bore, so that the pinion meshes from the inside of the bearing. This offers the 023.30.900 internal gear bearing a considerable service-life advantage on excavators.

The meshing zone is protected from mud, splashed water, and rock dust that, on ordinary job-site activity, enhances seal and tooth life by some 40% over externally exposed gear teeth. The double-row differential ball structure shares combined axial, radial, and tilting-moment stresses between two rows, offering a 40 to 60 percent greater load capacity than the same-size single-row four-point contact type.

LYHGB, a maker of excavator internal gear slew rings, is concerned about raceway hardness and gear-tooth profile correctness, since they are the minutiae that dictate how a bearing will take stress loading on a project site. That mix of material strength and fine machining is exactly what lets the bearing support a lot of weight without early fatigue.

How Does the 023.30.900 Slewing Bearing Support Large Machinery?

Let's turn to how this bearing type supports large machinery in the field. Whether it's a tower crane, a rotary drilling rig, or an intelligent indexing turret, the rotating platform needs a bearing that can transfer load smoothly between the fixed base and the moving upper structure while keeping the drive train enclosed.

LYHGB designs the 023.30.900 Slewing Bearing with reinforced inner and outer rings so bending stress stays within safe limits even at full extension, and the internal gear arrangement releases the outer envelope for arm-mounting or counterweight layout — particularly important on compact crawler cranes and small tower cranes where every millimeter of outside diameter matters. The internal gear arrangement, characteristic of the 023.30.900 internal gear bearing, also helps operators achieve finer slewing control, which matters when positioning heavy loads with precision.

The pinion assembly drops in through the 758 mm inner bore, and most designs use a split-pinion or pre-installed motor/gearbox to keep field installation manageable. This is one reason equipment builders keep returning to LYHGB, an established excavator internal gear slew ring manufacturer, when sourcing bearings for space-constrained mechanical assemblies.

023.30.900 Slewing Bearing Applications in Cranes and Excavators

Naturally, cranes and excavators are where this bearing family proves itself most often. On an excavator, the slewing ring sits between the undercarriage and the upper frame, allowing the boom to rotate while carrying digging loads — a role the 023.30.900 Slewing Bearing fills reliably across the 10–30 ton excavator class, where the enclosed internal gear keeps contamination away from the meshing zone. On mobile and tower cranes, similar bearings handle rotation and overturning moments as the boom lifts and swings loads at height, with compact crawler cranes and small tower cranes especially benefiting from the smaller external envelope.

As you would expect from an excavator internal gear slew ring manufacturer like LYHGB, the 023.30.900 internal gear bearing is engineered with sealing systems that keep out dust and debris common on construction sites, extending service life in harsh outdoor conditions. The same configuration also serves rotary drilling rigs (where the power-head platform rotates above the Kelly bar), piling rigs, and concrete pump trucks requiring 111 kN impact-load capability at the gear interface. If you'd like detailed load ratings for your specific machine model, our engineering team can be reached directly at mia@hgb-bearing.com for engineering support, including CAD drawings delivered within 24 hours.

How Should Buyers Select and Maintain a 023.30.900 Slewing Bearing?

When it's time to choose a slewing bearing, buyers should start by mapping their equipment's radial load, axial load, and tilting moment against the manufacturer's rated capacity. It's also worth checking whether an internal or external gear configuration suits the application — the 023.30.900 internal gear bearing, for instance, is the better fit where compact clearance, contamination shielding, or maximum swing-radius reduction matters; the external-gear 021.30.900 is preferred where ease of pinion service or higher torque capacity dominates.

LYHGB recommends choosing a supplier with in-house testing capability, since consistent raceway hardness directly affects service life. Once installed, regular greasing with the factory-supplied lithium complex EP2 grease, bolt-torque checks, and periodic inspection for play or noise will keep a 023.30.900 Slewing Bearing running smoothly for years — excavator service typically requires regreasing every 100 working hours. Buyers sourcing from an excavator internal gear slew ring manufacturer should also confirm ISO 9001 certification records, request material test reports, and verify interchangeability (the 023.30.900 is fully interchangeable with SNIR30/900, SNIR30/900Y, and HSN900DM) before finalizing an order.

Custom configurations — non-standard gear modules from m=4 to m=16, modified bolt patterns, zinc-nickel marine coatings, or epoxy chemical-plant coatings — add 25–35 days to lead time, while standard units ship in 15–20 days.

Conclusion

From 10–30 ton excavators and compact crawler cranes to rotary drilling rigs and small tower cranes, the 023.30.900 Slewing Bearing and its related 02-series variants deliver dependable load support across demanding industries. Heng Guan Bearing keeps refining design and quality control — backed by ISO 9001 certification, 30+ years of manufacturing expertise, and exports to more than 50 countries — to meet these needs. Ready to find the right bearing for your equipment? Let's get started today.

FAQ

Q1: What industries use the 023.30.900 Slewing Bearing?

A: Construction, mining, port handling, rotary drilling, piling, and small tower crane applications frequently use this model.

Q2: Is the 023.30.900 internal gear bearing suitable for excavators?

A: Yes, its enclosed internal gear design extends tooth and seal life by roughly 40% on typical job-site duty.

Q3: What accuracy grades does LYHGB offer?

A: LYHGB produces slewing bearings in P0, P6, P5, and P4 precision grades.

Q4: How often should a slewing bearing be greased?

A: The factory-filled lithium complex EP2 grease should be replenished roughly every 100 working hours in excavator service, with intervals adjusted for dust, shock, or temperature extremes.

Q5: Can LYHGB customize slewing bearings for specific machinery?

A: Yes, LYHGB offers custom gear modules (m=4 to m=16), modified bolt patterns, marine or chemical-plant coatings, and full reverse engineering for legacy equipment.

Q6: Which other brands can the 023.30.900 directly replace?

A: It is fully dimensionally interchangeable with SNIR30/900, SNIR30/900Y, and HSN900DM.

Ready to Upgrade Your Machinery's Performance?

Whether you need a 023.30.900 Slewing Bearing or a custom-engineered ring for excavators, cranes, or industrial platforms, Heng Guan Bearing is ready to help. Contact our team at mia@hgb-bearing.com today, and let's build the future together with high-quality, precision-engineered slewing bearing solutions.

References

1. National Development and Reform Commission, JB/T 2300-2011 — Slewing Bearings.

2. International Organization for Standardization, ISO 76:2006 — Rolling Bearings — Static Load Ratings.

3. International Organization for Standardization, ISO 281:2007 — Rolling Bearings — Dynamic Load Ratings and Rating Life.

4. American Bearing Manufacturers Association, ANSI/ABMA STD 26.2-2014 — Load Ratings for Slewing Bearings.

5. Harris, T. A., and Kotzalas, M. N., Rolling Bearing Analysis, 5th edition, CRC Press.

6. Brändlein, J., Eschmann, P., Hasbargen, L., and Weigand, K., Ball and Roller Bearings: Theory, Design, and Application, 3rd edition, Wiley.
