Portal Crane Slewing Bearing - Precision Engineered for Heavy-Duty Port Operations

Product Details

When you operate portal cranes in demanding port environments, you need components that deliver reliability under extreme conditions. Our Portal Crane Slewing Bearing is engineered specifically for continuous heavy-duty service in container handling and bulk material transfer applications. Manufactured from 50Mn/42CrMo high-strength alloy steel, this three-row roller slewing bearing features a working surface hardness of 55±5HRC. The extremely low-temperature design ensures consistent performance even in -45°C environments, while the heavy-duty reinforced structure guarantees dependable crane operation during round-the-clock port operations.

The bearing features a three-row roller configuration that effectively distributes loads effectively over the raceway surfaces. This design allows for the simultaneous transmission of axial forces, radial loads, and tilting moments- basic for the complex movement designs your entrance crane encounters amid cargo dealing with cycles. The raceway geometry is precision-machined to keep up ideal contact designs, lessening stretch concentrations and expanding benefit life.

Our standard reference measurement of 1476×1476×120mm suits most medium to huge entry crane applications. In any case, we get it that harbour hardware changes broadly in measure and capacity. That's why our fabricating capabilities span from 50mm to 10,000mm breadth, obliging everything from compact portable harbor cranes to enormous ship-to-shore gantry systems.

Why Choose Us?

Luoyang Hengguan Bearing Technology Co., Ltd. brings over 20 years of specialized involvement in slewing bearing design and manufacturing. Located in Luoyang - China's bearing industry center - our facility combines profound bearing expertise with cutting-edge production technology.

Our group of 50+ devoted engineers centers solely on slewing bearing advancement and exactness fabricating. This specialization implies we get it the special challenges your Gear faces, from shock loading during container pickup to vibration from uneven quayside surfaces.

We keep up ISO 9001 certification and guarantee all items meet RoHS compliance prerequisites. Our quality framework emphasizes full traceability - from approaching crude fabric review through last dimensional confirmation. Each bearing experiences reported testing some time recently shipment.

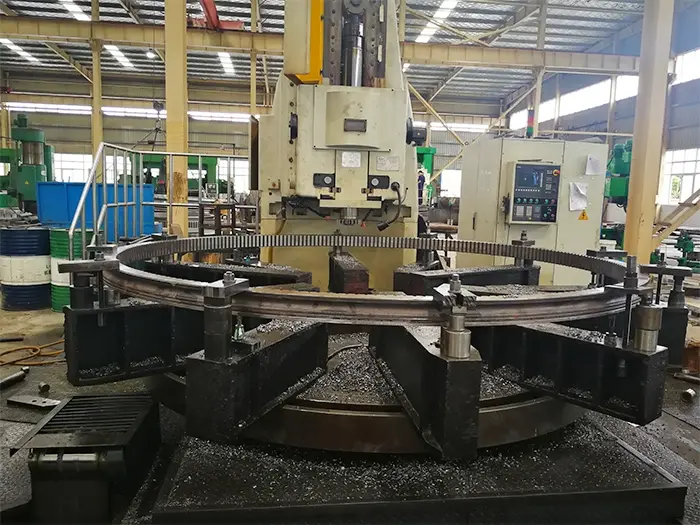

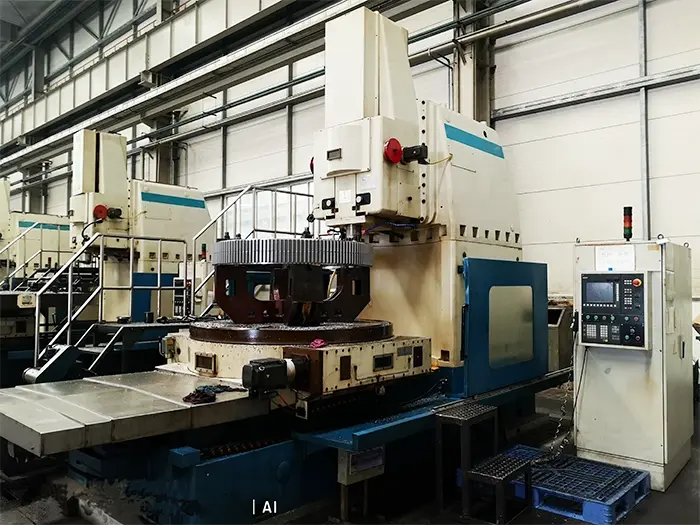

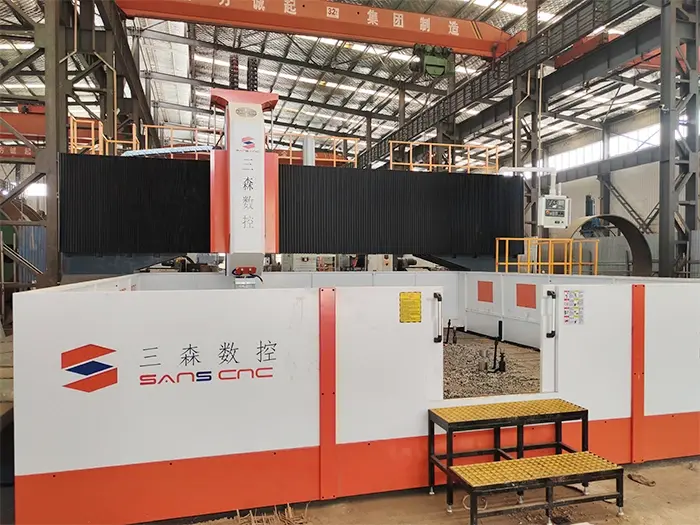

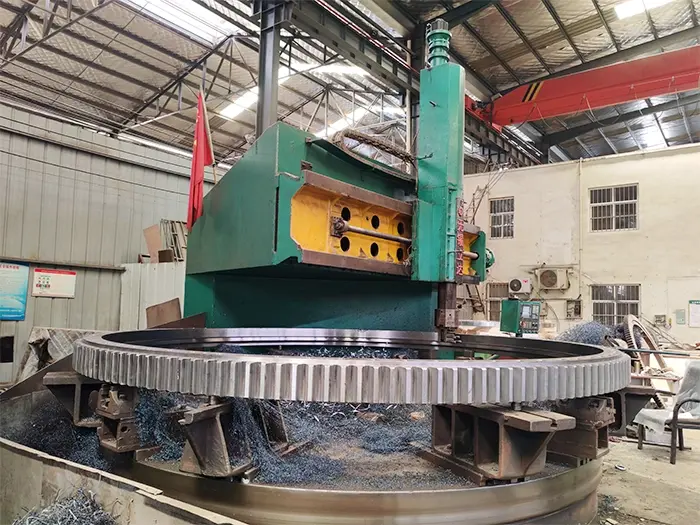

Our generation floor highlights CNC vertical machines, CNC extinguishing machines, CNC equip shapers, machining centers, crushing machines, and huge equip hobbing gear. This permits us to control basic forms in-house or maybe than depending on exterior suppliers.

We've transported items to over 50 nations, counting the Joined together States, Germany, Joined together Kingdom, Italy, Australia, and all through the Center East. This worldwide reach illustrates our capacity to meet different specialized guidelines and shipping requirements.

Beyond standard items, we give specialized discussion, custom plan, fabricating, establishment direction, and switch designing administrations. If you have existing gear but need 3D drawings, our engineers can degree and duplicate your current orientation.

Technical Specifications

Certification

Features and Benefits

High-Strength Alloy Construction

The 50Mn and 42CrMo steel composition provides exceptional yield strength and fatigue resistance. This translates directly to longer service intervals and reduced replacement costs for your operation.

Three-Row Roller Design

Unlike single-row or ball-type bearings, the three-row configuration distributes loads across a larger contact area. You'll experience smoother rotation under heavy loads and improved resistance to shock loading during container engagement.

Extended Cold Weather Performance

The -45°C temperature rating isn't just a number. Special material selection and heat treatment processes maintain ductility and prevent brittle failure in arctic and sub-arctic port locations.

Precision Machining Tolerance

We offer four precision grades (P0, P6, P5, P4) to match your application requirements. Higher precision grades reduce wobble and improve positioning accuracy - critical when you're stacking containers or handling delicate cargo.

Multi-Lip Sealing System

Port environments expose bearings to saltwater spray, dust, and contaminants. Our sealing design keeps lubricant in and contaminants out, extending relubrication intervals and preventing premature wear.

Integrated Gear Options

When specified, we can machine external or internal gears directly onto the bearing rings. This eliminates additional drivetrain components and reduces your total installation cost.

Applications

Portal Cranes and Harbor Cranes

The primary application for this Portal Crane Slewing Bearing is in rail-mounted and rubber-tired portal cranes used for container handling, bulk material transfer, and general cargo operations in ports and harbors.

Ship-to-Shore Gantry Cranes

Large holder terminals depend on enormous gantry frameworks. Our amplified breadth extend (up to 10,000mm) underpins these high-capacity applications.

Mobile Harbor Cranes

Compact mobile cranes benefit from our smaller diameter options while maintaining the same robust construction and exactness standards.

Bulk Material Handling Equipment

Coal, grain, and metal taking care of offices utilize portal-type cranes where our heading give solid benefit in spite of presentation to rough dusts.

Shipyard Lifting Equipment

Heavy manufacture yards utilize entrance cranes for moving transport segments and huge congregations where stun loads and exact situating are both required.

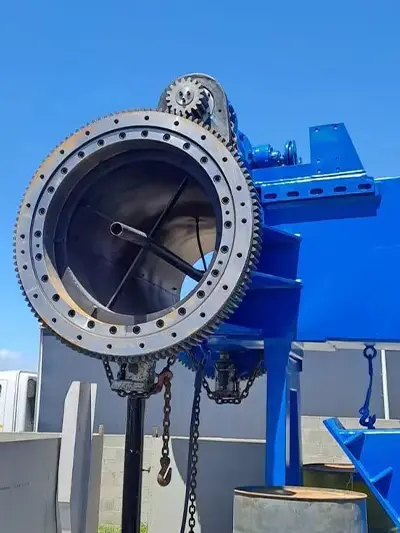

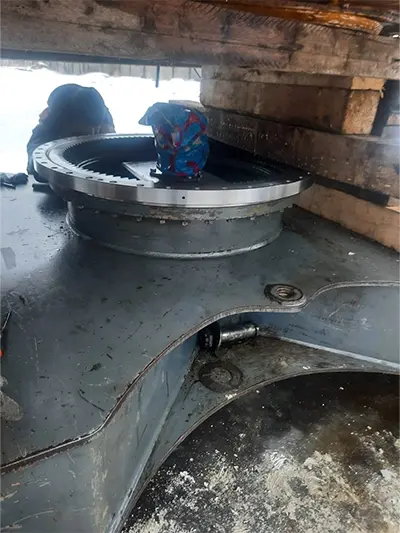

Installation Guide

Pre-Installation Inspection

Verify that mounting surfaces are clean, level, and free from burrs. Check bolt gap arrangement and string condition. Affirm that the bearing measurement matches your gear specifications.

Mounting Surface Preparation

Surfaces ought to be machined to levelness resistance of 0.5mm or superior. Evacuate paint, rust, or coating from contact zones. Apply a lean layer of anti-seize compound to avoid erosion bonding.

Bolt Establishment Sequence

Install mounting jolts in a star design, fixing dynamically in numerous passes. This anticipates twisting of the bearing rings. Torque determinations depend on bolt review and distance across - counsel your crane manufacturer's documentation.

Initial Lubrication

Fill oil channels totally some time recently operation. Pivot the bearing through a few total transformations to disperse grease equitably over rolling components and raceways.

Alignment Verification

After establishment, check for smooth turn through the full travel run. Intemperate resistance or authoritative demonstrates misalignment that must be rectified some time recently setting the crane in service.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication Schedule

Relubricate each 100 working hours or month to month, whichever comes to begin with. Increment recurrence in dusty or damp situations. Utilize lithium-based oil with EP added substances evaluated for heavy-duty service.

Visual Inspection

Weekly review ought to check for oil spillage, seal harm, or unordinary commotion amid turn. Month to month review ought to confirm mounting jolt torque and see for breaks in adjoining structures.

Raceway Condition Monitoring

Every 2,000 working hours, review raceways for setting, spalling, or uneven wear designs. Early discovery permits for arranged substitution or maybe than crisis shutdown.

Seal Replacement

Replace seals if you watch oil defilement with water or particulates. Harmed seals quicken wear drastically and ought to be tended to immediately.

Storage Recommendations

If you're putting away save orientation, keep them in a climate-controlled environment. Turn put away orientation quarterly to anticipate wrong brinelling and keep up grease distribution.

FAQ

Q: What distance across run can you manufacture?

A: Our generation capabilities span from 50mm to 10,000mm distance across. We can customize measurements to coordinate your particular entrance crane model.

Q: How do I select the suitable exactness grade?

A: P0 review suits general-purpose applications. P6 offers progressed rotational precision for standard holder taking care of. P5 and P4 grades are indicated when situating exactness straightforwardly influences your operational efficiency.

Q: Can you give orientation with coordinates gears?

A: Yes. We machine outside or inner gears straightforwardly onto bearing rings when indicated. Give your module, tooth tally, and weight point requirements.

Q: What is the commonplace lead time for custom sizes?

A: Standard sizes transport inside 2-3 weeks. Custom measurements require 4-6 weeks depending on complexity and current generation schedule.

Q: Do you offer substitution orientation for existing cranes?

A: Completely. Our invert designing benefit can imitate your current bearing indeed without unique drawings. We degree your existing component and create correct replacements.

Q: How ought to heading be put away some time recently installation?

A: Store on a level plane in a dry environment between 10-30°C. Keep defensive wrapping intaglio until establishment. Pivot quarterly if capacity surpasses 6 months.

Contact Us

For technical specifications, custom solutions, or quotation requests for Portal Crane Slewing Bearing products, reach out to our engineering team at mia@hgb-bearing.com.
