Where Is a 021.30.900 Slewing Bearing Commonly Used?
Slewing bearings are vital for equipment needing smooth, heavy-load rotation, and the 021.30.900 slewing bearing is a popular option in a variety of applications. This is a 02 series double-row differential ball bearing, manufactured to JB/T 2300-2011 specification. It has an external gear carved into the outer ring and has become a factory standard component for excavators, mobile cranes, port equipment, and wind turbine yaw systems. Wondering where this specific model works best? Heng Guan Bearing has serviced clients operating in construction, mining, and marine industries equally for more than 30 years, shipping to over 50 countries. In this post, we’ll review common use scenarios to help you evaluate if this bearing is suitable for your equipment.
What Makes the 021.30.900 Slewing Bearing Suitable for Heavy Machinery?
The 021.30.900 slewing bearing is just right for the job of supplying components capable of taking combined axial, radial, and moment stresses all at once - just what heavy equipment needs. The 021.30.900 external gear bearing is engineered to effectively transmit torque and provide smooth rotation under varying loads.

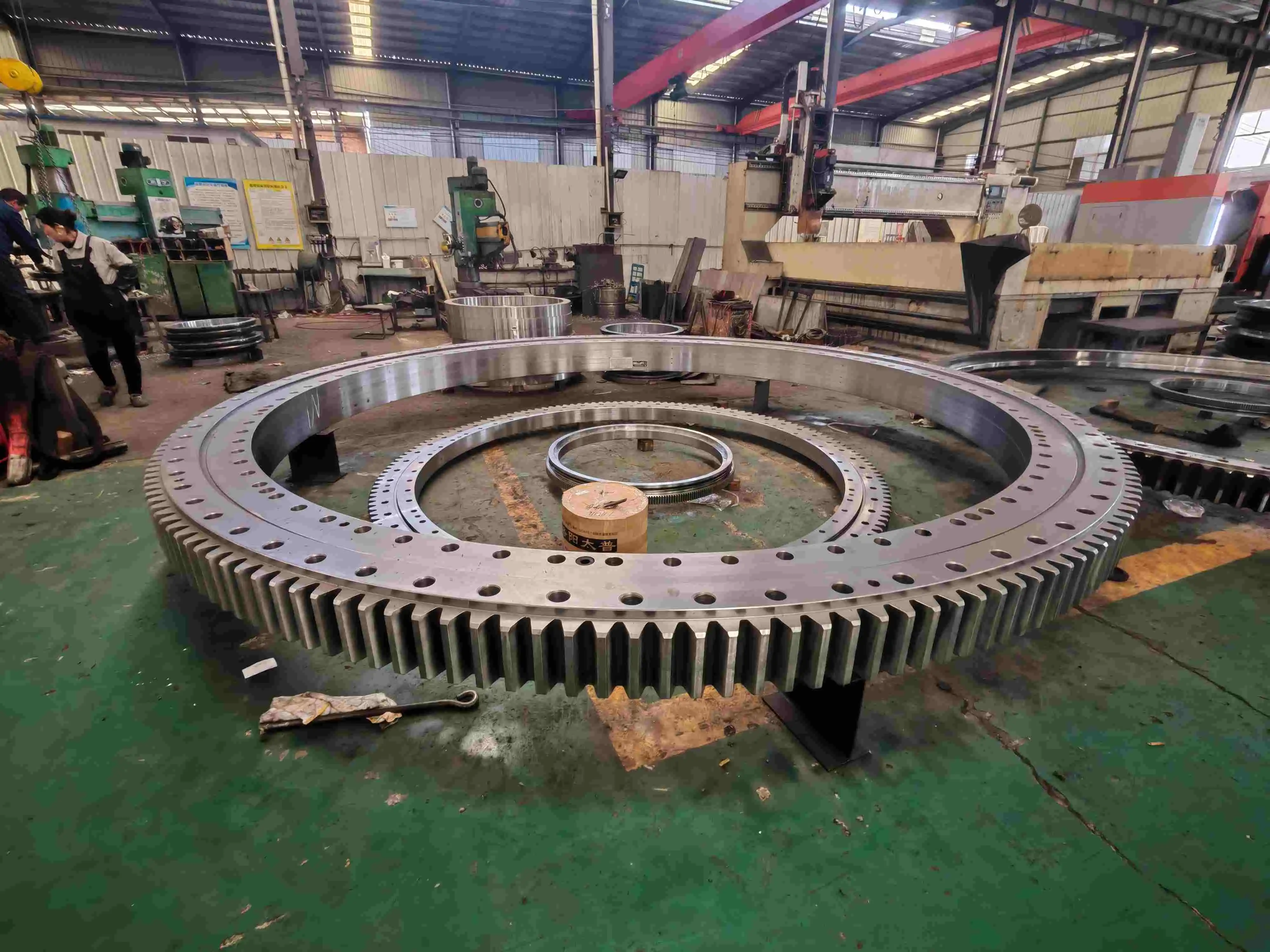

The gear is machined onto the outer ring, and the driving pinion meshes from the outside, providing easy access to the pinion for maintenance. Many machinery designers favor external gear double-row slewing rings because the double-row, different-diameter ball structure has 40–60% higher load-bearing capacity than a single-row design, which distributes stress more evenly across the raceway and reduces wear over extended operating cycles.
This kind of bearing also copes quite well with dust, vibrations, and temperature variations, which is why it is still a reliable solution for tough industrial situations in need of constant and long-term performance.
| Load Type | Rated Capacity | Bearing Response |
|---|---|---|
| Axial static load (C₀ₐ) | ≈ 2,580 kN | Stable distribution across both ball rows |
| Radial static load (C₀ᵣ) | ≈ 2,200 kN | Even raceway contact |
| Tilting moment (Mₜ) | ≈ 850 kN·m | Reinforced gear support on outer ring |
| Rotational speed | ≤ 50 rpm | Centrifugal skidding avoided within limit |
021.30.900 Slewing Bearing Applications in Excavators and Cranes
Excavators and mobile cranes need precise rotational control, and this is why the 021.30.900 slewing bearing is often used in this equipment. It is the standard option for 15–30 ton excavators, where it withstands a combination of digging-induced tilting moments plus upper structure dead weight — generally 400–600 kN of combined loads. In the crane market, it’s the factory-standard arrangement for 20-50 ton truck and crawler cranes, and its double-row structure gives tower cranes the anti-wind-load rigidity they need at height.
It is an external-gear double-row slewing ring; it links the top structure with the undercarriage, which allows smooth 360 degrees rotation during digging, lifting, or placing. An external gear bearing 021.30.900 is directly mated to the driving pinion to transmit hydraulic power into a regulated swing action. Operators like this set-up because it decreases backlash and enhances response, especially when handling loads at extended boom reach or while operating on uneven terrain when stability is of the utmost importance.
| Key Parameter | 021.30.900 Specification |
|---|---|
| Structure | Double-row differential ball, external gear (02 series) |
| Outer diameter / Inner diameter | 1,042 mm / 758 mm |
| Total height | 124 mm |
| Raceway center diameter | 900 mm |
| Ball diameter | 30 mm |
| Weight | ≈ 250 kg |
| Outer bolt circle | 998 mm × 30 holes (M22) |
| Inner bolt circle | 802 mm × 22 holes (M22) |
| Precision grades | P0 to P4 |
Where Is the 021.30.900 Slewing Bearing Used in Port and Mining Equipment?
Port cranes and mining excavators operate under some of the harshest conditions in heavy industry, making bearing durability a top priority. The 021.30.900 slewing bearing is commonly selected for portal cranes, shiploaders, port excavators, and large mining shovels because it withstands repetitive start-stop cycles and continuous heavy loading without significant performance loss.
As a 021.30.900 external gear bearing, it supports the rotational demands of continuous cargo handling or material excavation cycles, and for corrosive marine environments, optional salt-spray and high-temperature coatings extend service life considerably.
Our engineering team, reachable at mia@hgb-bearing.com, often assists port and mining operators in confirming whether an external gear double row slewing ring configuration suits their specific load and environmental conditions before finalizing procurement decisions — including on-site measurement and reverse engineering for obsolete equipment with no original drawings.
Can a 021.30.900 Slewing Bearing Be Used in Wind Turbine Systems?
Yes — and more directly than many buyers assume. The yaw systems of megawatt-class turbine nacelles use this exact 900 mm raceway diameter, where the 021.30.900 slewing bearing must handle continuous micro-rotations that keep the rotor facing the wind. Auxiliary rotating components within turbine maintenance platforms or smaller wind installations also benefit from an external gear double row slewing ring design, given its reliable torque handling and rotational precision.
The 021.30.900 external gear bearing configuration offers a practical balance between compact size and mechanical strength, making it suitable for yaw assemblies and secondary rotating mechanisms rather than the main turbine hub itself, which typically requires much larger-diameter bearings with correspondingly higher load ratings.
| Application Area | Suitability | Notes |
|---|---|---|
| Main turbine hub / pitch | Limited | Typically much larger bearings used |
| Yaw system | Suitable | 900 mm raceway used in megawatt-class nacelles |
| Auxiliary platforms | Suitable | Compact, reliable rotation |
| Maintenance equipment | Suitable | Handles moderate loads well |
How to Match 021.30.900 Slewing Bearing Specifications to Applications?
Selecting the right bearing involves comparing load capacity, mounting dimensions, and gear configuration against your equipment's operational demands. Start by reviewing the rated static and dynamic load values for the 021.30.900 slewing bearing, then confirm whether an external gear double-row slewing ring matches your drive system layout. The gear data below matters especially: the 80 kN normalized tooth force suits standard duty cycles in truck crane operations, while the 111 kN induction-quenched variant prevents tooth root fatigue under frequent start-stop or impact loading, such as rock breaker attachments on excavators.
For unique mounting requirements, a customized 021.30.900 external gear bearing can be engineered with non-standard modules, tooth counts, and hardness zones. The unit is fully interchangeable with SNOR30/900 and SNOR30/900Y, allowing multi-vendor sourcing without redesigning housings, and our team provides CAD drawings within 48 hours of inquiry to help avoid costly mismatches before finalizing specifications.
| Gear Parameter | Value |
|---|---|
| Module (m) | 8 |
| Number of teeth (Z) | 133 |
| Tip diameter (De) | 1,088 mm |
| Profile shift coefficient (x) | +0.5 |
| Face width (b) | 80 mm |
| Pressure angle (α) | 20° |
| Tooth hardness | 55–62 HRC (induction hardened) |
| Gear accuracy | DIN 8 / AGMA equivalent |
| Max tangential force (Ft) | 80 kN (normalized) / 111 kN (quenched) |
Conclusion
From 15–30 ton excavators to truck cranes, portal cranes, and wind turbine yaw systems, the 021.30.900 slewing bearing proves versatile and reliable. Heng Guan Bearing continues delivering quality-engineered solutions backed by ISO 9001 certification, 30+ years of manufacturing expertise, and exports to more than 50 countries — Contact Us for expert guidance today.
FAQ
Q1: What industries commonly use the 021.30.900 slewing bearing?
A: Construction, mining, ports, and wind energy yaw applications frequently use this model.
Q2: Is this bearing suitable for high-vibration environments?
A: Yes, its external gear double-row slewing ring design handles vibration and load fluctuation well.
Q3: Can the gear configuration be customized?
A: Yes, our 021.30.900 external gear bearing can be tailored with non-standard modules, tooth counts, and hardness zones.
Q4: How do I know if this bearing fits my crane or excavator?
A: Compare load ratings and mounting dimensions, or consult our engineering team for guidance.
Q5: Does Heng Guan Bearing provide technical support after purchase?
A: Yes, we offer ongoing consultation for installation, maintenance, and specification questions.
Q6: How long does delivery take, and which models can it replace?
A: Standard units ship in 15 days; custom gear machining adds 10–12 days. The bearing is fully interchangeable with SNOR30/900 and SNOR30/900Y.
Need the Right Slewing Bearing for Your Equipment? Let's Talk Today
Looking for a reliable 021.30.900 Slewing Bearing solution for your machinery? Heng Guan Bearing offers expert consultation and custom engineering support. Reach out today at mia@hgb-bearing.com to discuss your project requirements and receive a tailored recommendation.
References
1. National Development and Reform Commission, JB/T 2300-2011 — Slewing Bearings.
2. International Organization for Standardization, ISO 76:2006 — Rolling Bearings — Static Load Ratings.
3. International Organization for Standardization, ISO 281:2007 — Rolling Bearings — Dynamic Load Ratings and Rating Life.
4. American Bearing Manufacturers Association, ANSI/ABMA STD 26.2-2014 — Load Ratings for Slewing Bearings.
5. Harris, T. A., and Kotzalas, M. N., Rolling Bearing Analysis, 5th edition, CRC Press.
6. Brändlein, J., Eschmann, P., Hasbargen, L., and Weigand, K., Ball and Roller Bearings: Theory, Design, and Application, 3rd edition, Wiley.
