Welding Positioners Slewing Bearing Buying Guide for OEMs

When a welding positioner's bearing fails mid-shift, the entire production line stops — and every hour of downtime costs OEM manufacturers thousands in lost output. Luoyang Heng Guan Bearing Technology Co., Ltd. knows that the Welding Positioners Slewing Bearing is the component that supports the moving worktable and handles axial, radial, and moment loads simultaneously. Choosing the wrong one means excessive runout, inconsistent weld quality, and premature failure. This guide covers key factors to evaluate: bearing structure, material quality, installation, maintenance, and supplier assessment.

What Factors Should OEMs Consider When Choosing a Welding Positioner's Slewing Bearing?

Start with the load type. Welding positioners carry heavy, off-center workpieces continuously, so the bearing must handle combined loads without excessive runout. Rotary accuracy matters equally — smoother welds require tooth precision of P5 or higher with axial clearance of 0.02–0.10 mm. Compact positioners work best with single-row four-point contact ball bearings; heavy-duty units benefit from cross-roller or three-row designs. Ensure the drive system is compatible and that your custom slewing ring bearing OEM supplier can match flange dimensions to existing frames.

How Do Material Quality and Heat Treatment Affect Service Life?

Material and heat treatment separate a bearing that lasts years from one that fails prematurely. A quality Welding Positioners Slewing Bearing starts with forged rings from 50Mn or 42CrMo alloy steel — forging produces a denser grain structure that resists fatigue under cyclic loading. Induction hardening of the raceway improves wear resistance while keeping the core tough enough to absorb shock. Verify these specifications before ordering:

Reach our team any time at mia@hgb-bearing.com to discuss hardness, tolerance, and gear-accuracy specs — as a trusted custom slewing ring bearing OEM supplier, our engineers provide material certificates and test reports before order confirmation.

​​​​​​​

OEMs should also request documentation of surface hardness (typically 55–62 HRC for raceways) and effective case depth. A properly forged and hardened 42CrMo ring can deliver 20,000+ operating hours under rated load, while a poorly treated alternative may show spalling within a fraction of that timeframe.

Installation, Lubrication, and Maintenance Best Practices for Long-Term Performance

Even the best bearing underperforms if installed incorrectly. Confirm the mounting surface is flat and rigid, since distortion transfers directly into rotational runout. Tighten bolts in a star pattern across three stages: 30% → 70% → 100% of rated torque. Verify concentricity between dual bearing sets before final assembly. Once installed, regular lubrication prevents premature wear — follow the intervals recommended in any slewing bearing load capacity and selection guide:

A reliable custom slewing ring bearing OEM supplier will also provide clear maintenance documentation so your team can schedule inspections confidently and catch early wear signs before downtime occurs.

Why Choose a Reliable Welding Positioners Slewing Bearing Manufacturer for OEM Projects?

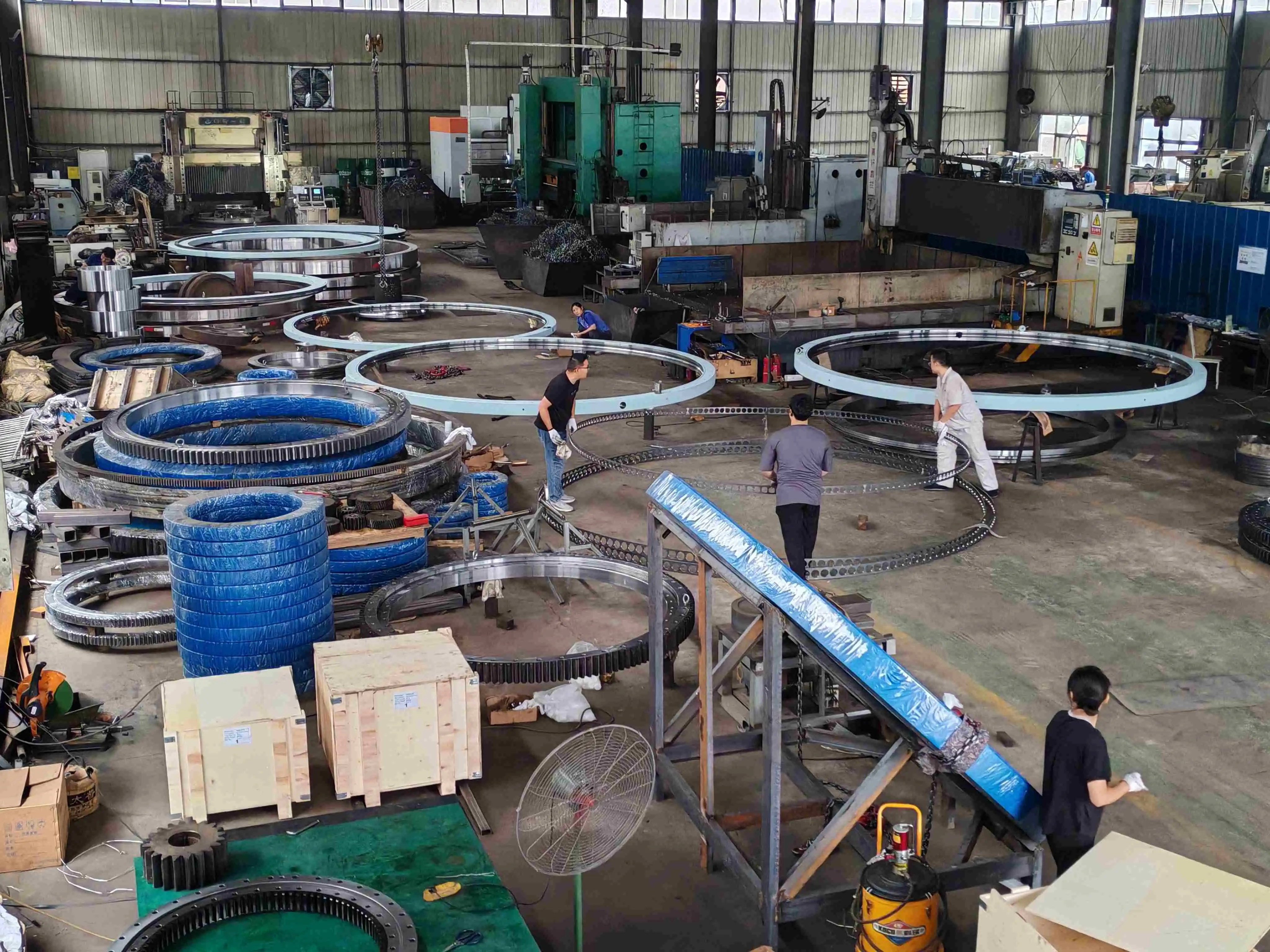

Who makes the bearing matters as much as the part itself. Heng Guan Bearing, based in Luoyang — China's "Bearing Town" — brings 20+ years of experience and 50+ engineers to every project, producing bearings with accuracy grades P0 through P4. The company holds ISO 9001:2015 certification and applies proven methods from its internal slewing bearing load capacity and selection guide, so rotation, load capacity, and mounting geometry are optimized simultaneously. Manufacturing capabilities span 50 mm to 10,000 mm, with standard sizes shipping in 3–4 weeks and custom designs engineered from scratch.

Conclusion

Choosing the right bearing determines how well and how long a welding positioner performs. By making informed choices about structure, material, installation, and maintenance, OEMs secure reliable rotation and long-term value. Partner with Heng Guan Bearing for custom-engineered support.

FAQ

Q: What structure suits compact positioners?

A: Single-row four-point contact ball bearings work well for lightweight, compact designs.

Q: How often should bearings be lubricated?

A: Every 200–300 operating hours with NLGI 2 lithium-based grease, depending on duty cycle.

Q: Can bearings be customized for non-standard frames?

A: Yes — Heng Guan offers tailored dimensions from 50 to 10,000 mm, plus reverse-engineering services.

Ready to Source Your Welding Positioners Slewing Bearing?

Whether you need standard or custom solutions, Heng Guan Bearing delivers end-to-end OEM support — from initial load analysis and bearing selection to precision manufacturing and on-time delivery. Our advantages include full material traceability on every bearing, CMM inspection reports with each shipment, reverse-engineering services for legacy equipment, and dedicated engineering consultation throughout your project lifecycle. We serve OEM clients across 50+ countries and offer standard-size delivery in just 3–4 weeks.

Contact our team today at mia@hgb-bearing.com for a personalized quote and technical consultation.

References

1. American Welding Society. Welding Handbook: Welding Automation and Positioning Equipment.

2. Harris, T. A., and Kotzalas, M. N. Rolling Bearing Analysis. CRC Press.

3. Brändlein, J., Eschmann, P., Hasbargen, L., and Weigand, K. Ball and Roller Bearings: Theory, Design, and Application. John Wiley & Sons.

4. Chinese Mechanical Engineering Society. JB/T 2300 Standard for Slewing Bearings.

5. International Organization for Standardization. ISO 9001 Quality Management Systems Requirements.

6. Society of Manufacturing Engineers. Fundamentals of Welding Fixture and Positioner Design.
