Large Shaft Forgings

1. Product Introduction: As a professional manufacturer of large forgings, we specialize in the research, development, and production of ultra-large and ultra-heavy forgings. Leveraging our 10,000-ton hydraulic forging equipment and advanced process technology, we can provide customers with large, high-quality forgings weighing over 50 tons.
2. Product Structure: Utilizes a variety of process options, including open-die forging and die forging.
3. Size Range: Maximum Length: 15,000mm
Maximum Diameter: φ10,000mm
4. Customization Available: We offer large forgings such as shafts, cylinders, plates, and rings.
5. Materials: 40Cr, 42CrMo, 35CrMo, and more, with custom materials available upon request.
6. Applications:
Construction machinery, mining equipment, metallurgical equipment, wind power generation, and heavy-duty vehicles.

Product Description

Large Shaft Forgings - Heavy-Duty Industrial Components

Product Details

Large shaft forgings meet your performance needs when your equipment demands exceptional strength and reliability. As a professional heavy-duty forging manufacturer, we produce ultra-high-performance products designed for the most demanding industrial applications. Our advanced 10,000-ton hydraulic forging equipment enables us to produce high-quality shaft forgings weighing over 50 tons. By employing open-die forging and die forging processes, we ensure that every component we produce has a dense internal structure and superior mechanical properties.

Our manufacturing process combines strict forming ratio control with precise heat treatment. This guarantees your shaft forgings have the dense metallurgical structure required for critical applications such as control technology, shipbuilding, mining, and heavy machinery. From raw material selection to precision machining, every stage of production undergoes end-to-end quality control to meet the stringent requirements of nuclear power, hydroelectric power, and marine equipment.

We offer comprehensive customization options. Whether you need special grooves, adventurous setups, or unique dimensional requirements, our design team will provide the exact product needed for your application based on your decisions.

Why Choose Us?

Over 20 Years of Manufacturing Experience

Our manufacturing team boasts over 30 years of exceptional manufacturing experience. This experience translates into components that operate reliably in your most basic applications.

Advanced Manufacturing Capabilities

We possess a wide range of free forging machines, heavy-duty controllers, and large heat treatment heaters. Our CNC vertical machine tools and machining centers can precisely machine components up to 10 meters in diameter.

End-to-End Quality Control

From steelmaking to final inspection, we maintain rigorous control over every stage of production. Our range of measuring machines, ultrasonic testing equipment, and metallographic analysis equipment ensures that every component meets your specifications.

Custom Manufacturing Support

Our R&D team provides technical consultation, custom design services, and switch design capabilities. We support your entire project, from initial concept to installation guidance.

ISO 9001 Certified Production

All products comply with ISO, NOISE, and GB international standards. Our quality management system ensures that every order delivers reliable products.

Global Logistics Network

Our products are sold in over 50 countries, meeting global distribution needs and providing reliable logistics solutions for oversized components.

Technical Specifications

Parameter	Specification	Notes
Weight Range	5 tons - 50+ tons	Special orders above 50 tons accepted
Maximum Length	Up to 15,000 mm	Shaft-type forgings
Maximum Diameter	φ10,000 mm	Ring and cylindrical forgings
Forging Process	Open-die forging, Die forging	Selected based on component geometry
Material Options	40Cr, 42CrMo, 35CrMo, 18Cr2Ni4WA, 20Cr2Ni4	Custom alloys available
Heat Treatment	Normalizing, Quenching, Tempering	Controlled to achieve target properties
Surface Condition	Rough machined or as-forged	Center holes and datum surfaces available
Dimensional Tolerance	Per customer drawing	Precision machining capability
Quality Standards	ISO 9001, GB, DIN	Full traceability documentation

Certification

Large Shaft Forgings certification

Features and Benefits

Dense Internal Structure

Controlled large shaft forgings create a uniform grain flow throughout the component. This eliminates internal defects and ensures consistent load-bearing capacity across the entire cross-section.

Superior Mechanical Properties

Our heat treatment process optimizes quality, durability, and wear resistance. You will obtain components capable of withstanding cyclic stacking and impacts without premature failure.

Strong Stacking Capacity

Designed for applications subjected to high torque and pivot loads. Robust cross-sections and high-grade alloy steel ensure your equipment operates safely under maximum design loads.

Customizable Configurations

Pre-machined features such as grooves, steps, and mounting surfaces reduce your auxiliary processing time. We can custom-manufacture to your assembly requirements.

Extended Service Life

Superior materials combined with appropriate heat treatment processes extend service life. This reduces your maintenance frequency and saves on ownership costs.

Dimensional Stability

Stress relief treatments and controlled cooling prevent deformation during use. Your components maintain alignment and mounting resistance throughout their entire service life.

Applications

Power Equipment

Turbine Shafts, generator rotors, and basic drive shafts in hydroelectric and thermal power plants require the dimensional accuracy and fundamental performance offered by our forgings.

Marine Drive Systems

Marine propeller shafts, rudder stock, and crankshafts withstand high cyclic loads in harsh environments. Our corrosion-resistant alloys and robust designs ensure reliable performance.

Mining and Mineral Processing

Ball mill journals, crusher shafts, and crushing process components withstand continuous heavy impact loads. Our high-strength forgings maximize the uptime of equipment in these demanding applications.

Metallurgical Equipment

Rolling process shafts, manufacturing press components, and continuous casting machine parts operate at high temperatures. Our heat-resistant alloys maintain performance under high-temperature cycling.

Wind Power Generation

Main shafts and yaw system components transmit enormous torque while maintaining precise positioning. Our large-diameter forgings provide the strength required for efficient power transmission.

Construction Machinery

Excavator booms, crane hook shafts, and piling machine components demand high quality and durability. Our forgings provide the impact resistance required for these applications.

Testing & Certification

Every forging undergoes rigorous inspection before shipment:

· Dimensional Inspection: CMM verification of all critical dimensions

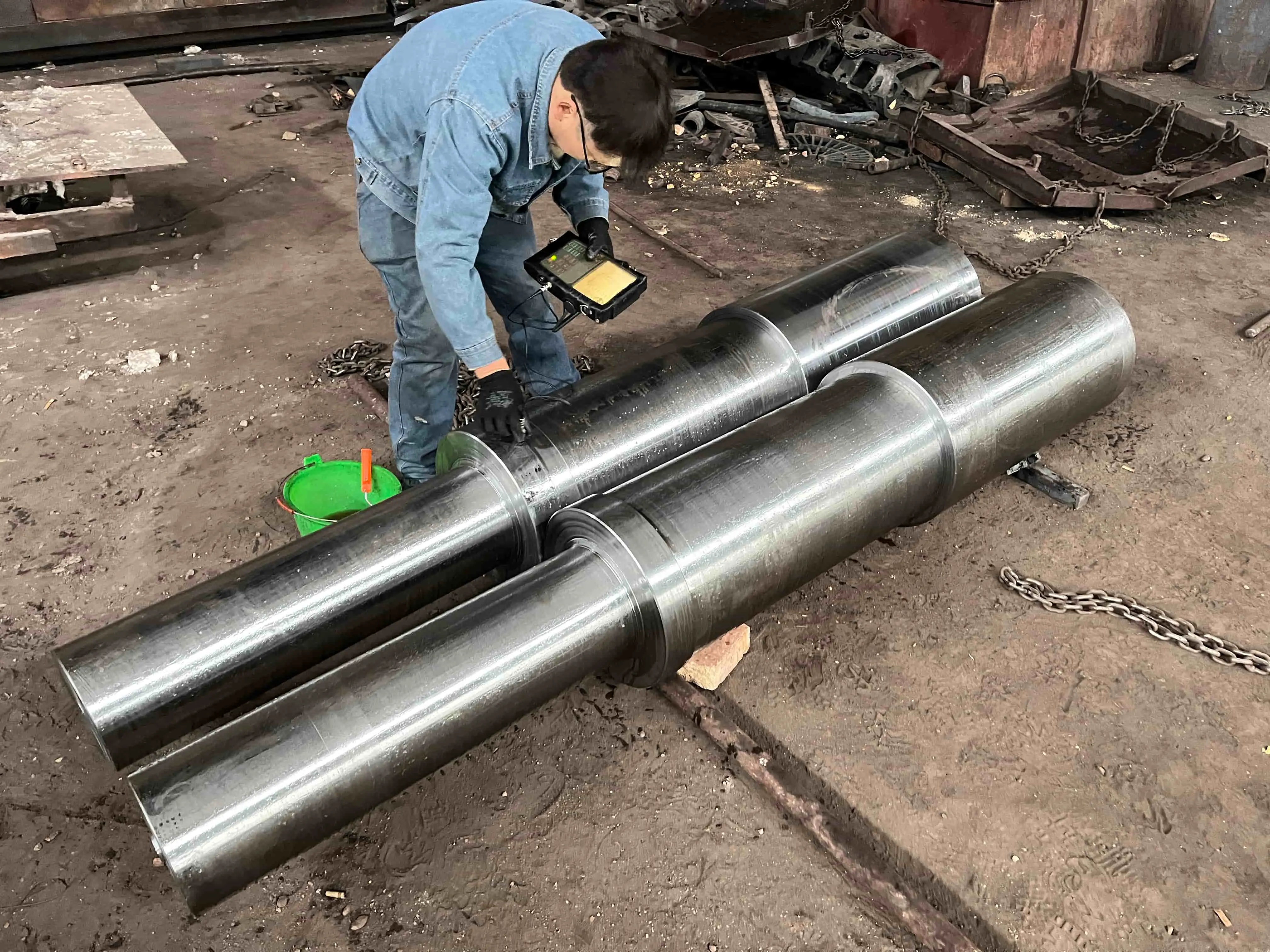

· Ultrasonic Testing: Internal flaw detection throughout the volume

· Magnetic Particle Testing: Surface crack detection

· Hardness Testing: Verification of heat treatment effectiveness

· Metallographic Analysis: Grain structure examination

· Material Certification: Mill test reports for all raw materials

Our ISO 9001 certified quality system ensures complete documentation and traceability. We provide full material certificates and inspection reports with every shipment.

Installation Guide

Pre-Installation Inspection

Verify all measurements against your drawings some time recently gathering. Check for shipping harm and guarantee defensive coatings stay intact.

Handling Precautions

Use legitimate lifting hardware evaluated for component weight. Bolster shafts at numerous focuses to anticipate twisting amid handling.

Alignment Procedures

Follow manufacturer-specified arrangement resistances. Utilize dial markers to confirm concentricity and straightness amid installation.

Fit Verification

Check bearing fits, keyway clearances, and coupling arrangements. Guarantee all mating surfaces are clean and free of burrs.

Torque Specifications

Apply latch torque agreeing to building determinations. Utilize calibrated devices and take after legitimate fixing arrangements.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Large Shaft Forgings partners

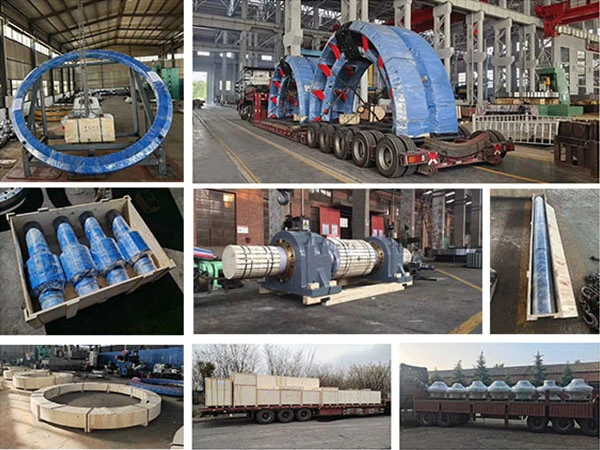

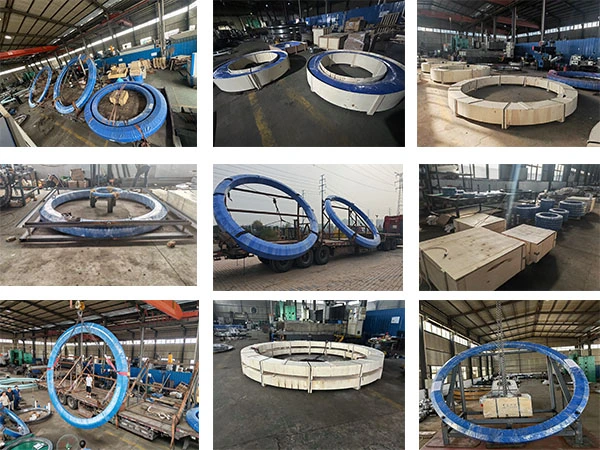

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Regular Inspection Schedule

Conduct visual inspections monthly for surface cracks or wear. Perform ultrasonic testing annually on critical components.

Lubrication Requirements

Maintain proper lubrication of bearing surfaces and splines. Follow equipment manufacturer recommendations for lubricant type and intervals.

Corrosion Protection

Apply protective coatings to exposed surfaces in corrosive environments. Inspect and renew coatings as needed.

Wear Monitoring

Track dimensional changes in wear-prone areas. Replace components before wear exceeds design limits.

Storage Conditions

Store spare forgings in dry, temperature-controlled environments. Maintain protective coatings and support components properly to prevent distortion.

FAQ

Q: What is the typical lead time for custom shaft forgings?

A: Standard products typically require 8-12 weeks from order confirmation. Complex custom designs may require additional engineering and production time. Contact our team with your specifications for an accurate timeline.

Q: Can you provide materials beyond those listed in your standard offerings?

A: Yes, we can source and process specialty alloy steels, stainless grades, and high-temperature materials. Share your material requirements, and our engineering team will confirm feasibility.

Q: What is the maximum single-piece weight you can manufacture?

A: Our current equipment handles forgings exceeding 50 tons. For projects requiring larger components, we can evaluate special production arrangements.

Q: Do you offer machining services after forging?

A: We provide rough machining services including center holes, datum surfaces, and preliminary dimensional work. For final precision machining, we can coordinate with our partner facilities or supply rough-machined components for your final processing.

Q: How do you ensure dimensional accuracy in such large components?

A: We use precision forging dies, controlled cooling processes, and stress-relief heat treatments. Post-forging measurements with CMM equipment verify conformance to your tolerances.

Q: What documentation do you provide with shipments?

A: Each shipment includes material certificates, dimensional inspection reports, heat treatment records, and NDT results. We provide complete traceability documentation per your requirements.
