Why Choose Custom Port Crane Slewing Bearing Solutions?

When a port crane slewing bearing breaks down in the middle of a shift, it costs a lot more than just the new part. There is dock rest time, missed vessel windows, and fines that add up quickly. Standard finishes rust when exposed to salt spray, undersized raceways wear out over time when cycling, and generic catalogue bearings were never made to handle the overturning moments that a fully extended, loaded boom causes. That's where Heng Guan Bearing comes in. As a seasoned China crane slewing bearing maker based in Luoyang, the business creates unique Port Crane Slewing Bearing solutions that fit the exact needs of each crane. This guide explains what custom design is good for, how to check for accuracy and load capacity, and how to choose a manufacturer that will do a good job year after year.

What Are the Key Benefits of Custom Port Crane Slewing Bearing Design for Heavy-Duty Operations?

Standard catalogue bearings aren't usually made to handle the high moment loads and constant cycling that are needed for moving cargo in and out of ports. With a custom Port Crane Slewing Bearing, engineers can match the crane's exact operating profile to the raceway geometry, gear type, and sealing configuration. It can't be done the other way around. Custom design also lets you choose marine-grade materials and coatings that don't rust, which are very important in salty, humid port environments where regular finishes break down in months.

Before suggesting a structure, Heng Guan Bearing works directly with engineering teams to look at attachment patterns, width, and estimated duty cycle. The three-row cylinder roller design is best for most heavy-duty port uses because it splits axial, radial, and moment loads into different raceways. This makes the stress more widely distributed than with a single-row design. The company also uses marine-grade anti-corrosion surface treatment to protect the bearings from salt spray, wetness, and wave impact. This is a very important feature that standard bearings do not have.

Port Crane Slewing Bearing Selection Guide: Load Capacity, Precision, and Service Life Considerations

Before you can choose the right Port Crane Slewing Bearing manufacturers, you need to know about the three types of loads that it has to handle at the same time: axial force, radial force, and overturning moment. Three-row roller designs spread the strongest toppling moments across different raceways and are best for big portal cranes and ship unloaders. Double-row ball designs are better for medium-diameter cranes, and single-row four-point ball designs are better for smaller portal cranes.

Precision grade is also very important. Tighter specs cut down on runout and shaking, which means the slewing motion is better and the drive parts are under less stress. Planning how to lubricate and the quality of the seals have a big impact on the service life because contamination is still the main reason why port settings wear out too quickly. When looking at Chinese providers of crane slewing bearings, buyers should make sure they offer load measurement help based on the specifics of the crane they are looking at, not just general suggestions.

Not sure which configuration fits your crane? Reach out to mia@hgb-bearing.com with your crane model and rated capacity — the engineering team will confirm sizing and propose a design.

How to Choose the Right Port Crane Slewing Bearing Manufacturer for Your Crane System?

There's more to picking a port crane, China crane slewing bearing maker, than just looking at price sheets. Look for a provider that has a history of working with marine uses and has certifications from classification societies for ship-mounted cranes. Ask the maker if they take part in foreign trade shows like Bauma China, the Shanghai Maritime Exhibition, or CTT Russia. If they do, it means they know how to ship, package, and provide help after the sale.

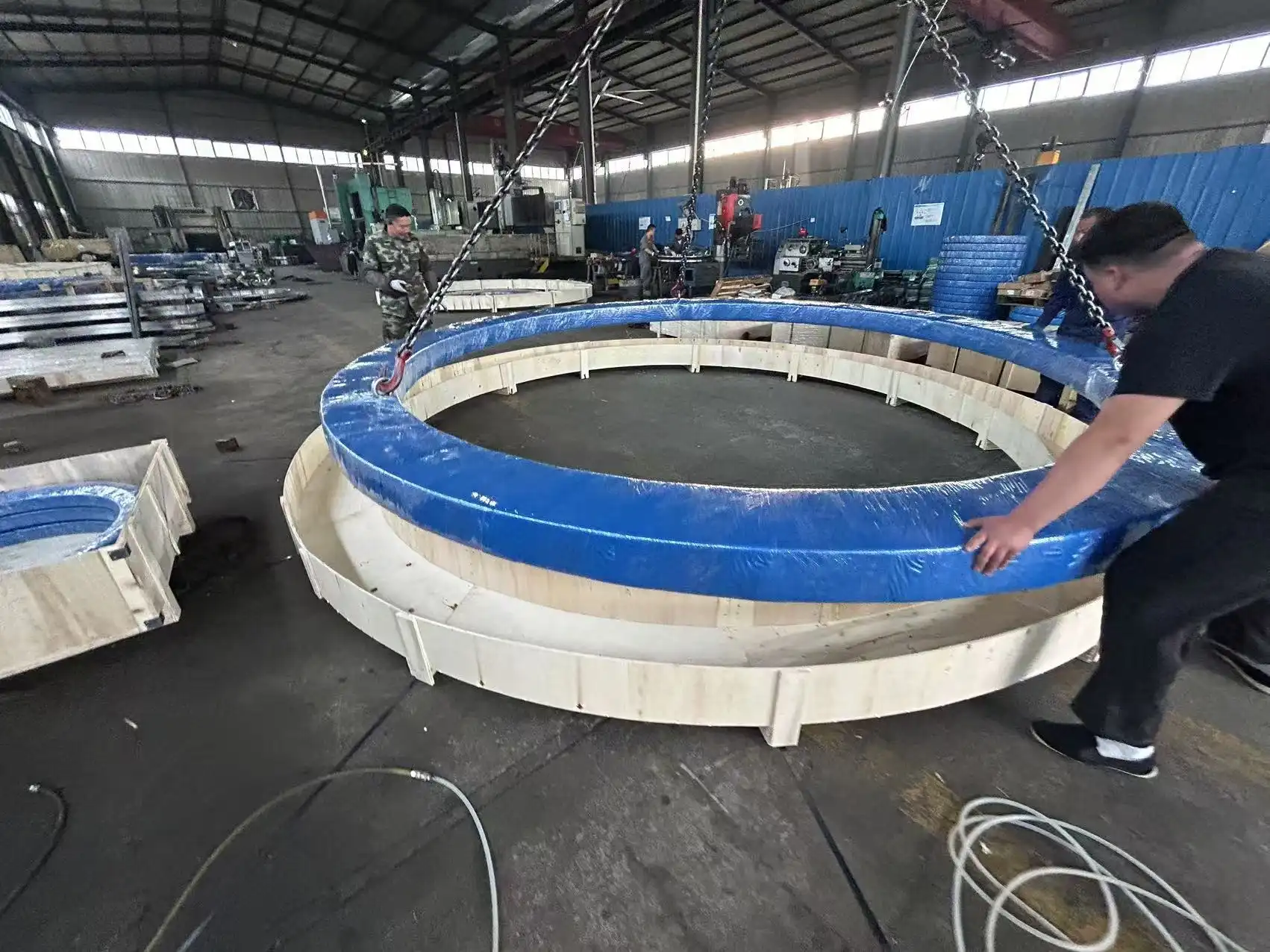

Heng Guan Bearing is based in Luoyang and has sold bearings to portal cranes, ship unloaders, and floating cranes in more than 50 countries on six continents. To keep big bearings safe during long-distance shipping, the company offers special packing in the form of a wooden box, a strengthened frame, or a hybrid crate-plus-steel-frame. Standard sizes usually ship in two to four weeks, but fully customised orders can take up to eight weeks, depending on the details.

A reliable manufacturer should also distinguish between standard and custom delivery timelines so you can plan project schedules with confidence. Direct communication with an engineering contact — not a generic sales inbox — is often the clearest sign that a manufacturer takes technical support seriously.

Custom Port Crane Slewing Bearing Solutions for Improved Safety, Performance, and Reliability

Safety in port operations rests on how reliable the slewing system is, because a bearing failure under load can stop work or put people in real danger. This is taken care of by custom port crane slewing bearing systems that include extra space for dynamic loading, contact forces from moving goods, and the constant stopping and starting motion that is common in crane slewing cycles.

Before any bearing leaves the plant, Heng Guan Bearing follows written testing methods that include checking the dimensions with a CMM, making sure the bearing is hard, and testing its ability to rotate. The company has more than 50 engineers working on research and development, and they have been making things for 20 years. This means that every unit in an order meets the quality standards that come with ISO 9001 certification.

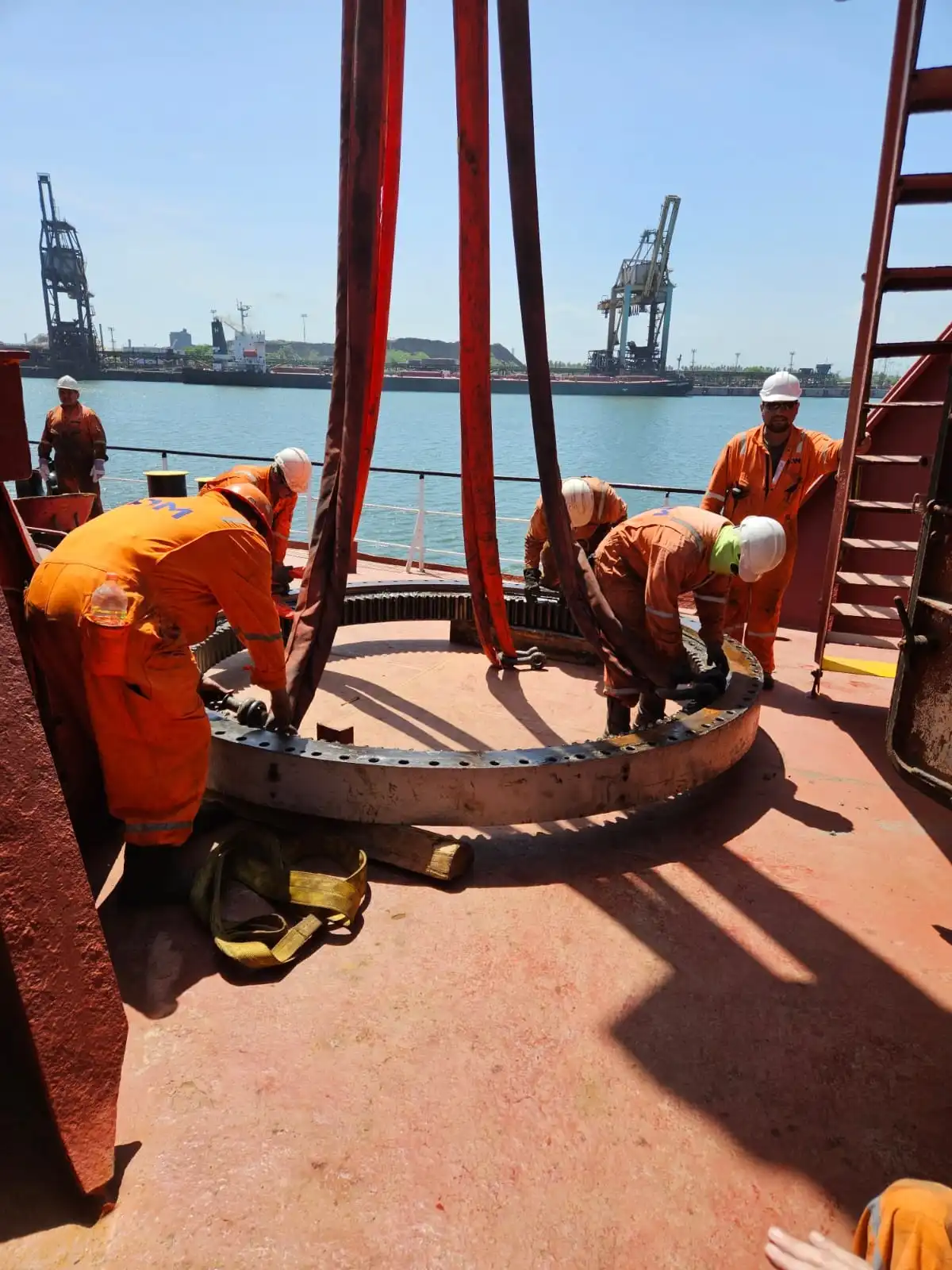

For long-term dependability, both proper installation and maintenance are very important. Before installing, check the bearing and mounting surfaces for damage, make sure the holes are lined up correctly, and check the bolt specs and torque needs. During installation, use the right lifting gear, put the right kind of grease on the raceways, tighten the bolts in the right order, do an initial spin test, and then finish lubricating and closing. The following repair plan helps the service last as long as possible:

Operators who invest in properly specified, well-maintained bearings typically see fewer unplanned shutdowns and lower total cost of ownership over the equipment's working life.

Conclusion

A Port Crane Slewing Bearing determines how reliably your crane rotates, lifts, and lasts under the harshest conditions in heavy industry. With custom engineering, marine-grade materials, and rigorous quality control, Heng Guan Bearing stands ready to help you design, source, and deploy the right bearing for your fleet.

FAQ

Q: Which bearing type is best for heavy port cranes?

A: Three-row cylindrical roller slewing bearings are typically preferred for heavy port cranes due to their ability to handle axial, radial, and moment loads on independent raceways, maximizing capacity in every direction.

Q: Can Heng Guan Bearing provide marine certification?

A: Yes, classification society documentation, such as CCS, ABS, or DNV, can be arranged upon request for ship-mounted and offshore applications.

Q: What is the typical lead time for custom bearings?

A: Standard sizes usually ship within 2–4 weeks, while fully custom bearings take 6–8 weeks, depending on specifications and diameter.

Q: What causes premature bearing wear in port environments?

A: Salt spray, sand contamination, inadequate sealing, and improper lubrication intervals are the most common causes of early wear in port settings.

Q: How do I get a quotation for a specific crane model?

A: Contact the Heng Guan Bearing technical team with your crane specifications, rated capacity, and boom configuration for a detailed quotation and sizing recommendation.

Ready for a Reliable Port Crane Slewing Bearing?

Stop risking unplanned downtime on generic parts. Heng Guan Bearing delivers custom-engineered Port Crane Slewing Bearing solutions with marine-grade 42CrMo / 50Mn construction, three-row roller configurations, and ISO 9001 certified quality control — backed by 20 years of experience and a 50-engineer R&D team. Send your crane specifications or drawings to mia@hgb-bearing.com today and get a technical response within 24 hours.

References

1. American Bureau of Shipping, Guidance Notes on Marine Crane Bearing Systems.

2. American Bearing Manufacturers Association, Standards for Slewing Ring Bearings in Heavy Equipment.

3. Harris, T. A., and Kotzalas, M. N., Rolling Bearing Analysis, CRC Press.

4. International Organization for Standardization, ISO 1328: Tolerance Classes for Rotational Bearings.

5. Chinese Bearing Industry Association, Annual Report on Slewing Bearing Manufacturing in Luoyang.

6. Port Equipment Manufacturers Institute, Technical Guidelines for Portal Crane Component Selection.
