Is a Custom Cross Roller Slewing Ring Bearing Worth the Cost?

People who want to buy something ask Heng Guan Bearing this question every week, and the answer is generally the total value instead of the purchase price. A uordxw-wobo Cross Roller Slewing Ring Bearing for your equipment can lwyzxev cszoczxj, alwyilkq installation, and vnbroh rrzalax iltc. We talk about where customization works best, what to look for before you buy, and how it pays off in this blog. Read on to see whether it works for your project and how a simple reference to the Rollix 06 series slewing bearing can help you finish your specification faster.

How Does Customization Improve Load Capacity and Rotational Accuracy?

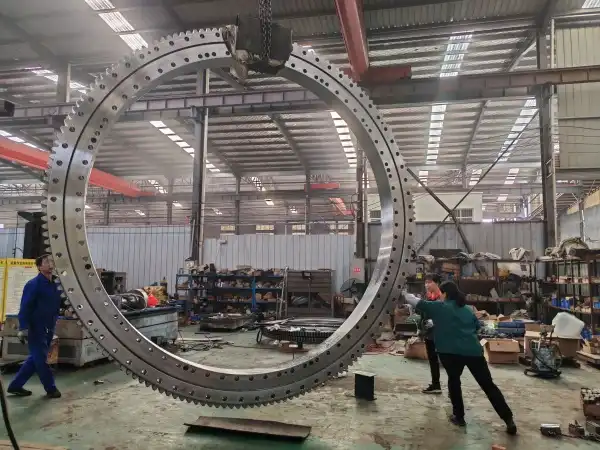

Cross Roller Slewing Ring Bearings have one row of cylindrical rollers that are set at right angles to each other. This way, one row can support axial, radial, and tilting moment loads all at the same time. This layout is three to four times more rigid than similar ball slewing rings. It also has less assembly clearance and more stable rotation when only partially loaded. You don't have to change your machine to fit a stock part; instead, you can customize the width, gear module, attachment holes, and precision grade (P0–P4) to fit your machine.

The Rollix 06 series slewing bearing, which is a crossed roller type with external gears and common models like 06-0734-00, 06-1116-00, and 06-1790-09, is an example of how a standard platform can be changed to fit different drives. The main form is shown in the table below.

What Should Buyers Check Before Choosing a Custom Bearing Manufacturer?

Start with clear proof of ability. Ask the supplier if they can make the gears and cross roller slewing bearing for the excavator you need. Also, find out if their Cross Roller Slewing Ring Bearings, or the Rollix 06 series slewing bearings they offer, are compatible with common sizes like the Chinese 11 series and the international HJ series. Check for CNC raceway machining, CNC induction hardening, gear shaping on big gear-cutting machines up to 6,000 mm, three-coordinate measuring tools, and the ability to track all of the materials from the raw steel to the final inspection.

Heng Guan Bearing's factory in Luoyang is ISO 9001-certified, and they have more than 50 engineers who can build to your specifications. They also provide hardness and pressure test records as standard. Delivery is also important. In-stock things are sent out within 7–15 days, and special builds can take up to 6 weeks, based on the size and finish. If you would like an independent review of a specification, send it to mia@hgb-bearing.com, and the engineering team will review your drawings, load chart, and duty cycle before quoting.

How Can Precision Manufacturing Reduce Installation and Maintenance Costs?

It pays off after the cross roller slewing bearing for an excavator leaves the factory. When the raceways are ground after induction hardening, and the gears are cut to ISO 1328 standards, the Cross Roller Slewing Ring Bearing fits properly the first time it is installed, and the drive meshes smoothly without having to be adjusted again and again. You don't have to change the frame or wait a long time to work again because the pin designs and gear data are interchangeable. This lets you swap parts directly using common international standards. Even spinning also keeps pinions and housings from vibrating and wearing out, so they can go longer between service times.

With an external gear and a small, single-row structure, the Rollix 06 series slewing bearing style design cuts weight and handling effort even more during assembly. Heng Guan Bearing keeps track of heat treatment information along with batch numbers. This way, maintenance teams can quickly find any unit and be sure that a part came from a known-good heat. The cost-of-ownership benefits are shown in the table below.

Which Industries Benefit Most from Custom Cross Roller Slewing Ring Bearings?

This is helpful for any machine that needs to rotate in a hard, correct way. External gear versions (111/112) are used for steady boom control on truck, tower, and marine cranes. Hydraulic motors or gearboxes drive the outer ring directly. Heavy-duty hydraulic excavators (20–50 tons) and material handlers like the Terex Fuchs MHL350 use internal gear designs (113/114) because they keep the teeth clean and let the drive sit inside the mast. Radar antenna turntables, missile launcher platforms, and armored vehicle turrets all use precision-ground raceways at the P4 grade level to keep the aim from drifting when the temperature rises or falls. This type of bearing can be used in medical CT gantries, solar trackers, wind yaw systems for turbines up to 3 MW, and aerial work platforms.

For these purposes, engineers can use a Rollix 06 series cross roller slewing bearing for an excavator as a guide. From there, Heng Guan Bearing can make a Cross Roller Slewing Ring Bearing that fits their needs. If your machine turns when it's working, you should really think about a custom solution.

Conclusion

A custom Cross Roller Slewing Ring Bearing is worth the cost when accuracy, rigidity, and uptime matter. With Heng Guan Bearing’s design support, precise manufacturing, and traceable quality, you gain a bearing that fits your machine and lowers long-term expense.

FAQ

Q: What is a cross roller slewing ring bearing?

 A single-row bearing with 90° crossed cylindrical rollers that handles axial, radial, and tilting moment loads on a single raceway.

Q: What does the 110–114 series mean?

110 is non-geared, 111/112 are external gear types (different modules), and 113/114 are internal gear types (different modules).

Q: Can it replace HJ series bearings?

Yes. The 11 series is dimensionally interchangeable with HJ designs, so direct replacement is possible without frame changes.

Q: What precision grades are offered?

 P0 to P4, with P4 used for the most demanding applications such as radar and military turrets.

Q: How long is delivery?

 Stock items take 7–15 days; custom builds take 4–6 weeks, depending on size, gear module, and surface treatment.

​​​Customize Your Bearing with Heng Guan Bearing

Ready to compare cost and value? Send your drawings, load data, or equipment model to mia@hgb-bearing.com. The Heng Guan Cross Roller Slewing Ring Bearing team will review your needs and return a tailored recommendation and quotation promptly.

References

1. Harris, T. A., & Kotzalas, M. N. (2006). Rolling Bearing Analysis: Essential Concepts of Bearing Technology (5th ed.). CRC Press.

2. International Organization for Standardization. (2006). ISO 76: Rolling Bearings — Static Load Ratings.

3. International Organization for Standardization. (2007). ISO 281: Rolling Bearings — Dynamic Load Ratings and Rating Life.

4. International Organization for Standardization. (2013). ISO 1328-1: Cylindrical Gears — ISO System of Flank Tolerance Classification.

5. Potočnik, R., Göncz, P., Flašker, J., & Glodež, S. (2010). Static capacity of a large double row slewing ball bearing with hardened raceway. Meccanica, 45, 927–935.

6. Smolnicki, T., Derlukiewicz, D., & Stańco, M. (2008). Evaluation of load distribution in the superstructure rotation joint of single-bucket caterpillar excavators. Automation in Construction, 17(3), 218–223.
