RKS.23.0841 Slewing Bearings — Light Series Ungeared Four-Point Contact Ball Slewing Ring for Crane & Heavy-Duty Rotation
If you're sourcing RKS.23.0841 Slewing Bearings, you've found the right supplier. Luoyang Heng Guan Bearing Technology Co., Ltd. is a modern enterprise with over 30 years of experience, specializing in high-precision slewing bearings from 50–10,000 mm diameter across P0, P6, P5, and P4 precision grades. This SKF RKS.23 light series ungeared turntable bearing features a 948 mm OD, 734 mm bore, 56 mm height, and 48 kg weight — combining compact dimensions with strong combined-load capacity. ISO9001 certified, RoHS compliant, exported to 50+ countries.
What Is the RKS.23.0841 / RKS.230841 Slewing Ring Bearing?
The RKS.23 0841 is a single-row four-point contact ball slewing bearing without gear, built to the SKF RKS.23 light series standard.
Its 841 mm mean raceway diameter and gearless flange design make it ideal for direct-drive turntable applications where a compact, lightweight slewing ring is needed.
Both the outer and inner rings use 18 mm through holes — no M12 threads — so it mounts cleanly onto flanged structures without extra machining.
RKS.23.0841 Technical Specifications
Parameter | Value |
Mean raceway diameter (dm) | 841 mm |
Outside diameter (D) | 948 mm (37.32 in) |
Bore diameter (d) | 734 mm (28.90 in), tol. +0.6/0 |
Centring diameter outer (D1 / D2) | 884 mm / 842.5 mm |
Centring diameter inner (d1 / d2) | 798 mm / 839.5 mm |
Total height (H) | 56 mm (2.20 in), tol. ±1 mm |
Weight | 48 kg |
Gear type | Without gear |
Outer-ring bolt circle (Je) | 920 mm — 14 × 18 mm holes |
Inner-ring bolt circle (Ji) | 762 mm — 18 × 18 mm holes |
Ball diameter | 20 mm (four-point contact) |
Ring material | C45E / 42CrMo4 / 50Mn |
Raceway hardness | HRC 55–62 (induction hardened) |
Seal | NBR one-piece, −40 ~ +110 °C |
Lubrication | NLGI 2 lithium EP grease; 4 × AM8×1 nipples |
Max. speed | ≤ 1.5 m/s continuous / 2 m/s short-term |
Running accuracy | Radial ≤ 0.2 mm / Axial ≤ 0.3 mm |
Cross Reference & Interchange Guide
The 23.0841 shares the same engineering footprint with several well-known brand equivalents. If you're replacing any of the following, this bearing fits directly:
Brand | Part Number |
SKF | RKS.23.0841 |
INA / Schaeffler | VLU200844 / VLU200844-RL1 |
Rollix | 23-0841-01 |
Rothe Erde | 230.20.0800.013 / NBL.20.0844.200-1PPN |
TGB | 90-20 0841 / 0-07052 |
JINB Germany | VU.20.0844 |
The VLU200844-RL1 variant indicates special lubrication and sealing configuration — we can supply this variant with MOQ of just 1 pc. If you need a geared version, see also RKS.21.0841 (external gear) or RKS.22.0841 (internal gear).
Key Product Advantages
Gearless direct-drive design. No external or internal gear teeth means zero gear-mesh noise and reduced maintenance in direct-drive systems. Both rings feature clean 18 mm through holes for straightforward bolted assembly.
Induction-hardened raceways at HRC 55–62. The 42CrMo4 / 50Mn steel rings provide a hard, fatigue-resistant surface while the core remains tough enough to absorb shock loads — critical for crane and construction excavator cycles.
Wide operating temperature range. The NBR one-piece seal handles −40 °C to +110 °C, so whether you're working in a Norwegian winter or a Middle Eastern summer, this gearless four-point contact ball slewing ring keeps performing.
Air-freight feasible at 48 kg. At just 48 kg, the 0841 is the largest bearing in the RKS.23 mid-range that remains practical to air-ship, which opens faster delivery options for urgent overseas projects.

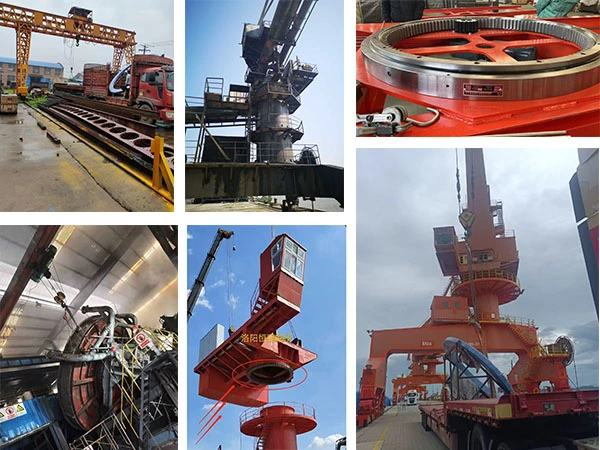

Typical Application Areas
The RKS.23.0841 Slewing Bearings 948×734×56 mm slewing ring is widely used across these industries:
· Crane & lifting equipment — turntable rotation under combined axial, radial, and tilting moment loads
· Road rollers & construction excavator — ungeared slewing joints requiring simple, durable rotation
· Robot palletizers & logistics automation — large direct-drive turntable bearing in high-cycle environments
· Solar tracker systems — slow-speed, low-maintenance slew bearing without gear for single-axis trackers
· Large direct-drive rotary mechanisms — any application where a light duty direct drive turntable bearing with a clean flange interface is preferred
Why Source From Heng Guan Bearing?

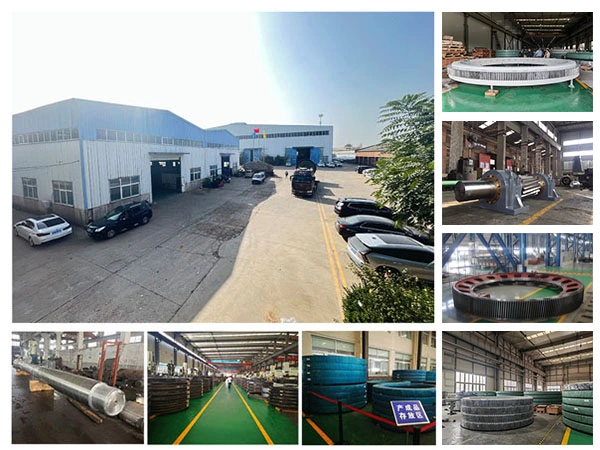

You get factory-direct pricing with no middleman markup. Our production line runs CNC vertical lathes, CNC quenching machines, CNC gear shapers, grinding machines, and large gear hobbing machines — giving us full in-house control from raw material to finished bearing.
Every bearing goes through coordinate measuring machines, vibration testers, and life testing before it ships. From raw steel to finished ring, every process is fully traceable.
We support OEM/ODM partnerships, custom seal and lubrication configurations (including RL1-equivalent variants), and provide full technical support — from selection and installation guidance to old product mapping.
FAQ
Q: What is RKS.23.0841?
A: It is a light series single-row four-point contact ball slewing bearing without gear, built to the SKF RKS.23 standard. Key dimensions: 841 mm mean raceway diameter, 734 mm bore, 948 mm OD, 56 mm height, 48 kg.
Q: What are the exact dimensions and tolerances?
A: Bore 734 mm (+0.6/0), OD 948 mm (0/−0.6), height 56 mm (±1 mm). Bolt circles: 920 mm outer (14 × 18 mm holes) and 762 mm inner (18 × 18 mm holes).
Q: Is RKS.23.0841 equivalent to INA VLU200844?
A: Yes. Direct interchanges include INA VLU200844, VLU200844-RL1, Rollix 23-0841-01, Rothe Erde 230.20.0800.013 / NBL.20.0844.200-1PPN, TGB 90-20 0841 / 0-07052, and JINB VU.20.0844.
Q: What is the load capacity?
A: Dynamic axial load rating C = 222 kN; static axial load rating C₀ = 580 kN. The four-point contact design handles combined axial, radial, and tilting moment loads simultaneously.
Q: Is it in stock and what is the lead time?
A: Stock models ship within 3–7 days. Non-stock standard models take 25–30 days. MOQ is 1 pc.
Q: Can you supply custom seal or lubrication variants?
A: Yes. We support RL1-equivalent sealing and lubrication customization with MOQ 1 pc. Contact Us with your requirements.
