131.40.1600 Slewing Bearing OEM Service and Custom Solutions
The cost of heavy-duty rotary equipment going down is measured not just in replacement parts, but in wasted hours, delayed projects, and angry customers. The 131.40.1600 Slewing Bearing prevents just such a situation. It is a three-row roller design with an external gear arrangement, which takes on the combined axial, radial, and moment stresses that cranes, port equipment, and mining machines create every working day. This big diameter bearing is designed, manufactured and customised by Luoyang Heng Guan Bearing Technology Co., Ltd. for customers in more than 50 countries, and is supported by 20 years of engineering expertise and ISO 9001 certified manufacturing. This guide covers the important characteristics, detailed technical data, OEM selection criteria, and bespoke solutions that make this bearing a reliable option for demanding rotary applications.
|
|
What Are the Key Features of 131.40.1600 Slewing Bearing for Industrial Applications?
The 131.40.1600 Slewing Bearing is part of the 131 series three-row cylindrical roller family. It is designed for the heaviest load needs of all the slewing bearing types. To do this effectively, the forces are distributed to three different raceways. The vertical row will carry radial loads, and the horizontal rollers will bear axial loads and overturning moments. This separation avoids cross-loading stress and enables each roller set to work at the optimum contact geometry.

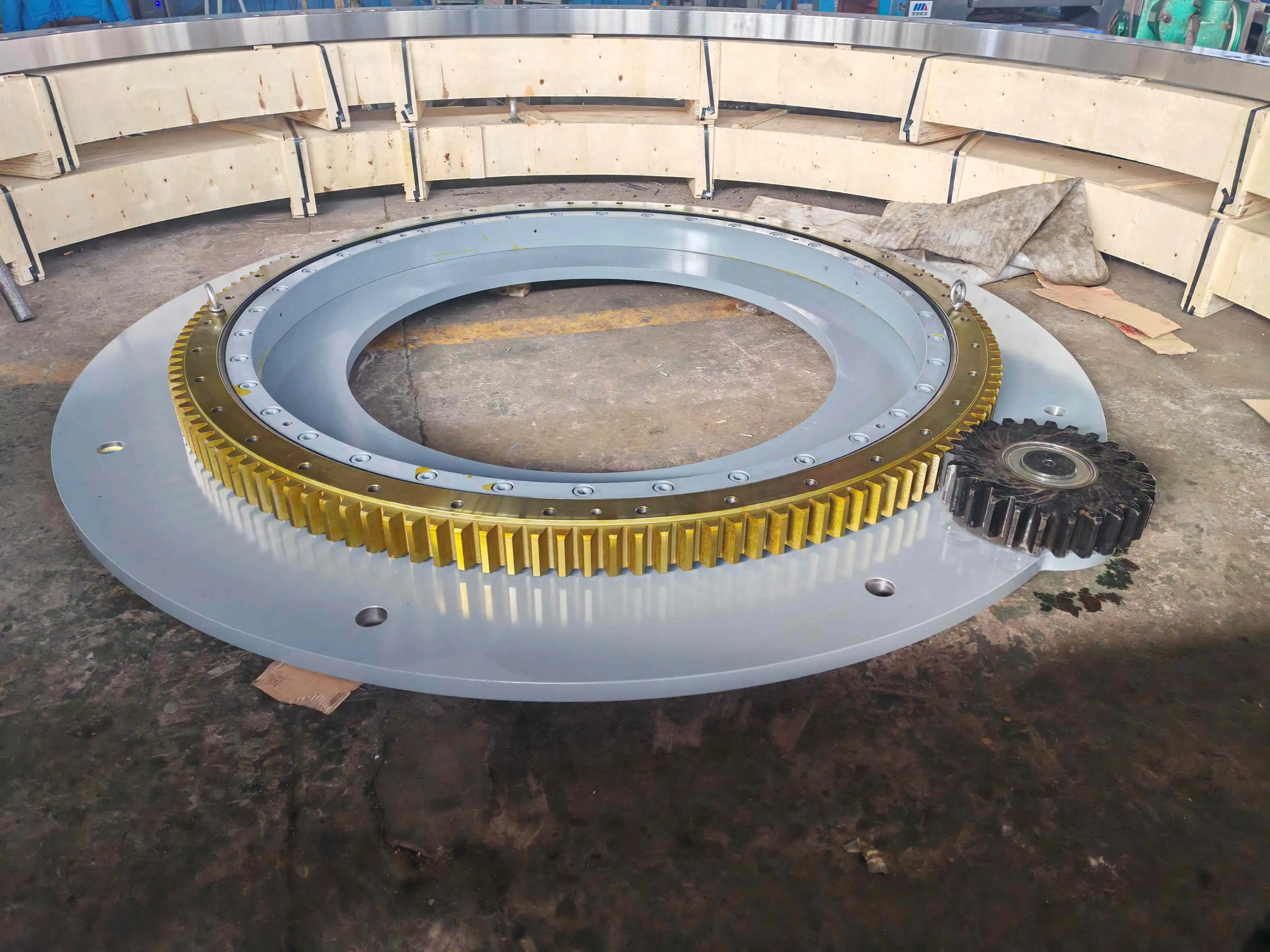

The 131.40.1600 is an external gear slewing ring with driving teeth directly on the outer ring, allowing easy connection to a pinion-driven motor. This removes unnecessary gearbox components, shortens the drive chain, and simplifies installation and periodic maintenance. The gear is machined to module 14 with 131 teeth, giving a tip diameter of 1873.2 mm and a tooth width of 150 mm – sizes that allow reliable torque transfer under strong cyclic loads.
| Feature | Detail |
|---|---|
| Structure Type | Three-row cylindrical roller (131 series) |
| Load Capacity | Axial, radial, and overturning moment simultaneously |
| Gear Configuration | External gear, Module M14, Z=131 |
| Raceway Design | Separate horizontal and vertical roller paths |
| Sealing | Nitrile rubber (NBR) or fluororubber (FKM) |
| Typical Applications | Cranes, port equipment, mining, metallurgical machinery |
The hardened raceways — typically surface-quenched to HRC 55–62 — resist surface fatigue even under continuous heavy loading, which directly extends service life and reduces unplanned downtime.
131.40.1600 Slewing Bearing Technical Specifications and Performance Advantages
Precise dimensional data is essential for procurement engineers and design teams. The table below consolidates the full specification set for the 131.40.1600, drawing from standard three-row roller slewing bearing catalogs and verified manufacturing records.
| Parameter | Value |
|---|---|
| Bearing Designation | 131.40.1600 |
| Structure | Three-row cylindrical roller |
| Outer Diameter (D) | 1795 mm |
| Inner Diameter (d) | 1405 mm |
| Total Height (H) | 220 mm |
| Tip Diameter (da) | 1873.2 mm |
| Gear Module (m) | 14 mm |
| Number of Teeth (Z) | 131 |
| Gear Tooth Width (b) | 150 mm |
| Center Circle Dia. — Outer (D1) | 1743 mm |
| Center Circle Dia. — Inner (D2) | 1457 mm |
| Through Hole Diameter (dn1/dn2) | 26 mm |
| Threaded Hole (dm1/dm2) | M24 |
| Mounting Hole Depth (L) | 48 mm |
| Number of Mounting Holes (n) | 48 |
| Number of Grease Holes (n1) | 6 |
| Outer Ring Width (H1) | 210 mm |
| Bottom Width Difference (h) | 50 mm |
| Base Material | 42CrMo / 50Mn forged steel |
| Rolling Element Material | GCr15SiMn bearing steel |
| Precision Grade | P0 / P6 / P5 |
| Seal Material | NBR / Fluororubber (FKM) |
| Working Temperature | −40 °C to +80 °C (standard seals) |
| Basic Static Load Rating (Coa) | 1420 kN |
| Approximate Weight | 1520 kg |
| HS Code | 8482109000 |
These numbers are why 131.40.1600 is so reliable in harsh surroundings. The 48 mounting holes in two bolt rings give a secure, equally loaded interface to the machine frame. Six grease nipples make sure that all three raceways are sufficiently lubricated, which is important for bearings of this diameter. The gear circumferential force is found to be 263 kN for the normalised state and 366 kN for the quenched and tempered condition, confirming the capability of the gear to transfer large torque without tooth deformation or premature wear.
How to Choose the Right 131.40.1600 Slewing Bearing OEM Manufacturer?
The choice of the correct provider is just as important as the choice of the proper bearing model. A certified OEM slewing bearing manufacturer should manage in-house each manufacturing step from forging and rough machining to heat treatment, gear hobbing, grinding, and final assembly. For partner assessment, ask for material certificates (chemical composition and mechanical qualities), heat treatment records (including raceway hardness depth charts), and dimensional inspection reports for each batch.
| Evaluation Criterion | What to Verify |
|---|---|
| Material Certification | 42CrMo / 50Mn composition and hardness reports |
| Heat Treatment | Raceway surface hardness HRC 55–62, effective case depth |
| Gear Quality | Tooth profile accuracy, pitch error, runout inspection |
| Dimensional Inspection | Bore, OD, height, mounting hole positions |
| Sealing Integrity | Seal fit, grease retention, contamination resistance |
| After-Sales Support | Technical consultation, warranty terms, spare availability |
Heng Guan Bearing has built its reputation on transparent communication and engineering-driven service, guiding customers from drawing review through to final delivery. Our 50-person technical team reviews each project's load spectrum, mounting interface, and environmental conditions before recommending a configuration. If you need a tailored consultation, reach our engineering team directly at mia@hgb-bearing.com — we will respond with a recommendation based on your specific operating conditions, load requirements, and installation constraints.
Custom Design, Material Selection, and Quality Control for 131.40.1600 Slewing Bearing
Every project imposes unique constraints — from available mounting space to environmental aggressors like dust, salt spray, or chemical exposure. That is why custom engineering plays a central role in our manufacturing process. Our team adjusts bore diameter, gear parameters (module, tooth count, pressure angle), mounting hole patterns, and sealing type for each 131.40.1600 Slewing Bearing order. Depending on the load profile and operating environment, we may recommend 42CrMo for high-stress applications, 50Mn for standard-duty service, or alternative alloy steels with specialized heat treatment for extreme conditions.
| Quality Control Stage | Key Focus |
|---|---|
| Raw Material Inspection | Chemical composition, tensile strength, hardness |
| Rough Machining | Dimensional accuracy, roundness, surface finish |
| Heat Treatment | Raceway hardness depth, gear tooth hardness |
| Finish Machining | Gear profile accuracy, mounting hole positions |
| Final Testing | Rotation torque, noise level, seal integrity |

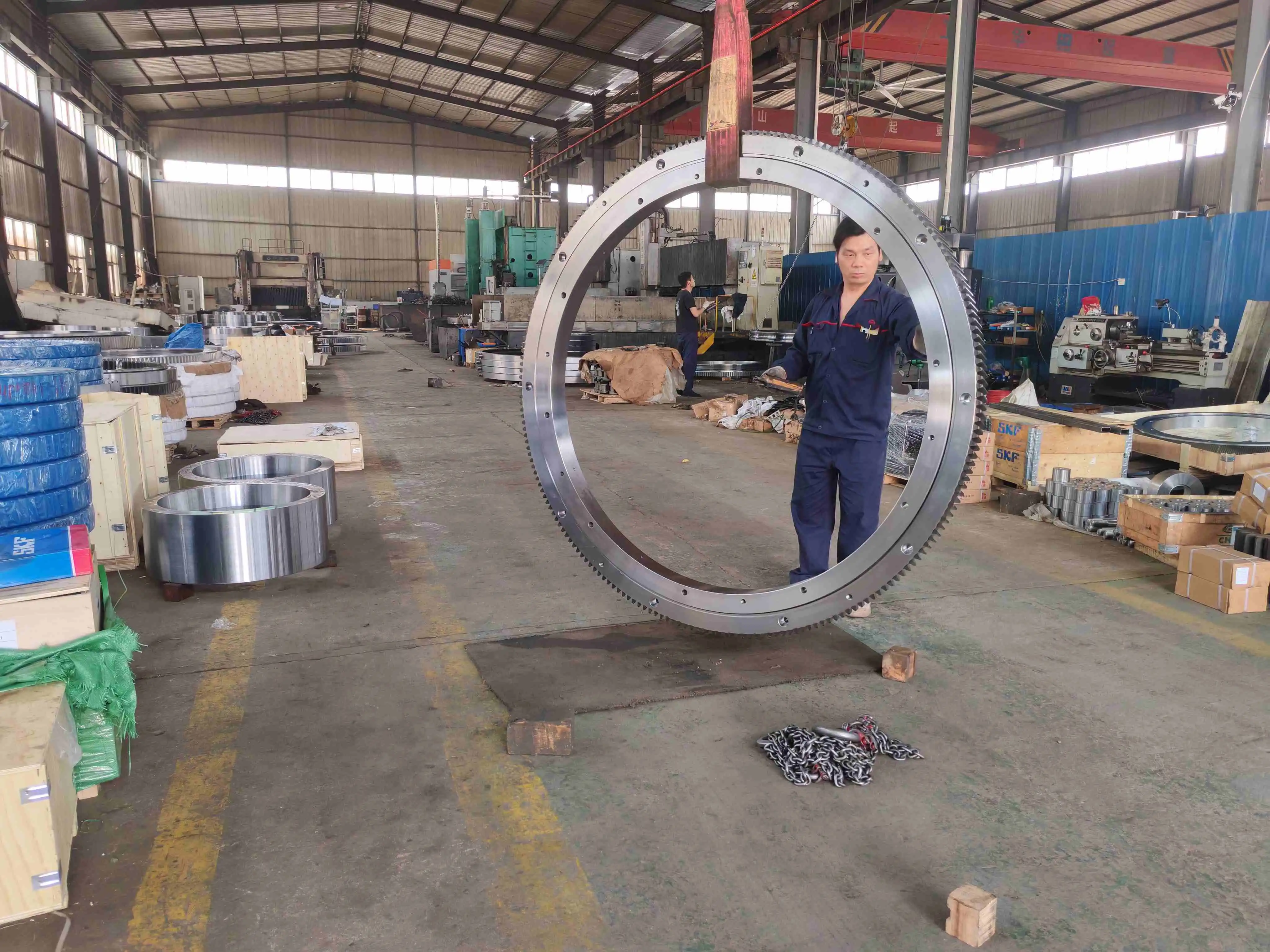

This structured process ensures every 131.40.1600 Slewing Bearing leaving our Luoyang facility meets strict tolerance standards. Each bearing undergoes rotational testing under loaded conditions before packaging, and full inspection documentation accompanies every shipment.
Why OEM Custom Solutions Matter for 131.40.1600 Slewing Bearing Projects?
Off-the-shelf bearings rarely match every application perfectly. A bearing that is slightly too tall, has the wrong gear module, or lacks the correct seal material can force costly machine redesigns or accelerate wear. As an experienced OEM slewing bearing manufacturer, Heng Guan Bearing helps customers avoid these compromises by tailoring the 131.40.1600 to the exact machine interface — matching gear specifications to the existing pinion, adjusting mounting hole patterns to the existing bolt circle, and selecting seal materials suited to the operating environment.
Custom solutions often reduce total system cost over the equipment's life cycle. Better load distribution extends bearing life, correct gear meshing reduces pinion wear, and appropriate sealing prevents premature failure from contamination. Whether you are upgrading an existing crane or designing new equipment, consulting our engineering team early in the design phase allows us to integrate the right bearing solution from the start — avoiding costly retrofits and field modifications later.
Conclusion
The 131.40.1600 Slewing Bearing combines three-row roller load capacity with a precision external gear and flexible OEM customization. With 20 years of manufacturing experience, ISO 9001-certified processes, and a 50-person engineering team, Heng Guan Bearing delivers rotary solutions built for the most demanding applications. Don't wait for a failure to expose a bearing problem — contact our team today for a tailored recommendation.
FAQ
Q: What loads can the 131.40.1600 Slewing Bearing handle?
A: It handles axial loads, radial loads, and overturning moments simultaneously thanks to its three-row roller structure, making it suitable for heavy rotary machinery such as cranes and port equipment.
Q: Can the external gear parameters be customized?
A: Yes. Module, tooth count, pressure angle, and tooth width can all be adjusted to match your existing pinion and drive system.
Q: What materials are available for this bearing?
A: Standard options include 42CrMo and 50Mn forged steel for rings, with GCr15SiMn bearing steel for rolling elements. Alternative alloys are available for specialized environments.
Q: What precision grades are offered?
A: P0, P6, and P5 precision grades are available, with P5 recommended for applications requiring higher rotational accuracy.
Q: How do I start an OEM order?
A: Send your drawings, load data, and operating conditions to our engineering team. We will review the requirements and provide a tailored proposal including material selection, heat-treatment plan, and pricing.
Get Your Custom 131.40.1600 Slewing Bearing Quote Today
Stop guessing and start building with confidence with a 131.40.1600 Slewing Bearing. Send your drawings or technical requirements to mia@hgb-bearing.com — our engineering team will deliver a tailored OEM quotation, complete with material certification, load analysis, and delivery timeline, within 24 hours.
References
1. Chinese Mechanical Engineering Society, Handbook of Slewing Bearing Design and Application. China Machine Press.
2. ISO 21329, Rolling Bearings — Slewing Bearings — Specifications. International Organization for Standardization.
3. DIN 616, Rolling Bearings — Boundary Dimensions. Deutsches Institut für Normung.
4. GB/T 29717, Slewing Bearings — Technical Conditions. China National Standard.
5. American Gear Manufacturers Association, AGMA Standard for Open Gearing in Large Bearings. AGMA.
6. Harris, T. A., & Kotzalas, M. N., Advanced Concepts of Bearing Technology (5th ed.). CRC Press.
