What are the Benefits of Single row four point contact ball slewing bearing (Q series)?

If you're evaluating rotational support solutions for your equipment, Heng Guan Bearing is here to walk you through the benefits of the Single row four point contact ball slewing bearing (Q series). As a specialist manufacturer of slewing rings and slewing bearings, Heng Guan Bearing has refined the Q Series to deliver a balanced mix of load capacity, precision, and cost efficiency. Let's look at what makes this four-point contact turntable bearing such a popular choice, and why it might suit your project — with real technical data from LYHGB's production line in Luoyang, China.

Key Design Features and Structural Advantages of Q Series Slewing Bearings

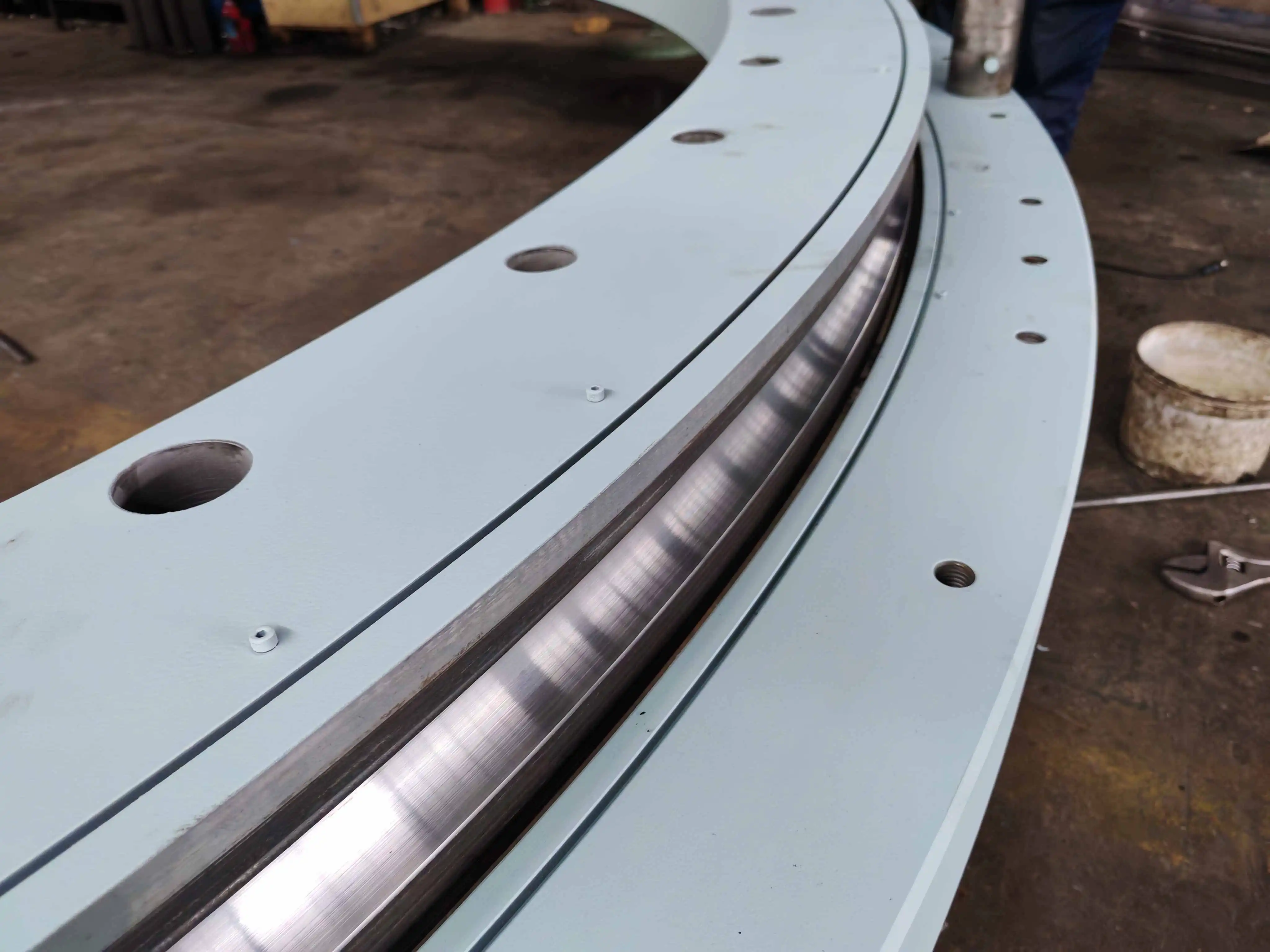

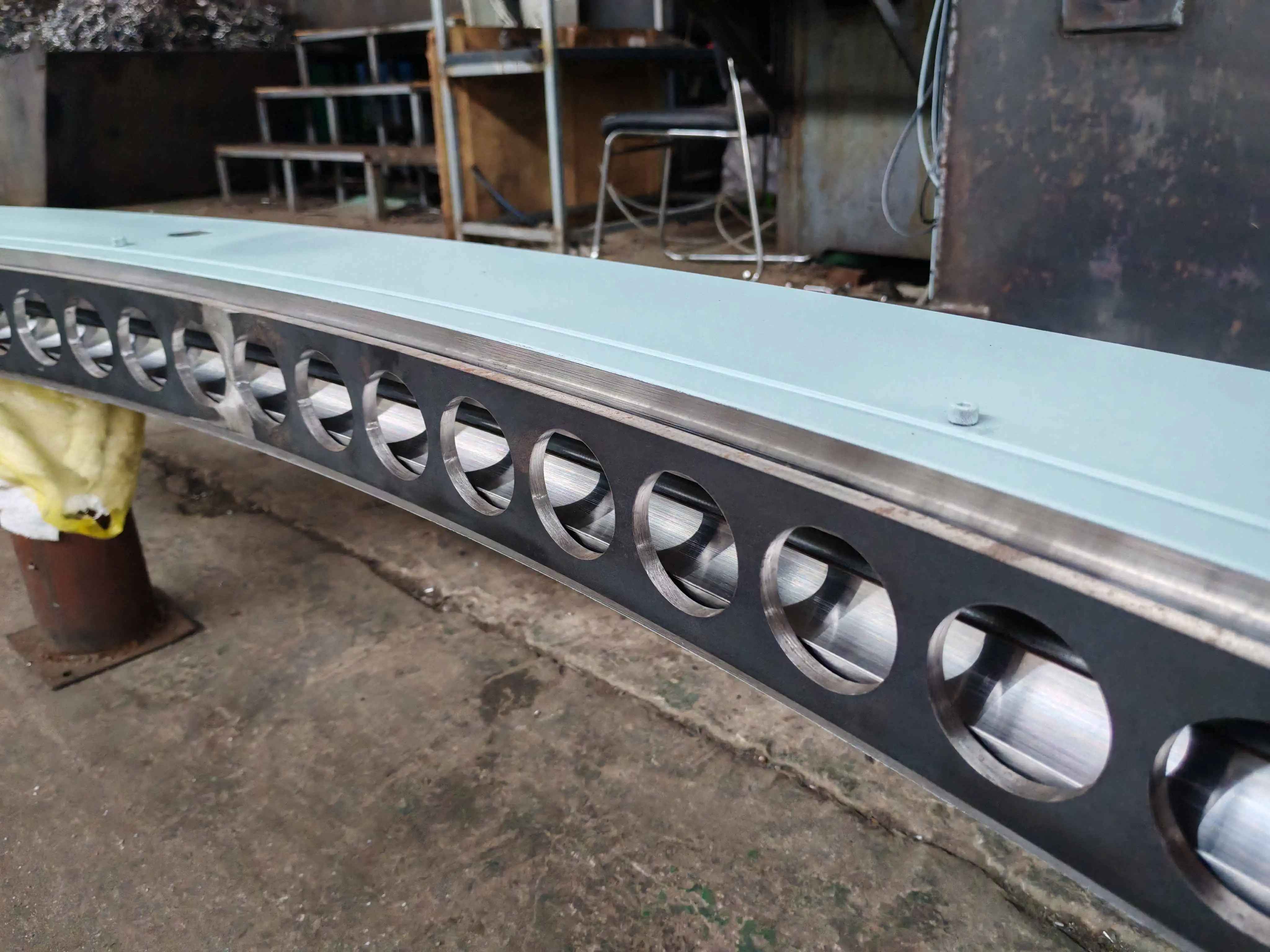

The single-row four-point contact ball slewing bearing (Q series) has a single row of steel balls set up in a Gothic-arch raceway. This means that each ball touches the raceway four times, twice on the inner ring and once on the outer ring. Because of its shape, this small ring can hold axial loads, radial loads, and turning moments all at the same time. This is why engineers call it a real four-point contact turntable bearing instead of a regular bearing.

The Q Series from Heng Guan Bearing comes in three different types of structures: QU (gearless), QW (external gear), and QN (internal gear). All of these follow the JB/T 10839-2008 model name standard. Induction hardening raises the raceway surfaces to HRC 55–62, which protects against wear on the surface while making the core tough enough to handle shock. A two-part sealing system (labyrinth seal plus rubber lip seal) keeps grease in and dirt out. This is very important for outdoor cranes, loaders, and solar trackers that work in dirty or wet conditions. This slewing ring saves both material and installation space compared to multi-row designs. The Q Series covers ball diameters from 16 mm to 60 mm across seven size series, and total heights range from just 60 mm to 150 mm.

It supports loads from small turntables to heavy-duty rotary platforms. There are also different types of mounting holes, such as type A (through holes in both rings), type B (threaded both), type C (outer threaded/inner through), or type D (inner threaded/outer through). This means that the bearing can fit your structure without you having to redesign it.

Why Choose Single Row Four Point Contact Ball Slewing Bearing (Q Series) for Heavy-Duty Applications?

Heavy-duty equipment demands a slewing ring that won't compromise under combined loading, and this is where the Q Series earns its reputation. The single-row four-point contact ball slewing bearing (Q Series) is engineered to handle simultaneous axial, radial, and moment loads without requiring a bulkier multi-row assembly, making it a practical choice for cranes, excavators, and construction turntables. Because it functions as a true four-point contact turntable bearing, the Gothic-arch geometry reduces friction losses while maintaining stable rotation even under shifting weight distribution — the four-point contact constrains the ball in both axial directions, preventing skidding under reversal loads. Gear modules range from m3.5 on the smallest 16 mm ball series up to m28 on the 60 mm series, with external-gear tooth counts from 91 to 195 and internal-gear tooth counts from 45 to 169, so the bearing can match nearly any existing pinion.

The gear modification coefficient is set at X = −0.5 for external gears and X = +0.5 for internal gears, optimizing tooth engagement for smooth torque transmission. If you'd like engineering guidance on matching this bearing to your load case, reach out to Heng Guan Bearing directly at mia@hgb-bearing.com — our team routinely helps customers translate torque and load requirements into the right bearing dimensions, gear configuration, and precision grade.

Load Capacity, Precision Performance, and Industrial Uses of Q Series Slewing Bearings

Precision and load capacity go hand in hand for any slewing ring, and the Q Series is available across accuracy grades P0, P6, P5, and P4, so buyers can match the bearing to either general industrial duty or high-precision rotational tasks. The single-row four-point contact ball slewing bearing (Q series) covers raceway center diameters from 280 mm up to 4,500 mm in the standard catalog, with custom diameters available up to 10,000 mm — giving flexibility across sectors from compact automation turntables to large port cranes. As a well-built four-point contact turntable bearing, it consistently performs in demanding environments.

Heng Guan Bearing tests each production batch for runout, gear accuracy, and load performance using 100% CMM dimensional inspection, Rockwell hardness verification, and rotation-flexibility testing before shipment, so customers receive a bearing built to hold up over long duty cycles.

How to Select a Reliable Single Row Four Point Contact Ball Slewing Bearing (Q Series) Manufacturer?

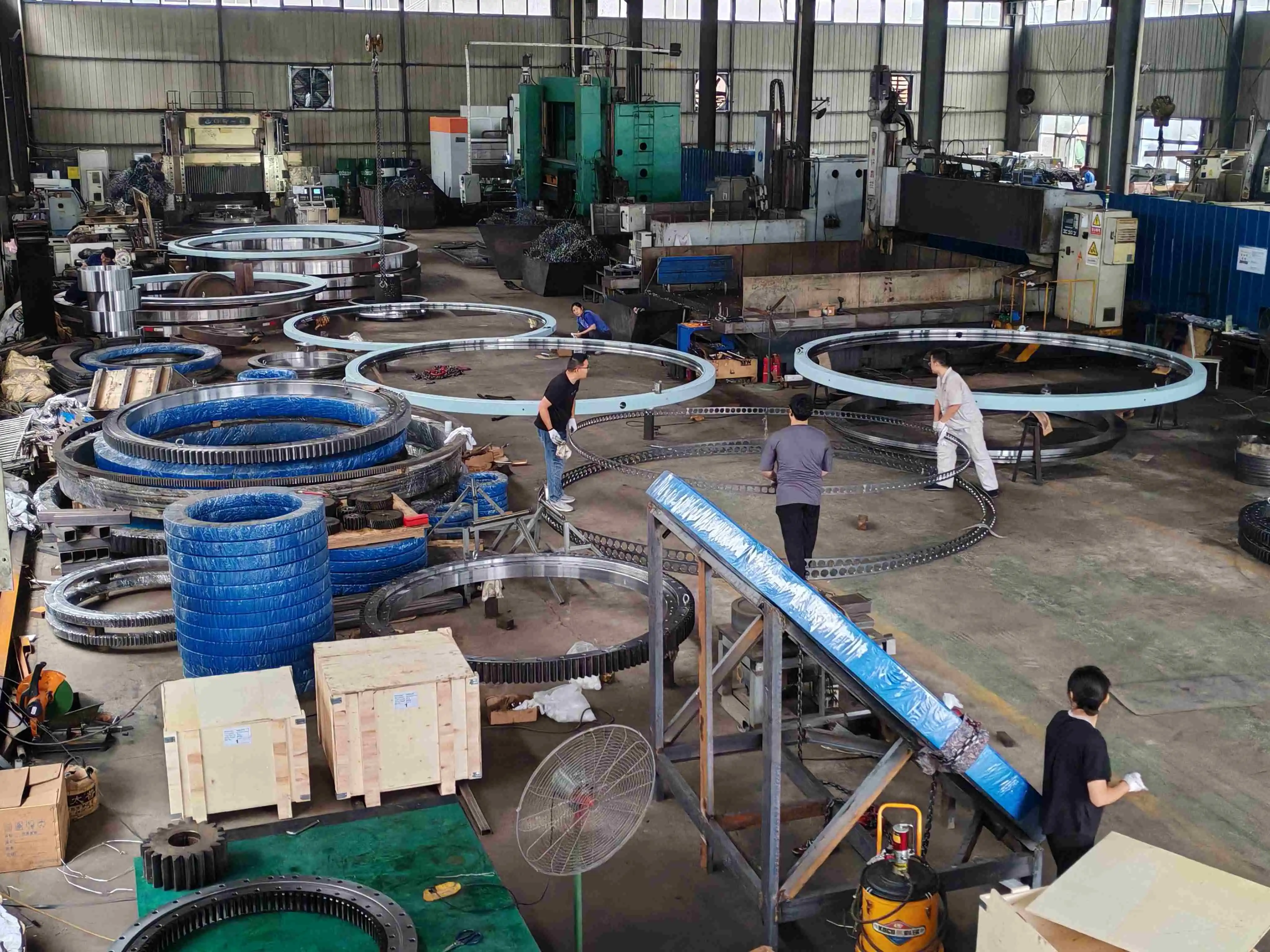

Choosing the right manufacturer matters as much as choosing the right bearing type. Look for a supplier who can provide accuracy inspection reports, material certificates, and clear technical drawings before you commit. Heng Guan Bearing, based in Luoyang — China's renowned bearing-manufacturing hub — combines experienced design engineers with advanced CNC processing and testing equipment to guarantee consistent quality on every single-row four-point contact ball slewing bearing (Q series) order.

A dependable supplier should perform 100% CMM dimensional inspection of all critical tolerances, Rockwell hardness testing at multiple raceway points, gear-profile measurement, and rotation-flexibility verification — all documented per batch. The model designation follows JB/T 10839-2008: structure type (Q) + gear type (U/W/N) + raceway center diameter + ball diameter, with mounting-hole type (A/B/C/D) specified per application. LYHGB also supports customized flexible production, so if your application needs a non-standard bore, modified gear module, special sealing, or custom mounting pattern, the engineering team can accommodate it — including reverse engineering from physical samples when original drawings are unavailable.

Semi-finished inventory supports emergency replacement, with stock items shipping in 7–15 days and custom designs in 4–6 weeks. Don't settle for an unverified supplier when reliability is on the line — request samples, mill certificates, and inspection documentation first.

Conclusion

The Q Series four-point contact turntable bearing delivers compact strength and reliable precision — Gothic-arch four-point contact, HRC 55–62 induction-hardened raceways, four precision grades (P0–P4), three gear configurations (QU/QW/QN), seven ball size series (16–60 mm), and diameters from 50 mm to 10,000 mm. Choose Heng Guan Bearing for certified quality manufacturing, flexible customization, and dependable engineering support.

FAQ

Q: What loads can the Q Series handle simultaneously?

A: Combined axial, radial, and tilting moment loads within a single ball row. The Gothic-arch raceway gives each ball four contact points — two on the inner ring and two on the outer — constraining movement in both axial directions.

Q: What accuracy grades are available?

A: Four ISO grades: P0 for general machinery, P6 for standard industrial use, P5 for automation and positioning systems, and P4 for high-precision optical or measurement equipment.

Q: What are the QU, QW, and QN variants?

A: QU is gearless (no gear teeth), QW has external gear teeth on the outer ring, and QN has internal gear teeth on the inner ring. The choice depends on your drive layout and pinion location.

Q: What gear modules and tooth counts are available?

A: Gear modules range from m3.5 to m28 across seven ball size series. External-gear tooth counts span 91 to 195; internal-gear tooth counts span 45 to 169. The modification coefficient is X = −0.5 for external and +0.5 for internal gears.

Q: Can the Q Series be customized?

A: Yes — custom bore sizes, gear modules, mounting-hole patterns (type A/B/C/D), sealing configurations, and surface treatments are all available. Reverse engineering from physical samples is supported when original drawings are unavailable.

Q: What are the lead times for standard and custom Q Series bearings?

A: Stock and semi-finished products ship in 7–15 days. Custom designs require 4–6 weeks depending on complexity. Semi-finished inventory supports emergency replacement needs.

Source Your Q Series Slewing Bearing with Engineering Confidence

Don't leave your equipment's performance to chance. Heng Guan Bearing delivers Single row four point contact ball slewing bearing (Q series) solutions in 42CrMo / 50Mn forged steel with HRC 55–62 induction-hardened Gothic-arch raceways, three gear configurations (QU/QW/QN), four precision grades (P0–P4), seven ball size series (16–60 mm), gear modules from m3.5 to m28, and diameters from 50 mm to 10,000 mm — backed by 100% CMM inspection, Rockwell hardness verification, gear-profile measurement, rotation-flexibility testing, and JB/T 10839-2008 compliance. Send your drawings, load charts, or sample photos to mia@hgb-bearing.com today and receive a tailored recommendation with a quotation within 24 hours.

References

1. Harris, T. A., & Kotzalas, M. N. — Rolling Bearing Analysis, CRC Press.

2. Brändlein, J., Eschmann, P., Hasbargen, L., & Weigand, K. — Ball and Roller Bearings: Theory, Design, and Application, Wiley.

3. International Organization for Standardization — ISO 76: Rolling Bearings — Static Load Ratings.

4. American Bearing Manufacturers Association — ANSI/ABMA Standards for Rolling Element Bearings.

5. Childs, P. R. N. — Mechanical Design Engineering Handbook, Butterworth-Heinemann.

6. Wang, W., & Chen, G. — "Design and Load Analysis of Slewing Bearings for Heavy Machinery," Journal of Mechanical Engineering Science.
