Large Mining Gear Wheel for SAG Mills, Ball Mills & Rotary Kilns

When your mining operation requests continuous control transmission in the harshest conditions, you require more than ordinary Gears—you require a custom solution. Luoyang Heng Guan Bearing Technology manufactures large gear rings for mining with diameters ranging from 1000mm to 10000mm, designed to withstand extreme torque and shock loads in 24/7 mining environments. Our gears adopt premium materials including 42CrMo and 40Cr alloy steels, with precision grades up to GB Grade 6. With over 20 years of expertise and a dedicated 50-member engineering team, we supply both integral and split solutions that meet the stringent requirements of SAG mills, ball mills, and rotary furnaces for mining operations worldwide.

Large Gear Wheel For Mining Details

The product serves as the basic control transmission component in mineral processing hardware. Our manufacturing process combines deep extinguishing warm treatment with CNC accuracy machining to make gears that stand up to wear, pitting, and tooth breakage.

Each gear highlights strengthened tooth profile plan with expansive module details. The tooth root consolidates double circular segment transition structures that increment weariness resistance by 40% compared to standard profiles. For ultra-large applications, we offer modular portioned plans with accuracy locating pins that guarantee exact gathering and long-term alignment stability.

Our heavy-duty wheel body structure uses integrally Forged base fabric, guaranteeing thick inner organization without defects. Fortified web plate plans incorporate stress alleviation gaps that avoid crack initiation amid warm cycling and mechanical shock loads common in mining environments.

Why Choose Us

Manufacturing Fabulousness: Our factory houses CNC vertical machines, CNC quenching machines, CNC gear shapers, and large gear hobbing machines capable of handling components up to 10 meters in diameter.

Engineering Bolster: Our specialized group gives comprehensive services including product design consultation, old product mapping, and personalized non-standard customization based on your 3D drawings or site measurements.

Proven Worldwide Reach: We've provided mining gear arrangements to over 50 nations including South Africa, Australia, the United States, and Canada, with items proven in demanding applications from copper mines to gold processing facilities.

Quality Framework: ISO9001 certified operations guarantee each manufacturing step follows recorded procedures. Our RoHS compliance ensures environmental responsibility in material selection.

Flexible Production: Whether you require a single substitution gear or batch production for numerous plants, our production capacity adjusts to your project timeline and stock requirements.

Technical Specifications

Features and Benefits

Reinforced Tooth Geometry: Expansive module coarse tooth plan with extraordinarily hardened tooth profiles conveys loads viably, avoiding untimely wear in high-impact crushing applications.

Superior Fatigue Resistance: Double circular segment transition at tooth root diminishes stress concentration focuses. This building detail expands operational life in cyclic loading conditions normal of process drives.

Dense Forged Structure: Integral forging dispenses with inner voids and inclusions that seem start fatigue cracks. You get reliable material properties all through the whole gear body.

Anti-Loosening Installation: Multi-layer locating shoulders combined with high-strength bolt groups anticipate gear relocation amid operation. Built-in anti-rotation highlights keep up alignment over a long time of service.

Modular Versatility: For diameters surpassing transport restrictions, our split plan with precision dowel pins allows on-site gathering whereas keeping up tooth alignment precision inside indicated tolerances.

Advanced Surface Treatment: Medium-frequency induction hardening makes a wear-resistant surface layer whereas protecting core toughness, giving you the perfect combination of hardness and impact resistance.

Applications

Your large gear ring for mining performs in these basic mineral processing systems:

Crushing Systems: Primary and secondary crushers depend on our gears to handle sudden shock loads when handling run-of-mine metal with shifting hardness and size distributions.

Grinding Equipment: SAG plants, AG plants, and ball plants depend on continuous rotation at precise speeds. Our gears maintain consistent work characteristics despite thermal expansion and bearing play variations.

Conveying Systems: Large-diameter rotational feeders and continuous transports utilize our gear wheels to move gigantic tonnages of material with solid torque transmission over long operational shifts.

Mineral Handling: Rotary dryers, calciners, and furnaces in downstream handling require gears that perform under combined mechanical and thermal stress while maintaining dimensional stability.

Installation Guide

Pre-Installation Inspection: Verify gear dimensions against equipment specifications. Check mounting surfaces for flatness within 0.5mm per meter. Inspect all bolt holes for thread damage.

Foundation Preparation: Ensure mill shell or kiln body mounting surface is clean and free from welding spatter, rust, or old gasket residue.

Positioning: Use lifting equipment rated for the gear weight (consult shipping documentation). For segmented gears, install segments sequentially, seating precision dowel pins before fastening.

Bolt Torquing: Follow manufacturer-specified torque sequence and values. Use calibrated torque wrenches. Perform bolt tensioning in multiple passes to achieve uniform clamping force.

Mesh Alignment: Check pinion-to-gear mesh contact pattern using engineer's blue or gear marking compound. Adjust pinion position to achieve 50–60% contact along the tooth length and centered contact on the tooth height.

Initial Run-In: Operate at reduced load for the initial 24–48 hours. Monitor gear temperature and vibration levels. Retorque mounting bolts after the first 100 operating hours.

Maintenance and Care

Regular Inspection Schedule: Check tooth surface for pitting, scoring, or crack initiation every 500 operating hours. Document wear patterns with photography for trend analysis.

Lubrication Management: Maintain proper lubricant viscosity and flow rate to the gear mesh. Sample lubricant quarterly for metallic particle analysis to detect early wear progression.

Bolt Integrity: Verify mounting bolt torque annually. Replace any fasteners showing thread damage or elongation beyond the elastic limit.

Alignment Monitoring: Measure gear run-out and axial wobble semi-annually. Excessive deviations indicate bearing wear or foundation settlement requiring corrective action.

Tooth Contact Verification: Reassess mesh pattern after major mill relining or pinion replacement. Poor contact leads to concentrated loading and accelerated tooth wear.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Testing & Certification

Every external gear ring undergoes coordinate measurement to verify tooth profile accuracy. We use vibration analysis to detect imbalances before shipment. Material certification documents trace steel composition back to the mill.

Our ISO 9001 quality system ensures process consistency. Inspection records accompany each order for your traceability requirements. RoHS compliance documentation is available for components entering regulated markets.

Packaging & shipping

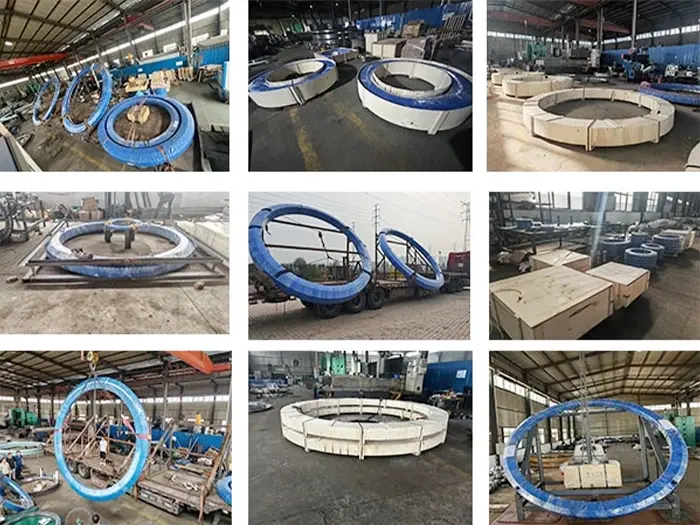

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

FAQ

Q: What lead time should I expect for a custom product?

A: Standard designs typically require 8-12 weeks from order confirmation to shipment. Complex segmented gears or non-standard materials may extend to 14-16 weeks depending on forging and heat treatment schedules.

Q: Can you manufacture gears to match existing worn components without original drawings?

A: Yes. Our engineering team provides reverse engineering services. We can measure your existing gear on-site or at our facility and produce complete manufacturing drawings for approval before production.

Q: What documentation do you provide for quality verification?

A: Each gear ships with material certificates, dimensional inspection reports, heat treatment records, and ultrasonic testing results. We can provide third-party inspection if required by your quality system.

Q: Do you offer replacement teeth for segmented gear repairs?

A: We manufacture replacement segments matching original specifications. Provide segment identification numbers or measurement data, and we'll produce compatible replacement sections.

Q: How do I determine if my gear needs replacement or can be refurbished?

A: Send us photos of tooth wear patterns and measurement data. Our engineers will assess remaining material thickness and recommend either continued service, reconditioning, or replacement based on safety margins.

Contact Us

Ready to specify your mining gear solution? Our engineering large gear rings for mining's team is available to discuss your application requirements, review existing designs, or develop custom specifications. Reach us at mia@hgb-bearing.com for technical consultation and quotation.
