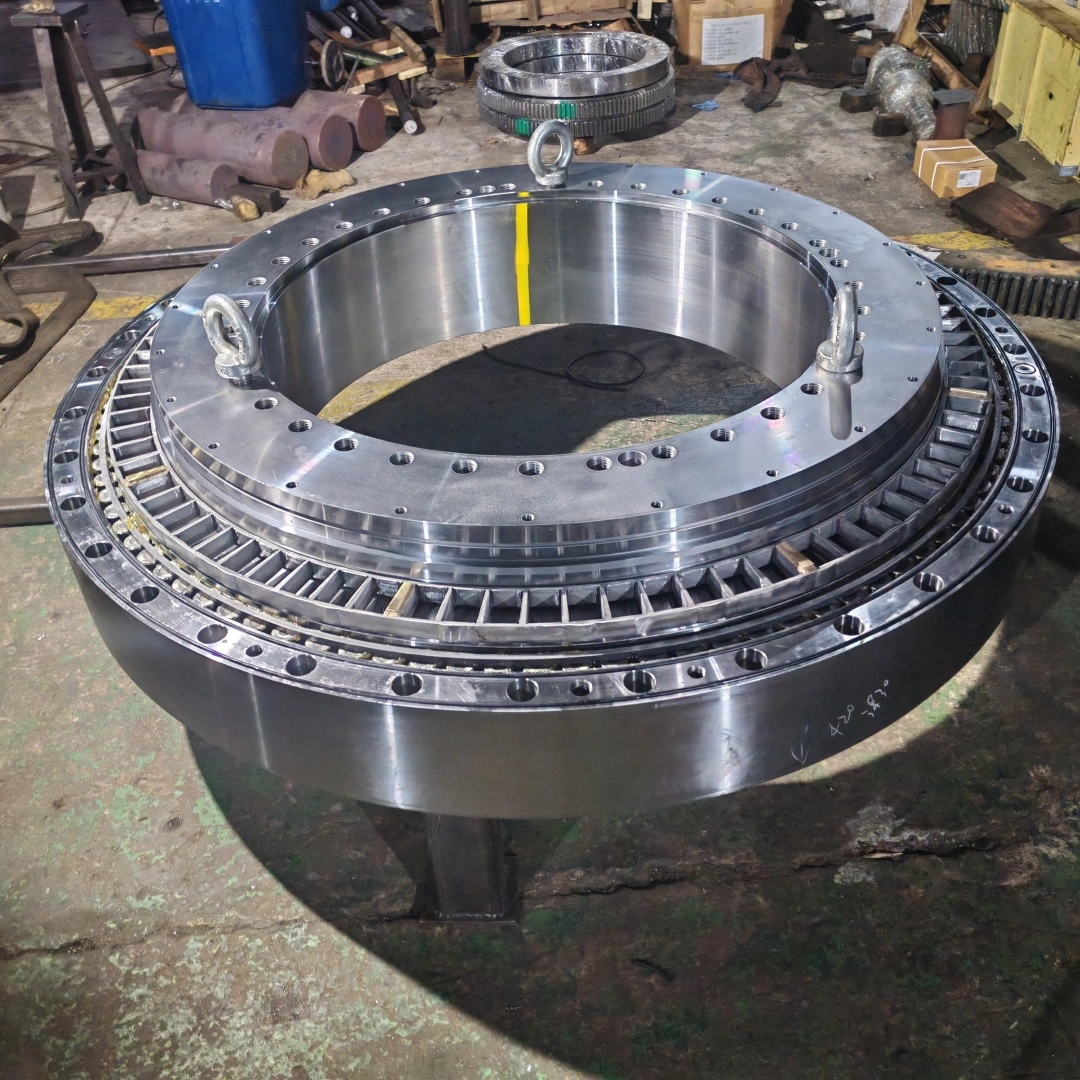

Tunnel Boring Machine Bearing manufacturer
Verified Engineering Excellence in Tunnel Boring Machine Bearing Manufacturing
When the schedule of your project rests on the structural integrity of your TBM, buying it directly from a qualified maker guaranties clear technical information and long-term dependability for your digging tools.
Finding a Tunnel Boring Machine Bearing manufacturer is a tough choice, and the word "manufacturer" can hide risks that come from going through a middleman. The hardest thing for procurement managers isn't just finding a part; it's also making sure that the supplier has the advanced technical facilities and engineering knowledge to keep projects from being held up in terrible ways. Choosing a source that hasn't been checked out can cause gear failure or seal leaks in Slurry Shield or Hard Rock TBMs. It's physically impossible and financially disastrous to replace a slewing ring that has become stuck in the middle of a tunnel.
Luoyang Heng Guan Bearing Technology Co., Ltd. bridges this trust gap by operating as a specialized production hub for shield machine slewing rings. Unlike generalist suppliers, the facility focuses on high-performance dual-row and multi-row ball designs, utilizing vacuum-degassed 42CrMo to withstand extreme axial thrust and tilting moments. With a manufacturing capacity ranging from φ1200mm to φ6000mm and cross-section heights up to 600mm, the engineering team provides professional custom solutions for specific tooth profiles and structural requirements across Earth Pressure Balance (EPB) and specialty shield equipment.
Authenticity is backed by rigorous compliance with ISO 9001, DIN, RoHS, and GB standards. Every Tunnel Boring Machine Bearing undergoes ultrasonic testing (UT) and magnetic particle inspection (MT) to ensure the raceway's structural rigidity post-induction hardening. This manufacturing rigor guarantees that each unit meets the required 10,000 to 15,000-hour design life for massive infrastructure crossings, providing the structural stiffness necessary to maintain precise excavation alignment in complex geological conditions.
Procurement specialists are encouraged to compare these factory-direct technical specifications and metallurgical reports against international project benchmarks to confirm the reliability of every Tunnel Boring Machine Bearing. High-precision gear tooth pitch accuracy combined with multi-lip sealing systems provides the ultimate defense against abrasive muck and pressurized water ingress.
A Verified Manufacturer of High-Capacity Tunnel Boring Machine Bearings
Luoyang Heng Guan Bearing Technology Co.,Ltd is a premier, verified Tunnel Boring Machine Bearing manufacturer specializing in the engineering and production of heavy-duty Tunnel Boring Machine (TBM) slewing bearings, backed by extensive industrial experience. With a massive manufacturing facility capable of producing precision bearings ranging from φ1200mm to φ6000mm, we have solidified our reputation as a core supplier for high-stakes global infrastructure projects. Our strength lies in our specialized technical expertise, utilizing premium 42CrMo material to engineer complex dual-row and multi-row designs that serve as the "heart" of TBM excavation systems.
Our production methods strictly follow ISO 9001, DIN, and GB standards to make sure that they are reliable in the harshest basement conditions. We have delivered high-performance parts for hundreds of large-scale projects, such as Hard Rock TBMs, Earth Pressure Balance, and Slurry Shield. Each unit goes through strict quality control measures, such as acoustic testing and magnetic particle inspection, to make sure it has the strength to handle large axial thrusts and twisting moments. In addition to manufacturing, our engineering team offers full custom solutions that can accommodate cross-section heights ranging from 150mm to 600mm to meet the needs of different natural areas. By using modern multi-lip sealing systems, we avoid huge delays in projects and make sure that equipment lasts as long as possible. You are welcome to check out our production facility or ask for a full technical dossier to see if our quality management systems and manufacturing skills are correct.
✅ ISO 9001 & DIN Certified
✅ Up to φ6000mm Diameter Capacity
✅ High-Grade 42CrMo Material
✅ Proven Multi-Row Roller Engineering
✅ 100% Rigorous NDT Inspection
Integrated Precision Manufacturing for High Performance Tunneling Operations
Identifying a Tunnel Boring Machine Bearing manufacturer capable of merging extreme load resistance with documented quality protocols is a critical hurdle for procurement teams. Substandard components risk catastrophic underground failures where replacement is logistically impossible. This solution set addresses these concerns through a vertically integrated manufacturing process that encompasses high-grade material selection, precision machining up to 6000mm, and rigorous non-destructive testing for unmatched durability.
- Custom Engineering for Diverse Shield Excavation Needs / Transitioning from Earth Pressure Balance to Hard Rock TBMs requires specific load-bearing profiles. Technical specialists leverage multi-row ball designs and customized tooth geometries to match the machine's exact torque requirements. Whether the project involves a φ1200mm micro-shield component or a φ6000mm heavy-duty assembly, the design process integrates structural rigidity with precise excavation alignment to prevent bearing seizure in complex geologies. / Explore Custom Capabilities
- Advanced Material Processing and Large-Scale Production Scale / Reliability begins with raw material integrity using vacuum-degassed 42CrMo steel specifically selected for fatigue resistance. The facility manages the entire production lifecycle for large-diameter bearings, maintaining cross-section heights up to 600mm. By controlling the heat treatment and induction hardening processes in-house, the manufacturing team eliminates sub-surface defects and ensures the raceways provide the 15,000-hour design life necessary for multi-kilometer tunneling projects. / View Production Capacity
- Rigorous Quality Assurance for Zero-Failure Underground Performance / Replacing a TBM bearing mid-tunnel is physically impossible, making pre-delivery validation critical to project success. A multi-stage QC protocol is implemented, including Ultrasonic Testing for internal inclusions and Magnetic Particle Testing for surface micro-cracks. Every unit undergoes dimensional verification via laser trackers and torque testing to ensure seal integrity, guaranteeing that the final assembly prevents the ingress of abrasive muck and pressurized water. / Review Quality Standards
φ1200mm - φ6000mm | Diameter Range Capability
15,000 Hours | Engineered Operational Design Life
100% UT/MT | In-House NDT Testing Rate
42CrMo Steel | Standard High-Strength Material Quality
FAQs
1. What is your typical manufacturing lead time for a custom Tunnel Boring Machine Bearing?
Our typical manufacturing lead time for a custom Tunnel Boring Machine Bearing ranges from 12 to 20 weeks, depending on the diameter and structural complexity. As a direct manufacturer, we manage the entire production cycle—from the sourcing of 42CrMo raw materials to precision grinding and final assembly. For large-scale projects requiring diameters up to φ6000mm, we provide a synchronized production schedule to ensure your tunneling equipment remains on track. To help you manage project risks, we offer bi-weekly progress reports including photos of the forging and machining stages. If you have an urgent replacement requirement for an active project, please contact our sales engineers to discuss our expedited manufacturing slots.2. How can I verify the quality and authenticity of your manufacturing process?
You can verify our manufacturing authenticity through our ISO 9001 and DIN certified quality systems and by requesting a comprehensive non-destructive testing (NDT) dossier. We perform Ultrasonic Testing (UT) on all raw forged rings per EN10228-3 to detect internal inclusions and Magnetic Particle Testing (MT) post-hardening to ensure no surface micro-cracks exist. Every Tunnel Boring Machine Bearing is shipped with a detailed material certificate and a dimensional report verified by laser trackers. We also welcome third-party inspections from agencies like SGS or BV at our facility. For customers unable to visit in person, we provide live video factory tours to demonstrate our heat treatment and gear-cutting capabilities.3. Can you manufacture customized slewing bearings for different types of TBM equipment?
Yes, we specialize in manufacturing customized slewing bearings for Earth Pressure Balance (EPB) Shields, Slurry Shields, and Hard Rock TBMs. Our production capacity covers diameters from φ1200mm to φ6000mm, with the ability to produce dual-row or multi-row ball and roller designs. Whether your equipment requires specific tooth profiles for internal or external gears or specialized mounting hole patterns, our engineering team can provide a tailored solution. We utilize 42CrMo as our standard material but can accommodate specific metallurgical requirements to match your project's geological challenges. Contact us today to receive a technical proposal and a preliminary CAD drawing based on your machine's specifications.4. How do you ensure the durability of your bearings in high-pressure and abrasive environments?
We ensure maximum durability by integrating a proprietary multi-lip sealing system and utilizing vacuum-degassed 42CrMo steel to prevent sub-surface fatigue. Our bearings are engineered for a design life of 10,000 to 15,000 hours, specifically designed to withstand the ingress of abrasive muck and pressurized water in slurry or EPB environments. We perform rigorous hardness mapping across the raceways to ensure consistent HRC values, which is critical for maintaining structural rigidity under massive axial thrust. By controlling the induction hardening depth and soft-zone placement with precision, we significantly reduce the risk of gear failure or bearing seizure. You can view our technical case studies to see how our bearings perform in complex geological conditions.5. What are the key factors to consider when evaluating a Tunnel Boring Machine Bearing manufacturer?
Evaluating a manufacturer requires a focus on three critical pillars: technical engineering depth, material traceability, and specialized testing infrastructure. A qualified supplier must demonstrate the ability to handle large-diameter components—often exceeding 4 meters—while maintaining tight tolerances for gear pitch and raceway geometry. It is essential to verify their adherence to international standards such as ISO and DIN, and ensure they provide full NDT documentation, including ultrasonic and magnetic particle reports. Furthermore, a reliable partner should offer customized sealing solutions for specific soil conditions and have a proven track record of successful deployments in high-stakes infrastructure projects to minimize the risk of costly project delays.
