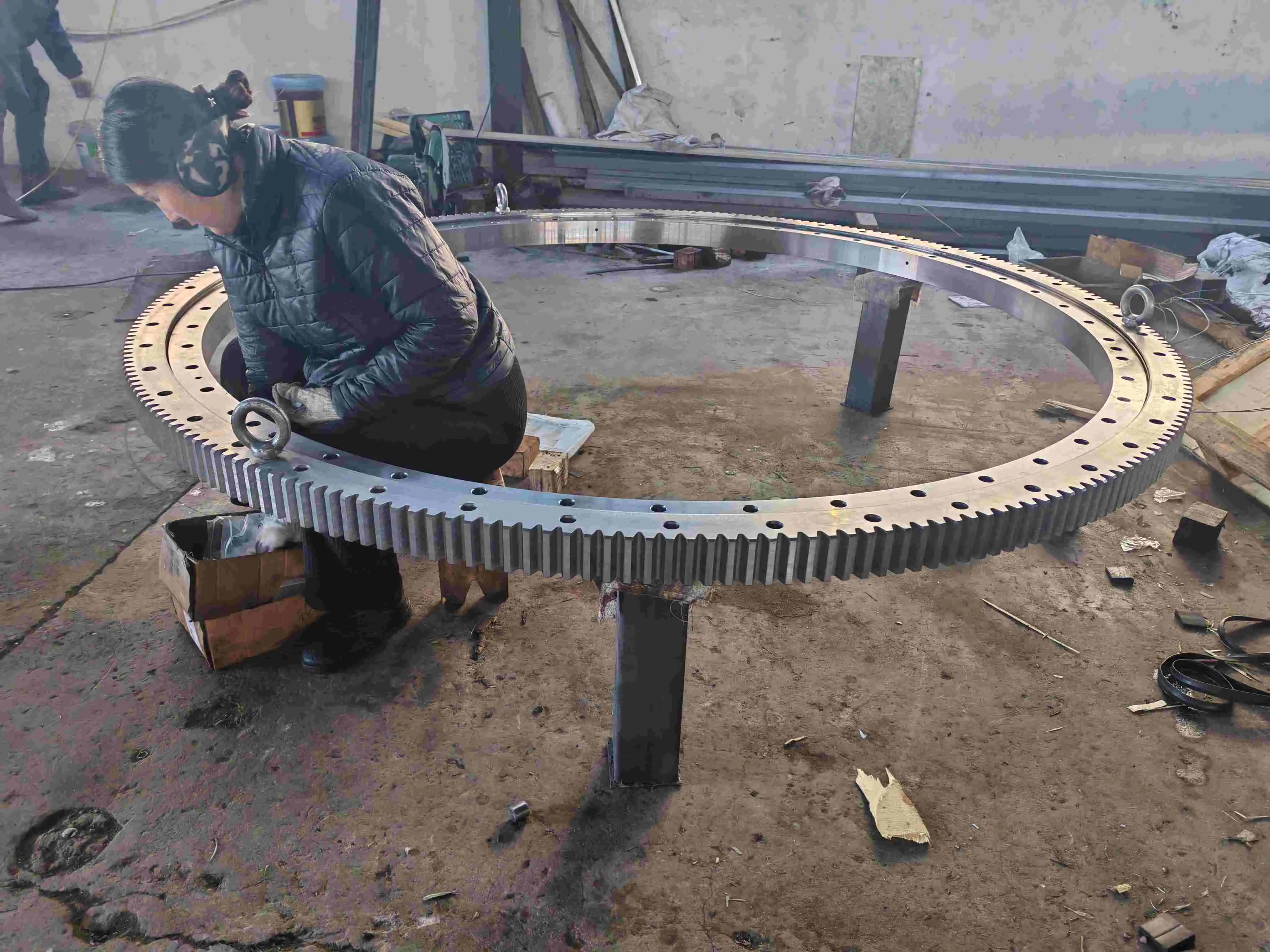

Why Choose a Custom Cross Roller Slewing Ring Bearing Solution?

Catalog bearings rarely match a one-of-a-kind machine structure, which is why more engineers are turning to a custom Cross Roller Slewing Ring Bearing solution. Heng Guan Bearing builds rotary support components sized to your exact load, envelope, and mounting requirements instead of forcing a one-size-fits-all part into your design. Below, we cover what makes crossed-roller designs ideal for customization, how load capacity and rigidity compare, how customization improves accuracy, what size and mounting options exist, and how to choose a supplier you can trust.

What Makes a Cross Roller Slewing Ring Bearing Ideal for Custom Designs?

The crossed-roller construction is inherently suitable for customisation by squeezing axial, radial, and moment load capacity into a single compact raceway. A Cross Roller Slewing Ring Bearing utilizes cylindrical rollers that are arranged orthogonally in a repeating pattern of 1:1. Hence, it transmits combined loads via line contact rather than distributing loads across many rows. The single-row design allows engineers to tune cross-section, bore diameter, and gear placement without having to redesign the whole assembly, which is why it is a common starting point for a cross-roller slewing ring bearing for excavator applications where cabin space and swing-drive geometry vary between machine models.

These bearings are produced by Heng Guan Bearing in gearless, internal-gear, and external-gear designs as part of its 110–114 series (each ranging from 500 to 3,150 mm). This allows the same basic construction to be adapted to suit multiple drive systems during the custom design process.

Cross Roller Slewing Ring Bearing Load Capacity and Rigidity

One of the primary reasons purchasers choose crossed rollers over ball designs is rigidity. Line contact distributes the load over a wider region than point contact does. A well-recognized reference in the industry is the Rollix 06 series slewing bearing, which is a crossed roller family extensively used in cranes, excavators, robots, and precision rotary equipment. A few examples include 06-0307-00, 06-0734-00, 06-0823-18, and 06-1390-03. When a Heng Guan Bearing cross roller slewing bearing for an excavator is to be Rollix-compatible or to project-specific specifications, the objective is to maintain the same load-sharing behavior while adapting bore size, bolt-hole pattern, and material grade to your structure.

This is very important in a cross roller slewing ring bearing for the swing circles of an excavator on 20-50 ton machines, where the bearing has to take the digging force through the bucket along with the tilting moment of an extended boom, typically under repeated shock loading during a whole workday.

How Does Customization Improve Bearing Accuracy and Rotation?

Off-the-shelf bearings are built to general tolerances, but a custom-engineered Cross Roller Slewing Ring Bearing can be finished to a tighter precision grade matched to your actual accuracy requirement.

Heng Guan Bearing offers P0, P6, P5, and P4 precision classes, letting buyers specify tighter raceway tolerances where positioning accuracy or low rotational play genuinely matters, rather than paying for unnecessary precision on a simple rotating platform. Customization also extends to cage material, seal type, and preload setting, all of which affect how smoothly the bearing rotates under load.

For a cross roller slewing ring bearing for an excavator cab or swing drive, tighter clearance control reduces backlash and improves operator feel during precise digging or positioning tasks. If you have a target accuracy class or an existing drawing you'd like matched, send it to mia@hgb-bearing.com and our engineering team will confirm feasibility before quoting.

Cross Roller Slewing Ring Bearing Size, Gear, and Mounting Options

Catalog parts are typically abandoned due to size and mounting flexibility. A Rollix 06 series slewing bearing can be made from 500 to 3,500 mm in diameter (custom builds can reach 6,000 mm and beyond) with bolt-hole patterns, flange thickness, and seal grooves configured to match an existing structure exactly, avoiding costly redesign of the surrounding machine frame.

The philosophy behind the gear type option is the same as for the Rollix 06 series slewing bearing family: external gear for direct pinion drive, internal gear where protection from contamination is paramount (the usual choice for excavators), and gearless when an independent drive system is already available. The flatness of the mounting surface and the correctness of the bolt circle should always be stated in the design, since these features impact the load distribution in the real world as much as the bearing’s own rated capacity.

How to Choose the Right Cross Roller Slewing Ring Bearing Supplier?

Choosing a supplier for a custom rotary component comes down to engineering support, material traceability, and proven manufacturing capability. Ask whether the supplier can review your drawing directly, provide material certificates for the forged ring, and share inspection data — including ISO 1328 gear-geometry checks and Rockwell C hardness tests — before shipment.

For a cross-roller slewing ring bearing for an excavator or other heavy-duty application, references from customers running comparable duty cycles are worth requesting as well. Lead time is a practical differentiator too: Heng Guan Bearing ships standard cross-roller rings in 7–15 days and custom designs in 4–6 weeks.

Backed by ISO 9001 certification and a 50-person engineering team with over 30 years of collective experience, Heng Guan Bearing has supported customers across construction, mining, and precision equipment industries with drawing-based custom designs and welcomes technical questions before you commit to an order.

Conclusion

A custom Cross Roller Slewing Ring Bearing delivers the load capacity, precision, and fit that catalog parts often can't. Heng Guan Bearing designs and manufactures these solutions to your exact specifications. Contact Us to start your custom project.

FAQ

Q1: What load types does a Cross Roller Slewing Ring Bearing handle?

 A: Its crossed-roller raceway carries axial, radial, and moment loads together through line contact.

Q2: Is a cross roller slewing ring bearing suitable for excavators?

 A: Yes, its rigidity and compact structure make it a common choice for excavator swing circles, typically in internal-gear configurations.

Q3: What is the Rollix 06 series slewing bearing known for?

A: It's a widely used crossed-roller family valued for combined-load capacity in cranes, excavators, and precision equipment.

Q4: Can Heng Guan Bearing match an existing bearing drawing?

 A: Yes, send your drawing to our engineering team for a feasibility and dimensional review.

Q5: What precision grades are available for custom bearings?

A: We offer P0, P6, P5, and P4 grades depending on your positioning accuracy requirements.

Q6: How rigid is a cross roller design compared to a ball bearing?

A: Rigidity is typically 30–50% higher than that of a same-size four-point ball slewing bearing, though load capacity is slightly lower.

Start Your Custom Bearing Project

Ready to design a bearing that fits your machine exactly? Send your drawing or specifications to mia@hgb-bearing.com, and Heng Guan Bearing's engineers will confirm feasibility, pricing, and lead time for your custom Cross Roller Slewing Ring Bearing.

References

1. American Bearing Manufacturers Association. ANSI/ABMA 9-2015 (R2020): Load Ratings and Fatigue Life for Ball Bearings. American Bearing Manufacturers Association, 2015.

2. Harris, T. A., & Kotzalas, M. N. Advanced Concepts of Bearing Technology: Rolling Bearing Analysis, Fifth Edition. Boca Raton, FL: CRC Press, 2006.

3. International Organization for Standardization. ISO 76:2006. Rolling Bearings — Static Load Ratings. 3rd ed. Geneva: International Organization for Standardization, 2006.

4. International Organization for Standardization. ISO 1132-1:2000. Rolling Bearings — Tolerances — Part 1: Terms and Definitions. Geneva: International Organization for Standardization, 2000.

5. Brändlein, J., Eschmann, P., Hasbargen, L., & Weigand, K. Ball and Roller Bearings: Theory, Design and Application. 3rd ed. Chichester: John Wiley & Sons, 1999.

6. Rollix. Slewing Rings: Technical Documentation and Product Information. Rollix/Defontaine Group.
