Slewing Bearing With External Gear

Slewing Bearing With External Gear

Product Details

When your equipment demands precise rotation combined with power transmission, a Slewing Bearing With External Gear becomes the ideal solution. This specialized bearing integrates load-carrying capacity with direct gear drive capability in a single compact unit. The external gear design allows direct coupling with your drive system, eliminating additional transmission components and simplifying your machine structure. At Luoyang Heng Guan Bearing Technology, we manufacture these bearings to exact tolerances, ensuring smooth rotation under combined axial, radial, and moment loads. With diameter options from 200mm to 5000mm, our external gear slewing bearings serve applications from compact equipment to large-scale industrial machinery.

Our item highlights numerous basic arrangements. You can select from single-row four-point contact ball sort for lighter loads, double-row ball sort for improved stack conveyance, triple-row roller sort for heavy-duty applications, or crossed-roller plan for greatest inflexibility. Each arrangement employments high-purity GCr15SiMn bearing steel for rolling components and 42CrMo or 50Mn combination steel for races. The indispensably outside teeth are accurately machined to guarantee exact work with your pinion drive.

Why Choose Us?

Three Decades of Bearing Expertise

Our building group brings over 20 years of specialized information in slewing bearing plan and fabricating. We get it the stretch designs, stack conveyances, and operational challenges your gear faces.

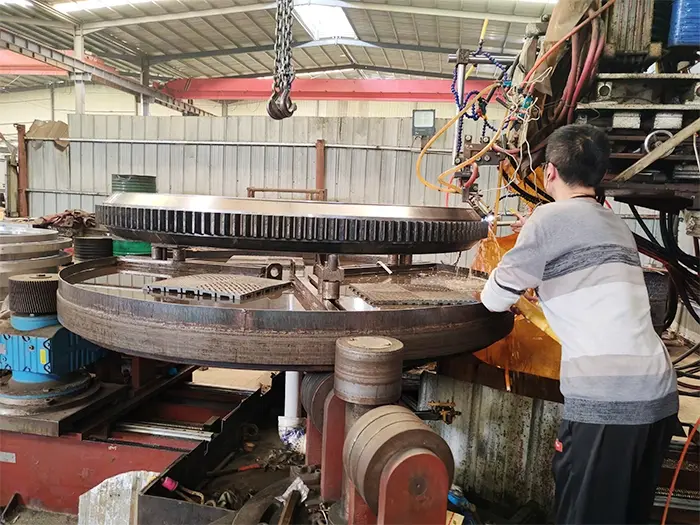

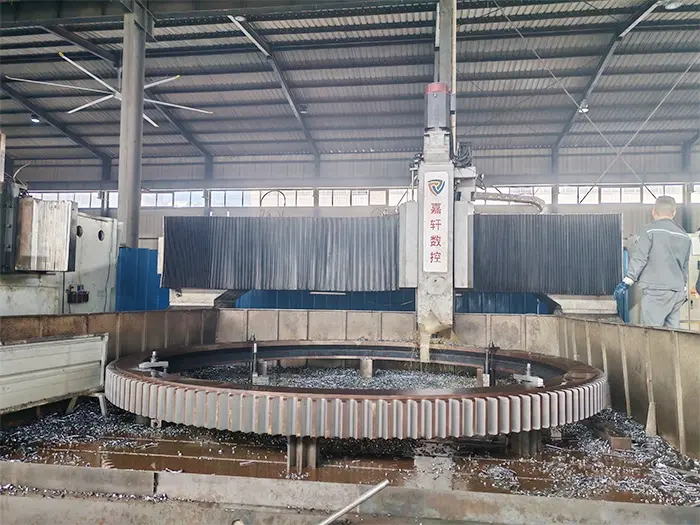

Precision Fabricating Capability

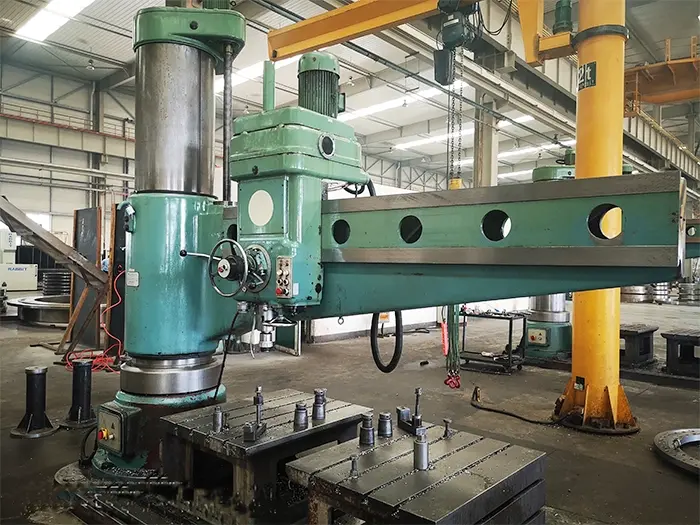

We keep up CNC vertical machines, CNC extinguishing machines, CNC equip shapers, and specialized pounding gear devoted to huge bearing generation. This hardware permits us to hold resistances over P0, P6, P5, and P4 accuracy grades.

ISO 9001 Certified Quality System

Every bearing passes through archived quality checkpoints from crude fabric review to last testing. Our arrange measuring machines confirm dimensional exactness whereas vibration analyzers affirm smooth operation some time recently shipment.

Flexible Customization Service

Beyond standard sizes, we give specialized interview, custom plan, and fabricating for non-standard prerequisites. If you have ancient orientation to supplant but need drawings, our mapping benefit reproduces determinations from your existing units.

Global Supply Experience

We right now serve clients over 50+ nations counting Germany, the Joined together States, Australia, and the Center East. This worldwide presentation makes a difference us get it differing application prerequisites and administrative measures.

Technical Specifications

Testing & Certification

Our quality control process includes dimensional inspection using coordinate measuring machines, hardness verification, gear tooth profile measurement, and rotation torque testing. We maintain ISO 9001 certification and ensure RoHS compliance for all materials. Each Slewing Bearing With External Gear ships with dimensional reports and material certificates.

Features and Benefits

Coordinates Equip Drive

The outside teeth dispense with isolated adapt rings and mounting equipment. This decreases your get together time and brings down generally framework weight.

Multiple Stack Way Design

Our bearing structure handles concurrent pivotal pushed, outspread drive, and tilting minute through optimized raceway geometry. You maintain a strategic distance from requiring partitioned orientation for distinctive stack directions.

Advanced Fixing System

Imported nitrile or fluororubber seals ensure inside components from defilement whereas holding oil. This amplifies benefit interims and diminishes upkeep costs.

Hardened Raceway Surfaces

CNC-controlled extinguishing makes uniform hardness dispersion over load-bearing surfaces. The result is steady wear resistance and unsurprising benefit life.

Precision Equip Machining

We cut outside teeth utilizing CNC adapt shapers after warm treatment, keeping up precise pitch and profile indeed after warm stretch alleviation. This guarantees calm operation and indeed stack dispersion over adapt teeth.

Applications

Construction Machinery

Excavators, versatile cranes, and concrete pumps depend on these heading for swing drive frameworks. The outside equip gives coordinate association to water powered motors.

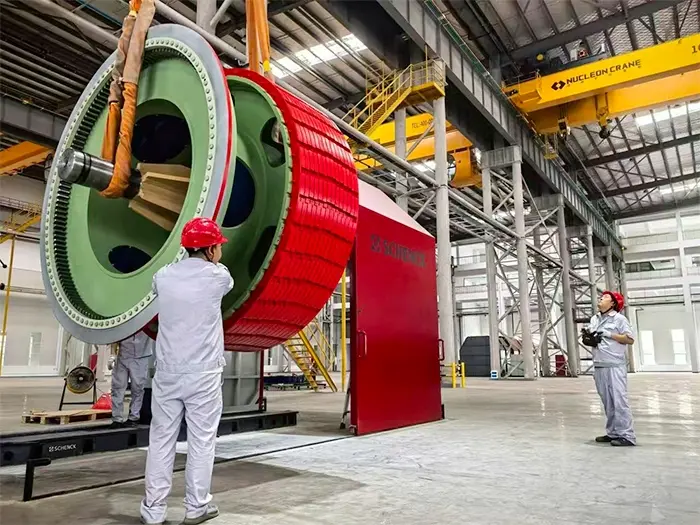

Wind Control Equipment

Yaw and pitch frameworks in wind turbines utilize outside equip slewing orientation to position nacelles and edges. Our fixing frameworks stand up to dampness interruption in seaward installations.

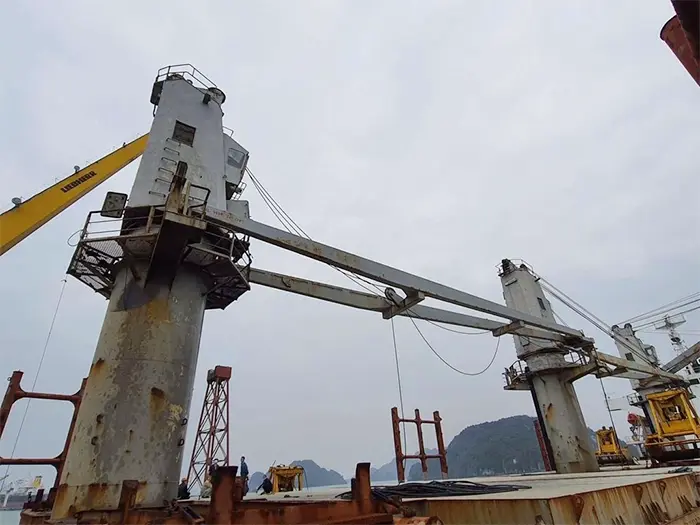

Port Machinery

Ship-to-shore cranes, portable harbor cranes, and bulk dealing with hardware depend on these heading for revolution beneath overwhelming loads. Corrosion-resistant coatings amplify life in marine environments.

Military Equipment

Radar stages, weapon frameworks, and specialized vehicles require exact situating. Our P5 and P4 exactness grades meet strict exactness requirements.

Metallurgical Equipment

Ladle turrets, persistent casting machines, and fabric handlers work in high-temperature, sullied situations. Triple-row roller setups handle extraordinary loads in these conditions.

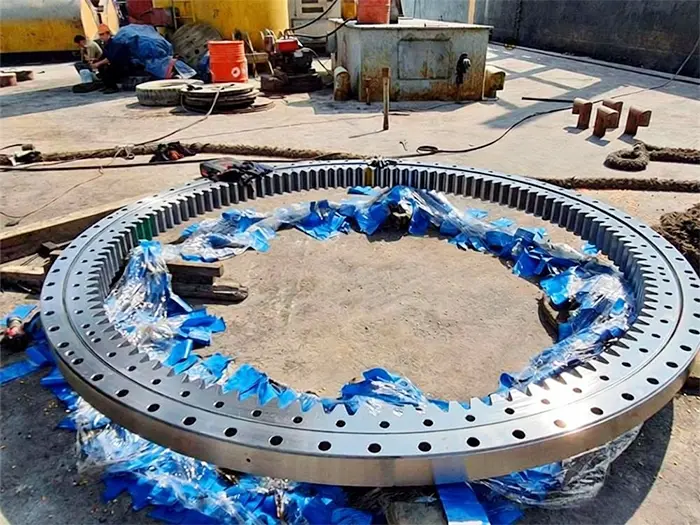

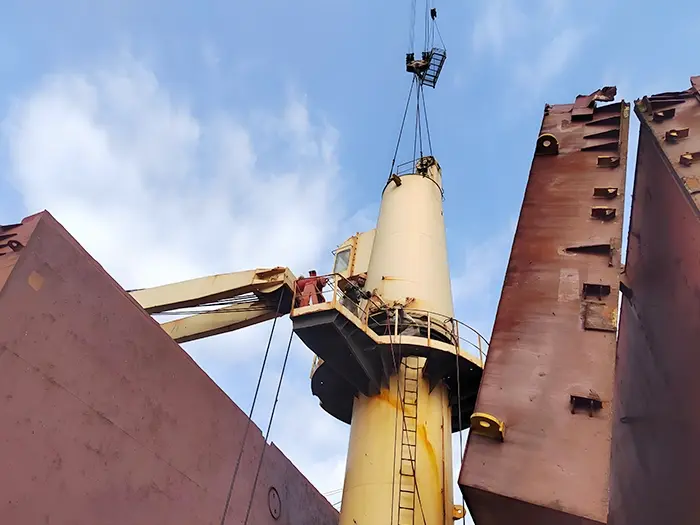

Installation Guide

Clean mounting surfaces and verify flatness within specified tolerances. Position the bearing and align bolt holes. Install mounting bolts in a star pattern, tightening gradually to specified torque values. Check gear mesh backlash and adjust as needed. Inject grease through lubrication fittings until fresh grease appears at seals. Perform initial rotation test and verify smooth operation before connecting drive components.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Inspect your bearing every 100 operating hours initially, then adjust intervals based on observed conditions. Add grease through fittings according to your duty cycle—continuous rotation requires more frequent lubrication than intermittent operation. Monitor gear tooth wear patterns and backlash changes. Check mounting bolt torque annually. If you notice increased resistance, unusual noise, or vibration, contact our technical team for guidance.

FAQ

Q: Can you modify the gear module to match my existing pinion?

A: Yes, we customize gear parameters including module, pressure angle, and tooth count to match your drive system specifications.

Q: What's the typical lead time for custom sizes?

A: Standard modifications take 4-6 weeks. Complex custom designs may require 8-10 weeks depending on size and specifications.

Q: How do I select between ball and roller type bearings?

A: Ball types suit moderate loads with occasional impact. Roller types handle higher static and dynamic loads but cost more. Share your load conditions and we'll recommend the optimal type.

Q: Do you provide installation support?

A: We supply detailed installation drawings and procedures. For critical applications, we can arrange on-site technical guidance.

Q: What information do you need for a quotation?

A: Provide diameter requirements, load values (axial, radial, moment), mounting configuration, and operating conditions. Even rough estimates help us propose suitable options.

Contact Us

For technical specifications, quotations, or application support regarding our Slewing Bearing With External Gear products, reach us at mia@hgb-bearing.com.
